IOGear GCS1808 Manuel utilisateur

GCS1808/GCS1716

PART NO. M1102/M1074

Installation

Installation Guide

8/16-Port USB PS/2 Combo KVMP Switch

IOGEAR, the IOGEAR logo, MiniView®, VSE are trademarks or registered trademarks of IOGEAR, Inc. Microsoft and

Windows are registered trademarks of Microsoft Corporation. IBM is a registered trademark of International Business

Machines, Inc. Macintosh, G3/G4 and iMac are registered trademarks of Apple Computer, Inc. IOGEAR makes no warranty

of any kind with regards to the information presented in this document. All information furnished here is for informational

purposes only and is subject to change without notice. IOGEAR, Inc. assumes no responsibility for any inaccuracies or

errors that may appear in this document.

Package Contents

1 x 8/16-Port USB PS/2 Combo KVMP Switch–

1 x PS/2 KVM Cable–

1 x USB KVM Cable–

1 x Console Cable–

1 x Cascade Cable–

1 x Firmware Upgrade Cable–

1 x Rack Mount Kit (1 Set)–

1 x Grounding Wire–

1 x Foot Pad Set (4 Pads)–

1 x Power Adapter–

1 x Installation Guide–

1 x Warranty Card–

System Requirements

Console

• A display with an VGA (HDB-15) input

• A USB or PS/2 Keyboard and Mouse

Computers

• A video output with an VGA (HDB-15) female connector

• Open USB port or PS/2 keyboard and mouse ports

Table of Contents

Hotkey Setting Mode (HSM) 50

Mac Keyboard Emulation 52

Sun Keyboard Emulation 53

Factory Default Settings 54

Firmware Upgrade 55

Upgrade Fail 59

Restore Factory Default Settings 60

Federal Communications Commission

(FCC) Statement 62

CE Statement 64

Limited Warranty 65

Contact 66

Package Contents 3

System Requirements 4

GCS1808 Overview 6

GCS1716 Overview 8

Foot Pad Set Installation 10

Rack Mounting 11

Grounding 14

Single Level Installation 15

2-Level Installation (Cascading) 18

LED Indication 22

Port Switching 23

On-screen Display (OSD) Operation 24

1 2 3 4

5 6

GCS1808 Overview

Port 1~8 switch Button1.

Reset Button2.

USB Sharing Port*3.

Front view

*Note: The USB sharing device can only be used if your computer is connected to the KVM via a USB

KVM Cable. Also, it does not support cascading; in other words, it can only be shared within the 8 ports

of the KVM.

Firmware Upgrade Recovery Switch4.

Firmware Upgrade Cable Port5.

Power LED6.

12345678

PS/2-USB CPU

CONSOLE

3 4 5

Back view

CPU1~8 Port1.

Grounding2.

Cable Tie Slot3.

Power Jack4.

Console Port5.

1 2 3 4

5 6

GCS1716 Overview

Port 1~16 Switch Button1.

Reset Button2.

USB Sharing Port*3.

*Note: The USB sharing device can only be used if your computer is connected to the KVM via a USB

KVM Cable. Also, it does not support cascading; in other words, it can only be shared within the 16 ports

of the KVM

Front view

Firmware Upgrade Recovery Switch4.

Firmware Upgrade Cable Port5.

Power LED 6.

12345678

1112131415161718

PS/2-USB CPU

CONSOLE

3 4 5

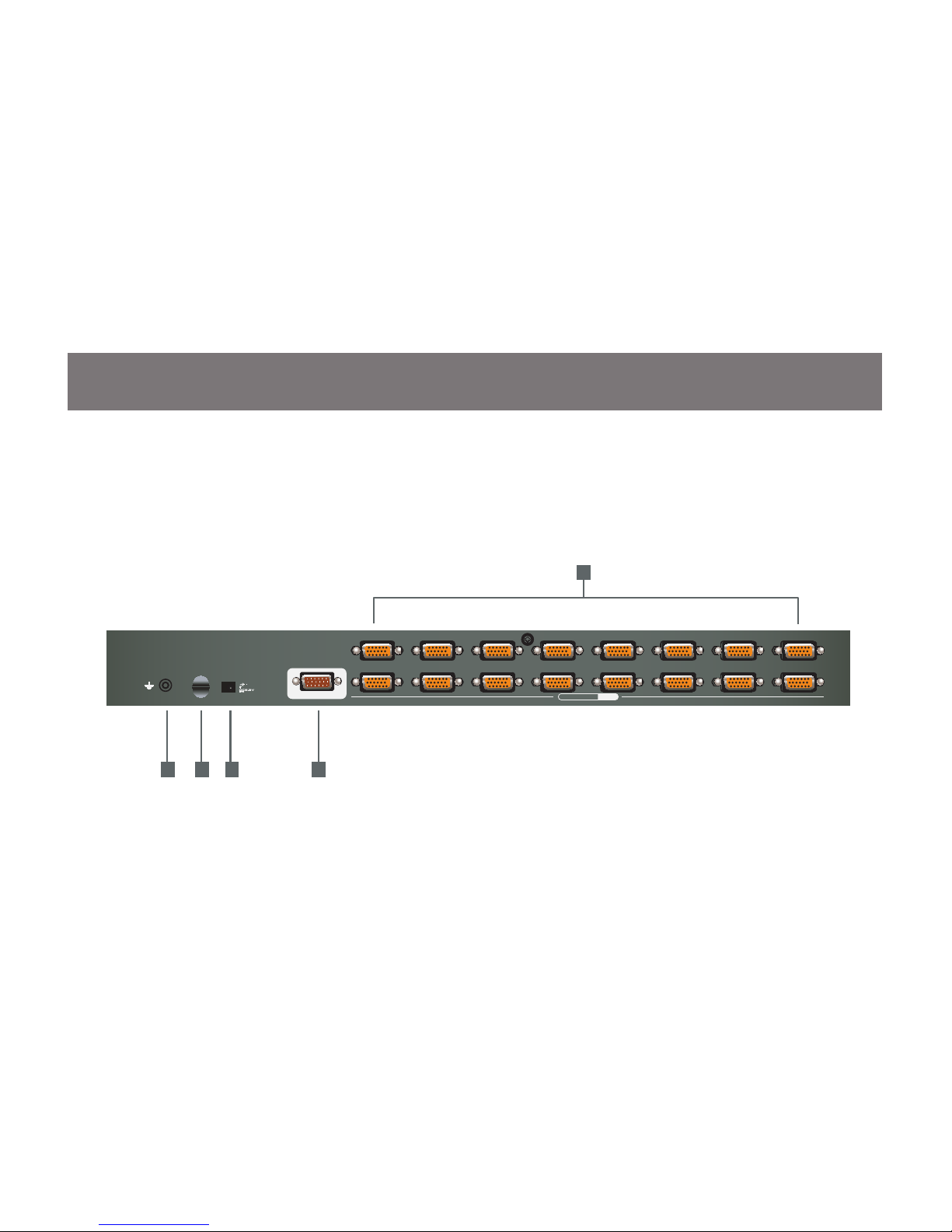

CPU1~16 Port1.

Grounding2.

Cable Tie Slot3.

Back view

Power Jack4.

Console Port5.

Foot Pad Set Installation

Flip the KVM switch upside down. Peel the protective lms off of the foot pads, then stick the pads to the

four corners, as shown in the diagram below.
