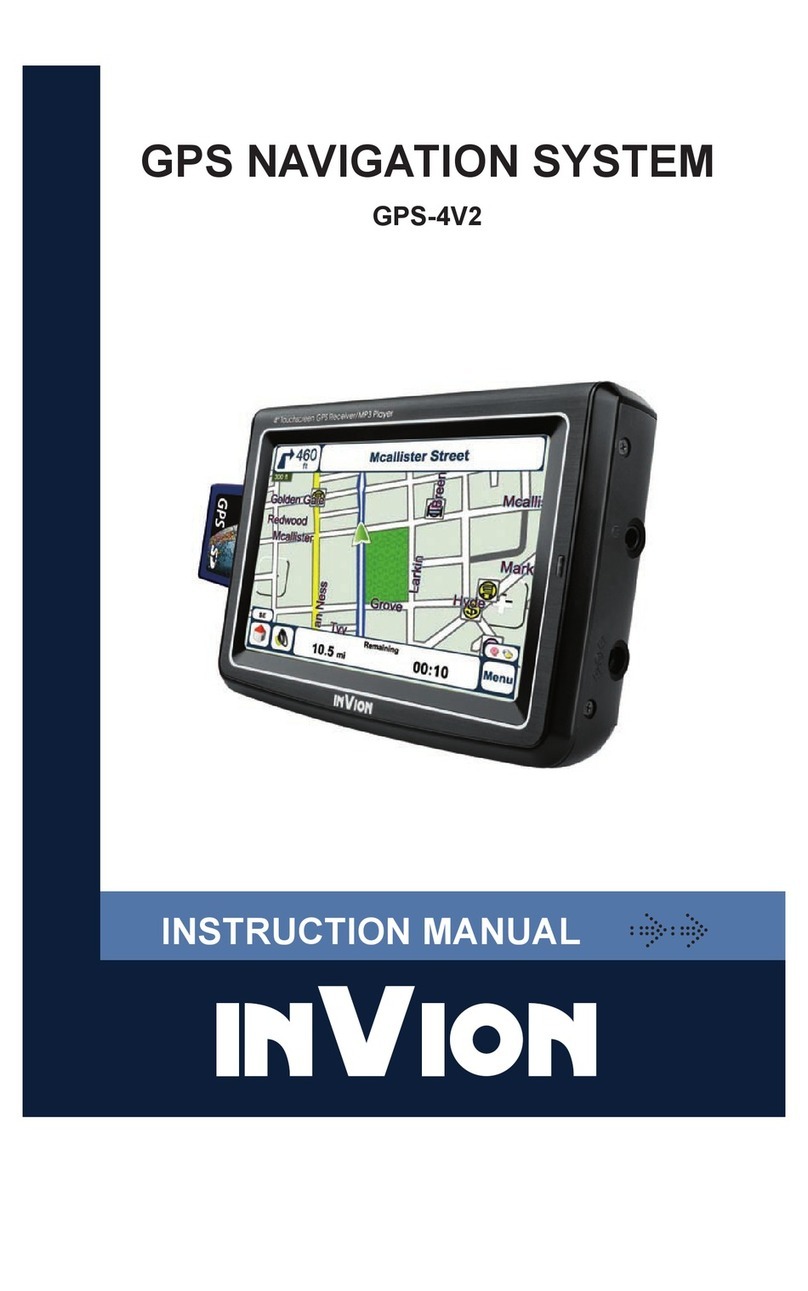

Invion GPS-4V206-IUS Instructions de montage
GPS NAVIGATION SYSTEM
4V2 Hardware Instruction Manual
2
Congratulations on choosing a Invion product. We have every expectation that you will be
completely satised with your new purchase.
To always guarantee optimal function and performance of your product, we would ask the
following:
• Before using the appliance for the rst time, carefully read the operating
instructions and adhere to the safety precautions!
• Also read the software user manual including the End User License Agreement.
• All activities at and with this appliance may only be carried out as described in
these operating instructions.
• Please be sure to include the operating instructions in case you pass along this
product to someone else.
Packaging
This appliance is delivered in protective packaging to prevent transportation damage.
Packaging materials are raw materials and can therefore be recycled. Please recycle these
materials.
4V2 Hardware Instruction Manual
3
Contents
1. Brief introduction of hardware 4
2. Entertainment 6
3. Specications 8
4. With reference to environmental protection 9
4V2 Hardware Instruction Manual
4
1. TOUCH SCREEN
2. BULIT-IN GPS ANTENNA
3. EXTERNAL ANTENNA SOCKET
4. SD CARD SLOT *
5. RESET
6. USB *
7. CHARGE INDICATOR
8. POWER
Hold down for a while, to turn on and turn off the unit.
9. HEADPHONE JACK
10. DC IN
11. TOUCH IN
2 3 4 1 7
9
10
11
6
5
8
1. Brief introduction of hardware
* SD CARD SLOT: Insert a SD/MMC card with music les on it to play songs.
* USB: For upgrade use only.
4V2 Hardware Instruction Manual
5
About the Touch Screen
• Do not touch the TOUCH SCREEN until the unit starts up completely. Otherwise,
the touch screen may not function correctly.
• The navigation device is mainly operated by touching the buttons on the touch
screen.
• If nothing happens when you touch the buttons on the touch screen, remove your
hand or the stylus from the screen and touch the button again.
• Do not touch any buttons that are grayed out.
• When cleaning the touch screen, use a soft cloth.
Connect to Car Power
• Connect the mini plug of the car adapter into the DC IN jack on the side of the
device.
• Connect the other plug of the car adapter into the car cigarette socket.
Chipset SIRF III
Operates behind athermic windshield
4V2 Hardware Instruction Manual
6
2. Entertainment
1. Insert the SD or MMC memory card to the card slot.
2. Tap on the Tap Menu to change to Media player mode.
The folder list will be displayed.
3. Tap SDMMC DISK folder to open the folder. The le list will be
displayed.
4. Select a folder and double tap to open it.
4V2 Hardware Instruction Manual
7
5. Select and double tap a le to start the playback.
The following buttons appear on the Entertainment screens.
Tap to display the entertainment interface.
Tap to scroll up the folder list or le list.
Tap to scroll down the folder list or le list.
Tap to return to the folder list.
Tap to play the mpeg4 le (*.avi) in full screen mode.
Tap to return to the le list.
Tap to play the les in the SD/MMC card in a random order.
Tap to play a le or all the les repeatedly.
Tap to return to the Top Menu.
Tap to play the previous track.
Tap to pause the playback.
Tap to play the next track.
Tap to stop the playback.
Tap to decrease the volume.
Tap to increase the volume.
4V2 Hardware Instruction Manual
8
3. Specications
4” GPS Navigation with MP4 Player
4” 16:9 Wide LCD Screen, 480*272 RGB
OS: Windows CE.Net 4.2
64 MB SDRAM
CPU : ARM 400 MHz
GPS: SIRF Star 3 High Sensitivity Receiver
Plays MP4/MP3 le via SD card (sold separately)
Build-In Lithium-on Battery last 3 hours
Dimension: 114L X 74W X 22H mm
Weight: 390g
Hard Key and Connection Ports
Power on/off
Power charge jack
USB jack
Reset
SD/MMC card slot
External antenna jack
Accessories
12V Car Adapter
110—240V AC Adapter
Mounting Bracket
USB Cable
Headset
4V2 Hardware Instruction Manual
9
4. With reference to environmental
protection
Packing materials are raw materials and can be used again.
Keep packing materials separate. For more information about recycling
contact your local administration.
Old devices do not belong in the domestic refuse!
Dispose of old devices responsibly, and contribute to environmental
protection.
Your local administration will inform you about collecting points and opening
times.
Old batteries do not belong in the domestic refuse!
Dispose of old batteries accordingly and contribute to environmental
protection. Your local administration will inform you about collecting points
and opening times.
This product complies with European directives
4V2 Hardware Instruction Manual
