INVENTOR RG10N2(D2S) Manuel utilisateur

MODELS:

V7CI-24WiFiR/U7RS-24

V7CI-36WiFiR/U7RS-36

V7CI-42WiFiR/U7RS-42

V7CI-50WiFiR/U7RT-50

V7CI-60WiFiR/U7RT-60

ENGLISH | ΕΛΛΗΝΙΚΑ | ROMANA | DEUTSCH

• USER’S MANUAL

• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ

• MANUAL UTILIZATORULUI

• BENUTZERHANDBUCH

REMOTE CONTROLLER

AIR CONDITIONING SYSTEMS

Remote Controller Specifications

....................................................02

Handling the Remote Controller ..................................................03

Buttons and Functions .................................................................04

Remote Screen Indicators ............................................................05

How to Use Basic Functions ........................................................06

How to Use Advanced Functions ................................................09

CONTENTS

NOT SURE WHAT A FUNCTION DOES?

Refer to the How to Use Basic Functions and How to Use Advanced Functions sections

of this manual for a detailed description of how to use your air conditioner.

SPECIAL NOTE

• Button designs on your unit may differ slightly from the example shown.

If the indoor unit does not have a particular function, pressing that function’s button on

the remote control will have no effect.

When there are wide differentces between “Remote controller Manual” and “USER’S

MANUAL” on function description, the description of “USER’S MANUAL” shall prevail.

•

Remote Controller Specifications

Quick Start Guide

RG10N2(D2S)

3.0V (Dry batteries R03/LR03×2)

-5°C~60°C(23°F~140°F)

FIT BATTERIES

POINT REMOTE TOWARD UNIT

PRESS POWER BUTTON

SELECT MODE SELECT TEMPERATURE

SELECT FAN SPEED

AUTO

COOL

DRY

HEAT

FAN

My Mode Fo

Swing

Mode On/Off Fan

Sleep

AUTO

COOL

DRY

HEAT

FAN

HIGH

MED

LOW

SETTEMPERATURE

TIPS FOR USING REMOTE CONTROL

NOTES FOR USING REMOTE CONTROL

• The remote control must be used within 8

meters of the unit.

The unit will beep when remote signal is

received.

Curtains, other materials and direct sunlight

can interfere with the infrared signal receiver.

Remove batteries if the remote will not be

used more than 2 months.

•

Inserting and Replacing Batteries

Your air conditioning unit may come with two

batteries(some units). Put the batteries in the

remote control before use.

Slide the back cover from the remote control

downward, exposing the battery compartment.

Insert the batteries, paying attention to match

up the (+) and (-) ends of the batteries with

the symbols inside the battery compartment.

Slide the battery cover back into place.

BATTERY NOTES

For optimum product performance:

•

Do not mix old and new batteries, or

batteries of different types.

•

Do not leave batteries in the remote control

if you don’t plan on using the device for more

than 2 months.

BATTERY DISPOSAL

Do not dispose of batteries as unsorted

municipal waste. Refer to local laws for proper

disposal of batteries.

The device could comply with the local national

regulations.

In Canada, it should comply with

CAN ICES-3(B)/NMB-3(B).

In USA, this device complies with part 15 of the

FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful

interference, and

(2) this device must accept any interference

received, including interference that may

cause undesired operation.

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses and

can radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference to

radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct

the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment

and receiver.

Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV

technician for help.

Changes or modifications not approved by the

party responsible for compliance could void

user’s authority to operate the equipment.

Handling the Remote Controller

Before you begin using your new air conditioner, make sure to familiarize yourself with its remote

control. The following is a brief introduction to the remote control itself. For instructions on how to

operate your air conditioner, refer to the How to Use Basic Functions section of this manual.

Buttons and Functions

ON/OFF

SET

Turns the unit on or off. MODE

TIMER

BREEZE AWAY - not available

LED

Turbo

ECO/GEAR

Scrolls through operation modes

as follows: AUTO



COOL



DRYHEAT FAN

FAN SPEED

SWING

Increases temperate in

1°C (1°F) increments.

Max. temperature is

30°C (86°F).

NOTE: Press together &

buttons at the same time

for 3 seconds will alternate

the temperature display

between the °C & °F.

TEMP

Used to confirm the selected

functions

Decreases temperature

O O

in 1 C(1 F) increments.

Min. temperature is

O O

16 C(60 F).

Starts and stops the horizontal

louver movement.

This feature avoids direct air flow

blowing on the body and makes

you feel indulging in silky coolness.

NOTE: This feature is available

under cool, Fan and Dry mode only

Set timer to turn unit on or off

ECO GEAR(75%)

GEAR(50%)

mode ECO ......

Scrolls through operation

functions as follows:

The selected symbol will

flash on the display area,

press the OK button to

confirm.

Selects fan speeds in the

following order:



20%

60%40% 80% 100%.

 

Press the TEMP or button

to increase/decrease the fan

speed in 1% increments.

Enables unit to reach preset

temperature in shortest possible

time.

Previous setting

Turns indoor unit’s LED display

and air conditioner buzzer on and

off (model dependent), which

create a comfortable and quiet

environment.

Press this button to enter the

energy efficient mode in a

sequence of following:

Vane Vane

Press to enter the louver setting

mode.

Sleep( ) Follow Me( )

AP mode ( ) Active

clean( ) ......

Active clean( )



Model: RG10N2(D2S)

Remote Screen Indicators

Note:

All indicators shown in the figure are for the purpose of clear presentation. But during the actual

operation, only the relative function signs are shown on the display window.

Note:

Not all the models can display

the fan speed values between

AU-100%.

[ ]

Information are displayed when the remote controller is power up.

Breeze Away display - not available

Transmission Indicator

MODE display

TIMER ON display

FAN SPEED display

TIMER OFF display

Silence feature

display

ECO display

GEAR display

LOCK display

Horizontal louver

swing display

TURBO mode display

Not available for

this unit

Not available for

this unit

Temperature/Timer/Fan speed

display

Active clean feature display

Fresh feature display - not available

Sleep mode display

Follow me feature display

Wireless control feature display

Low battery detection display(flashing)

Displays when LOCK feature

is activated.

Silence

LOW

MED

HIGH

AUTO

Lights up when remote

sends signal to indoor

unit

Displays selected fan speed:

Displays the current

including:

mode,

2%-20%

21%-40%

41%-60%

61%-80%

81%-100%

This fan speed can not be

adjusted in AUTO or DRY

mode.

Displays when ECO

feature is activated

Displays when GEAR

feature is activated

Displays the set temperature

by default, or fan speed or

timer setting when using

TIMER ON/OFF functions.

Temperature range:

16-30 C /

/60-86 F

Timer setting range:

0-24 hours

Fan speed setting range:

AU -100%

This display is blank when

operating in FAN mode.

(20-28 C/68-82 F)

(Model dependent)

Vane

How to Use Basic Functions

ATTENTION! Before operation, please

ensure the unit is plugged in and power

is available.

AUTO Mode

SETTING TEMPERATURE

The operating temperature range for units

is 16-30°C (60-86°F)/20-28 C(68-82 F).

You can increase or decrease the set

temperature in 1°C (1°F) increments.

In AUTO mode, the unit will automatically select

the COOL, FAN, or HEAT operation based on

the set temperature.

1. Press the MODE button to select AUTO.

2. Set your desired temperature using the TEMP

or TEMP button.

Set your desired temperature using the

TEMP or TEMP button.

3. Press the ON/OFF button to start the unit.

Press the ON/OFF button to start the unit.

NOTE:FAN SPEED can’t be set in AUTO mode.

COOL Mode

Basic operation

1. Press the MODE button to select COOL

mode.

Press FAN button to select the fan speed

in a range of AU-100%.

Vane

1. Press the MODE button to select DRY.

Press the MODE button to select FAN mode.

2. Set your desired temperature using the TEMP

or TEMP button.

3. Press the ON/OFF button to start the unit.

Press the ON/OFF button to start the unit.

Press FAN button to select the fan speed

in a range of AU-100%.

Set your desired temperature using the

TEMP or TEMP button.

Press the ON/OFF button to start the unit.

1. Press the MODE button to select HEAT

mode.

Press FAN button to select the fan speed

in a range of AU-100%.

DRY Mode (dehumidifying)

NOTE:FAN SPEED cannot be changed in DRY

mode.

HEAT Mode

NOTE: As outdoor temperature drops, the

performance of your unit’s HEAT function may

be affected. In such instances, we recommend

using this air conditioner in conjunction with

other heating appliances.

FAN Mode

NOTE:You can’t set temperature in FAN mode.

As a result, your remote control’s LCD screen

will not display temperature.

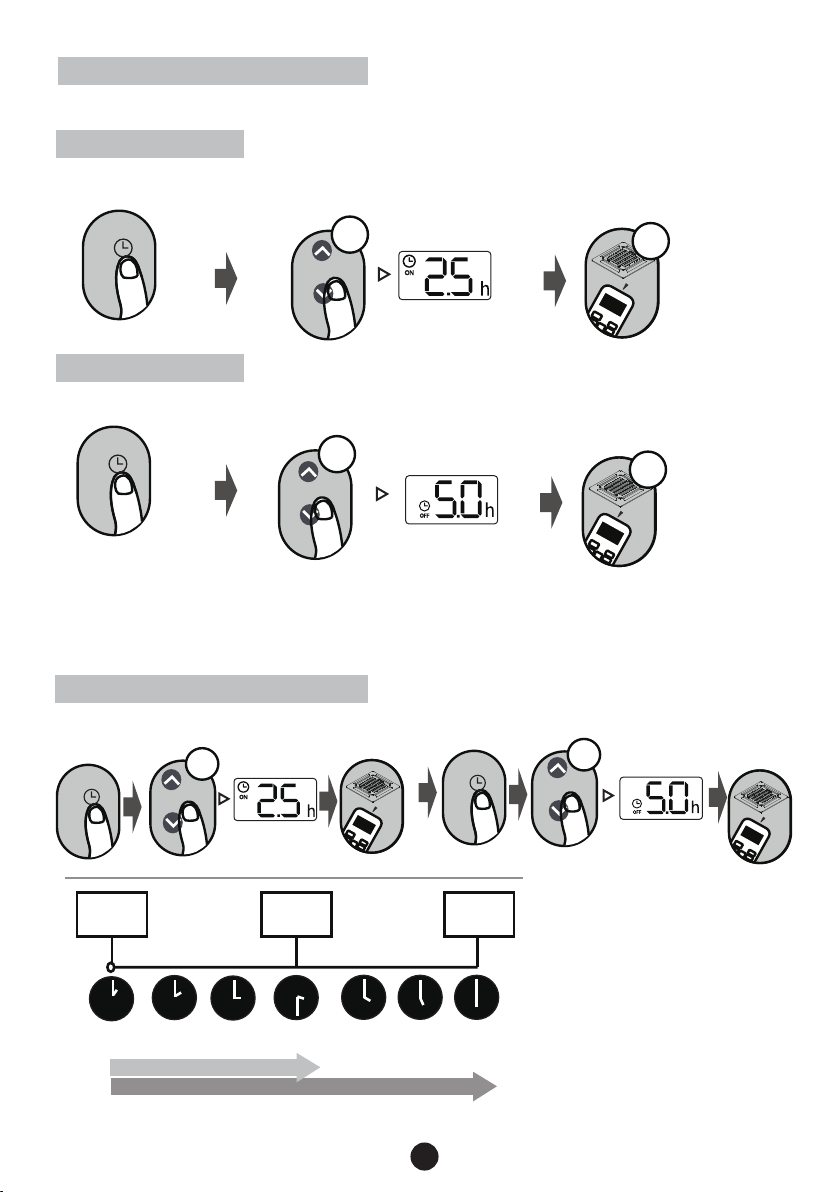

Setting the TIMER

TIMER ON setting

TIMER OFF setting

TIMER ON & OFF setting (example)

TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off.

Press TIMER button to initiate

the ON time sequence. Press Temp. up or down button for

for multiple times to set the desired

time to turn on the unit.

Press Temp. up or down button for

for multiple times to set the desired

time to turn off the unit.

NOTE:

1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each

press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example,

press 5 times to get 2.5h, and press 10 times to get 5h,) The timer will revert to 0.0 after 24.

2. Cancel either function by setting its timer to 0.0h.

Point remote to unit and wait 1sec,

the TIMER ON will be activated.

Press TIMER button to initiate

the OFF time sequence. Point remote to unit and wait 1sec,

the TIMER OFF will be activated.

Current

time 1PM

2:00PM 3:00PM 4PM 5PM 6PM

Timer starts Unit turns

Unit turns

OFF

2.5 hours later

5 hours later

3:30PM

Example: If current timer is 1:00PM,

to set the timer as above steps, the

unit will turn on 2.5h later (3:30PM)

and turn off at 6:00PM.

ON/OFF

MODE

FAN

SHORT

CUT

TIMERON

TIMEROF

TEMP

SLEEP

xn xn

x10

Keep in mind that the time periods you set for both functions refer to hours after the current time.

TIMER

ON/OFF

MODE

FAN

SHORT

CUT

TIMERON

TIMEROF

TEMP

SLEEP

ON/OFF

MODE

FAN

SHORT

CUT

TIMERON

TIMEROF

TEMP

SLEEP

1 sec

ON/OFF

MODE

FAN

SHORT

CUT

TIMERON

TIMEROF

TEMP

SLEEP

1 sec

How to Use Advanced Functions

LED DISPLAY

Press this button to turn on and turn off

the display on the indoor unit.

Press LED button

LED

Swing function

Vane function

Press Swing button

The horizontal louver auto swing feature is

energized.

Press again to make it stop.

Swing

Press Vane button when the unit is turned on.

Press this button to activate the louver setting feature.Each time you press the Vane button button,

the display panel will display the selected louver in an order as(“-0” indicates that four louvers are all

selected):

Press Swing button to start/stop the auto swing feature of the selected louvers.

The system will exit the

louver setting mode If

there is no operations

during a 10 seconds

period.

-1 -2 -3 -4 -0

Vane

4 Louvers

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels INVENTOR Télécommande

INVENTOR

INVENTOR M3GHP290-12 Manuel utilisateur

INVENTOR

INVENTOR OMI-09 Manuel utilisateur

INVENTOR

INVENTOR V2MCI-24 Manuel utilisateur

INVENTOR

INVENTOR LV4MCI-07 Manuel utilisateur

INVENTOR

INVENTOR V7CI-24WiFiR/U7RS-24 Manuel utilisateur

INVENTOR

INVENTOR A2MVI-09/A2MVO-09 Manuel utilisateur

INVENTOR

INVENTOR PFI2VI-12WFIB Manuel utilisateur

INVENTOR

INVENTOR M2GHP290-12 Manuel utilisateur

INVENTOR

INVENTOR V5MFO-66 Manuel utilisateur

INVENTOR

INVENTOR L4VI32-09WiFiR Manuel utilisateur

INVENTOR

INVENTOR V7DI-12WiFiR/U7RS-12 Manuel utilisateur

INVENTOR

INVENTOR CR2VI-18WFIB Manuel utilisateur

INVENTOR

INVENTOR V4MFO-66B Manuel utilisateur

INVENTOR

INVENTOR P7MVO-09 Manuel utilisateur

INVENTOR

INVENTOR AR5VI-09WFI Manuel utilisateur

INVENTOR

INVENTOR V6MLI32-18/V6MLO32-18 Manuel utilisateur

INVENTOR

INVENTOR PFI2VI-09WFI Manuel utilisateur

INVENTOR

INVENTOR RG57A2/BGEF Manuel utilisateur

INVENTOR

INVENTOR O3MVI32-12WiFiR Manuel utilisateur

INVENTOR

INVENTOR V6MCRI32-18WiFiR/U6MRS32-18 Manuel utilisateur

INVENTOR

INVENTOR PFI2VI-09WFI/PFI2VO-09 Manuel utilisateur

INVENTOR

INVENTOR RG10B1/BGEF Manuel utilisateur

INVENTOR

INVENTOR YB1FA Manuel utilisateur

INVENTOR

INVENTOR LV5MLI32-12 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
