Operating instructions

English

Manual Hydraulic Electric

Contents Symbols

This symbol means

"Warning"

This symbol means

"Use an Allen key"

This symbol means

"Manual height adjustment"

This symbol means

"Hydraulic height adjustment"

This symbol means

"Electrical height adjustment"

This symbol means

"Additional information"

Symbols 2

DOLOMITE STEP UP 3

Intended use 3

Guarantee 3

Delivery inspection 3

Preparation 4

Width adjustment 4

Brakes 4

Charging electric motor 4

Product features 4

Adaptation 5

Height adjustment 5

Emergency stop and emergency lowering 5

Adjustment of width between armrests 5

Handle adjustment 5

Product features 6

Accessories 7

Basket 7

Ball grip 7

Tray 7

Oxygen holder 7

Drip stand 7

Elbow stop 7

Directional lock 8

Wheel 100 mm 8

Hand brake, pair 8

Single hand brake 8

Stand assist 8

Technical data 9

Dimensions and weight 9

Serial number label 9

Electrical data 10

Safety 10

Tests 10

Maintenance and Service 11

Cleaning 11

Maintenance 11

Recycling 11

DOLOMITE STEP UP

Thank you for choosing DOLOMITE STEP UP.

We have produced a manual for those who are responsible for safe and appropriate adjustment and use of the

aid.

This manual is comprehensive*, with complete instructions regarding the product. Information that is of

particular importance in conjunction with everyday use and safety is reproduced on the product's labels.

Max. user weight is 150 kg

Read carefully through the manual. Ensure that user(s) and persons concerned are familiarised with the

necessary information.

INVACARE DOLOMITE™®STEP UP

Guarantee

We supply a 2 year guarantee ** from the date of delivery. Damage caused by wear to items such as cushions,

wheels, handles and brakes is not covered by the guarantee. Damage that arises due to abnormal use is excluded.

Damage caused by users who weigh more than 150 kg is excluded. Maintenance and operating instructions must

be observed for the guarantee to be valid. Expected life cycle is 5 years.

Delivery inspection

Notify the carrier immediately of any transport damage. Remember to keep the packaging until the carrier has

checked the goods and a settlement has been reached.

Intended use

DOLOMITE STEP UP is a platform support. A platform support is classified as a walking aid that is controlled

using both arms.

DOLOMITE STEP UP is intended for indoor use.

* For information on spare parts refer to the spare parts catalogue on INVACARE'S website or at www.dolomite.biz.

** Deviations may occur due to local agreements

DOLOMITE STEP UP Manual and Hydraulic have no electrical parts and can be used

in all indoor areas.

DOLOMITE STEP UP Manual, Hydraulic and Electrical can be supplemented with the

Stand assist" accessory and then be used as an aid for standing and short transfers.

Warning!

DOLOMITE STEP UP Electrical should not come in contact with water.

DOLOMITE STEP UP

Preparation

1. Width adjustment

Lay the platform support down and remove screws

with an Allen key No. 6. Adjust the side frame to

the required width. Replace the screws and tighten

them with a minimum of10 Nm.

Repeat the procedure on the other side.

The right and left side of the frame must

always be adjusted in/out by an equivalent

amount.

Be aware of the risk of getting fingers

pinched when adjusting the side frame!!

2. Brakes

Press down the outer edge of the brake caliper until

a click is heard and the wheel is locked.

Two of the wheels must be locked before

the user is assisted to or from the support

platform.

DOLOMITE STEP UP' can be adjusted in

three widths.

3. Charging the electric motor

Allow the battery to charge for 24 hours before the

platform support is used for the first time.

There are two lights on the battery; (A) shines yellow

when the battery is charging. (B) shines green when

the motor is in use.

When the battery capacity is low, a warning signal

sounds indicating that it is time to charge the battery.

We recommend that the battery is charged regularly,

e.g. every night, for maximum service life.

Connect the mains cable to the control unit and the

mains socket. The yellow light (A) indicates that the

battery is charging. When the battery is fully charged,

charging ceases automatically.

Ensure that the emergency stop is not pushed

in when the motor is to be charged.

Product features

The H-shaped lower frame has the same

dimensions in the front and back. Adjust the

width so that the platform can negotiate the

most narrow passage in the premises.

DOLOMITE STEP UP

1. 2. 3.

The height of the back part of the frame is low

to allow the platform to roll under furniture

which facilitates movement to and from a

seated position.

The height of the back part is 215 mm with

standard wheels and 190 mm with 100 mm

wheels (option).

All brakes are easy to access thanks to the

design of the frame.

Adjustment

1. Height adjustment

Lift the armrest slightly upwards in order to

pull the pin out. Adjust the support platform

to the required height. Check that the pin is pressed

in correctly in order to lock the height adjustment.

Do not pull out the pin if the user is putting

weight on the support platform

Lift the lever and adjust the support platform

to the required height by pulling upwards or

pushing gently on the armrests.

2. Emergency stop and emergency lowering

If it is necessary to make an emergency stop press

the red button (A) on the right of the

control unit. Turn the same button clockwise to

reset.

If emergency lowering is necessary, press the button

on the front of the control unit (B).

3. Adjustment of width between armrests

Loosen the knob that is located between the arm-

rests and adjust sideways to the required width.

Lock them again by tightening the knob.

4. Handle adjustment

Undo the knob that is located under the armrests

and adjust the handles to the required depth and

angle. Lock the handles by retightening the knob.

Use the hand control to adjust the support

platform upwards or downwards. A green

light on the control unit indicates that the

electrical motor is in use.

DOLOMITE STEP UP

125 mm

215 mm

1. 2.

3. 4.

Regardless of body size, an angle of 25o

between shoulder and wrist position gives

the best conditions to enable the torso to remain

upright. The position is pre-set and is maintained

regardless of width setting.

Set the armrests so that the elbows are

located close to the body. This automatically

produces a stable three point position where the

hands are moved as close to each other as possible

in relation to the user's body size.

Side stops for the elbows are available as

accessories.

The forearm support is inclined 5°in the

horizontal plane in order to produce a

natural and erect position.

The handles are inclined forward 110° from

the forearm support. This produces an

ergonomic positioning of the wrists and the best

conditions for a firm grip.

Alternative hand grips are available as acces-

sories.

To facilitate height adjustment for the user

we recommend measuring the distance from

elbow to heel while the user is lying on a

bed.

DOLOMITE STEP UP has pressure-relieving

material in the cushions and they are made

in order to withstand disinfection. They are securely

attached with microfilm.

For replacement or cleaning remove them by hand.

When refitting ensure they are correctly positioned.

Product features

DOLOMITE STEP UP

25º

5º

110º

2. Tray

A simple tray that is easy to position at the top of

the basket.

NB! The tray can only be used together with the

basket.

1. Basket

A practical little basket in which to keep belongings.

The basket is simply attached at the top of the

platform support.

3. Ball grips

Alternative grips are available for those who find

it difficult to close their hand around the regular

handles.

Accessories

4. Oxygen tank holder

Makes it possible to secure an oxygen cylinder on

the platform support, fits different types of oxygen

cylinders. Mounted at the front on the column.

5. Drip stand

Makes it possible to suspend a drip bag on

the platform support. Simple to mount on the

column.

6. Elbow stop

Elbow stops prevent the arms from sliding off the

armrests. They are sold in pairs and are easily

mounted under the armrest pads.

DOLOMITE STEP UP

7. Directional lock

Wheels with a directional lock (green latch) are

used to facilitate movement straight ahead. Press

down the latch and swivel the wheel until a click

is heard and the wheel no longer rotates.

The wheel has no brake when the directional

lock is mounted.

9. Hand brake, pair

The platform support can be fitted with a service-

and parking brake to enable users to activate the

brakes themselves.

12.Stand assist

The Stand Assist accessory is

available for users who need

support while standing. The platform support then

acts as a mobility aid as well. The Stand Assist

option consists of a stand plate, knee support

and harness. It must always be used with the har-

ness included in the kit. No other harness may

be used.

For more detailed instructions, read the separate

Stand Assist manual. Article No: 1537621.

10.Single hand brake

The single hand brake makes it possible for the

user to activate service- and parking brake with

one hand.

8. Wheel 100 mm

100 mm wheels are available for those who want

to have the frame at a lower height.

11.Stand plate

This accessory can be used as an aid for shorter

transfers in standing position.

The stand plate should only be used with

assistants present. Never leave the user alone

while standing on the stand plate.

DOLOMITE STEP UP

12.

10.

11.

Technical data

Dimensions and weight

The label for DOLOMITE STEP UP contains all important technical information

It is located on the inside of the lower frame (G).

Serial number label

Model

1. 580 mm

2. 670 mm

3. 760 mm

1. 700 mm

2. 790 mm

3. 880 mm

1. 1010 mm

2. 1070 mm

3. 1130 mm

D 870 - 1320 mm

E 340 - 470 mm

F 620 - 750 mm

Wheel

diameter 125 mm

User weight 150 kg

Product

weight 16 kg 18 kg 23 kg

1: Article number

2: Product name

3: Serial number

4: Date of manufacture

5: Max. user weight

6: Reference to user's manual

7: Only for indoor use

8: Max. width

9: Manufacturer

DOLOMITE STEP UP

2 6

4359

Safety

To be used solely as a platform support.

Standing on the frame is not permitted.

Standing on the armrests is not permitted.

Unevenly distributed weight affects the product's stability

Ensure that all knobs and screws are properly tightened before use.

* Widening the frame

* Armrests

* Handle

Observe extra caution on uneven surfaces.

Observe caution on wet surfaces.

The user's max. weight DOLOMITE STEP UP 150 kg.

The "Stand assist" accessory must always be used with the harness included in the kit. No other harness

may be used.

Observe caution when moving over obstacles, e.g. doorways when using the Step Up with the accessory

stand plate.

When using the stand plate, the wheels must be locked when the user moves onto / off the stand plate.

The electrical version of the Step Up must not come in contact with water.

The platform support is equipped with emergency stop and emergency lowering.

Do not use the Step Up while charging

No responsibility is taken for changes made to the platform support (adaptations, substandard repairs), outside

INVACARE DOLOMITE's control.

• This platform support is tested according to ISO standard SS-EN ISO 11199-3:2006 and fulfils its require-

ments.

Tests

Electrical data

Voltage out 24 V Operational duration app. 40 cycles without

Voltage in 100-240 V, 50-60 Hz charging

Max. battery capacity 2,9 Ah Protection class IPX4

Duty cycle 10%, max. 2 minutes/ Temperature range for operation +5°C to +40°C

18 minutes Sound level 48 dB (A)

DOLOMITE STEP UP

Table des matières

Autres manuels Invacare Aide à la mobilité

Invacare

Invacare DOLOMITE Melody Manuel utilisateur

Invacare

Invacare Articulating/Elevating Legrest Manuel utilisateur

Invacare

Invacare Dolomite Melody Series Manuel utilisateur

Invacare

Invacare 6291E Adult Manuel utilisateur

Invacare

Invacare InTouch ITTG Instructions de montage

Invacare

Invacare P550/2 Actio 2 Manuel utilisateur

Invacare

Invacare Fixed Released Rail/Cane Clamps Manuel utilisateur

Invacare

Invacare Aquatec 90000 Manuel utilisateur

Invacare

Invacare Aquatec Trans Manuel utilisateur

Invacare

Invacare Banjo P452E/3 Manuel utilisateur

Invacare

Invacare 6264P Instructions de montage

Invacare

Invacare 1305L Instructions de montage

Invacare

Invacare Twister Manuel utilisateur

Invacare

Invacare Silencio P256 Manuel utilisateur

Invacare

Invacare 3G Storm Series Mode d’emploi

Invacare

Invacare STORM4MAX Manuel utilisateur

Invacare

Invacare Excel Mode d’emploi

Invacare

Invacare User guide Manuel utilisateur

Invacare

Invacare Aquatec 900 Manuel utilisateur

Invacare

Invacare 6027 Instructions de montage

Invacare

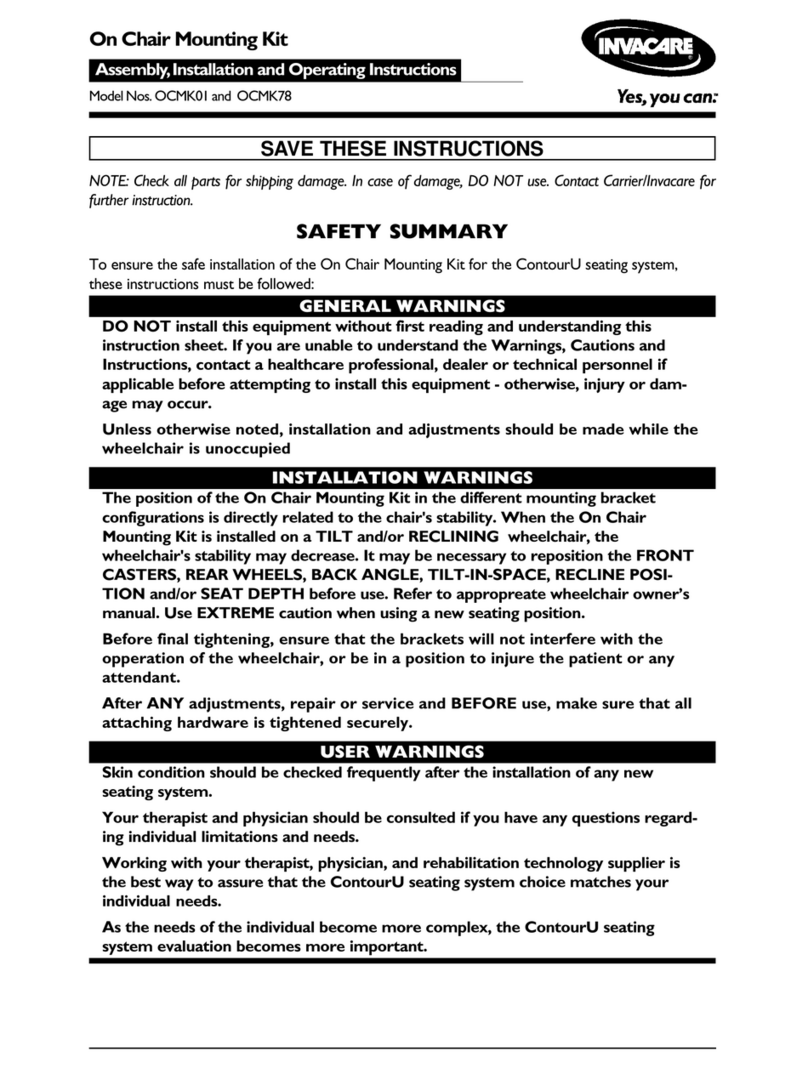

Invacare OCMK01 Instructions de montage

Invacare

Invacare Dolomite Alpha Series Manuel utilisateur

Invacare

Invacare Basica H330/1 Manuel utilisateur

Invacare

Invacare RPL450-1 Instructions de montage

Manuels Aide à la mobilité populaires d'autres marques

Alber

Alber Scalamobil iQ Manuel utilisateur

Ferno

Ferno CCT-PX Manuel utilisateur

HEPRO

HEPRO Gripo Manuel utilisateur

Otto Bock

Otto Bock Pheon 3R62 Manuel utilisateur

NRS Healthcare

NRS Healthcare M11090 Manuel utilisateur

Medline

Medline MDS86835DSHEC Guide d'installation

Guldmann

Guldmann Twin Turner II Manuel utilisateur

Drive

Drive ROOMBA Manuel utilisateur

Gate

Gate Balder Manuel utilisateur

Decon wheel

Decon wheel TNS Notos Manuel utilisateur

ExoAtlet

ExoAtlet ExoAtlet-II Manuel utilisateur

Rhythm Healthcare

Rhythm Healthcare B3800F Manuel utilisateur

AMF-BRUNS

AMF-BRUNS PROTEKTOR Manuel utilisateur

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Manuel utilisateur

Rhythm Healthcare

Rhythm Healthcare C500U Manuel utilisateur

Lumex

Lumex RJ4200A Manuel utilisateur

Rebotec

Rebotec Jumbo Manuel utilisateur

Rehaforum MEDICAL

Rehaforum MEDICAL PR50548 Manuel utilisateur
