INVACARE 9800A BOOM RETRO-FIT

KIT NO.1060539

WARNING/CAUTION notices apply to hazards and

unsafe practices which could result in personal

injury and/or property damage.

WARNING

Check all parts for shipping damages before using.

In case of damage, DO NOT use the equipment.

Contact the Dealer/Carrier for further instructions.

DO NOT operate this equipment without first

reading and understanding this instruction sheet. If

you are unable to understand the warnings and

instructions, contact a healthcare professional

(Doctor-Therapist) before attempting to use this

equipment - otherwise injury or damage may result.

After making adjustments, always make sure that

all parts are properly tightened BEFORE using this

patient lift.

SAFETY SUMMARY

Installation, Assembly and Operating Instructions

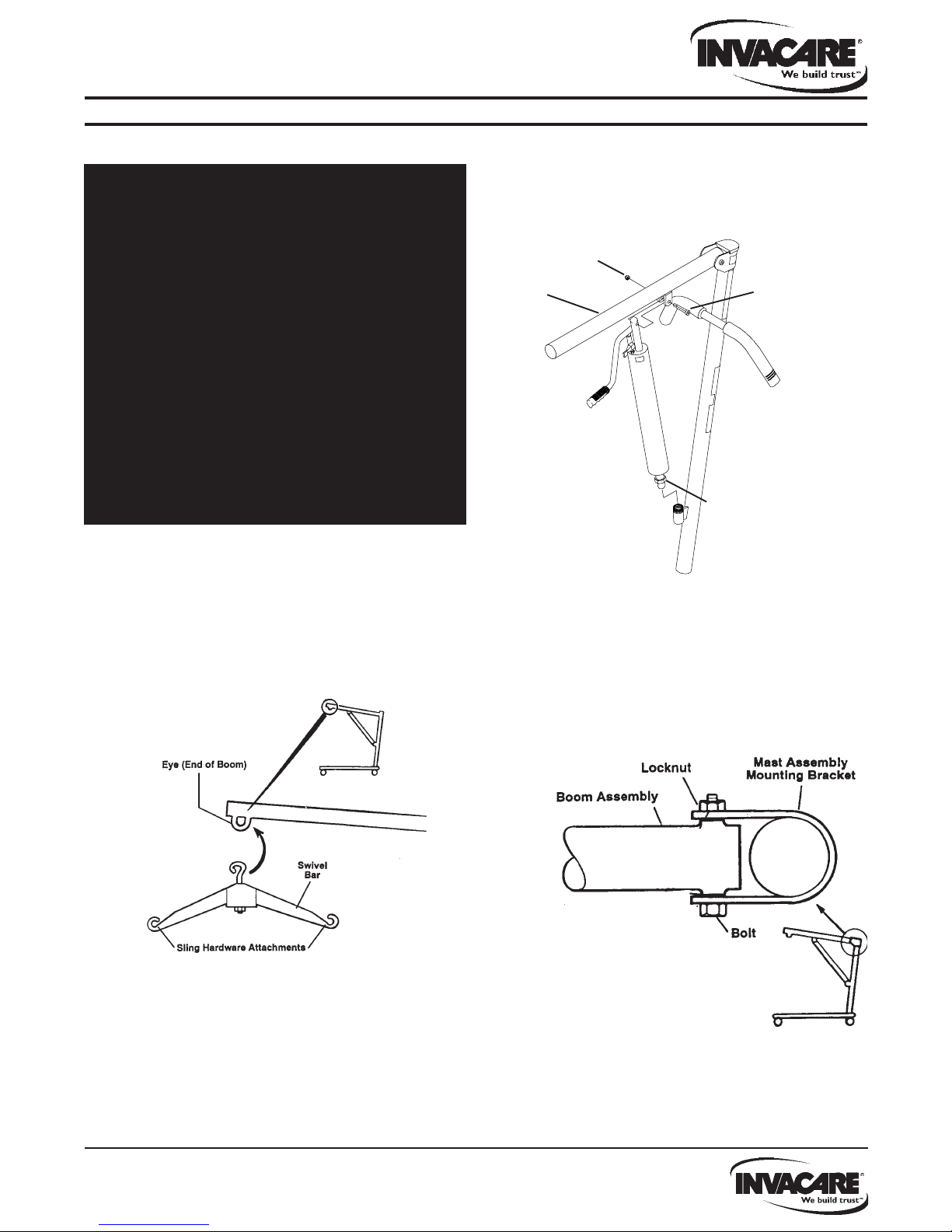

DISASSEMBLY OF THE EXISTING SWIVEL

BAR, PUMP AND BOOM ASSEMBLIES

Swivel Bar Removal (FIGURE 1)

1. Remove the swivel bar from the eye at the end

of the boom.

Pump Removal (FIGURE 2)

1. Remove the nut and bolt that secure the pump

to the boom assembly.

FIGURE 1 - SWIVEL BAR REMOVAL

FIGURE 2 - PUMP- BOOM DISCONNECT

Boom Removal (FIGURE 3)

1. Remove the bolt and locknut that secures the

existing boom to the TOP of the mast assembly.

FIGURE 3 - BOOM REMOVAL

Nut

Bolt

Boom

NOTE: Not necessary

to disconnect.

899 Cleveland Street 

P.O. Box 4028 

Elyria, Ohio 44036-2125 

Phone 1-(800)-333-6900

Form No. 95-166 Part No. 1060540 Printed in U.S.A.

ASSEMBLY OF THE EXISTING PUMP, NEW

BOOM AND SWIVEL BAR ASSEMBLIES

Pump Assembly

1. Using the nut and bolt provided, assemble the

pump to the new boom. Refer to FIGURE 2.

Boom Assembly (FIGURE 4)

CAUTION

The boom and mast when assembled MUST

pivot easily.

2. Tighten the bolt and nut using an Allen wrench and

an adjustable wrench.

NOTE: The nut and bolt can be tightened

completely and the boom assembly will pivot easily

if the mounting hardware is aligned properly when

the boom assembly is secured to the mast. To check

for correct alignment of the hardware, use an Allen

wrench and turn the bolt by hand (it should rotate

without a lot of force being applied). If excessive force

is necessary, the bolt is NOT aligned properly.

Disassemble and repeat assembly procedures until

proper alignment is obtained.

1. Align the holes of the boom assembly and mast as-

sembly mounting bracket. Insert the bolt

completely through the holes of the mast

assembly mounting bracket and the boom

assembly.

NOTE: Be sure that the bolt is completely through

the holes of the mast assembly mounting bracket

and boom assembly; and they are not riding on the

shoulder of the bolt.

FIGURE 4 - NEW BOOM INSTALLATION

FIGURE 5 - SWIVEL BAR ATTACHMENT

WITH MOUNTING BRACKET

Swivel Bar

Pad

NOTE: Make sure Pin and Washers are completely

pushed UP through the Swivel Bar Pad.

1. Pull the pin up through the swivel bar pad.

2. Line-up hole in pin with mounting bracket holes

and secure with shoulder screw and nut

provided.

NOTE: The swivel bar has hooks on both ends

to accept the hardware used to attach the sling

that supports the patient during lift. The swivel

bar pad should remain in place during normal

use.

Swivel Bar Attachment with Mounting

Bracket (FIGURE 5)

NOTE: Refer to Owner's Manual for proper

operation of your patient lift.

Shoulder

Screw

Nut
