ConneX Quick Start Guide

Born in Hawaii - Built for the World

To download full user manual go to http://www.intova.net/support/intova-manuals/

Opening the camera:

Preparations:

1. Prior to use, with camera o, insert Micro SD card up to 32 GB

(class 10) into (18) card port with gold contacts towards LCD.

2. Turn on camera and select appropriate TV SYSTEM (NTSC or PAL)

in SETTING menu.

Video view mode:

1. In video mode, press (9) OK button.

2. Press (8) DOWN or (7) UP buttons to select le.

3. Press (9) OK 2 times to start video and OK again to stop.

4. Press (10) MODE 2 times to go back to main screen.

Photos:

1. Press (10) MODE button to switch to photo mode.

2. Press (2) SHUTTER button and release while holding

camera as steady as possible.

Video:

1. Press (2) SHUTTER button to start. Move camera smoothly.

2. Press (9) OK button to take photo while recording video.

3. Press (2) SHUTTER button to stop.

Zoom:

1. In either photo or video mode (except 1080p),

press and hold (8) ZOOM in or (7) ZOOM out button.

2. 4x is the maximum zoom.

Deleting les:

1. In either video or photo view mode, select le to delete and

press (11) MENU button.

2. Press (7) UP button to choose “YES” or “ALL”.

3. Press (9) OK button.

4. Press (10) MODE to exit.

Self Capture mode:

1. In photo mode, press (11) MENU button.

2. Press (9) OK button.

3. Press (8) DOWN button 2 timesand press (9) OK button.

5. Select OFF, 5, 10, 30 or 60 seconds and press (9) OK.

6. Press (11) MENU button 2 times to go back to main screen.

7. LCD screen should show self timer icon.

8. Press (2) SHUTTER button to activate.

Charging the Li-ion battery:

1. Gently insert USB cable into (13) Micro USB port.

2. Insert other end of cable into a computer USB port.

3. LCD should show MSDC, CHARGE and OPEN.

4. Scroll down to select CHARGE and press (9) OK.

5. When charge is complete, red LED (3) will turn o.

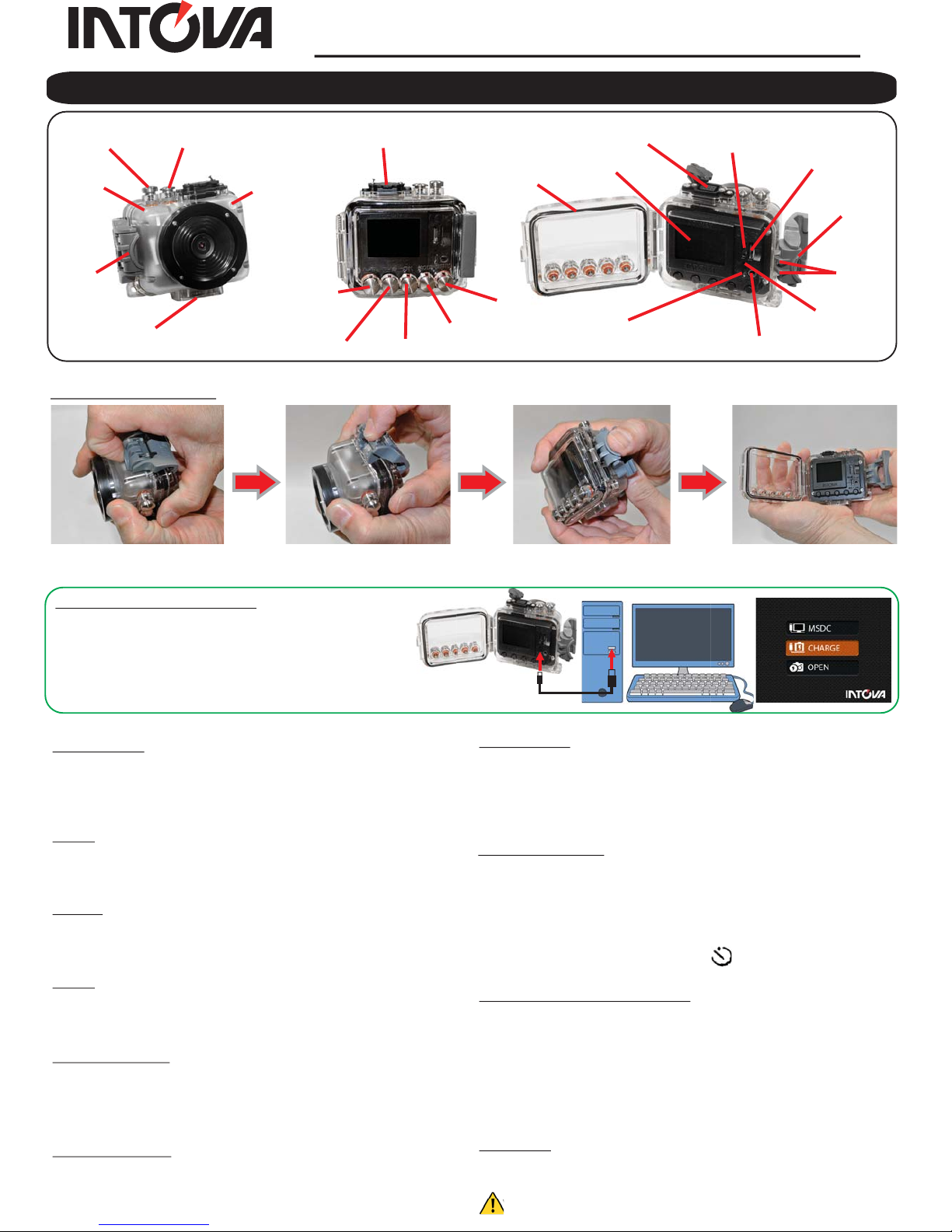

(1) POWER(2) SHUTTER

(3) LED

(4) LOCK

(5) Tripod mount

(6) Recording

indicator LED

(7) UP,

LCD icons o,

LCD o,

ZOOM out

(8) DOWN, ZOOM in (9) OK

(10) MODE

(11) MENU

(21) LCD

(19) Mini USB HD TV

out port

(18) Micro SD card port

(15) RESET

(14) VGA TV out port

(13) Micro USB port

Pull (4) lock Place against (16) EZ open tabs Push (17) thumb press opener

(16)

EZ open

tabs

(17) Thumb

press

opener

Photo view mode:

1. In photo mode, press (9) OK button.

2. Press (8) DOWN or (7) UP buttons to select le.

3. Press (9) OK to view photo.

4. Press (10) MODE button 2 times to go back to main screen.

2.4G Remote Control Operation:

1. To start/stop video, press button with video icon.

2. To take a photo, press button with camera icon.

3. To turn camera o, press the OFF (center) button for 3 seconds.

4. To change dead batteries, unscrew back cover and replace

with two fresh CR2016, 3V batteries.

5. IMPORTANT NOTE: Wireless transmission will not work underwater.

Wireless remote is for surface sports and waterproof to 6 feet only.

(12) Cable port cover (20) Cable port

(22) O-Ring

Important: Before each use, clean and maintain (22) O-Ring by

removing any dirt, sand and other debris and lightly lubricate

with silicone grease as needed to prevent drying and cracking.

WARNING: Do not attempt to take apart the camera-there are

high voltage parts and dangerous electric shock can occur.

Waterproof cables: Available in either VGA or HD video versions up to 300’ / 90+ meters with

RCA male video out connector(s) and 12V power in connector. VGA or HD mode set in camera.

IMPORTANT: Before each use, clean and maintain all O-rings for parts that have been opened

by removing any dirt, sand and other debris and lightly lubricating with silicone grease as

needed to prevent drying and cracking. Make sure to remove all excess grease before use-

excess grease can cause leakage and failure of seal.

WARNING: DANGER OF ELECTRIC SHOCK FROM WET CABLE PLUG. Disconnect

incoming power when attaching or removing ConneX waterproof cable.

Multi Bracket: Weighted camera mount allows ConneX to be mounted

with 2 video lights (Model AVL) or 4 cameras. Model# CONNEX WC MT.

Bare wire adapter: 5.5mm (OD)/2.1mm pin hole power connector plug with bare wires

to 12V DC power source. Model# CONNEX DC CABLE.

Connection polarity is very important. Reversing the polarity can damage the camera

circuits and is NOT covered under warranty. Red wire is POWER (+), Black wire is GROUND (-).

WARNING: DANGER OF ELECTRIC SHOCK. Disconnect incoming power when attaching

or removing bare wire adapter.

Cigarette Charger (12V DC): 5.5mm (OD)/2.1mm pin hole power connector plug

to cigarette lighter adapter plug for 12V DC. Model# CONNEX CIG CHGR.

WARNING: DANGER OF ELECTRIC SHOCK. Disconnect incoming power

when attaching or removing cigarette lighter adapter plug.

Monitor: Connect to waterproof cable via RCA video plug to view live video feed.

MODEL# CONNEX MONITOR.

Manta Wing Tow Mount: Mount for towing camera underwater. Model# CONNEX TOW MT.

1. Open waterproof cable port by using

#1 Phillips screwdriver to remove port cover.

CONNEX OPTIONAL ACCESSORIES:

Important:

1. WARNING: DANGER OF ELECTRIC SHOCK FROM WET CABLE PLUG. Disconnect incoming power when attaching or removing cable.

2. Cable plug and camera port must be dry when attaching or removing cable.

3. When not in use, replace port cover on camera to maintain waterproof seal.

4. Use only with approved mount systems that will not put pulling pressure directly on cable connector. Do not suspend camera solely from cable

connection point. Improper pulling on cable/connector can damage connector and is not covered by warranty.

5. Before each use, clean and maintain all O-rings for parts that have been opened by removing any dirt, sand and other debris and lightly lubricating

with silicone grease as needed to prevent drying and cracking. Make sure to remove all excess grease before use. Excess grease can cause leakage

and failure of seal.

Connecting power to waterproof cable:

WARNING: DANGER OF ELECTRIC SHOCK. Disconnect incoming power when attaching or removing accessories from cable.

2. Align cable plug tab

to indent in port

3. Securely attach plug into port with

a #1 Phillips screwdriver

Waterproof plug

Power-in port

Video out plug: RCA type

(1) plug on VGA model

(3) plugs on HD model

Insert 5.5mm (OD)/2.1mm pin hole power connector plug into ConneX

cable’s power port to supply power from external 12V DC source.

OD)/2 1mm pin hole power

onnector plug i

1100 Alakea St., 18th Floor Honolulu, Hawaii 96813 USA

(808) 837-0074

www.intova.net

NOTE: As a result of continual improvements, the design and specications of product(s) as described in this quick start guide may change without notice.
