This Interquartz telephone has been manufactured to very high standards and

is very easy to use. Please read this manual carefully to find out how to use the

features.

Contents

1.Important notes ................................................................................. 2

Intended Use ......................................................................................... 2

Telephone acilities ................................................................................ 2

REN Number .......................................................................................... 3

Emergency Calls .................................................................................... 3

2.Installation ........................................................................................... 3

Connection .............................................................................................. 3

Wall Mounting ......................................................................................... 3

3.Telephone Features ........................................................................ 4

4.Operating instructions ..................................................................... 4

PABX "Hot-line" ...................................................................................... 4

Answer Only ........................................................................................... 4

5.Maintenance and Problem Sol ing ............................................... 5

6.Warranty and Ser ice ...................................................................... 6

Figure 1. General Appearance ............................................................... 8

Figure 2. Bottom View ........................................................................... 9

Figure 3. Wall-Mounting ......................................................................... 9

All manuals and user guides at all-guides.com

1. Important Notes

Intended use

This apparatus is intended for use on 2 wire analogue PSTN and PABX

circuits within the United Kingdom.

Declaration of Conformity

nterquartz (UK) Limited declares under its sole responsibility that this

product

Model: 9826N

Is in conformity with the following relevant harmonised standards

Health & Safety 73/23/EEC

Electromagnetic Compatibility 89/336/EEC

ollowing the provisions of Council Directive 1999/5/EC on radio

equipment and telecommunications terminal equipment.

A J Roberts April 2000

Director

Telephone Facilities

This telephone has been designed for the use of the following facilities :

- PABX "hot-line" applications

- answer only applications

- ringer volume control

All manuals and user guides at all-guides.com

REN Number

The REN number of this telephone is 1.

If you wish to connect any other equipment to the line, simply add the

REN numbers of each piece together and ensure that the total does not

exceed 4. If too many phones are connected to the line, the circuit may be

overloaded and your telephone may not ring. Not all telephones have the

same REN.

If a British Telecom phone is supplied unmarked, you can assume that it

has a REN of 1.

Emergency Calls

"999" calls cannot be made on this telephone.

2. Installation

This telephone is designed to plug straight into a modular style socket. If

you do not have one of these sockets, they can be obtained from your

network supplier.

Connection

Insert the line cord into the socket.

Set the ringer volume and ringer pitch control, as desired.

Wall Mounting

Before mounting the telephone, follow the procedure shown in igure 3 to

enable the handset to be supported in the cradle.

Using the template supplied, position it where you want to fix your telephone.

Drill two holes and fix roundheaded screws, leaving them slightly proud of

the surface. Position the telephone over the screws and slide downwards

into place.

All manuals and user guides at all-guides.com

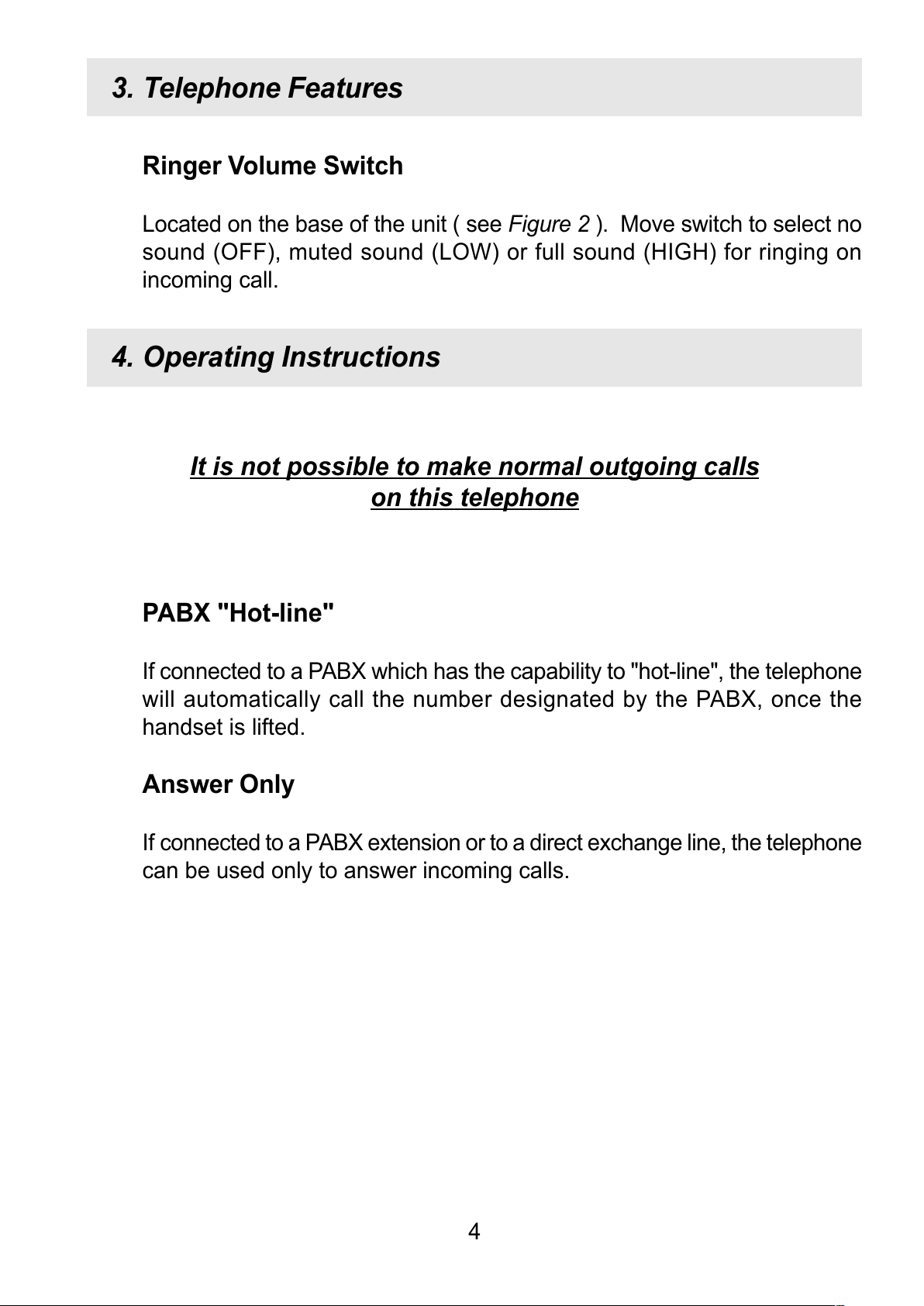

3. Telephone Features

Ringer Volume Switch

Located on the base of the unit ( see Figure 2 ). Move switch to select no

sound (O ), muted sound (LOW) or full sound (HIGH) for ringing on

incoming call.

4. Operating Instructions

It is not possible to make normal outgoing calls

on this telephone

PABX "Hot-line"

If connected to a PABX which has the capability to "hot-line", the telephone

will automatically call the number designated by the PABX, once the

handset is lifted.

Answer Only

If connected to a PABX extension or to a direct exchange line, the telephone

can be used only to answer incoming calls.

All manuals and user guides at all-guides.com

5. Maintenance an Problem Solving

Your telephone is a precision electronic instrument. Avoid rough handling

and extreme temperatures.

Use a mild detergent and a damp cloth when cleaning. Never use a stronger

cleaner.

If your telephone does not appear to be working correctly, please check

the following :

No dial tone - Is phone cord properly connected to the wall socket ?

Will not ring - ringer switch is set to off

- REN number may exceed 4, for all telephones

connected to the line. Disconnect a phone until the

number is below 4.

If there are still problems, and you have more than one telephone :

Remove the "problem" telephone. Insert another telephone and check

that it works. If "yes" then the "problem" telephone is possibly faulty. If not,

then you may have a faulty line. Try using the other socket and see which

telephones work. If you do have a faulty line then you should contact your

network supplier.

You should however be aware that if you request them to repair a fault that

is found not to be theirs, then they are entitled to charge you for a visit.

In the event that you still have problems then you should consult your

supplier.

All manuals and user guides at all-guides.com

all-guides.com

6. Warranty an Service

This product is guaranteed, by Interquartz (UK) Limited, for six years from

the date of manufacture.

Every Interquartz telephone has a unique serial number and part of that

number refers to the date of manufacture. A label, similar to that shown

below is affixed to each telephone

9515 030852

(model no.) QC.P

The figure 9515 means that the telephone was made during week 15 (10

April) 1995. Under the new warranty, cover will apply until 10 April 2001.

A warranty is designed to cover either manufacturing faults or component

defects. It is not designed to cover fair wear and tear. The Interquartz

warranty is no exception.

We look to you, our customer, to be reasonable and sensible over the

warranty. We will endeavour to repair any telephone sent in to us within

the warranty period but we reserve the right to charge for items that we

consider replaceable under wear and tear. or example, if a handset cord

splits within a few months, it will be replaced. If a phone is returned after,

say, four years of heavy use with a similar problem, we might take a different

view and wish to charge.

If you have a genuine warranty problem and provided that the warranty

seal has not been broken, we will either repair your telephone, or, at our

sole discretion, replace it with a similar telephone. In the event that a

model may have been discontinued, any replacement would have similar

or better features.

All manuals and user guides at all-guides.com

If you need to return a faulty unit to us, send it to :

Interquartz (UK) Limited

Pennine House

Salford Street

Bury

BL9 6YA

Make sure that you tell us what appears to be wrong with the phone.

DO NOT FORGET TO INCLUDE YOUR OWN NAME AND ADDRESS.

We ask that you bear the cost of returning any telephones to us. We will

return them to you, at our expense.

This warranty is in a ition to any statutory rights.

All manuals and user guides at all-guides.com

Figure 1. General Appearance

HANDSET CORD

CONNECTION SOCKET

All manuals and user guides at all-guides.com

1. Insert screw driver into slot

and then pry to release

HANDSET RETAINER

2. Turn the HANDSET RETAINER

upside-down

3. Insert the HANDSET RETAINER

back into it's slot

Figure 3. Wall Mounting

Figure 2. Bottom View

HANDSET CORD

CONNECTION

SOCKET

RINGER VOLUME

SWITCH

LINE CORD

CONNECTION

SOCKET

All manuals and user guides at all-guides.com
