Interquartz Enterprise 98390 Manuel utilisateur

Model 98390

OPERATING INSTRUCTIONS

This Interquartz telephone has been manufactured to very high standards and

is very easy to use. Please read this manual carefully to find out how to use the

features.

Contents

1. Important notes ................................................................................ 2

Intended use ........................................................................................ 2

Telephone facilities ................................................................................ 2

R N Number ......................................................................................... 3

mergency calls .................................................................................... 3

2. Installation .......................................................................................... 4

Connection ............................................................................................. 4

Wall mounting ........................................................................................ 4

3. Telephone Features .......................................................................... 6

4. Operation ............................................................................................ 7

5. PABX & System sage ................................................................... 8

6. Maintenance and Problem Solving ............................................... 9

7. Warranty and Service ...................................................................... 10

Figure 1 General Appearance ........................................................... 3

Figure 2 Wall Mounting ..................................................................... 4

Figure 3 Handset Retainer for Wall Mount ........................................ 5

Figure 4 Bottom View ........................................................................ 6

Figure 5 Recall Switch ...................................................................... 8

1. Important Notes

Intended use

This apparatus is intended for use on 2 wire analogue PSTN and PABX circuits

within the United Kingdom.

Declaration of Conformity

nterquartz (UK) Limited declares under its sole responsibility that this product

Model: NT RPRIS

Is in conformity with the following relevant harmonised standards

Health & Safety 73/23/ C

lectromagnetic Compatibility 89/336/ C

Following the provisions of Council Directive 1999/5/ C on radio equipment and

telecommunications terminal equipment.

A J Roberts April 2000

Director

Telephone facilities

This telephone has been designed for the use of the following facilities :

- operation in the absence of proceed indication

- recall (earth or timed break selectable)

- MF signalling

- ringer volume control

- ringing indicator

- last number re-dial

REN number

The Ren number of this telephone is 1.

If you wish to connect any other equipment to the line, simply add the

R N numbers of each piece together and ensure that the total does not

exceed 4. If too many phones are connected to the line, the circuit may be

overloaded and your telephone may not ring.

Not all telephones have the same R N.

If a British Telecom phone is supplied unmarked, you can assume that it

has a R N of 1

Emergency calls

"999" calls can be made on this telephone, for the purpose of making

calls to the emergency service. An access code may also be required, if

the phone is connected to a PABX.

Figure 1 General Appearance

RING R

INDICATOR

K YPAD

HANDS T

CORD

HANDS T

F ATUR

K YS

2. Installation

This telephone is designed to plug straight into a modular style socket. If

you do not have one of these sockets, they can be obtained from your

Network Supplier. A card is included for this purpose. Simply complete it

and send it to your Network Supplier.

Connection

Insert the line cord into the socket. Set the ringer volume control, as

desired.

Wall mounting

Using the template supplied, position it where you want to fix your

telephone. Drill two holes and fix roundheaded screws, leaving them slightly

proud of the surface. Position the telephone over the screws and slide

downwards into place.

FOR WALL

MOUNT

Figure 2 Wall Mounting

To enable the handset to be supported in the cradle when the phone is

mounted on the wall, follow the procedure shown in Figure 3 to reserve

the HANDS T R TAIN R.

1. Use your thumb to press the

HANDS T R TAIN R

2. Push the HANDS T R TAIN R

out of the slot

4. Insert the HANDS T R TAIN R

back into it's slot

3. Turn the HANDS T

R TAIN R 180°

Figure 3 Handset Retainer for Wall Mounting

3. Telephone Features

Ringer Indicator

Flashes when the telephone rings with an incoming call.

Ringer Volume Switch

Located on the base of the unit (see Figure 4). Move switch to select no

sound (OFF), muted sound (LOW) or full sound (HIGH) for ringing on

incoming call.

Mute Button

Pressing and releasing this button cuts off the handset so that the caller

cannot hear your conversation. The red L D will light indicating that the

mute is on. Pressing and releasing the button a second time will cancel

the mute and return to normal conversation.

If the telephone handset is replaced on the cradle with the mute "on", the

mute will automatically be released when the handset is next lifted.

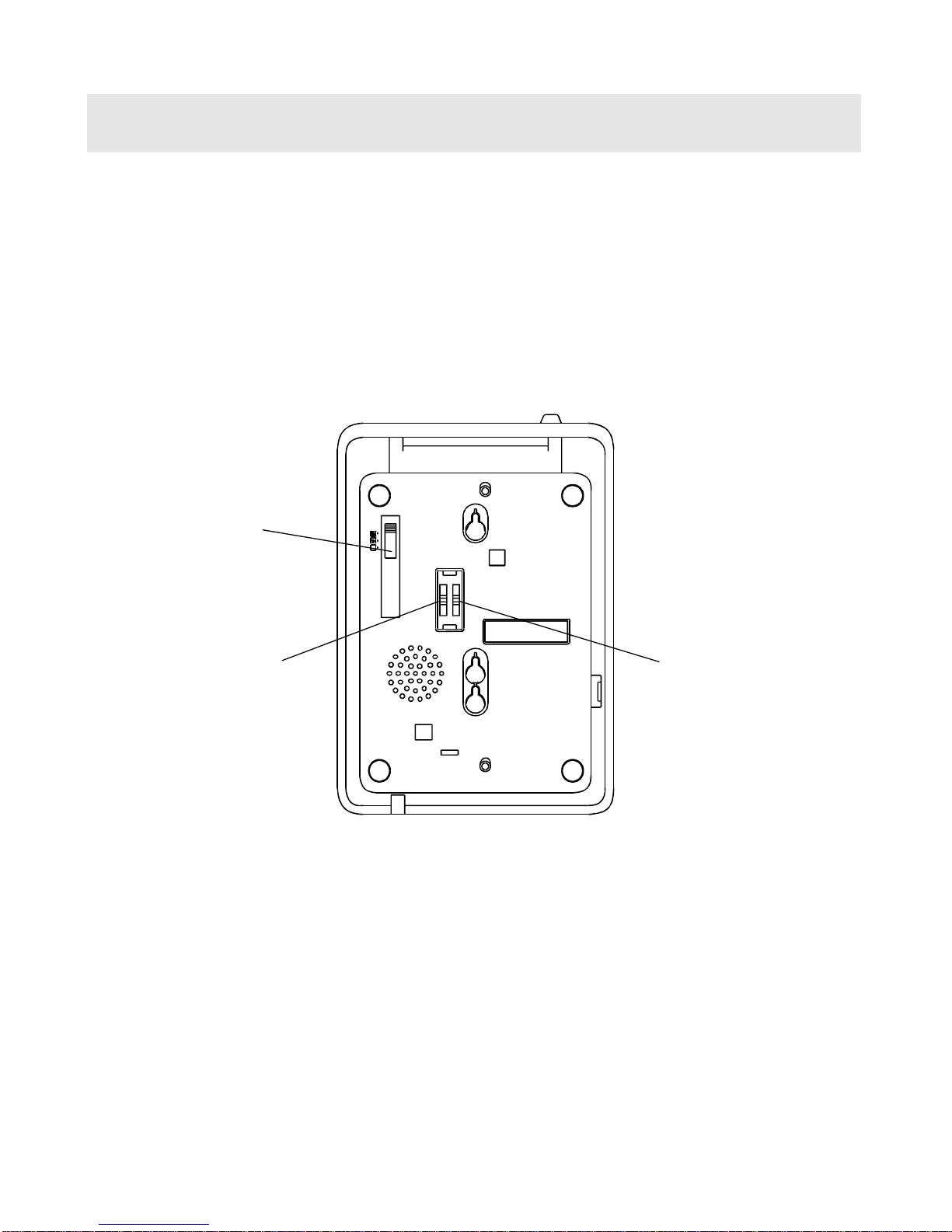

Figure 4 Bottom View

RING R

HI / LO / OFF

SWITCH

TIM D BR AK /

ARTH R CALL

SWITCH

VOIC M SSAGING

( N / S1 / S2 ) SWITCH

Redial / Pause Button

When pressed as the first button

- redials last number dialled

Otherwise, it serves as a pause button inserting a 3.6 second pause in

the number sequence.

4. Operation

To dial a number, lift the handset, wait for the tone and then key in the

number required.

Redial / Pause Function

Redial

If the number dialled is busy, obtain a new line - by replacing the telephone

handset and then lifting it again. Press the button labelled redial/pause

and the last number that you dialled will automatically be redialled.

Pause

The Pause command may be needed if the phone is connected to certain

types of PABX or to any network where a pause is required.

Note : No more that 3 pauses should be inserted consecutively, otherwise

the telephone may not function properly.

- Lift handset

- Dial any digits required before the pause

- Press Pause button

- Dial remaining digits

5. PA X & System Usage

This telephone can be used behind a PABX or on a network that utilises

the recall function. There are many such systems and whilst it is likely

that no problems will be encountered, it cannot be guaranteed that the

telephone will operate correctly under all circumstances and any cases of

difficulty should be referred to your supplier.

Recall

Before you attempt to change the recall switch, labelled TBR R, see

( Figure 4&5 ), you should disconnect the phone from the network.

You will need a screwdriver, or similar tool to remove the cover plate over

the switch. Simply slide the Switch marked TBR R to the appropriate

setting ( the factory default is TBR ). If you are unsure which setting is

applicable, please consult your PABX manager or supplier. Do not adjust

the switch marked N, S1, S2.

Replace the cover, plug the phone back into the socket and it is ready for

use.

PABX access

Where a PABX access digit is required to obtain a direct outside line, it

may be necessary to insert a pause after dialling the access digit ( see

pause / redial section of this manual ).

Figure 5 Recall Switch

Voice messaging

When used behind a PABX, this telephone will respond to voice messaging

systems on many PABX types, giving a visual signal of a message waiting.

Your telephone manager will be aware of which system is relevant to your

organisation and will adjust or advise you on the adjustment of your

telephone accordingly.

This adjustment is carried out by means of a switch, labelled N/S1/S2 ,

located next to the recall switch, mentioned above.

As supplied, the telephone is set to the N (normal) position. Under no

circumstances should this white switch be set to the S1 or S2 without the

approval of your telecoms manager. In either of the S positions, the

telephone must NOT be connected directly to a public network line.

(Technical note : S1 and S2 are for reverse polarity messaging systems.

With such a system in use, if the telephone does not respond in the S1

position, switch it to the S2 position and it should then respond.

Some P BX's require a certain level of software and/or hardware within

the switch. If your telephone appears not to work, make sure that you

have the correct software/hardware installed).

6. Maintenance and Problem Solving

Your telephone is a precision electronic instrument. Avoid rough handling

and extreme temperatures.

Use a mild detergent and a damp cloth when cleaning. Never use a

stronger cleaner.

If your telephone does not appear to be working correctly, please check

the following :

No Dialling tone - Is phone cord properly connected to the wall

socket?
