Quick Start Guide

PB41

4-Inch Belt Printer

2 PB41 Printer Quick Start Guide

Intermec Technologies Corporation

Corporate Headquarters Technical Communications

6001 36th Ave. W. 550 Second Street SE

Everett, WA 98203 Cedar Rapids, IA 52401

U.S.A. U.S.A.

www.intermec.com

The information contained herein is proprietary and is provided

solely for the purpose of allowing customers to operate and

service Intermec-manufactured equipment and is not to be

released, reproduced, or used for any other purpose without

written permission of Intermec.

Information and specifications contained in this document are

subject to change without prior notice and do not represent a

commitment on the part of Intermec Technologies Corporation.

E2003 by Intermec Technologies Corporation. All rights re-

served.

The word Intermec, the Intermec logo, Norand, ArciTech,

CrossBar,DataCollectionBrowser,dcBrowser,Duratherm,

EasyCoder, EasyLAN, Enterprise Wireless LAN, EZBuilder,

Fingerprint, i-gistics, INCA (under license), InterDriver,

Intermec Printer Network Manager, IRL, JANUS, LabelShop,

Mobile Framework, MobileLAN, Nor*Ware, Pen*Key,

Precision Print, PrintSet, RoutePower, TE 2000, Trakker

Antares, UAP, Universal Access Point, and Virtual Wedge are

either trademarks or registered trademarks of Intermec

Technologies Corporation.

Throughout this manual, trademarked names may be used.

Rather than put a trademark (™or ®)symbolinevery

occurrence of a trademarked name, we state that we are using

the names only in an editorial fashion, and to the benefit of the

trademark owner, with no intention of infringement.

There are U.S. and foreign patents pending.

PB41 Printer Quick Start Guide

Packing List

Checktoensurethatyoureceivetheseitems:

SIntermecRPB41A0B240 (4-inch thermal belt ) Printer with

Bluetooth radio

SIntermecRPB41A27040 or PB41A27042 (4-inch thermal

belt ) Printer with 802.11b radio

SOne roll of paper (in printer)

STwo Battery Packs (installed)

SCompliance Statement

SWarranty Card

S802.11b Radio Card (802.11b printer only). Card is packed

in a bag taped to the inside of the printer box.

*Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.

Common Accessories List

Cable Part Number

Data Cable (Hirose to RJ-11) 321-578-001

Power Adapters Part Number

U.S. AC Adapter, 12 volt DC 320-066-042

English AC Adapter, 12 volt DC 320-066-043

European AC Adapter, 12 volt DC 320-066-044

Australian AC Adapter, 12 volt DC 320-066-045

Cigarette Lighter Adapter, 12 volt 320-066-033

Supplies Part Number

Replacement Li-Ion 7.2V 2200 mAh Battery 320-088-101

Battery Eliminator 851-074-001

Thermal paper 130’/roll, 50/case 320-081-011

4-Inch Cleaning Cards (100 per pack) 320-070-013

Individual Cleaning Card 320-066-013

4 PB41 Printer Quick Start Guide

Getting Familiar with Your PB41 Printer

PB41 Printer with 802.11b Radio Pod

Charge indicator

Self-Test button

Battery packs

RJ-11 port

DC power jack

Papertearbar

Paper

release lever

802.11b radio

card pod

Radio On/Off

blue illuminating

button

PB41 Printer Quick Start Guide

PB41 Printer with Bluetooth Module

Charge indicator

Self-Test button

Battery packs

RJ-11 port

DC power jack

Papertearbar

Paper

release lever

Radio On/Off

blue illuminating

button

6 PB41 Printer Quick Start Guide

Installing 802.11b Radio Card (if

applicable)

Note: This information applies only if you have a

PB41 Printer with an 802.11b Radio.

Before installing the 802.11b Radio Card ensure

that the protective battery tab strips are in place

or remove the batteries before installing the radio

card.

Your PB41 Printer with an 802.11b radio has been configured

at the factory. FCC mandates that the radio card not be

installed for shipment. The following information guides you

through the process of installing the radio card.

The radio card is packed separately in an anti-static plastic

bag taped to the inside of the printer box.

1Remove the radio card cap.

2With the logo facing down, insert the radio card between the

foam and the radio card strap.

PB41 Printer Quick Start Guide

3Carefully push the card into the connector until it is fully

seated.

4Replace the radio card cap.

Before Using Your Printer For The First

Time

Remove the protective tab strips underneath the batteries. They

are placed there to keep your printer from discharging during

shipment.

5Push against the battery lock tab and lift the battery up be-

fore pulling on the protective tab strips. These tabs prevent

the battery contacts from touching and therefore, no charging

occurs.

6If your printer won’t charge after removing the protective

tabs, check for and remove any residue in the battery pin

area.

Battery lock tabs

(one on each side)

Center battery

support posts

Battery pack

Battery contact protective

tab strip (one for each pack)

Battery contact

protective tab strips (removed)

8 PB41 Printer Quick Start Guide

Charging the Lithium Ion Batteries

SThe printer battery charges in about three hours.

LED Battery Indicators

LED State of Charge Action

Solid Red In Progress Waiting for green LED

Green Complete Remove Charger

Slow Red Flashing Low Temperature or

battery is disconnected

Change environment or

connect battery

Fast Red Flashing High Temperature Change environment

Slow Red and Orange

Flashing

Low Voltage Wait for solid red

Fast Red and Orange

Flashing

High Voltage Wait for solid red

Slow Orange Flashing Timeout Restart charge

Fast Orange Flashing Internal Error Remove battery to pow-

er down completely and

reconnect. Or unplug

from charging source,

wait 15-20 seconds, and

reconnect.

Beep Indicator

Number of Beeps Indicates

One Printer has come out of sleep mode

Two Printer is out of paper

Three Battery is low

One long beep No program in printer, only boot code

Double beep (chirping sound) Radio is turning Off

1 short beep RF power is On (when blue radio but-

ton is pressed and power turned Off).

2 short beeps RF power is off (when blue radio but-

ton is pressed and power turned On).

1 long beep Boot code is starting or restarting

(when downloading new firmware).

5 short beeps Communication error from applica-

tion. Reset application.

PB41 Printer Quick Start Guide

Beep Indicator (continued)

IndicatesNumber of Beeps

8 short beeps CRC error in firmware. Redownload

firmware.

10 short beeps Error writing to communication con-

troller firmware. Redownload firmware.

Determining Current Battery Power

To determine the current charge on each battery pack, print out

a self-test by pressing and holding the red self-test button for

four seconds. If the battery is good, you will see the abbreviation

for the word “GOOD” next to the Battery voltage (Batt1 or

Batt2) print out.

This printer has a built in low battery detector. When the print-

er’s battery voltage is low, the printer beeps three times, indicat-

ing a Low Battery Warning. This only happens if the printer is

awake.

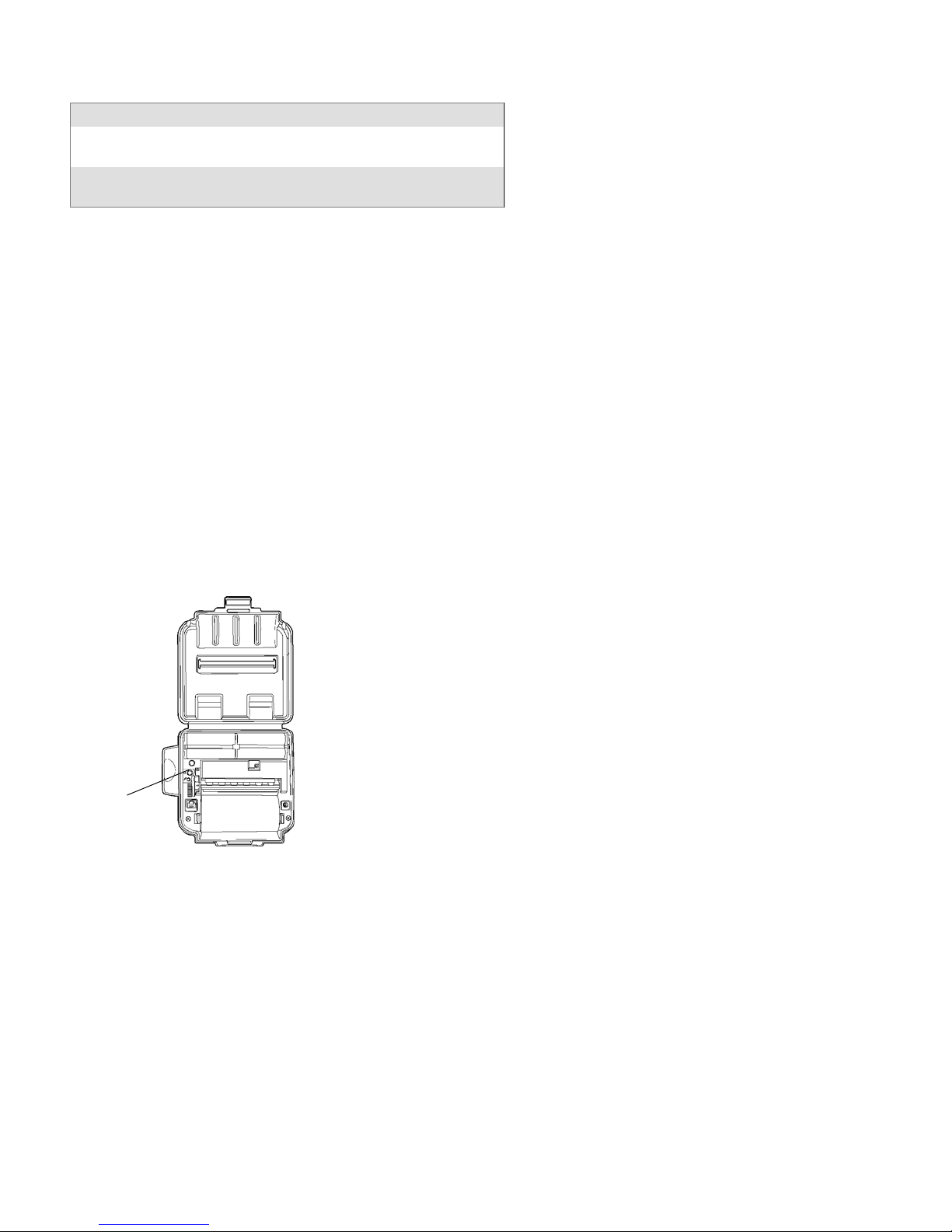

Printer Self-Test

Push the red button and hold for about four seconds to print a

self-test.

Self-Test button

The following is an explanation of the Self-Test print-out.

10 PB41 Printer Quick Start Guide

802.11b Self-Test Print-out Explanation

Test Item Description

F/W Ver The internal software version (6.46 or greater)

Timeout The seconds between printing and sleep mode

RF Timeout Never

Baud Rate The speed at which the printer receives data

Parity Odd, Even, or None

Data Bits Matches with computer sending data to printer

Handshake The way the printer handles flow control from host

Burn Adj Amount of heat used to print on the thermal paper

Beeper May be turned On or Off

Chrg Beep May be turned On or Off

Batt1 Volt Current voltage of the first battery pack

Batt2 Volt Current voltage of the second battery pack

Printhd Tmp Temperature of the printer head (between 0 and 50

degrees)

Flash/RAM 1Mbor4MbFlash/1Mbor4MbRAM

Boot Ver Boot sector firmware

ComCtl Ver Communication Controller Version

802.11b Config Bar code shows MAC address for 802.11b device;

Network Type Ad hoc (opting not to communicate

through an access point but instead communicating

through other ad hoc printers; Station Name is the

specific name for your printer (i.e. serial number);

DHCP (Dynamic Host Configuration Protocol) if

On this is the only way to determine IP address; IP

Ad=> bar code and human readable IP address also

shows Subnet Mask, Gateway, and Port addresses;

Encryption (open is unsecured, 40-bit or 128-bit

encryption enabled) if enabled then Key Selected;

Key Selected 1-4 equivalent to a password for your

device.

Available Fonts LOC shows whether a font is Resident (R) or

Downloaded (D); CPI shows characters per inch;

DESCRIPTION describes the font; Version and

DATE of font loads; NAMES give the “Easy Print”

name, the Line Printer name, and the hexadecimal

equivalent of that name.
