Quick Start Guide

AC1 4-Slot Battery Charger

You may need additional information when working with the AC1 and CK30 or CK31 in a

data collection system. Please visit our web site at www.intermec.com to download our

current manuals in PDF format. To order printed versions of the Intermec manuals,

contact your local Intermec representative or distributor.

Patent Information

Product is covered by one or more of the following

patents: 5,052,943; 5,195,183; 5,317,691; 5,331,580;

5,544,010; 5,644,471. There may be other U.S. and

foreign patents pending.

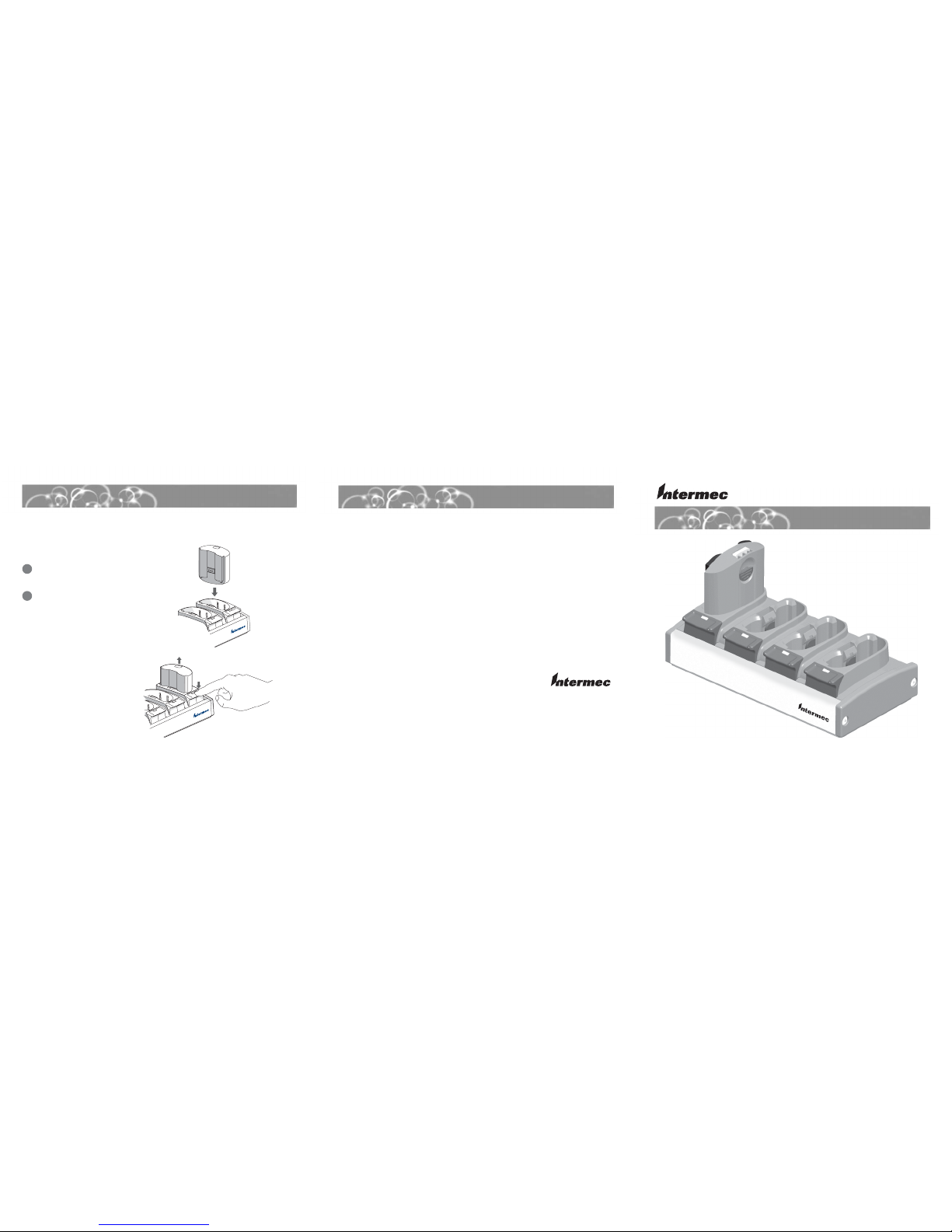

You can charge up to four batteries at one time in the charger. The charger fully charges

the batteries in about 5 hours.

To charge batteries

With the battery contacts facing the

charger, slide the battery into one of the

four slots.

Push the battery into the slot to engage

the latch. The Status light for that slot

changes from yellow to green or red to

indicate the battery charge status. See

“Understanding the Status Lights” to learn

what the Status light colors mean.

To remove batteries

•Press the button for that slot and

slide the battery up and out.

Electrical ratings: x12V 4A

Requires Intermec AC power supply (Model 073573)

~100 to 240 VAC, 50 to 60 Hz

WorldwideHeadquarters

6001 36th Avenue West

Everett, Washington 98203

U.S.A.

tel 425.348.2600

fax425.355.9551

www.intermec.com

2007Intermec Technologies

AC1 4-Slot Battery Charger Quick Start Guide

*073530-006*

P/N 073530-006

What Is the AC1? Installing the AC1 Understanding the Status Lights

The AC1 4-Slot Battery Charger (P/N 852-904-XXX) is an accessory for the CK30 and CK31

Handheld Computers. You use the battery charger to charge up to four batteries at the

same time.

This guide explains how to install and use the battery charger.

What YouNeed

To use the charger, you need:

•an AC power supply (Model 073573).

•an AC power cord.

You need to purchase the appropriate power cord for your location. For more information,

contact your Intermec sales representative.

This table explains what the different colors of the Status lights mean.

Youmust use the appropriate Intermec power supply with this device or

equipment damage may occur.

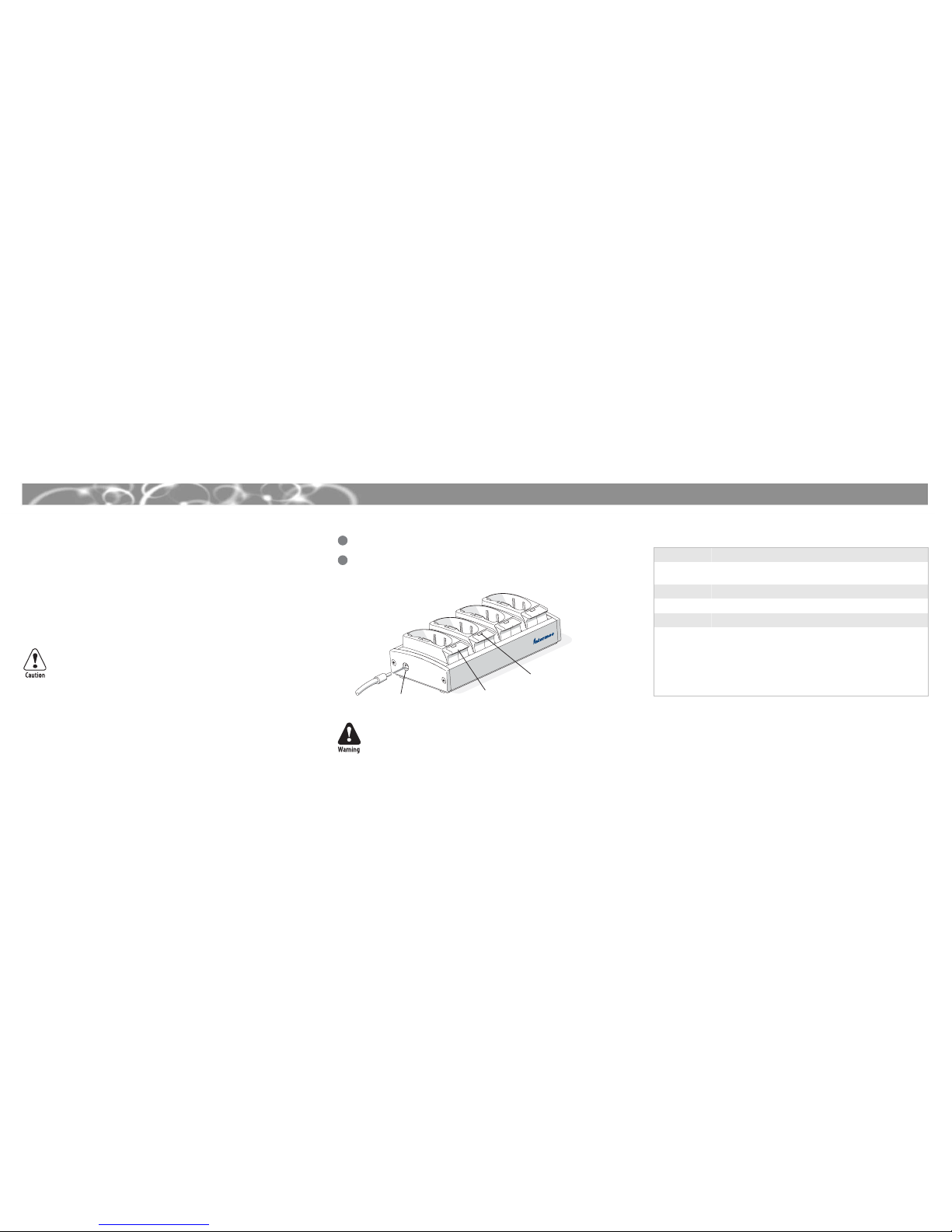

AC1 4-Slot Battery Charger Quick Start Guide

Place the battery charger on a flat, stable, and clean surface that is within 1.5 m

(5 ft) of an AC power outlet.

Connect the AC power supply to the power connector on the battery charger

and to an AC power outlet. The Status light in each button turns on, showing

that the battery charger is ready to use.

To prevent fire or electric shock, do not expose the AC1 to rain or moisture.

Status light

(4 places)

Power

connector

Button

(4 places)

Color Description

No Color The battery charger is not receiving power. Make sure the power supply

is connected properly to a powered AC outlet.

Steady Yellow The battery charger is connected to AC power and is ready to charge.

Flashing Green The battery is charging.

Steady Green The battery is fully charged.

Flashing Red The battery is not charging. Try these solutions:

• Make sure the battery is firmly installed in the charger.

•Make sure the power supply is connected properly to a powered AC

outlet.

• Make sure the charging pins on the AC1 and the contacts on the

battery are clean.
