MODEL: T101

24 HOUR DIAL TIME SWITCH

SINGLE POLE SINGLE THROW (SPST)

40 AMP. RESISTIVE, INDUCTIVE, TUNGSTEN

OR 1000 VA PILOT DUTY 120/208/240 VOLT AC;

2 HP (24 FLA) - 120V AC; 5 HP (28 FLA) - 240V AC

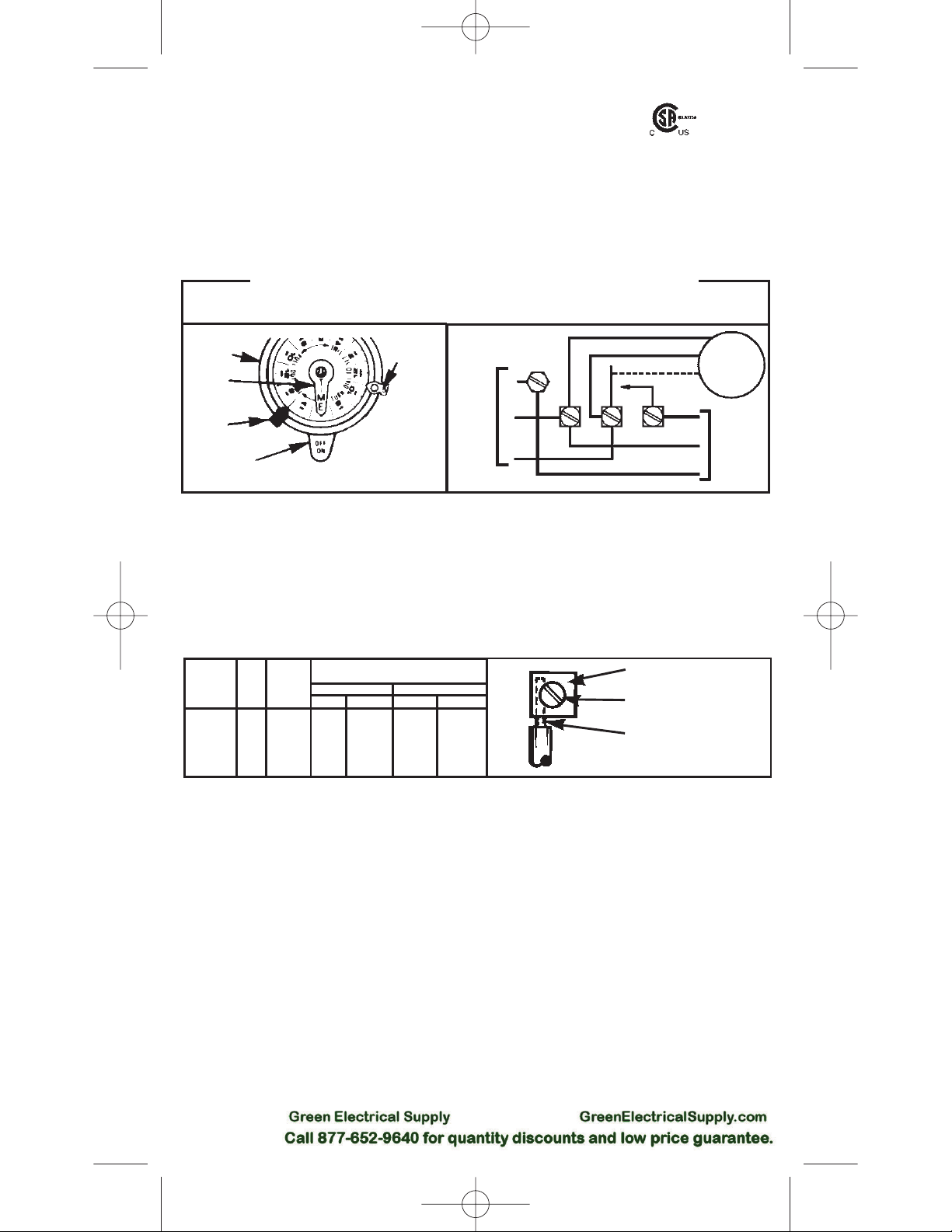

WIRING INSTRUCTIONS: To wire switch follow diagram above.

Use solid or stranded COPPER only wire with insulation to suit

installation. See gauge selection table for normal service applica-

tions.To make power connections remove 1/2 inch of insulation

from wire ends. Insert bare ends of wire under the pressure plate

of terminals. Use 3/16 or larger screwdriver to tighten terminal

screws firmly. (25 lb-in minimum).

REPLACE INSULATOR BEFORE TURNING ON ELECTRICITY.

PROGRAMMING INSTRUCTIONS

1. TO SET “ON” AND “OFF” TIMES: Hold trippers against edge

of CLOCK-DIAL, pointing to time (AM or PM) when ON and

OFF operations are desired, tighten tripper screws firmly. For

additional tripper pairs on CLOCK-DIAL order 156T1978A.

2. TO SET TIME-OF-DAY: Pull CLOCK-DIAL outward. Turn in

either direction and align the exact time-of-day on the CLOCK-

DIAL (the time now, when switch is being put into operation) to

the pointer. DO NOT MOVE POINTER.

OPERATING INSTRUCTIONS

•TOOPERATESWITCHMANUALLY:Move MANUAL LEVER

below CLOCK-DIAL left or right as indicated by arrows. This

will not effect next operation.

•INCASEOFPOWERFAILURE,reset CLOCK-DIAL to

proper time-of-day. See programming instructions.

INTERMATIC INCORPORATED

SPRING GROVE, ILLINOIS 60081-9698

158TS10941

TIME

POINTER

TIME

DIAL

OFF

TRIPPER

MANUAL

LEVER

TRIPPER

CLOCK

MOTOR

GROUND

A12

GRD.

120V

SUPPLY

LOAD

LINE

NEUT.

WIRING

DIAGRAM

PRESSURE PLATE

TERMINAL SCREW

MAKE SURE WIRE

INSULATION CLEARS

PRESSURE PLATE

MINIMUM

COPPER

WIRE SIZE

(AWG)

MAX.

LOAD

(AMP)

MIN.

INSUL-

ATION

TEMP(°C)

75°C INSULATION MAX. MOTOR

LOAD (HP)

SINGLE PHASE 3 PHASE

120 V. 240 V. 208 V. 240 V.

1/2

2 1/2

N/A

CLOCK MOTOR: 110-125 VOLTS - 60 HZ.

CLOCK MOTOR VOLTAGE AND CYCLE MUST BE AS SPECIFIED. TO

ORDER REPLACEMENT, INDICATE PART NO. (WG--) ON MOTOR COVER.

LR3730

Document1 10/30/03 1:30 PM Page 1
