INSTALLING THE EMRS-W-D

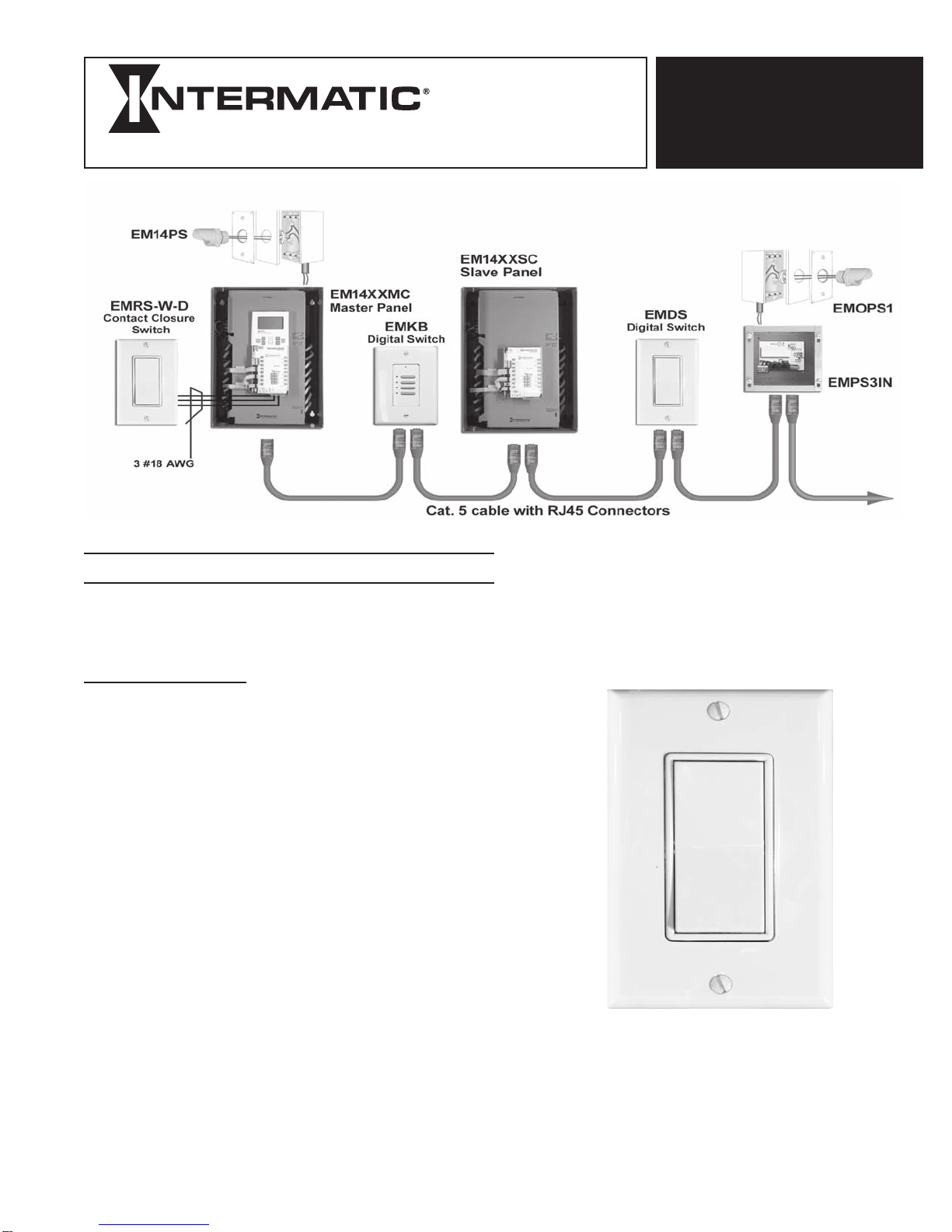

The EMRS0-W-D is a center-off momentary contact clo-

sure switch that connects to the contact closure inputs of

the EM 1400 Series Relay Panel.

Placement and Wiring

“Home-run” the switch to the contact-closure inputs on

the EM1400: The green wire goes to the ground input

(gnd). Note that this is not “Earth Ground” but a oat-

ing common connection for the electronics. The wires

should at no time be allowed to touch “earth ground.”

The blue and white wires each go to one of the inputs

labeled with numbers 1-14. See the “Contact Closure In-

puts” section of the EM1400 Series Installation Manual

for more information.

If the wire from the switch to the panel exceeds 200 feet

the cable should be shielded and the shield attached to

the Gnd (common) wire at the panel only. It is not con-

nected at the switch end.

The inputs are not preprogrammed. They have to be

programmed for the rocker switch to actuate a relay or

relays in the system. See the EM1400 Quick Hook-Up

Guide and System and Software Start-Up Manual for

instructions on how to do this.

This center-off momentary switch has two separate

contacts and uses two inputs. To turn a load(s) on and

off, program one input as “momentary on” and the other

as “momentary off.”

1.

2.

3.

4.

EMRS-W-D

SWITCH

INSTALLATION

GUIDE

LIGHTING CONTROL EQUIPMENT

INTERMATIC INCORPORATED • http://www.intermatic.com

EMRS-W-D

Contact Closure Switch
