IFS NS3552-8P-2S and
NS3550-2T-8S
Quick Installation Guide
P/N 1072679 • REV A • ISS 19DEC13
Copyright © 2013 United Technologies Corporation
Interlogix is part of UTC Climate Controls &
Security, a unit of United Technologies
Corporation. All rights reserved.
Trademarks and
patents The IFS NS3552-8P-2S and NS3550-2T-8S name
and logo are trademarks of United Technologies.
Other trade names used in this document may be
trademarks or registered trademarks of the
manufacturers or vendors of the respective
products.
Manufacture
r
Interlogix
3211 Progress Drive, Lincolnton, NC 28092 USA
Authorized EU manufacturing representative:
UTC Climate Controls & Security B.V.,
Kelvinstraat 7, 6003 DH Weert, Netherlands
Version This document applies to IFS NS3552-8P-2S
version 1.0.
Certification N4131
FCC compliance Class A: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area is likely to
cause harmful interference in which case the user
will be required to correct the interference at his
own expense.
ACMA
compliance Notice! This is a Class A product. In a domestic
environment this product may cause radio
interference in which case the user may be
required to take adequate measures.
Canada This Class A digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe A est
conforme á la norme NMB-003du Canada.
European Union
directives 2004/108/EC (EMC directive): Hereby, UTC Fire
& Security declares that this device is in
compliance with the essential requirements and
other relevant provisions of Directive 2004/108/EC
2002/96/EC (WEEE directive): Products marked
with this symbol cannot be disposed of as
unsorted municipal waste in the European Union.
For proper recycling, return this product to your
local supplier upon the purchase of equivalent
new equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info.
Contact
information
For contact information, see www.interlogix.com
or www.utcfssecurityproducts.eu.
IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide 1
1. Package Content
IFS Industrial Managed Switches (-40~75 degree C) are managed switches with
multiple Gigabit copper ports or Gigabit SFP mini-GBIC slots with connective ability
and robust layer 2 features. The description of thes models is as follows:
NS3552-8P-2S : Industrial 8-Port 10/100/1000T 802.3af/at PoE + 2-Port
100/1000X SFP Managed Switch
NS3550-2T-8S Industrial 8-port Gigabit Fiber (SFP) Industrial Managed
Switch + 2 10/100/1000T (-40~75 degrees C)
The term “Industrial Managed Switch” mentioned in this Quick Installation Guide
represents the above two models This manual represents multiple products which
have similar features and functions, however there may be some differences
between products such as the number or type of connectivity ports and PoE
functions.
Open the box of the Industrial Managed Switch and carefully unpack it. The box
should contain the following items:
The Industrial Managed Switch x 1
Quick Installation Guide x 1
User's Manual CD x 1
DIN Rail Kit x 1
Wall Mounting Kit x 1
DB9 to RJ45 Interface RS232 Console Cable x 1
Dust Cap x 11
If any of these are missing or damaged, please contact your dealer immediately. If
possible, retain the carton including the original packing materials to enable you to
repack the product in case there is a need to return it to us for repair.
2 IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide
2. Requirements
The Industrial Managed Switch provides remote login interface for
management purposes. The following equipment is necessary for further
management:
Workstation installed with Ethernet NIC (Network Interface Card)
Workstations of subscribers running Windows XP/2003, Vista, Windows 7,
MAC OS X, Linux, Fedora, Ubuntu or other platforms compatible with TCP/IP
protocols.
•The above Workstation is installed with Web Browser and JAVA runtime
environment Plug-in.
Ethernet Port connection
• Network cables - use standard network (UTP) cables with RJ-45
connectors.
We recommend using Internet Explore 7.0 or above to
access the Industrial Managed Switch.
IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide 3
3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch indicates a DC inlet power
socket and consist one terminal block connector within 6-contacts. The NS3552-8P-
2S accepts input power of 48V DC. The NS3550-2T-8S accepts input power from
12 to 48V DC or AC 24V. Please follow the steps below to insert the power wire.
1. Insert positive / negative DC power wires into the contacts 1 and 2 for POWER
1, or 5 and 6 for POWER 2.
NS3552-8P-2S Upper Panel
NS3550-2T-8S Upper Panel
4 IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide
2. Tighten the wire-clamp screws for preventing the wires from loosing.
1 2 3 4 5 6
Power 1 Power 2
+ - + -
The wire gauge for the terminal block should be in the range
between 12 ~ 24 AWG.
IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide 5
4. Terminal Setup
To configure the system, connect a serial cable to a COM port on a PC or
notebook computer and to RJ-45 type serial (console) port of the Managed
Industrial Switch. The console port of the Managed Industrial Switch is
DCE already, so that you can connect the console port directly through PC
without the need of Null Modem.
A terminal program is required to make the software connection to the IFS
Managed Industrial Switch. Windows' Hyper Terminal program may be a
good choice. The Hyper Terminal can be accessed from the Start menu.
1. Click START, then Programs, Accessories and then Hyper
Terminal.
6 IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide
2. When the following screen appears, make sure that the COM port
should be configured as:
♦Baud : 115200
♦Parity : None
♦Data bits : 8
♦Stop bits : 1
♦Flow Control: None
Autres manuels pour NS3552-8P-2S
1
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Interlogix Changer
Interlogix
Interlogix NS3500-24T-4C Manuel utilisateur
Interlogix

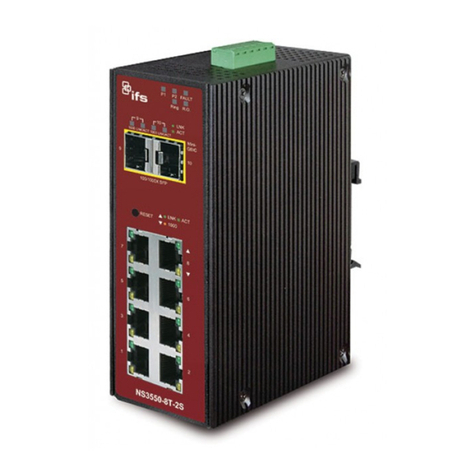

Interlogix NS3550-8T-2S Manuel utilisateur
