Interlogix TVC-2401 Manuel utilisateur
TruVision High Resolution TVI
Box Camera TVC
-2401 /
TVC
-4401 Installation Guide
P/N 1073165-EN • REV A • ISS 04APR16
2 Installation Guide
Product overview
This is the Installation Guide for TruVision High
Resolution TVI Box Camera TVC-2401/TVC-4401.
This guide describes a standard installation.
Package contents
Box camera
CS adaptor
Lens ring
Quick guide
Installation Guide 3
WEEE disposal
CD
Camera description
1. Lens mounting ring
2. CVBS output
3. TVI output
4. Menu button
5. Power LED indicator
4 Installation Guide
6. GND
7. 12 VDC / 24 VAC
8. Alarm, RS-485, D/N port
1
2

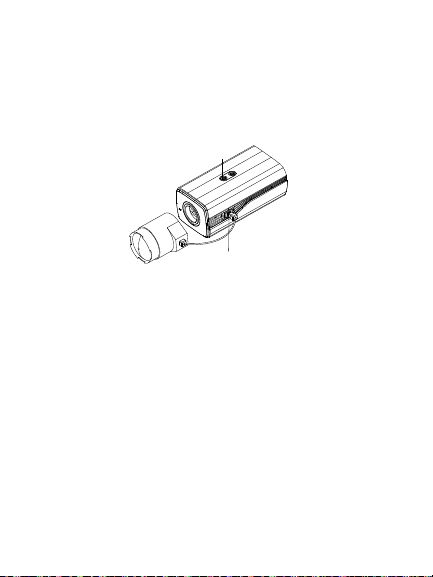

1. Lock screw
2. Auto-iris drive interface
Auto iris connector
The auto iris connector is composed of four square
pins as shown below. Damp+, Damp-, Drive+ and
Drive- pins are used in DC driven mode.
Installation Guide 5
No. DC
1 Damp-
2 Damp+
3 Driver-
4 Driver+
Installation
Refer to the instructions that came with the lens you
purchased for complete lens installation instructions.
The camera automatically detects the type of lens
used.
Note: For optimal performance, an auto iris lens is
recommended.
To attach the lens:
1. If a C-mount lens is used, the supplied CS
adaptor must be fitted to the lens mounting ring
or the sensor/filter may be damaged

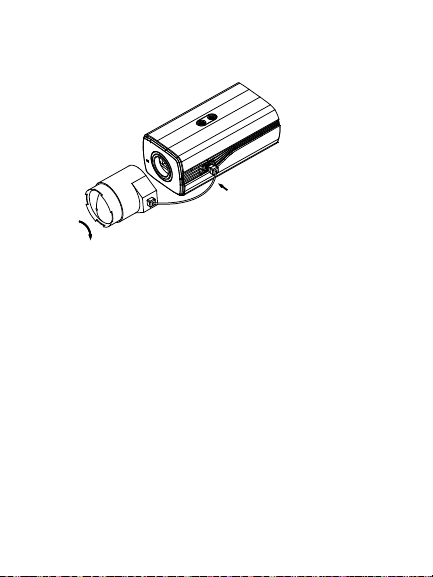

2. Rotate the lens clockwise onto the lens
mounting ring of the camera.
6 Installation Guide
3. Connect the lens auto iris wire to the auto iris
connector of the camera.
To mount the camera:
1. Attach the camera to a mounting bracket using
appropriate fasteners or install the camera in
an appropriate outdoor housing.
2. Adjust the camera to get an optimum angle.
3. Tighten the screw to secure the camera to the
bracket, if required.
To finish the installation:
1. Using a 75-ohm coaxial video cable, connect
the camera TVI video output to a TVI DVR.
Installation Guide 7
2. Connect the service monitor CVBS connector
to the camera CVBS output, if required. Please
refer to the Programming section for more
information.
3. Power the camera with a power supply. Please
mind the polarity of 12 VDC connections.
24 VAC connections are not polarity sensitive.
4. Finish the installation by adjusting zoom and
focus to get a clear picture.
Programming
Program using a TVI output
Once the camera hardware has been installed, you
can configure the camera settings on the TVI DVR.
8 Installation Guide
Please select the PTZ protocol as TruVision Coax
and click the menu button to call up the camera
menu. For more details, please see the TVI DVR
user manual.
The camera has CVBS and TVI dual video outputs.
When the WDR feature is enabled via the OSD, the
CVBS output will be blocked.
