Assembly Instructions
STEP1 Place base on flat surface.
STEP2 Place back frame on rear,
STEP3 Insert sides
STEP 4 Insert top
STEP5 Place front frame on,
Then screw Front and back frame with m5 screws
STEP 6 Mount upright set (A) to matching holes using m6 cage nuts set.
STEP 7 Insert front door using Ipin.
Visual Instructions Below
3D –Assembled Internal
3D –Assembled External
2D –Dimensions
Design illustrative purposes only, may vary based on product & design
Sides
*Should you find that the door pin does not fit due to the powder
coating, this is perfectly normal and requires minimal corrective effort.

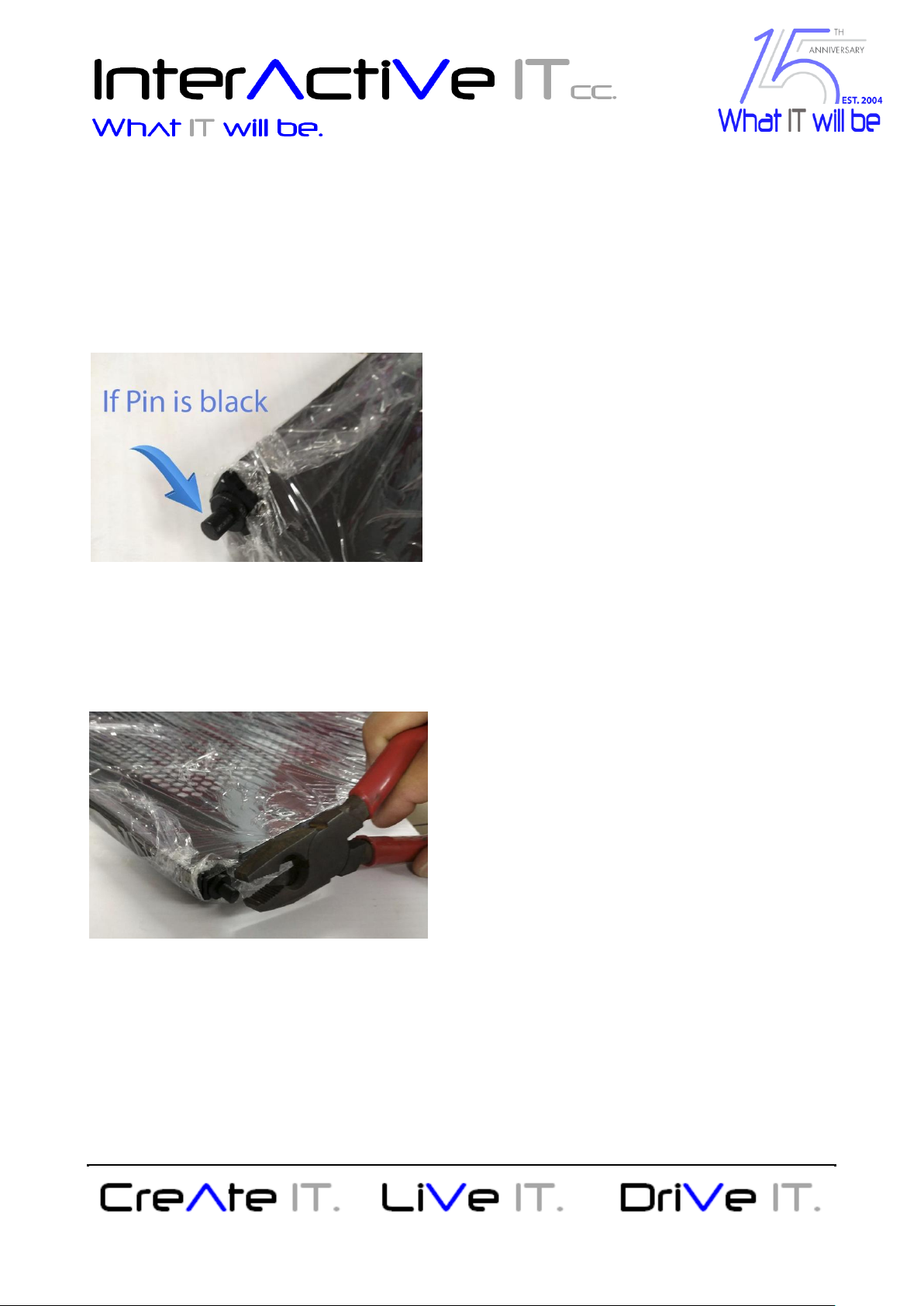

Step 1 –Inspect pin on the door
Step 2- Clean
Please use a Flat nose Pliers or similar tool to remove the extra powder
coating from pin,
This is achieved by gripping the pin and rotating in a circular motion,
The powder should come off with ease and the metal on the pin should now
be visible.
Well done, the door will now fit!
WARRANTY SERVICE
LIMITED WARRANTY
FOR ONE YEAR from the date of purchase from Segensolar, this product is
warranted against any defects in material or workmanship.
In the event of a warranty claim, an invoice from Segensolar is required, a
defective part will be replaced free of charge by the manufacturer.
If a replacement part is unavailable, the product will be
replaced with one of equal value.
This warranty does not apply to a product that is damaged or
altered through transportation, misuse, abuse, corrosion, accident,
neglect, modification or mishandling.
Please note the cabinets have been strictly engineered as follows
US2000-W2B = 2x US2000 Pylontech Batteries (Wall Mount)
US2000-2B = 2x US2000 Pylontech Batteries
US2000-4B = 4x US2000 Pylontech Batteries
US2000-5B = 5x US2000 Pylontech Batteries
US3000-W2B = 2x US3000 Pylontech Batteries (Wall Mount)
US3000-2B = 2x US3000 Pylontech Batteries
US3000-3B = 3x US3000 Pylontech Batteries
US3000-4B = 4x US3000 Pylontech Batteries
3 cabinets stacked at most, largest cabinet at the bottom.
Any damage due to over stacking will not be covered by warranty.
Please send any warranty queries together with a copy of your invoice to
sales@interactiveit.co.za
