TREADMILL OWNER’S MANUAL
INTENZA TREADMILL 550 Te2/ 550 Ti/ 450 Ti2/ 450 Ti2S/ 450 Ti2H
CONTENTS
1
Intenza Treadmills Manual_____Contents
EN Treadmills Owner’s Manual 2
EN
2
Intenza Treadmills Manual_____Important Safety Instructions And Precautions
IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using an electrical appliance, basic precautions
should always be followed, including those listed on
the right. Please read all instructions before
operation.
EN
DANGER
TO REDUCE THE RISK OF ELECTRIC SHOCK ALWAYS UNPLUG THIS APPLIANCE FROM THE ELECTRICAL
OUTLET IMMEDIATELY AFTER USING AND BEFORE CLEANING
WARNING
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS—
. The appliance should never be left unattended when plugged in.
. Unplug from outlet when not in use and before putting on or removing parts.
. Do not operate the equipment under any kind of blanket or pillow: excessive heating can occur and cause fire, electric shock or injury to persons.
. Close supervision is necessary when this equipment is used by, on, or near children, invalids or disabled persons.
. Only use this equipment for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped, damaged or dropped into
water. Please contact authorised Dealer/ Distributor or service provider service centre for examination and repair.
. Do not carry this appliance by its supply cord, or use the cord as a handle.
. Keep the appliance, its equipment and the cord away from hot or heated surfaces.
. Never operate the equipment if air openings are blocked. Keep air openings free of dust, lint, hair and the like.
. Never drop or insert any object into any opening.
. Do not use the equipment outdoors.
. Do not operate the equipment where aerosol (spray) products are being used, or where oxygen is being administered.
. To disconnect the equipment, turn all controls to the “off” position, then remove plug from outlet.
. Below mentioned sound pressure level is measured under the condition when the trainer is operating with highest speed with no load.
Sound pressure level (dB) < 70dB. Noise emission under load is higher than without load.
. Heart rate monitoring system may be inaccurate. Over exercise may result in injury or death. If you feel faint stop exercising immediately.
IMPORTANT OPERATION INSTRUCTIONS
. NEVER operate this treadmill without reading and completely understanding the results of any operational change you request from the
console.
. Understand that changes in speed do not occur immediately. Set your desired speed level on the computer console and release
the adjustment key. The console will obey the command gradually.
. Use caution while participating in other activities while pedaling on your treadmill, such as watching television, reading, etc.
These distractions may cause you to lose balance which may result in serious injury.
. Always hold on to the handlebar while making control changes.
. Do not use excessive pressure on console control keys. They are precision set to function properly with gentle finger pressure.
If you feel the buttons are not functioning properly with normal pressure contact your Dealer/ Distributor.
3
Intenza Treadmills Manual_____Important Safety Instructions And Precautions
WARNING
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding provides the path of least
resistance for an electric current to reduce the risk of electric shock. This product is equipped with a cord
containing a grounding conductor and plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
This equipment will be wired for either 120V AC nominal power input or 220—240V AC nominal input.
It is factory—equipped with a specific electric cord and plug to permit connection to the proper electric circuit.
Make sure that each equipment is connected to a dedicated circuit inserted into an outlet with the same
configuration as that of the plug. If you are uncertain about the type of suitable power plug, please contact your
Distributor or a qualified local electrician. Do not use an adapter or extension cord with this equipment.
SAVE THESE INSTRUCTIONS
Frequency (Hz) Current (Amps)Supply Voltage (VAC)
220—240 50/60 9
Power Consumption (W)
2000
EUROPE AND OTHER COUNTRIES USING 220—240 VOLTAGE
220—240 50/60 9 2000
Frequency (Hz) Current (Amps)Supply Voltage (VAC)
115 50/60 16
Power Consumption (W)
1840
110—120 50/60 14 1600
550 SERIES AMERICA AND OTHER COUNTRIES USING 120 VOLTAGE
EN
DANGER
Improper installation may result in a risk of electric shock. Check with a qualified electrician or service agent if you
are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If
it does not fit the outlet, have a proper outlet installed by a qualified electrician.
GROUNDING METHODS—
AMERICA AND OTHER COUNTRIES
USING 120 VOLTAGE
NEMA5—20R GROUNDING OUTLET
GROUNDING PIN
GROUNDING OUTLET
GROUNDING PIN
GROUNDING METHODS—
EUROPE AND OTHER COUNTRIES
USING 220—240 VOLTAGE
550
450
Series
550
450
Series
PLEASE READ CAREFULLY
. Unsupervised children must be kept away from this equipment.
. Assemble and operate the equipment on a stable base which has been leveled correctly.
. Retain an open area of 6.5 feet by 3 feet (2000mm x 1000mm) behind the treadmill, which is clear of any obstructions, including walls,
furniture and other equipment.
. Keep equipment away from sources of heat, such as radiators, heat registers or stoves. Avoid extreme temperature changes.
. Do not use outdoors or in an enclosed swimming pool environment.
. Keep equipment away from water and moisture. Avoid dropping anything on, or spilling anything inside, the equipment to prevent
electric shock or damage to the electronics.
. Never leave the equipment unattended when it is plugged in. Unplug the equipment from its power source when not in use for a
prolonged period.
. Do not drop or insert any object, including hands, or feet into any opening, or underneath the equipment.
. Do not attempt to remove the cover or modify the equipment. Service should only be conducted by an authorised Service Technician.
If there is a problem or need to replace parts (such as running belt and related electronic parts, etc), do not try to replace or repair the
parts by yourself. You must contact a technician for repair.
. Do not use the equipment with bare feet. Do not use shoes with heels, leather soles, cleats or spikes. Wear shoes with rubber or
high—traction soles and ensure that no stones, or foreign objects, are embedded in shoe soles.
. Do not operate the equipment until any defective components are repaired.
. Use the handrails whenever additional stability is required. In case of emergency, such as tripping, users should grab the handrails and
place his/ her feet on the side platforms. The handrails may be held to enhance stability as needed, but are not for continuous use. Stop
the equipment by pressing STOP button. Step backwards and ensure to grab handlebars on both sides.
. It is recommended that users attach the safety key.
IMPORTANT SAFETY PRECAUTIONS
WARNING
Intenza Treadmills are designed for cardiovascular
exercise in a commercial environment.
Health—related injuries may result from incorrect
or excessive use of exercise equipment. Please check
with your physician prior to beginning any exercise
program.
Heart rate monitoring systems may be inaccurate.
Over exercise may result in serious injury or death.
If you feel faint, stop exercising immediately.
Intenza Treadmills Manual_____Important Safety Instructions And Precautions 4
EN

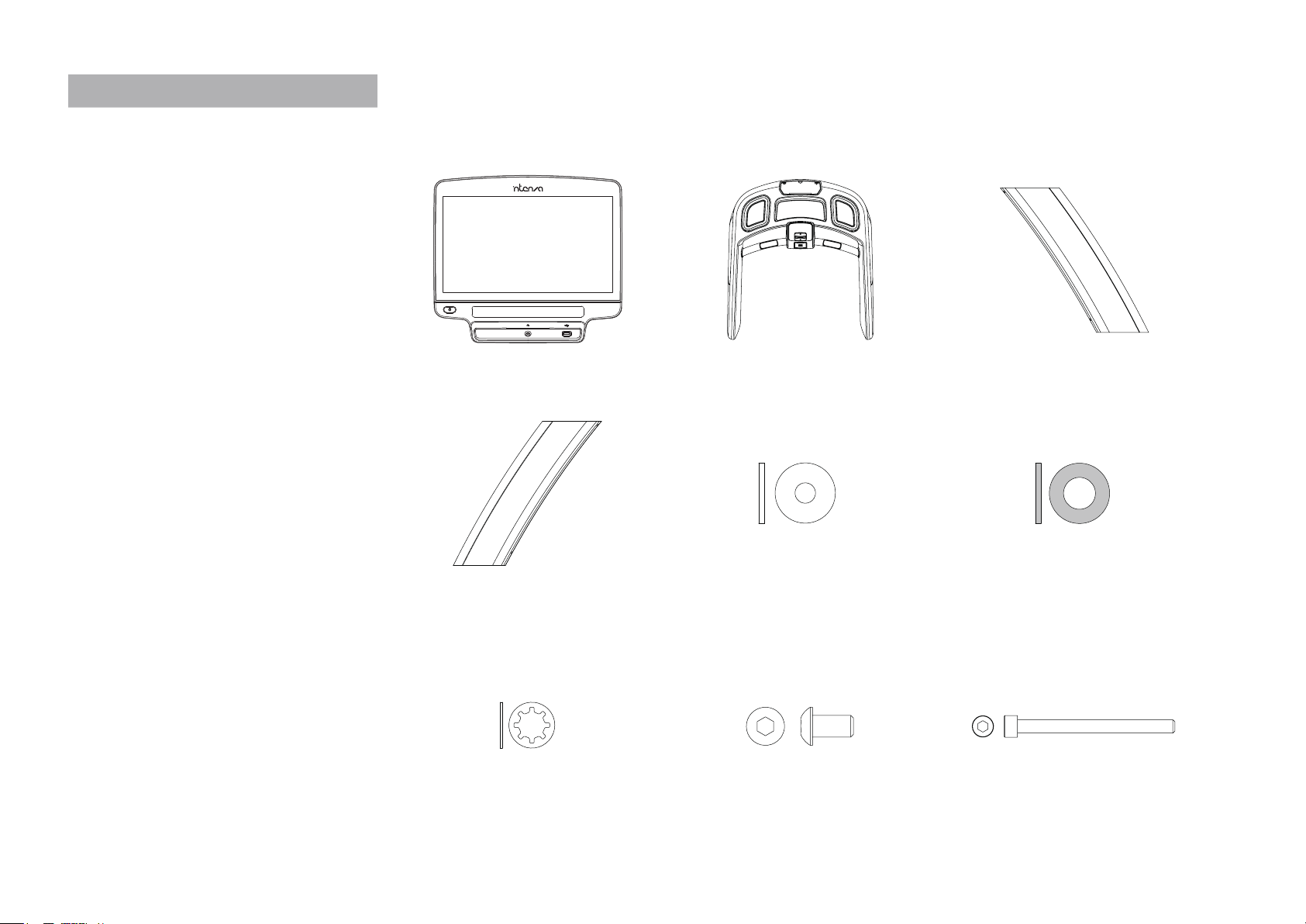

1. ENTERTAINMENT CONSOLE FOR 550 Te2
QTY 1
2. CONSOLE BRIDGE ASSEMBLY
QTY 1
3. RIGHT UPRIGHT POST
QTY 1
4. LEFT UPRIGHT POST
QTY 1
5. FLAT WASHER, WHITE
QTY 14
6. FLAT WASHER, BLACK
QTY 2
7. WASHER, STAR
QTY 16
8. DOME SCREW, WHITE, M8 X 15L
QTY 14
9. M8 X 95L, BLACK
QTY 2
Intenza 550 Te2 Parts List
EN
Open the shipping carton. Remove all parts from the carton and cardboard inserts. Before you begin assembly, verify that the following
hardware items are packed with the equipment. A 6mm hex wrench is required to assemble the Treadmill.
Intenza Treadmills Manual_____Intenza 550Te2 Parts List 5
7 85
INSTALLING THE LEFT UPRIGHT POST: CONNECT THE ELECTRICAL CONNECTORS.
PLEASE NOTE
Ensure the 3 electrical connectors at the bottom of the left upright post
are well connected before proceeding to the next step.
6
STEP 1 STEP 2
INSTALLING THE LEFT UPRIGHT POST
COMPONENTS ANDTOOLS
Flat washer, white (5), Washer, star (7), Dome screw M8 x 15L (8),
Hex wrench, 6mm
INSTALLING THE RIGHT UPRIGHT POST: CONNECT THE ELECTRICAL CONNECTORS.
PLEASE NOTE
Insert the TV coax cable, ETHERNET cable, HDMI
through the upright post and ensure that the wires do not
fall inside the post.
STEP 3 STEP 4
INSTALLING THE RIGHT UPRIGHT POST: SECURE THE RIGHT UPRIGHT POST.
COMPONENTS ANDTOOLS
Flat washer, white (5), Washer, star (7), Dome screw M8 x 15L (8),
Hex wrench, 6mm
Intenza 550 Te2 Assembly Instructions
8 5 7
EN
Intenza Treadmills Manual_____Intenza 550 Te2 Assembly Instructions
Intenza Treadmills Manual_____Intenza 550 Te2 Assembly Instructions
Intenza 550 Te2 Assembly Instructions
7
STEP 5
INSTALLING THE CONSOLE BRIDGE: CONNECT THE ELECTRICAL CONNECTORS.
PLEASE NOTE
Ensure the 3 electrical connectors at the top of the left upright post
are well—connected before moving to the next step.
STEP 6
INSTALLING THE CONSOLE BRIDGE: CONNECT THE ELECTRICAL CONNECTORS.
PLEASE NOTE
Ensure the TV coax cable, ETHERNET cable, HDMI cable at the top
of the right upright post are well—connected before moving to the next
step.
STEP 7
INSTALLING THE CONSOLE BRIDGE: TV COAX CABLE CONNECTIONS.
PLEASE NOTE
When connecting the TV coax cable, be sure to tighten the connectors,
then push the jacket cover over the connectors.
STEP 8
INSTALLING THE CONSOLE BRIDGE: POSITION THE BRIDGE ON TOP OF THE UPRIGHT POSTS.
PLEASE NOTE
Be sure to push any excess wires inside the right and left upright posts.
EN
Intenza Treadmills Manual_____Intenza 550 Te2 Assembly Instructions 8
STEP 9 STEP 10
INSTALLING THE CONSOLE BRIDGE: SECURE THE LEFT SIDE OF THE
CONSOLE BRIDGE.
COMPONENTSAND TOOLS
Flat washer, white (5), Washer, star (7), Dome screw M8 x 15L (8),
Hex wrench, 6mm
INSTALLING THE CONSOLE BRIDGE: SECURE THE RIGHT SIDE OF THE CONSOLE BRIDGE.
COMPONENTSAND TOOLS
Flat washer, white (5), Washer, star (7), Dome screw M8 x 15L (8),
Hex wrench, 6mm
INSTALLING THE 550TE2 ENTERTAINMENT CONSOLE: CONNECT THE
ELECTRICAL CONNECTORS.
PLEASE NOTE
Ensure the 5 electrical connectors, TV coax cable and ETHERNET cable
at the console bottom are well—connected before moving to the next step.
When connecting TV coax cable, be sure to tighten the connector, then
push jacket cover over connector. Please refer to step 7.
STEP 11 STEP 12
INSTALLING THE 550Te2 ENTERTAINMENT CONSOLE: SECURE THE CONSOLE.
COMPONENTS ANDTOOLS
Washer, star (7), Flat washer, black (6), M8 x 95L, Black (9),
Hex wrench, 6mm
75 8
7
6
9
58 7
EN Intenza 550 Te2 Assembly Instructions
Intenza Treadmills Manual_____Intenza Treadmills Parts List
10. INTERACTIVE CONSOLE FOR 450 Ti2
QTY 1
11. INTERACTIVE CONSOLE FOR 450 Ti2S/ Ti2H
QTY 1
9
2. CONSOLE BRIDGE ASSEMBLY
QTY 1
3. RIGHT UPRIGHT POST
QTY 1
4. LEFT UPRIGHT POST
QTY 1
5. FLAT WASHER, WHITE
QTY 14
6. FLAT WASHER, BLACK
QTY 2
7. WASHER, STAR
QTY 16
8. DOME SCREW, WHITE, M8 X 15L
QTY 14
9. M8 X 95L, BLACK
QTY 2
EN Intenza 550 Ti/ 450Ti2/ 450Ti2S/ 450Ti2H Parts List
Open the shipping carton. Remove all parts from the carton and cardboard inserts. Before you begin assembly, verify that the following
hardware items are packed with the equipment. A 6mm hex wrench is required to assemble the Treadmill.
1. INTERACTIVE CONSOLE FOR 550 Ti
QTY 1
