Intelligent Home LEDA Manuel utilisateur

-1-

www.intelligenthomeonline.com

LEDA Video Door System

2-wire Series

Installation and User Manual

Digital 3.5 inch Monitor

TALK MENU MONITOR

1. Monitor Parts and Functions

2. Monitor Mounting

1. Use the screws to fix the Mounting Bracket on the wall

2. Hang the Monitor on the Mounting Bracket firmly

145~160 cm

Microphone

LCD Screen

LED Indicator

CALL Button

MONITOR Button

Direction Button

UNLOCK Button

TALK Button

MENU Button

Speaker

Mounting Hook

Connection Port

eripheral devices

DIP Switches

1 2 3 4 5 6

TALK MENU MONITOR

-1-

3. Connection of Peripheral Devices

Door bell call button

SW+

SW-

EXT-RING

GND

VIDEO

External Ringer

- +

12Vdc 300mA

SW+

SW-

EXT-RING

GND

VIDEO

Television

video cable

SW+

SW-

EXT-RING

GND

VIDEO

Additional Door Bell can be connected according

the diagram below. There will be no video on the

monitor when this door bell used

3.2 Additional Ringer

Additional Ringer can be connected according the

diagram below. One ringer per video monitor. Locate a

ringer in a position where you are unlikely to hear the

ringing of the monitors like a garage, shed, garden or

porch

3.3 Connection To a TV

Each monitor can be connected to a TV with antenna

cable according the diagram below. The core of antenna

cable must be connected to the Video and the shield to

the GND. When the door station rings you don’t have to

walk to the monitor to see the visitor. Instead you can

watch the AV channel on the TV and see who is calling

3.1 Additional Doorbell

-2-

4. Cable Specification

Cable type

2 * 1.5 mm2

2 * 1.0 mm2

2 * 0.75 mm2

Max. distance(meters)

300

200

150

This system transmits video and audio through the power cable. It utilises a No-polarity connection.

Recommended cabling: Unscreened twisted pair multicore flex, speaker cable or CAT5/CAT6

5. Answering a Door Call

1. When the door station is rung, the Monitor comes

on with video

2. To start a conversation, press the TALK Button on

monitor. When you are finished, press the TALK

button again.The screen turns off automatically after 40

seconds

3. During talking state, Press UNLOCK Button

to open the door for the visitor

6. Basic Connection

door

station

BUS(IM) BUS(DS)

PC6

AC~

Doorbell

Button

Switch

1 2 3 4 5 6

ON DIP

TALK MENU MONITOR

-3-

7.2 User Setup and Restore to a Default

Select on main menu page to enter setup page,and then use 󱕓 / 󱕝 Button to move up / down to

select the User Setup, then press MENU Button to enter

the User Setup mode.You can adjust the ring tone, ring volume and restore to default

7. Setup Instructions

Intercom Call >

Inner Call >

Call Guard Unit >

Language >

User Setup >

About >

Exit

User Setup

Ring Tune

Ring Volume

Restore

Exit

User Setup

Ring Tune

Ring Volume

Restore

7.1 Language

Select Language on setup page, then press MENU button to enter the language page, and then use 󱕓 / 󱕝

Button to move up / down to select the language you want. There are eight languages to choose from

When Monitor is in standby mode, press Menu button and

use to navigate between pages

-4-

8. Monitor ParametersSettings

Language >

User Setup >

About >

1.Select About and

press MENU Button to

confirm

2.Press UNLOCK button

and hold for 3seconds

3.Use 󱕓 / 󱕝 Button to increase

/ decrease the value; use

Button to select last/next digit.

Press MENU Button to confirm

Exit

About

H/W : a1.2

S/W : V01.01.01

Address :

00.00 Video STD :

AUTO

Exit

Installer Setup

[ 0000 ]

Master monitor - code 8000

Slave 1 - code 8001

Slave 2- code 8002

Slave 3- code 8003

Guard Monitor- code 8004, cancel Guard Monitor - code 8005

Power saving mode On - code 8006; Power saving mode Off - 8007 (default)

Unlocking mode for Power-on-to-Open locks - code 8010 (default)

Unlocking Mode for Power-off-to-Open locks - code 8011

One lock mode - 8014 (default)

Two locks mode - 8015

Unlocking time 1-9s - 8021-8029

-5-

How to enter parameter settings:

This is the page where the following Codes can be programmed

To activate second lock operation, input code 8015

To return to default (one lock operation), input code 8014

Electric Lock Release



If system connected to a lock, you can open the lock by touching UNLOCK Button

Default lock mode for Power-On-To-Open lock, code 8010

Change lock mode for Power-Off-To-Open lock by inputting code 8011

Remember to set unlocking time by inputting codes 8021-8029 for times 1-9 seconds

accordingly

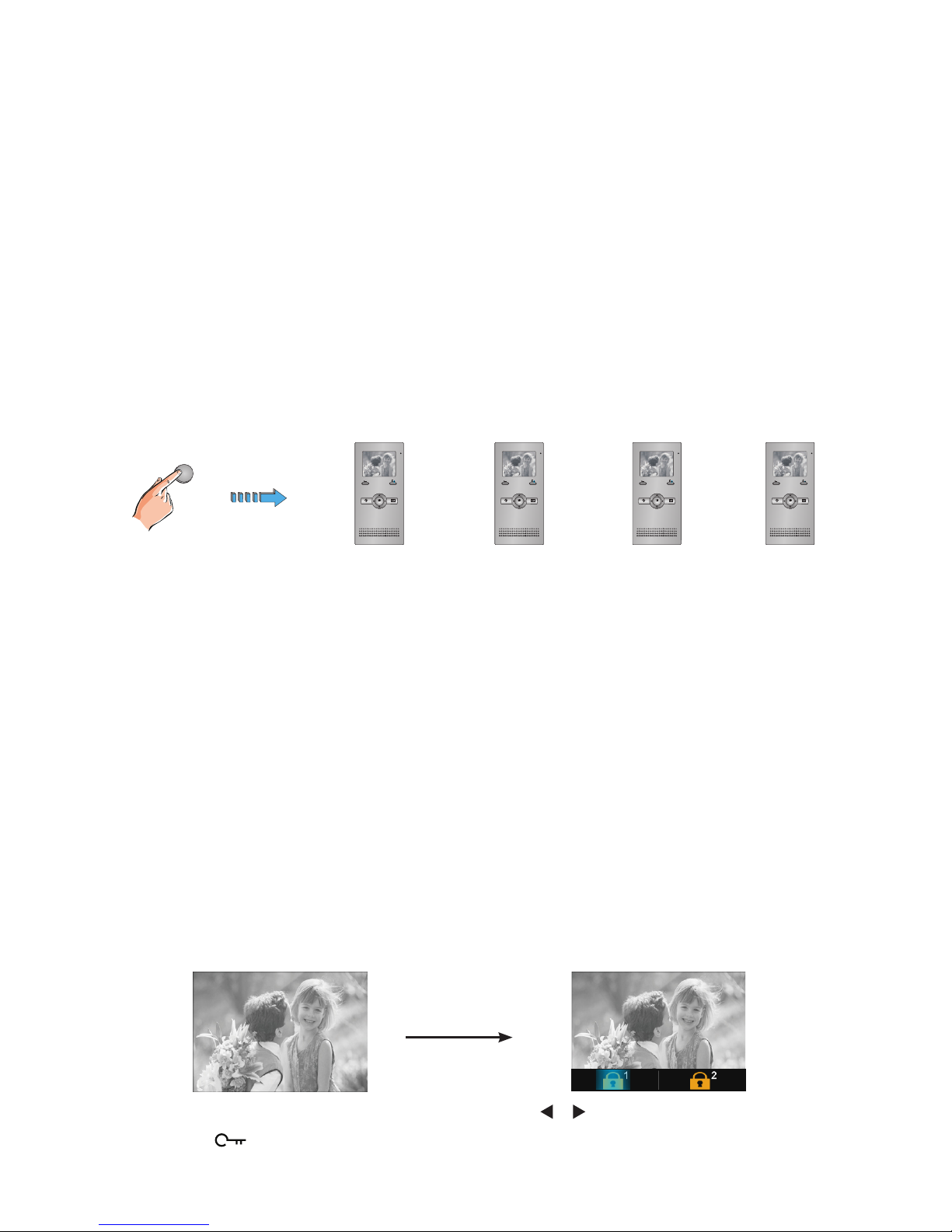

Operating One/Two Locks

DS-1 00:15

1.During talking or monitoring

press UNLOCK button

DS-1 00:15

2.Use / button to select the lock you want, and press

MENU button to release the corresponding lock

All monitors ring with video- power saving mode is turned Off

TALK MENU MONITOR TALK MENU MONITOR TALK MENU MONITOR TALK MENU MONITOR

Power Saving Mode On/Off

By default the system is set to power saving mode, where only the first monitor

with User Code 0 comes On with video when door staition called. All the other

monitors will ring but without video. Video is transferred to the monitor which

answers the call. To switch power saving mode off: (so all monitors rings with

video) input code 8006 on all monitors (except the first one)

-6-

ON(1)

OFF(0)

ON 1 2 3 4 5 6

DIP state User Code DIP state User Code DIP state User Code

1 2 3 4 5 6

Code=1

1 2 3 4 5 6

Code=12

1 2 3 4 5 6

Code=23

1 2 3 4 5 6

Code=2

1 2 3 4 5 6

Code=13

1 2 3 4 5 6

Code=24

1 2 3 4 5 6

Code=3

1 2 3 4 5 6

Code=14

1 2 3 4 5 6

Code=25

1 2 3 4 5 6

Code=4

1 2 3 4 5 6

Code=15

1 2 3 4 5 6

Code=26

1 2 3 4 5 6

Code=5

1 2 3 4 5 6

Code=16

1 2 3 4 5 6

Code=27

1 2 3 4 5 6

Code=6

1 2 3 4 5 6

Code=17

1 2 3 4 5 6

Code=28

1 2 3 4 5 6

Code=7

1 2 3 4 5 6

Code=18

1 2 3 4 5 6

Code=29

1 2 3 4 5 6

Code=8

1 2 3 4 5 6

Code=19

1 2 3 4 5 6

Code=30

1 2 3 4 5 6

Code=9

1 2 3 4 5 6

Code=20

1 2 3 4 5 6

Code=31

1 2 3 4 5 6

Code=10

1 2 3 4 5 6

Code=21

1 2 3 4 5 6

Code=32

1 2 3 4 5 6

Code=11

1 2 3 4 5 6

Code=22

End of line settingswith DIP 6

DIP state Setting DIP state Setting

1 2 3 4 5 6

Monitor not at

the end of the

line

1 2 3 4 5 6

Monitor at

the end of

the line

-7-

User Code/Address Setup via DIP Switches

In Apartment Systems, every apartment must have a unique User Code

In House systems, programming via DIP switches should be used when the

intercom call function is chosen as default

•DIP switches 1-6 settings for up to 32 User codes in the Tables below

•DIP 6 determines the end of line. It must be set ON if the Monitor is at the end of

the line

10. Manual Monitoring Function

Monitor >

Monitor Doors >

Monitor Cameras >

Monitor Time >

-8-

Such adjustments can be made in Manual monitoring state.

Press MONITOR button and then MENU button. Navigate to the Sceen,

Brightness and Talk Volume and set desired values. Press MONITOR button to

save new settings. Press MENU button to exit

DS-1 00:15

Brightness 5

When the monitor is in standby mode, press

MENU Button to enter main menu page. Use /

button to move left/right to select the , then use

the 󱕓 / 󱕝Button to move up/down, press MENU

Button to select

9. Image and Volume Adjustments

1. Monitor: manual monitoring of door station number 1

2. Monitor Doors: if multiple door stations are installed, you can choose

specific door station for manual monitoring. Up to 4 Door Station can be

connected and monitored

3. Monitor Cameras: if system has CCTV cameras connected with SCU

CCTV Interface, they can be selected for viewing manually. Up to 4 CCTV

cameras can be connected with 2 x SCU CCTV Interfaces

4. Monitor Time: Set monitoring time: how long monitor will stay On.

Maximum 10 min

11. Intercom Function

When multiple monitors are installed, Intercom function between

all monitors in the system becomes available.

There are 3 Intercom functions to choose from:

Intercom Call >

Inner Call >

Call Guard Unit >

Intercom Call

[01] Mr A

[02] Mr B

[03] Mr C

[04] Mr D

Exit Dial

1. Intercom Call: Allows to call one specific monitor at the

time in House system or to call other

apartments in Apartments system. All monitors should be

programmed with unique User codes/ Addresses with

DIP switches. See‘User Codes Tables’on page

2. Inner Call: All Monitors in the House system will ring at the same time. When one of the

Monitors answers the call, all other monitors will stop ringing. In Apartments system

can be used if multiple monitors has been installed in one of the apartments. All monitors

should be programmed with same User code. In addition one monitor should be programmed as

Master and other as slaves

3. Call Guard unit: Applicable only for Apartments system if there is a concierge which has a Monitor.

Apartment can call the concierge or concierge can call any apartment in the system

How to set the monitor as a Guard Monitor

-9-

Code 8004 is used to set the monitor as a guard unit monitor

Code 8005 is used to cancel this function

Table des matières

Autres manuels Intelligent Home Système d'interphone

Intelligent Home

Intelligent Home 7Avro610C Manuel utilisateur

Intelligent Home

Intelligent Home Thor Manuel utilisateur

Intelligent Home

Intelligent Home Cronus 4-wire Manuel utilisateur

Intelligent Home

Intelligent Home CAT-5 Series Manuel utilisateur

Intelligent Home

Intelligent Home Luna Manuel utilisateur

Intelligent Home

Intelligent Home IH-692 Slave Manuel utilisateur

Intelligent Home

Intelligent Home CAT-5 Series Manuel utilisateur

Intelligent Home

Intelligent Home IH-6912 Slave Manuel utilisateur

Intelligent Home

Intelligent Home MR7D Manuel utilisateur

Intelligent Home

Intelligent Home DX-471 Manuel utilisateur

Intelligent Home

Intelligent Home Cat-5 network cable Manuel utilisateur

Intelligent Home

Intelligent Home IH6913 Manuel utilisateur

Intelligent Home

Intelligent Home IH-6912 Slave Manuel utilisateur

Intelligent Home

Intelligent Home DT-ENG-692SD-V2 Manuel utilisateur

Intelligent Home

Intelligent Home 692SD Manuel utilisateur

Intelligent Home

Intelligent Home DT6913SD Manuel utilisateur

Intelligent Home

Intelligent Home Alecto Manuel utilisateur

Intelligent Home

Intelligent Home DT591 Manuel utilisateur

Intelligent Home

Intelligent Home MR9L Manuel utilisateur

Intelligent Home

Intelligent Home IH691 Manuel utilisateur

Intelligent Home

Intelligent Home IH692SD Manuel utilisateur

Intelligent Home

Intelligent Home NTI700 Manuel utilisateur

Intelligent Home

Intelligent Home Alecto Manuel utilisateur

Intelligent Home

Intelligent Home Cronus Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
