Intelligent Home Cronus 4-wire Manuel utilisateur

www.intelligenthomeonline.com

Cronus Video Door Phone

Digital Touch Screen 7 inch Monitor

4-wire series

Contents

1. Parts and Functions...............................................................................1

2. Monitor Mounting...................................................................................2

3. Main Menu.............................................................................................2

4. System Wiring .......................................................................................3

5. Door Release Operation........................................................................7

6. Intercom Function..................................................................................8

7. Memory Sharing ...................................................................................9

8. Album Playback(for SD card model only)..............................................10

9. Basic Setup Instructions........................................................................12

10. Basic Installer Setup Instructions .......................................................13

11. Monitor Advanced Setting....................................................................15

12. Specication ........................................................................................16

1. Parts and Functions

Indicator 1

Digital TFT LCD Screen

UNLOCK Button

TALK/MON Button

MENU Button

Microphone

Speaker

Connection Port

SD card slot

Indicator 2

Mounting Hook

LCD screen Display the visitors' image

Indicator 1 Shows the power status of monitor

Indicator 2 Lights up when there are new pictures to be viewed

Unlock button Press to release the lock

Talk/Mon button

Press to communicate with visitor

Press to view outside at any time (even with no visitor)

Press to turn off staircase light (refer to part 3)

Menu button Press twice to access the menu

Microphone For communicating with the visitor

Mounting hook Use to hang the monitor

Connection port Bus terminal

Speaker Audio from the doorbell(s)

Key functions

-1-

2. Monitor Mounting

3. Main Menu

145~160 cm

Mounting kit:

1) Mounting Bracket.

2) Two 4x25mm screws.

Installation:

■ Average installation height for indoor monitor 145- 160cm (refer to sketch map).

■ Attach the screws to the wall to x the mounting bracket.

■ Hang the monitor rmly on the bracket.

■ Refer to the system connection section of this manual for correct wiring.

The Main Menu is your starting point for using all the applications on your monitor.

To open the Main Menu page, tap either " Menu" key twice on the monitor or touch

the screen anywhere twice.

-2-

Current time 04:29PM

:This icon will be displayed when the staircase light item is light on if the system connects RLC module which controls a light.

Otherwise,it won't be displayed. Touching this icon or pressing TALK/MON button can turn off the light.

:This icon will be displayed when recorded pictures have not been viewed,touch this icon for viewing recorded pictures.

Current date

Manual

Memory Album User Setup Close

Monitor

Playback

Monitor Intercom Inner Call

4. System Wiring

Terminal Description

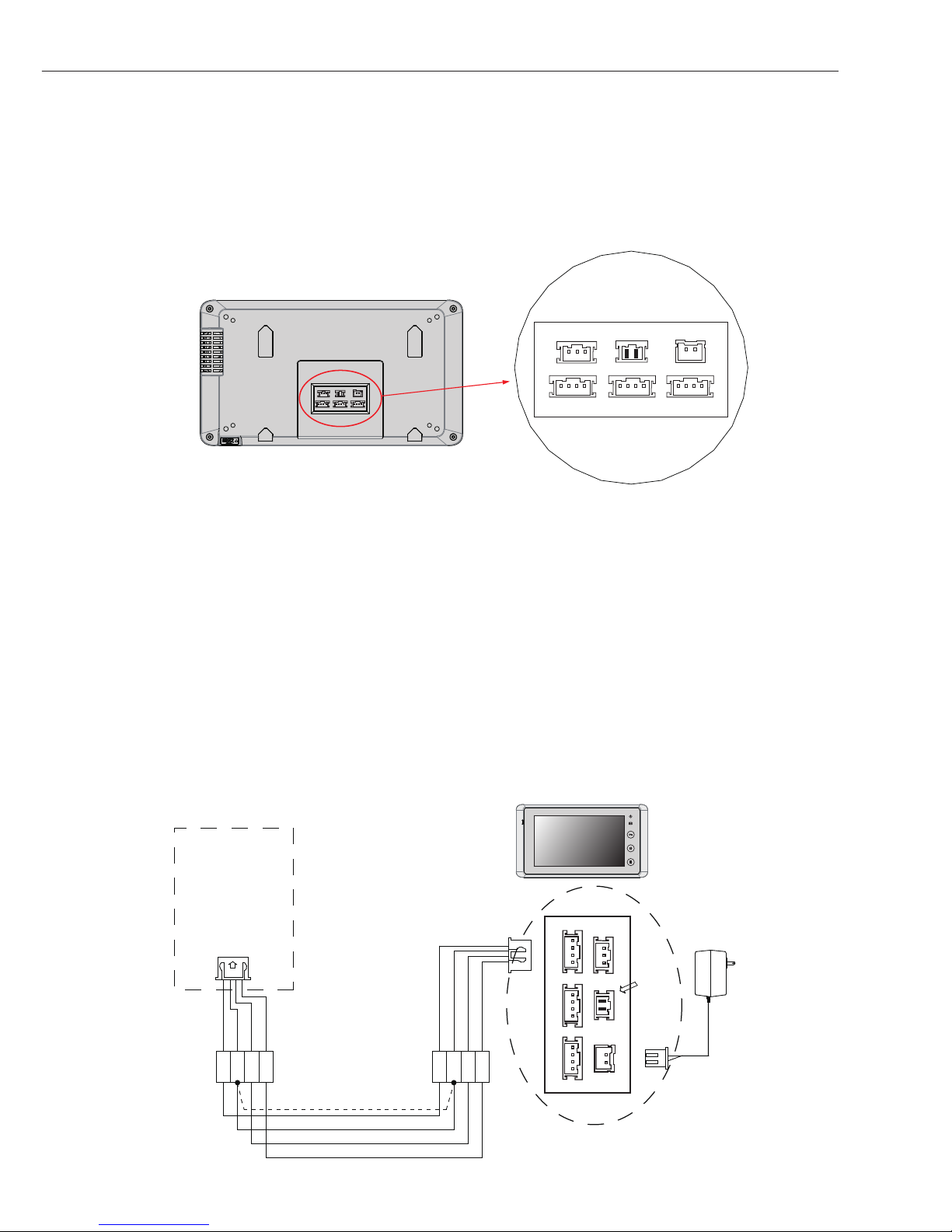

Basic 1-1 Connection

JS-OS1

Input 1 Input 2 Output

JS-AP

Handset 75 Ohm Power

JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

1) DC-IN: Power supply connection port

2) JP/VD: JP/VD is used for setting the video impedance.

3) JS-AP: Audio phone or RLC module connection port

4) JS-OS1: The rst doorbell connection port

5) JS-OS2: The second doorbell connection port

6) JS/VD: Extended slave monitor connection port

AC ~

Doorbell

Black

Yellow

Red

White

Black

Yellow

Red

White

Reserve

JS-OS1

Input 1 Input 2 Output

JS-AP

Handset 75 Ohm Power

JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

-3-

Connecting Multiple Monitors

White

Red

Yellow

Black

Door station

Camera

Note:The first & last monitor,JP/VD jumper should remain! On other monitors should

be removed.

Monitor

JP/VD Removed!

JP/VD Reserved

PS PS PS

44 4

Extending Audio Phone:

AC ~ AC ~ AC ~

Red

White

Black

White

Red

+12

GX-3P

JS-AP

JS-LK

INSIDE

(90 Degree ROTATE)

Back View

User code=1

User code=1 User code=2

User code=2 User code=N(N<5)

Reserve

Remove

Reserve

Back View

User code=N(N<5)

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

-4-

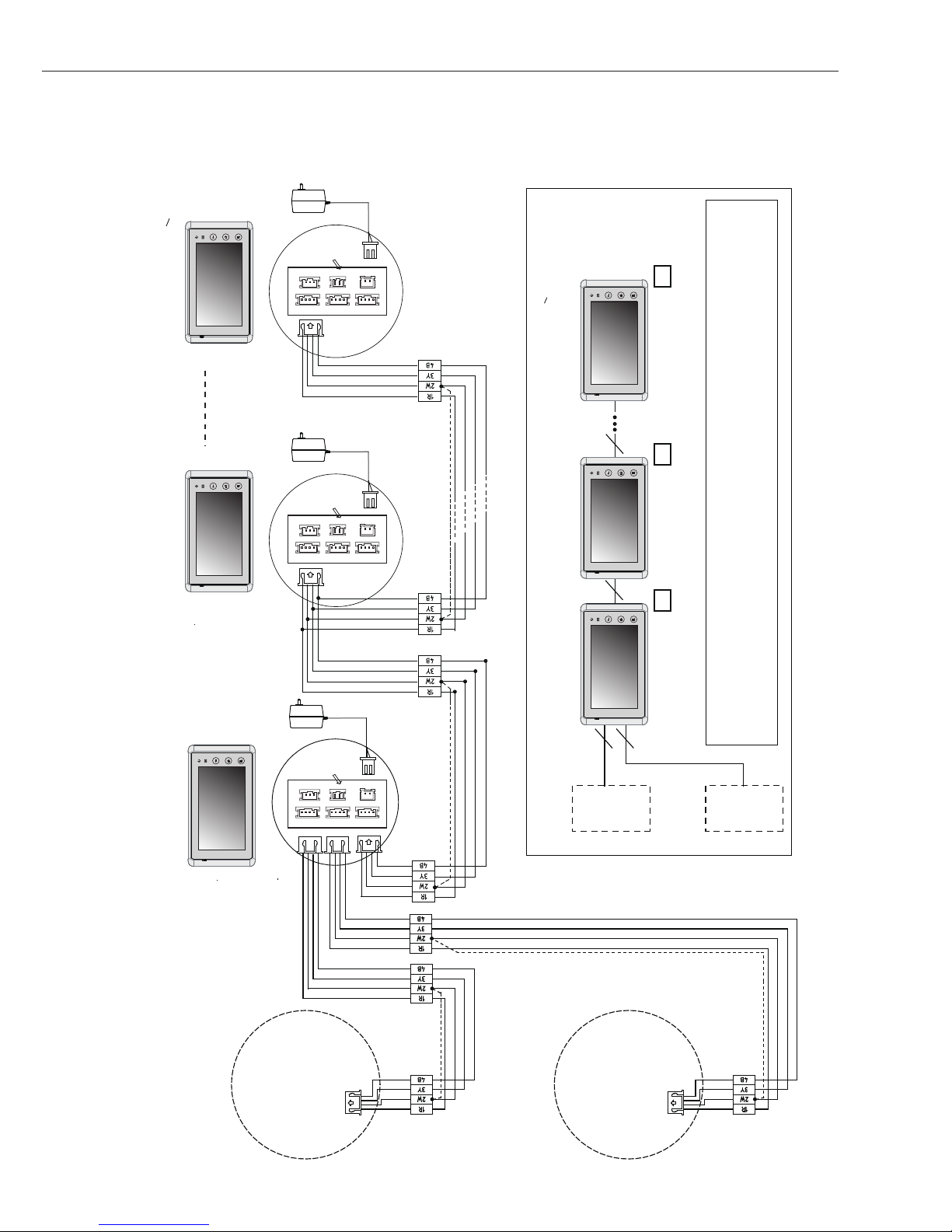

Connecting 2 Doorbells

JP/VD Reserve!

Black

Yellow

Red

White White

Red

Yellow

Black

Camera

Monitor

NOTE:

1. First & last monitor JP/VD jumpers should remain. Others monitors, remove jumper.

2. When connecting two Outdoor Stations, 2 Way Input item should be set to

1 on the 1# Monitor. (Main Menu-User Setup-Installer Setup-2 Way Input).

Monitor

JP/VD Removed!

JP/VD Reserved

PS PS PS

4 4

User code=1 User code=2 User code=N(N<5)

Back View AC ~

AC ~ AC ~

Remove

Reserve

Back View

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

-5-

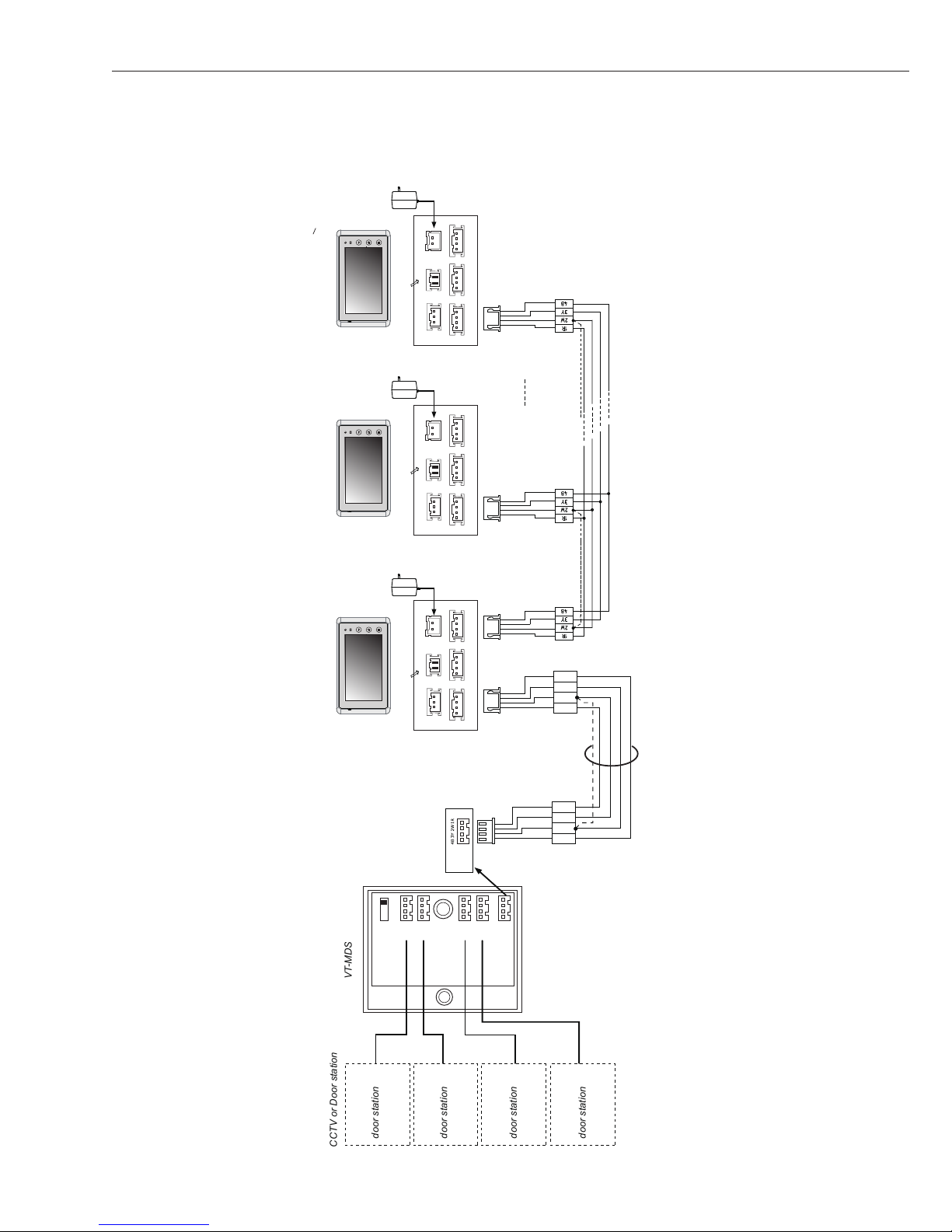

VT-MDS

CCTV or Door station

door station

Black

Yellow

Red

White

Black

Yellow

Red

White

SET

DS4

DS3

DS2

DS1

JW_VP

User code=1 User code=2 User code=N(N<5)

Reserve ReserveRemove

Note: First & last monitor, JP/VD jumper should remain. Others monitors, remove the jumper.

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

Extending Multi Door Stations with MDS 4-way switch

Please refer to MDS user manual for more information.

-6-

5. Basic Door Release Operation

1. Press the CALL button on door station.

2. The monitor rings,and the visitor's image will be seen on screen.

Note: the screen turns off after 30 seconds(default) if nobody answers.

3. Press either TALK/MON Button on monitor or touch Talk icon on screen, you

can communicate hands free with the visitor for 90 seconds(default).After nishing

communication,press TALK/MON button or touch Talk icon again to end the

communication. If the system has two or more monitors, when you answer from

any monitor, the others will automatically shut off.

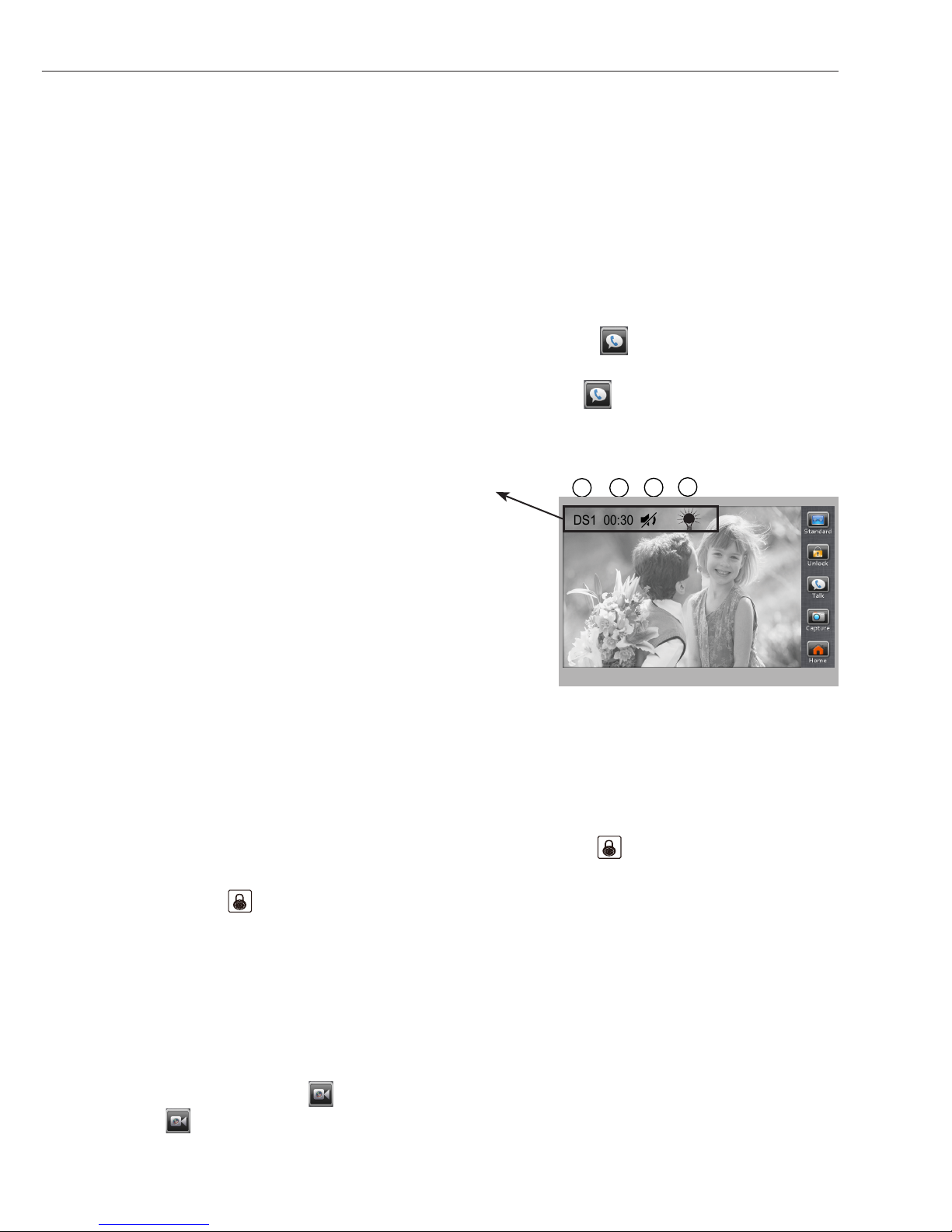

Answering a Door Call

Status bar

►1. Shows the current doorbell you are viewing

►2. Shows countdown to end of call

►3. If the monitor is set to silent mode, this icon-

will be shown

► 4. If the RLC module is connected (which con-

trols a light), and the Staircase Light item is set

to 1 or 2 (refer to part 9->Staircase Light), this

iconwill be shown when receiving a call.

1 2 34

Door Release

Entrance Monitoring

During talking state, Press UNLOCK Button or touch Unlock1 icon to release

the door for the visitor.(

Note: if the system is connected

RLC

module which controls

a lock, touch

Unlock2

icon to release the second lock connected to RLC,for more

information,please refer to RLC user manual.

)

When the monitor is in standby mode, press TALK/MON Button(or touch Monitor ...

item on main menu page), The screen can display the view of outside. If multiple door-

bells are in use, touch Select icon to get into the camera switch mode(or directly

touch Manual Monitor item on main menu page). Select door 1/2/3/4 to monitor

the doorbell or CCTV camera. See the following diagrams.

-7-

DS1 00:30

►“ ” means the current operating monitor.

►“ ” means the selected calling monitor.

►Each monitor is assigned a unique user

code

！

6. Intercom Function

Intercom can be initiated by any Monitor.

Touch Intercom or Inner Call item on main

menu page. Intercom function is activated

when multiple monitors are installed.

Intercom: press Intercom icon on any mon-

itor to enter selective intercom page, see the

diagram on right. Select a monitor,then press

Dial Number icon to call. If the selected

monitor answers the call,intercom chat starts.

Inner Call: press Inner Call icon on any

monitor to enter selective intercom page, see

the diagram on right. All monitors will ring

at the same time,whichever monitor answers

the call, intercom chat starts. The other mon-

itors will stop ringing .

DS-1 00:23

Note:

If the system utilizes the QSW module,

video quad split monitor is available, see

the diagram on right. For more information,

please refer to the QSW user manual.

-8-

1 2

User 1

Dial Number Return

User 2

User 3

User 4

User 5

Redial

Dial Number Return

User 1

User 2

User 3

User 4

User 5

Door 1 Door 2 Door 3 Door 4

Door 1

Camera 1 Camera 2 Camera 3 Quad

Door 2 Door 3 Door 4

Selective Intercom

！
