INT-IPSW1104 Installation Guide

Important notice:

• Do not attempt to disassemble or alter the housing. There are no user-serviceable parts

inside the unit. Doing so will void your warranty.

• To minimize the possibility of equipment damage from electrostatic discharge (ESD), all

source and destination equipment must be powered off during installation.

• Do not connect the device to a telecommunication outlet wired to unrelated equipment.

Doing so may damage the unit or any connected equipment. Ensure all connected twisted pair

cabling is straight-through (point-to-point).

• Allow proper ventilation to reduce the risk of thermal failure.

The Intelix INT-IPSW1104 is a four port 10/100BaseT Ethernet switch with PoE+

(up to 15w per downlink port). The switch features two operation modes:

Default and Isolate. In Default mode, the switch will pass data between all

downlink and uplink ports, similar to a standard Ethernet switch. In Isolate

mode, downlink ports will only communicate with the uplink port. The

INT-IPSW1104 includes a Kensington lock slot to prevent theft.

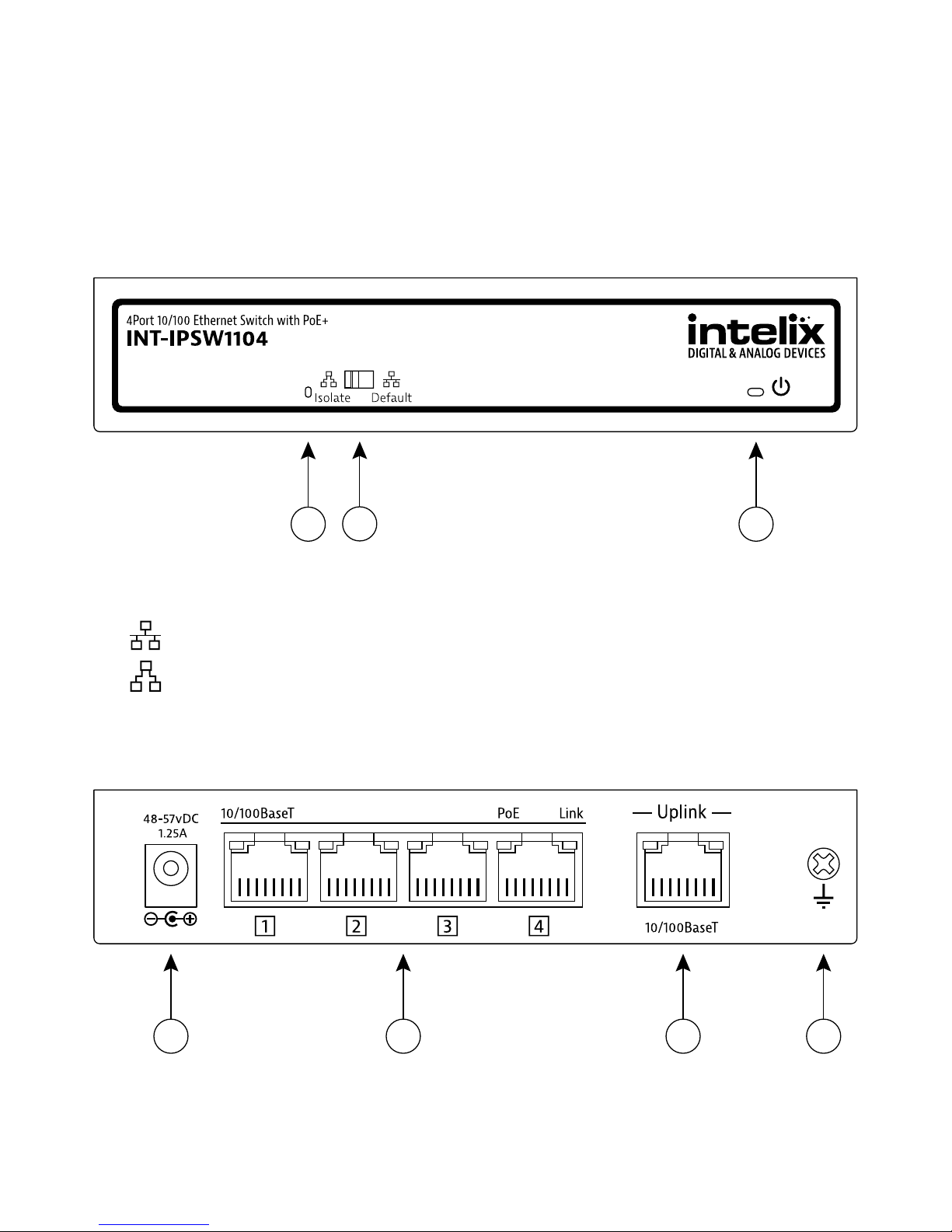

Front Panel

Rear Panel

123

A B C D

1. Isolate Active LED

2. Operation Mode Selection Switch

Default: Data will pass between all downlink and uplink ports

Isolate: Data will only pass from the individual downlink ports directly to the

uplink port.

3. Power LED

A. Power Input

B. 10/100BaseT Downlink Ports with Status LEDs

C. 10/100BaseT Uplink Port with Status LEDs

D. Ground Screw

Instructions

1. Verify all components included with the switcher are present before

installation.

2. Turn off power and disconnect the networking equipment by following

the manufacturer’s instructions.

3. If the switch will be sitting on a shelf, attach the supplied rubber feet to

the bottom of the product.

4. If the switch will be secured to a surface, attach the included mounting

brackets with the supplied screws. Secure the switch to the surface.

5. Optional: Secure a computer lock to the Kensington lock slot on the side of

the switch to prevent theft of the device.

6. Optional: Connect a wire from the switch to an earth ground to help

eliminate static shock between the switcher and connected network

devices.

7. Set the Operation Mode Selection Switch to either Default or Isolate mode.

When in Isolate mode, the green Isolate Active LED will be lit.

The switch must be powered off when altering the operation mode or the

changes will not activate even though the Isolate Active LED will change states.

8. Connect Category 5e or greater twisted pair cable with RJ45 connectors

between the switch and network devices. TIA/EIA-568B straight-through

wiring connections are highly recommended to limit potential interference.

9. Plug the power supply into the power input port of the switch. The red

Power LED will light when receiving power.

10. Power on attached network devices.

LED States

Uplink:

When an active network connection is detected, the green (left)

and amber (right) LEDs will light. The LEDs will flicker while

passing data.

Downlink:

When an active network connection is detected, the green

(right) LED will light. If an endpoint device requires Power over

Ethernet, the amber (left) LED will light. The green Link LEDs will

flicker while passing data.

rev 150420

8001 Terrace Ave, Ste 201

Middleton, WI 53562

608-831-0880

supportlibav@libav.com

Technical Specifications

Input/Output Connections

Ethernet Uplink One (1) 8P8C-F

Ethernet Downlink Four (4) 8P8C-F

DC Power 48V-57V at 1.25A One (1) Barrel (5.5 mm OD; 2.6 mm ID)

Ethernet Signal Characteristics

Maximum Distance 100m

Cable Requirements Solid core Category 5e, Category 6 or greater with TIA/EIA-568B

crimp pattern

Ethernet Standards IEEE 802.3/802.3u/802.3x/802.1p/802.1q

PoE Standards IEEE 802.3af/at (Type 1)

Backplane Bandwidth 1Gbps

Packet Forwarding Rate 0.75Mbps

Packet Buffer 768K

Chassis and Environmental

Enclosure Material Galvanized Steel

Enclosure Dimensions (H x W x D) 27 mm x 135 mm x 104 mm (1.06 in x 5.31 in x 4.05 in)

Shipping Weight 0.84 kg (1.85 lbs)

Operating Temperature 0° to +55° C (+32° to +131° F)

Operating Humidity 10% to 90%, Non-condensing

Storage Temperature -40° to +85° C (-40° to +185° F)

Storage Humidity 10% to 85%, Non-condensing

Power and Regulatory

Power Supply Input 100-240V AC / 50-60 Hz @ 2 A

Power Supply Output 54V DC at 1.1 A

Power Consumption ( <5W, PoE output <60W

ESD Protection ±15 kV

Product Regulatory CE, FCC, RoHS

Power Supply Regulatory CE, FCC, RoHS

Other

Warranty 2 years

Security Kensington Slot

Diagnostic Indicators Chassis: Power, Ethernet (2 ea), Isolate Mode

Uplink: Link Status (amber and green)

Downlink: Link Status (green), PoE Status (Amber)

Included Accessories Power supply, IEC power cable (US), Rubber feet (4 ea), Mounting

brackets (2 ea) with screws

Distances and picture quality may be affected by cable grade, cable quality, source and destination

equipment, RF and electrical interference, and cable patches.
