Intelbras IVP 8000 EX Manuel utilisateur

User guide

IVP 8000 EX

Infrared passive sensor

Congratulations, you have just purchased a product with Intelbras quality and security.

The IVP 8000 EX sensor has dust, water protection¹ white light immunity, making it perfect for the harshest environments,

and can be installed indoors, semi-open or outdoors. Its lens is specially built for long life, containing materials resistant to

sunlight.

The presence of the digital accelerometer ensures that the position of the sensor is not changed after installation, avoiding

sabotage in the security system.

The sensor also has an integrated temperature sensor, to offer the same detection sensitivity and reliability in different en-

vironments (from - 10 °C to + 50 °C), low energy consumption circuit, providing a long battery life, communication status

on the sensor via LED, low battery indication, tamper switch for tamper protection and Articulated support2, in order to

guarantee the best detection angle in the most diverse environments. The IVP 8000 EX sensor is suitable for environments

with the presence of pets up to 30 kg. Read the product introductory information carefully for the correct use of the sensor.

1Read item

2. Features

of this manual.

2 Read item

11. Articulated bracket

of this manual

Care and security

The sensor is compatible with AMT 8000 control panel versions 1.2.1 or higher.

» LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other

type of treatment of personal data from this product.

» Follow all instructions in the manual for assembling and installing the product;

» Do not use the sensor in areas with sudden changes in temperature, such as air conditioners and heaters, fans, refrige-

rators and ovens. Do not expose the sensor directly or to reections from sunlight;

» Fix the sensor on stable surfaces, where there is no ickering;

» Wireless communication technology, when exposed to environments with high power irradiation, may suffer interference

and have its performance degraded. Example: locations near TV towers, AM/FM radio stations, amateur radio stations,

routers, etc.;

» Do not touch the surface of the infrared (PIR) sensor. If necessary, use a soft cloth for cleaning;

» The recommended installation height varies from 2 m to 2.2 m depending on the installation environment.

» Do not place objects in front of the sensor. To secure the detection area, avoid curtains, screens, screens, or any object

that blocks the scan. Do not exceed the sensor installation height (2.2 m).

» The sensor must be installed where a possible intruder is easily detected, that is, where a person makes the greatest

possible movement across the detection beams when entering the environment (see the gure below);

» It is important to note that the Pet function is designed for low-growing animals weighing up to 30kg. If the animal is

on top of a bench, for example, the Pet function can be canceled.

Obs.: before starting the installation, it is necessary to dene the height at which the sensor will be positioned, which can

vary from 2 to 2.2 m. If the sensor is installed at a height of less than 2.0 m or is tilted downwards, the Pet function will be

compromised.

1.1. Scan

0 2 4 6 8 10 12 (m)

8 (m)

Upper view

1.2. Detection range

1.2 4 6 8 10 12m

2.2m

2,2 m

1,2 4 6 8 10 12 m

zone

zero

Side view

Índice

1.Technical specications 6

2.Features 6

3.Product 6

4.Sensor opening 7

5.Registering the IVP 8000 EX sensor 7

5.1. Deleting the sensor register ...................................................................7

6.Identifying the best place for installation 8

7.Installation 8

7.1. Anti-Sabotage Function ......................................................................8

8.Conguring the IVP 8000 EX sensor 9

8.1. Conguring the sensor through the keyboard ......................................................9

8.2. Information on sensor settings .................................................................9

8.3. Information on LED operation and operating mode..................................................9

8.4. Conguring the sensor through the application ....................................................9

9.Battery 11

10.Homologation 11

11.Articulated bracket 11

11.1. Care and security.........................................................................11

11.2. Technical specications ....................................................................11

11.3. Product ................................................................................12

11.4. Features................................................................................12

11.5. Installation .............................................................................13

Warranty term 16

1.Technical specications

Operating voltage 3 Vdc

Operating current 20 µA

Frequency band 915 MHz to 928 MHz

Modulation DSSS BPSK 40 Kbps

Maximum transmission power 11 dBm

Battery LITHIUM CR123A 3 V

Angle of detection 110°

Detection range 12 m

Method of detection Double PIR

Animal immunity Up to 30 Kg

Startup time 60 seconds

Operating temperature -10 °C ~ +50 °C

RF Range 600 meters without barrier

2.Features

» IPX4 protection against water and dust.

» Position anti-sabotage (accelerometer);

» Communication status check via LED;

» Wireless communication with range of up to 600 meters with direct open eld view;

» Supervised wireless communication;

» Encrypted transmission;

» Micro controlled sensor;

» Sensor operation adjustment through the AMT Remote Mobile application;

» Inmunidad a los animales rastreros que pesen menos de 30 kg;

» White light immunity up to 20,000 lux;

» High RFI/EMI immunity;

» Antimanipulación (tecla de manipulación);

» Easy installation.

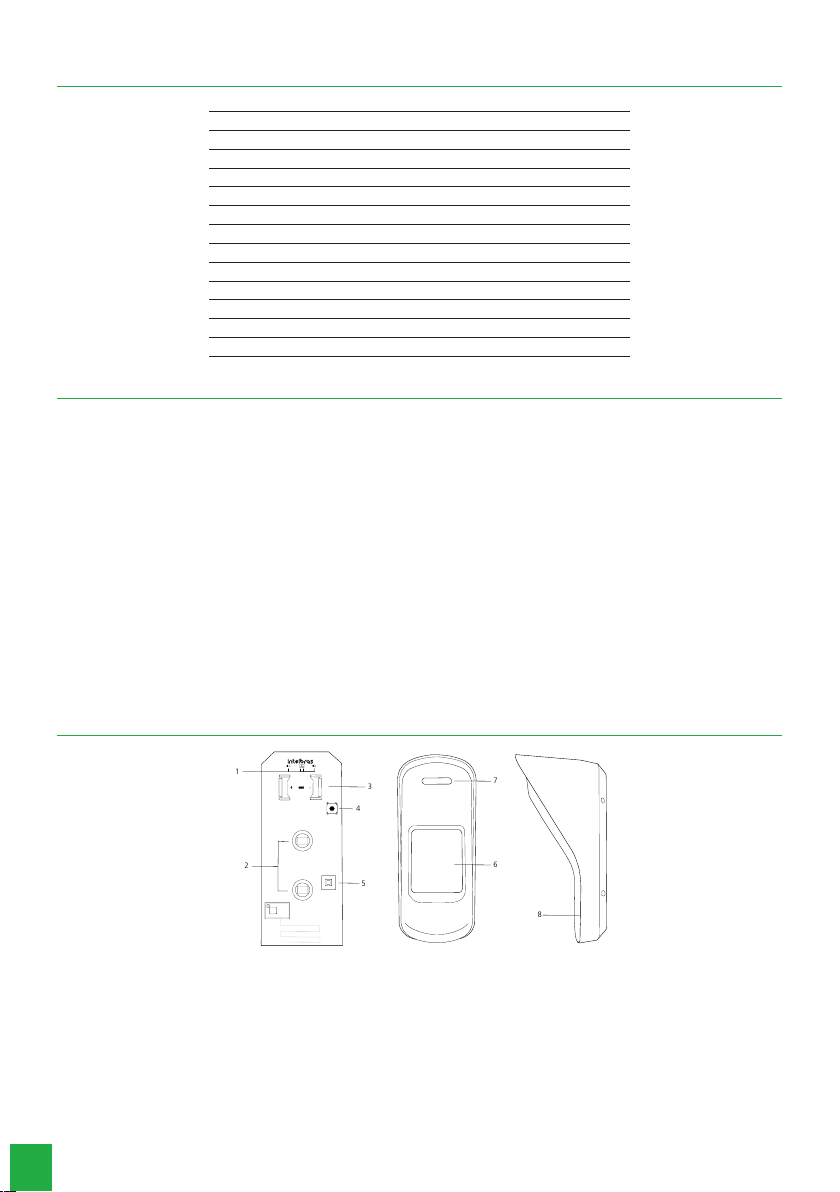

3.Product

1. LEDs

2. PIR sensor

3. Battery connector

4. Synchronism button

5. Tamper key

6. Fresnel lens

7. LED light conductor

8. Product base

4.Sensor opening

To access the 8000 EX IVP board for registering, changing batteries or to unregister it from the center unit, simply remove

the screw from the bottom with the help of a Philips wrench and remove its front cover. This way the board is exposed and

ready to be handled. See the picture:

5.Registering the IVP 8000 EX sensor

To register the IVP 8000 EX sensor code in the AMT 8000 alarm center follow the procedure below:

1. Insert the battery of LITHIUM 3 Vcc - CR 123 A. The sensor will ash the blue LED for a few seconds (stabilization time),

Press the synchronization key of the AMT 8000 alarm center (the blue LED will be on) then press the synchronization button of the sensor

observing if the LED located on the front of it will ash green indicating the correct register. If the LED ashes red, the registration has not

been performed and the procedure must be repeated.

Note: after pressing the synchronization button of the alarm center, the blue LED indicating the center unit will remain

on for approximately 3 minutes after the last registration made, after this time it will turn off automatically and it will not

be possible to make new registrations until the synchronization key is pressed again. If no device is registered, the LED

indicating the center unit will go off automatically after 3 minutes.

The sensors will be addressed according to the sequence performed, Example:The rst sensor will be registered in zone 1,

the second sensor in zone 2, the third sensor in zone 3 and so on.

To register other sensors through keyboard commands and more information, please check the complete manual of the

AMT 8000 center.

5.1. Deleting the sensor register

If you want to delete the sensor registration, just press and hold the sensor synchronization key for approximately 10

seconds, watching the LED indicator until it flashes red twice.

Note:

when physically erasing sensors, they must be erased from the control unit’s memory via programming.

Enter Enter

01 to 64

Zone number71+ + +

6.Identifying the best place for installation

The IVP 8000 EX sensor has communication signal level indications with the AMT 8000 center, this will help you choose

the best installation location. Follow the procedure:

1. Once properly registered, take the sensor to the environment you wish to protect;

2. Check the position where the sensor can cover the whole environment, respecting the installation height, according to

the table in item

1.2. Detection range.

3. Once chosen, position the sensor in the exact place where it will be installed and perform a transmission through a

detection or tamper opening;

4. Observe the color that the LED will light up and check in the following table if the sensor can be installed in this location;

LED status Communication level

Green Excellent signal level (Recommended installation location)

Orange Regular signal level Not recommended location for installation (communication failure may occur)

Red No communication (Do not install on site)

Blue Intrusion detection

5. If the signal level is not excellent, reposition the sensor and perform the procedure again.

7.Installation

Once the best installation location has been identied, set the height of the sensor.

We recommend that this sensor be installed at a height of 1.8 m to 2.2 m and positioned so that the intruder performs

movements transverse to the sensor’s detection radius. It is not recommended to install the sensor tilted up or down as this

may impair the functioning of its PET function.

Check that the sensor is rmly xed and not subject to icker, in order to avoid unwanted triggering. The Articulated Bra-

cket can be used to ensure greater exibility to the installation, adapting to most scenarios and installation angles. Follow

all the mounting instructions in the manual for maximum benet.

7.1.

Anti-Sabotage

Function

This function consists of monitoring undue changes in the sensor’s installation angle, ensuring that the sensor is not disa-

bled if its installation position is changed, thus making the alarm system even safer.

After registering the sensor in the center unit, press the synchronism key for the sensor to activate the Anti-Sabotage

function. During the rst 2 minutes, the sensor will not trigger the tamper in order to adjust the nal installation position.

After the initial 2 minutes, the sensor will go into the test mode, where for 15 minutes the sensor will trigger from the

tamper in the zone in which it was registered whenever its position changes, and then automatically restore this trigger.

After the 15 minutes test period, the sensor will trigger the tamper only if there is a change in its installation position, with

any horizontal or vertical inclination, but it will only restore the tamper if the synchronism switch is pressed.

8.Conguring the IVP 8000 EX sensor

The sensor settings can be adjusted in two ways, below we present the step by step of each one.

8.1. Conguring the sensor through the keyboard

Using the keyboard of the AMT 8000 alarm center, go into the programming mode with the installer password, then type

the following command:

Enter EnterZone LED Operation mode

0 = Off

1 = On

0 = Economy

1 = Continuous

From 0 to 3

see the table below

Zone in which the sensor

is registered, from 01 to 64

Sensitivity66+ + + ++ +

Note: on the EX 8000 IVP, the Operation Mode will not inuence its operation

8.2. Information on sensor settings

Sensitivity adjustment table.

Level Condition

0Minimum sensitivity

1Normal sensitivity (factory default)

2Intermediate sensitivity

3Maximum sensitivity

Sensitivity adjustment table

8.3. Information on LED operation and operating mode

LED

»Off: with the LED Off option marked, the sensor will only light the LED for the rst 15 minutes after battery insertion.

Factory default.

»On: with the LED function On, the battery life can be drastically reduced.

Operation mode

With the center unit activated, the sensor transmits all the detections that have occurred to the alarm center, and the LEDs

can also be turned on depending on the sensor conguration (default: Turned on). With the center unit deactivated, the

sensor detects no presence and does not turn on the LEDs. In the initial 15 minutes after inserting the battery, the sensor

turns on the LEDs with each detection, regardless of whether the center unit is activated or deactivated.

To test the sensor’s operation with the center unit deactivated, simply enter the Test Mode menu or the wireless sensor Test

function (check the center unit’s manual) and wait for the rst transmission, which can take up to 2 minutes.

8.4. Conguring the sensor through the application

1. After the application is properly connected to the alarm center, select Congure center on the main screen of the APP;

Congure Center >

Online >

Events >

2. After that, select sensors;

Settings

General >

Zones >

Passwords >

Communication >

Event codes >

IP monitoring >

Ethernet/Wi-Fi >

GPRS >

Programed activation/deactivation >

Sensors >

Once you have done this, select the sensor you wish to congure, for example:

Sensor 1

Sensors

Sensor 1 >

Sensor 2 >

Sensor 3 >

Sensor 4 >

Sensor 5 >

Sensor 6 >

Sensor 7 >

Sensor 8 >

Sensor 9 >

...Sensor 64 >

After selecting the sensor, the following adjustment screen will open.

Sensor 1

Sensitivity

Level 0 (minimum sensitivity)

Level 1 (normal sensitivity, factory default)

Level 2 (intermediate sensitivity)

Level 3 (maximum sensitivity)

LED

Always Off

On when triggered

Modo de operação

Economy

mode

Continuous

mode

Discard changes Save

Note:

for conguring the settings, check the sensitivity table, the explanations of LED operation and the Operation

mode in item

9.2. Information on the sensor settings

Autres manuels pour IVP 8000 EX

Table des matières

Autres manuels Intelbras Capteur de sécurité

Intelbras

Intelbras VP 5311 MW Pet Manuel utilisateur

Intelbras

Intelbras IVP 1000 PET Manuel utilisateur

Intelbras

Intelbras IVP 4101 PET Manuel utilisateur

Intelbras

Intelbras XAS 8000 Manuel utilisateur

Intelbras

Intelbras IVP 1000 PET Manuel utilisateur

Intelbras

Intelbras IVP 2000 SF Manuel utilisateur

Intelbras

Intelbras IVP 3000 PET Manuel utilisateur

Intelbras

Intelbras IVP 8000 EX Manuel utilisateur

Intelbras

Intelbras IVP 4101 PET Manuel utilisateur

Manuels Capteur de sécurité populaires d'autres marques

THORLABS

THORLABS PDA10JT Manuel utilisateur

Waeco

Waeco UV-DETECT Manuel utilisateur

Intermatic

Intermatic IOS-DSIMF Manuel utilisateur

urmet domus

urmet domus 1083 Manuel utilisateur

Siemens

Siemens AZL66 Series Manuel utilisateur

BTI

BTI Profiline Multi Finder Manuel utilisateur

Challenger

Challenger SL01 Manuel utilisateur

DMP Electronics

DMP Electronics 1122INT Manuel utilisateur

Rielta

Rielta Ladoga MK-RK Manuel utilisateur

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuel utilisateur

Bosch

Bosch DS835 Manuel utilisateur

DBI SALA

DBI SALA EZ Stop Manuel de l'opérateur

Lamptime

Lamptime ST05C Manuel utilisateur

Ubiquiti

Ubiquiti MFI-MSC Manuel utilisateur

Subsite

Subsite 910R Instructions d'installation

Satel

Satel OPAL Pro Manuel utilisateur

Aleph

Aleph XC-1XTEU Manuel utilisateur

Pima

Pima LARIS QUAD Manuel utilisateur
