Intel R2000SC Manuel utilisateur

Thank you for buying an Intel® Server System. The following information will help you

assemble your Intel®Server System and install components.

If you are not familiar with ESD [Electrostatic Discharge] procedures used during

system integration, see the complete ESD procedures described in your Service Guide.

This guide and other supporting documents are located on the web at:

http://www.intel.com/support.

G71872-002

Intel® Server System R2000SC Family

Quick Installation User's Guide

(This page is intentionally left blank.)

Table of Contents

General Installation Process ........................................................................................................ 2

Reference ............................................................................................................................................ 10

System Overview .............................................................................................................................. 1

Preparing the System ....................................................................................................... 2

Remove the Top Cover ..................................................................................................... 2

Remove the Air Duct ......................................................................................................... 2

Remove Processor Heatsink(s) ................................................................................... 2

Install the Processor(s) ................................................................................................... 3

Install Processor Heatsink(s) ........................................................................................ 3

Install Memory Modules ................................................................................................... 4

Install Hard Drives .............................................................................................................. 5

Install Optical Drive ............................................................................................................ 6

Install the Air Duct .............................................................................................................. 6

Install Add-in Card ............................................................................................................... 7

Install Rack Handles ........................................................................................................... 7

Install Intel® RAID C600 Upgrade Key (optional) ............................................... 7

Install Intel® Remote Management Module 4 (optional) ................................ 7

Install Intel® RAID Smart Battery (optional) ......................................................... 7

Install Second Power Supply Module (optional) ................................................. 8

Install Bezel (optional) ...................................................................................................... 8

Install the Top Cover ......................................................................................................... 8

Finishing Up ............................................................................................................................ 8

Software .................................................................................................................................. 9

Warning

Read all caution and safety

statements in this document

before performing any of the

instructions. Also see the Intel

Server Board and Server Chassis

Safety Information document at:

http://www.intel.com/support/

motherboards/server/sb/cs-010770

.htm for complete safety information.

Warning

Installation and service

of this product to be

performed only by

qualiﬁed service personnel

to avoid risk of injury from

electrical shock or energy

hazard.

Caution

Observe normal ESD

[Electrostatic Discharge]

procedures during system

integration to avoid possible

damage to server board and/or

other components.

Tools Required

Anti-static

wrist strap

Phillips*

screwdriver

Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the

Thermal Operation and Conﬁguration Requirements

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and

configuration guidelines:

• Ambient in-let temperature cannot exceed 35º C and should not remain at this maximum level for long periods of time.

Doing so may affect long term reliability of the system.

• The CPU-1 processor + CPU heatsink must be installed first.

• Memory Slot population requirements:

NOTE: Specified memory slots either can be populated with a DIMM or supplied DIMM Blank (DIMM blanks are only

provided in systems that require them). Memory population rules apply when installing DIMMs.

▪ DIMM Population Rules on CPU-1

Install DIMMs in order; Channels A, B, and C. Start with 1st DIMM slot (blue) on each channel, then 2nd slot.

▪ DIMM Population Rules on CPU-2

Install DIMMs in order; Channels D, E, and F. Start with 1st DIMM slot (blue) on each channel, then 2nd slot.

• All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied drive

blank.

• The air duct must be installed at all times.

• In single power supply configurations, the second power supply bay must have the supplied filler blank installed at all

times.

• The system top-cover must be installed at all times.

System Overview

Intel® Server System R2000SC Family

8 x 3.5" Hot Swap Hard Drive Bay Option

12 x 3.5" Hot Swap Hard Drive Bay Option

Hot Swap Hard Drive Bay Options

* R2308SC2SHDR as shown

System Features and Components

Hot Swap

Hard Drive Bays

System Fans

CPU1 CPU2

1+1 Redundant

Power Supply

Modules

Server Board

Air Duct

Optical Drive Bay

(Optional)

Front Control Panel

Useful Information:

• The system must be configured with two CPUs to enable PCIe slot 5 (blue color).

• The mini-SAS connector labeled SCU_1 requires an 8-port SATA/SAS Intel® RAID C600 Upgrade Key to be functional.

• DIMM channels D-F can only be used in dual processor configurations.

General Installation Process

The installation instructions in this section are for common components of Intel® Server System

R2000SC family.

Minimum Hardware Requirements

•Memory Type:

Minimum of one 1 GB, 240-pin, RDIMM or UDIMM, DDR3-1066,

DDR3-1333, or DDR3-1600.

•Processor:

Intel® Xeon® Processor E5-2400 product family.

•Hard Disk Drives: SATA

For a complete list of compatible processors, heatsinks, and memory, see

http://www.intel.com/p/en_US/support.

To avoid integration difﬁculties and possible board damage, your system must

meet the following minimum requirements:

Preparing the System

Observe normal ESD (Electrostatic Discharge)

procedures.

Place your Intel®Server System on a ﬂat anti-static

surface to perform the following integration procedures.

Observe ESD procedures before reaching inside to make

server board connections or install components.

IMPORTANT!

Before proceeding

further, check your

Intel®Server System

for disconnected or

loose cables and

components that

may have occurred

during shipping.

Remove the Top Cover

Remove the four screws.

Slide the cover backward

and lift up.

Remove the Air Duct

Removing air duct by lifting

straight up.

Remove Processor Heatsink(s)

The heatsink is attached to the server board / processor socket with captive fasteners.

Lift the heatsink straight up.

CAUTION: The heatsink has thermal interface material (TIM) on the underside

of it. Use caution so that you do not damage the thermal interface material.

Use gloves to avoid sharp edges.

Using a #2 Phillips* screwdriver, loosen the four screws located on the

heatsink corners in a diagonal manner using the following procedure:

Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by

giving it two rotations and stop. (IMPORTANT: Do not fully loosen.)

Proceed to screw 2 and loosen it by giving it two rotations and stop.

Similarly, loosen screws 3 and 4.

Repeat steps A and B by giving each screw two rotations each time

until all screws are loosened.

Processor

Socket

AIRFLOW

Chassis Front

General Installation Process

6Install

Processor Heatsink(s)

If a protective ﬁlm covers the thermal interface material

(TIM) on the underside of the heatsink, remove the

protective ﬁlm.

Align the heat sink ﬁns to the front and back of the

chassis for correct airﬂow. Airﬂow goes from

front-to-back of chassis.

Using a #2 Phillips* screwdriver, ﬁnger-tighten

each fastener diagonally, according to the

white-circled numbers.

Securely re-tighten each fastener again in

the same order as performed in Step C.

Server

Board

CPU 2 Heat Sink

CPU 1 Heat Sink

Processor

Socket

Chassis Front

CAUTION:

Do not

over-tighten

fasteners.

NOTE: Heatsink

styles may vary

TIM

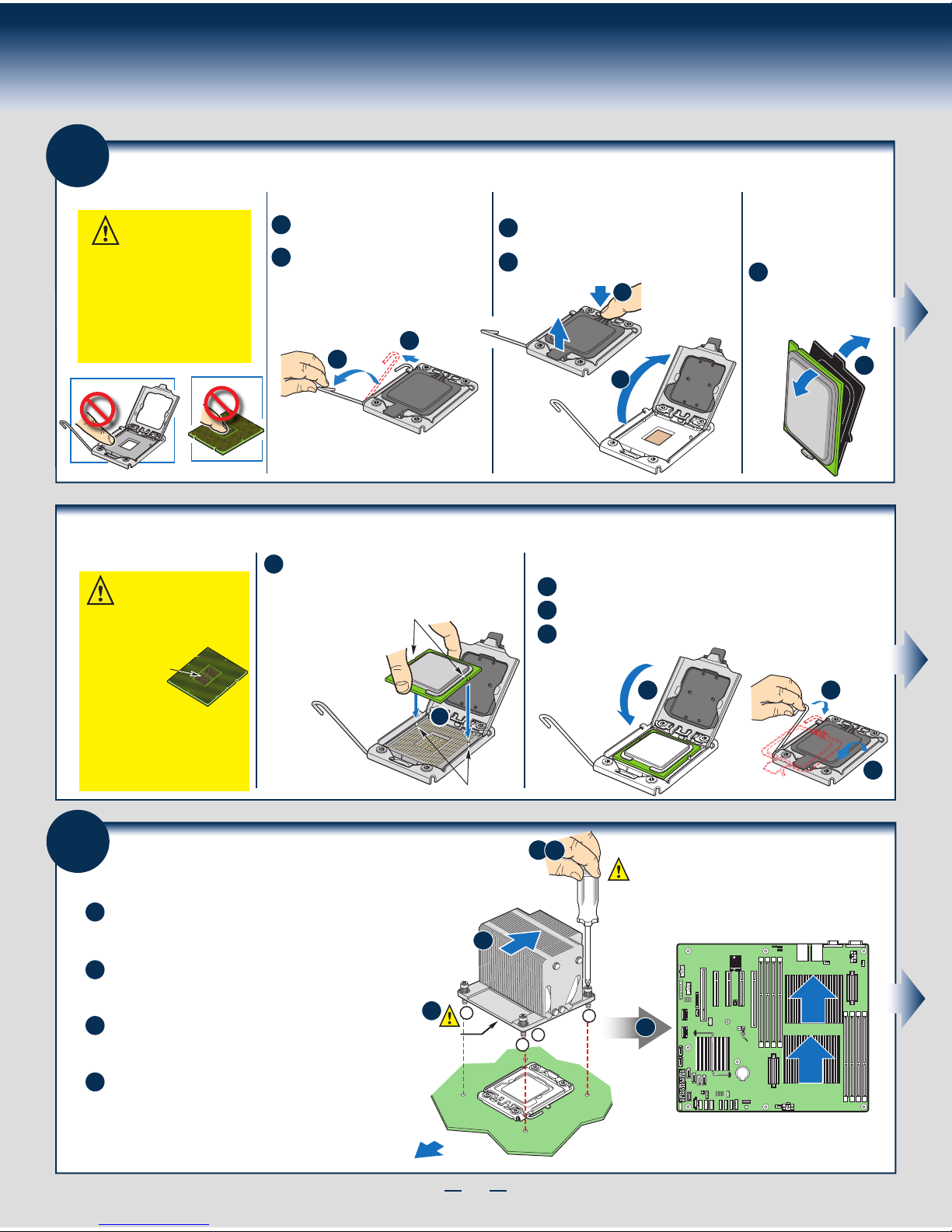

Install the Processor(s)

B. Open the Load Plate

Open the load plate as shown.

Push the rear tab with your ﬁnger tip to bring

the front end of the load plate up slightly.

C. Remove the

Processor

Protective Cover

ATake the processor

out of the box and

remove the protective

shipping cover.

A. Open the Socket Lever

1. When opening a socket,

DO NOT TOUCH the gold

socket wires.

2. When unpacking a processor,

hold by the edges only to

avoid touching the gold

contact wires.

CAUTION:

Rotate the lever open all the way.

Push the lever handle down and away

from the socket to release it.

Install the Processor(s) ... continued

Orientation Posts

Orientation Notches

E. Close Load Plate and Socket Lever

Close the socket lever.

Close the load plate all the way as shown.

Remove the protective cover after it been automatically disengaged

from the load plate.

Orient the processor with the socket so that the

orientation notches on the processor align with

the two orientation posts on the socket.

D. Install the Processor

CAUTION: The underside

of the processor has

components that may damage

the socket wires if installed

improperly.

DO NOT DROP processor

into the socket!

Components

Processor must align correctly

with the socket opening before

installation.

Install the

processor as

shown.

General Installation Process

7Install Memory Modules

DDR3 DIMM Memory Identiﬁcation:

Other

Memory

DDR3

CAUTION: Observe normal ESD (ElectroStatic

Discharge) procedures to avoid possible damage to

system components.

DIMM notch and socket bump must align as shown below.

To Install DIMMs:

Open both DIMM socket levers.

Note location of alignment notch.

CAUTION: Avoid touching contacts

when handling or installing DIMMs.

IMPORTANT! Visually check that each latch is fully closed and correctly engaged

with each DIMM edge slot.

Push down ﬁrmly on the DIMM until it snaps into place and both levers close.

Insert DIMM making sure the connector edge of the DIMM aligns correctly with the slot.

Install Memory Modules... Continued

Memory Conﬁgurations and Population Order:

Intel®Server Board S2400SC

For best performance, a minimum of three DIMMs per CPU is recommended, populated in the blue slot of each memory channel.

In a single-processor conﬁguration, always populate A1 DIMM ﬁrst.

In a dual-processor conﬁguration, always populate A1 DIMM ﬁrst for CPU 1 and D1 DIMM ﬁrst for CPU2.

Note: For additional memory conﬁgurations, see the Service Guide on the Intel®Server Deployment Toolkit CD that accompanies your Intel®Server System

S2400SC

or go to http://www.intel.com/support/motherboards/server/.

Memory sizing and conﬁguration is supported only for qualiﬁed DIMMs approved by Intel. For a list of supported memory, see the tested memory list at:

http://www.intel.com/support/motherboards/server/.

CPU 2 Socket

CPU 1 Socket

DIMM_A1

DIMM_B1

DIMM_C1

DIMM_C2

DIMM_F2

DIMM_F1

DIMM_E1

DIMM_D1

General Installation Process

8Install

Hard Drives

2.5" HDD

Hard Drive Numbering Diagram

Drive 0 Primary

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

Remove the drive carrier by pressing the

green button and opening the lever.

d1 d4

d2 d3

Slide the carrier out.

Remove the four screws securing the

plastic drive blank and remove the

plastic drive blank.

Install the plastic drive blankfrom

top. Secure the bracket with three

screws as shown.

Slide the 2.5" HDD into the plastic

drive blank to align the screw holes

with the right and left rail.

Break off the tab on the

plastic drive blank.

Install 2.5" Hard Drive as option:

Secure the hard disk drive using

the four screws for 2.5" HDD.

3.5´´ HDD

Install the hard disk drive using the same

four screws as shown. Make sure the

connector end of the drive matches the

backplane connector.

With the lever open, insert the hard disk drive assembly into

the chassis.

Push in the lever to lock it into place.

Bottom

View

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

12 x 3.5’’ hard drive bay as shown

8 x 3.5’’ hard drive bay as shown

CAUTION: If you don't install

all drives, empty drive bays

must be occupied by carriers

with plastic drive blank

provided to maintain proper

system cooling.

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

2.5" HDD

General Installation Process

9Install Optical Drive

IMPORTANT NOTE: If you do not

install a device at this location,

install the optical device bay ﬁller

panel shown below. This is

required to maintain proper

system cooling.

Rear View

of Optical

Drive

Install the plastic guide onto the back

of the drive and attach with two screws

as shown.

Insert the optical drive into chassis opening

and push all the way until it stops.

CConnect the cables as

shown.

Optical

Device

Assembly

Data

Power

Optical

Drive

11 Install Add-in Card

ARemove the screw.

BSlide the retention device and lift upward.

Install Add-in Card ... continued

CPush out the ﬁller Panel from the chassis and remove it.

DPosition riser card edge connector over the server board socket then press down

uniformly until it seats in riser socket.

FInstall the retention device.

GTighten the screw.

ETighten the screw.

Add-in Card

Filler Panel

Add-in Card

10 Install the Air Duct

NOTE: Use care to avoid

pinching system cables.

Install processor air duct as shown.

Autres manuels pour R2000SC

Table des matières

Autres manuels Intel Serveur

Intel

Intel SR6850HW4S Manuel utilisateur

Intel

Intel M70KLP Series Guide de configuration

Intel

Intel NSW1U - IP Network Server Guide de référence

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Manuel utilisateur

Intel

Intel SR2625UR - Server System - 0 MB RAM Manuel utilisateur

Intel

Intel SR1560SF - Server System - 0 MB RAM Manuel utilisateur

Intel

Intel SR2612UR - Server System - 0 MB RAM Manuel utilisateur

Intel

Intel MFSYS25 - AXXPSU 1000W Power Supply Module Manuel utilisateur

Intel

Intel SSR212MC2 - Storage Server Hard Drive Array Mode d’emploi

Intel

Intel ISP4400 - Server Platform - 0 MB RAM Manuel utilisateur

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Manuel utilisateur

Intel

Intel SRPM8 Manuel utilisateur

Intel

Intel SR1500AL - Server System - 0 MB RAM Manuel utilisateur

Intel

Intel S2600WF Series Guide de configuration

Intel

Intel SRPL8 Manuel utilisateur

Intel

Intel S7000FC4UR - Server System - 0 MB RAM Guide de configuration

Intel

Intel MFSYS25V2 Manuel utilisateur

Intel

Intel SR1530HSH - Server System - 0 MB RAM Manuel utilisateur

Intel

Intel SR1500 - AXXMINIDIMM DDR-2 RAID Controller Cache... Manuel utilisateur

Intel

Intel TIGH2U - Carrier Grade Server Instructions d'utilisation et de sécurité

Intel

Intel SR1695GPRX Manuel utilisateur

Intel

Intel TIGPT1U - Carrier Grade Server Manuel utilisateur

Intel

Intel SRKA4 - Server Platform - 0 MB RAM Manuel utilisateur

Intel

Intel NSC2U - IP Network Server Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
