SCSI Cable Option Kit
Installation Guide for
Intel®ISP1100 Internet Server
The most current version of this document and other documents relating to the
Intel®ISP1100 Internet Server can be found at http://www.intel.com/isp.
Copyright © 2000 Intel Corporation.All rights reserved. No part of this document
may be copied, or reproduced in any form, or by any means without prior written
consent of Intel.
Intel Corporation (Intel) makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability and fitness for a
particular purpose. Intel assumes no responsibility for any errors that may appear in
this document. Intel makes no commitment to update nor to keep current the informa-
tion contained in this document.
† Third-party brands and trademarks are the property of their respective owners.
February 29, 2000
Revision 1.0
Document Number:A16589-001
Intel ISP1100 Internet Server SCSI Cable Kit 1
Introduction
This document explains how to install the SCSI cable kit, which is used with third-
party SCSI adapters in the Intel ISP1100 Internet Server. It assumes the system is
configured for IDE and contains either a 3.5” floppy drive or a slimline CD-ROM/
floppy drive assembly. Please ignore steps that do not apply to your system.
Note: You cannot mixIDEand SCSIharddrives insidetheserver. Theharddrives
mustbethe sametype.
Before you begin:
1. Make sure you have one (1) pre-folded SCSI cable.
2. Make sure you have the following tools:
• A phillips (cross-head) screwdriver, number 2 bit
• An antistatic wrist strap and conductive foam pad (recommended)
3. Read the safety and warnings information in the Intel®ISP1100 Internet Server
Quick Start Guide.
4. Make sure the server is turned off and is not plugged in to an electrical
outlet.
Intel ISP1100 Internet Server SCSI Cable Kit2

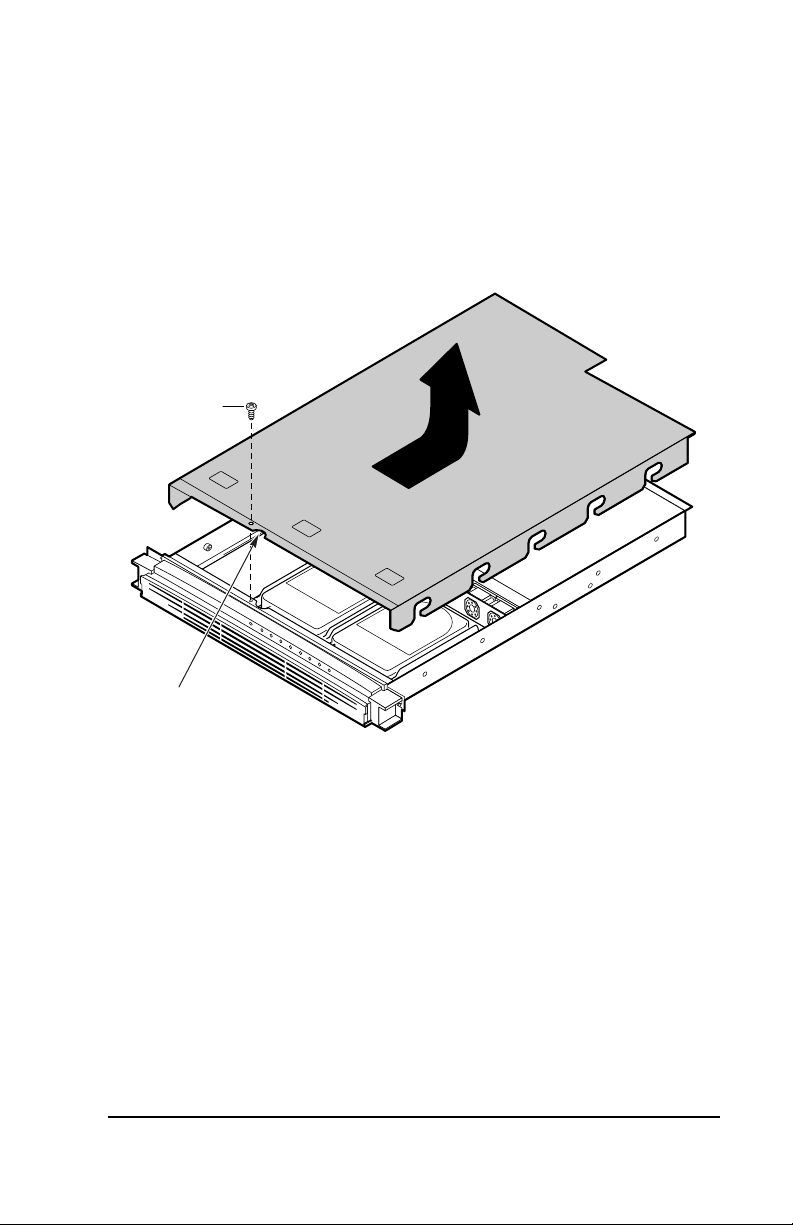

Open the Server Cover
1. Remove the screw (A) from the cover.
2. Slide the cover back and out from under the edge of the server’s front panel.
3. When the cover is free of the front panel, use the notch (B) in the cover to lift the
cover off the chassis.
A
B
OM09745
Intel ISP1100 Internet Server SCSI Cable Kit 3
Remove the Riser Card and Add-in Card(s)
1. Remove the two screws (A) from the retention bracket (B), and remove
the retention bracket.
2. Grasp the riser card at each end (C) and gently rock and lift until the
riser releases from the server board connector.
OM09772
B
C
A
Intel ISP1100 Internet Server SCSI Cable Kit
Install the SCSI Card
1. Plug the SCSI card (A) in the left slot (B) of the riser card (C).
OMO9778
B
A
C
2. Set the riser assembly aside for now.
4
Intel ISP1100 Internet Server SCSI Cable Kit
Remove the IDE Hard Drive(s) from the Server
For each hard drive:
1. Lift the back of the drive until the drive mounting bracket (A) releases from the
two snaptop standoffs (B).
2. Slide the drive back until the mounting bracket tabs are free of the slots (C) in the
server front panel, then lift the drive above the chassis.
3. When the drive is clear of the chassis, disconnect the power (D) and
data cables (E) from the back of the drive.
B
A
C
D
E
OM09764
5
Intel ISP1100 Internet Server SCSI Cable Kit6
Remove the IDE Hard Drive(s) from the Bracket(s)
For each IDE hard drive:
1. Remove the four screws (A) that attach the mounting bracket (B) to the drive.
There are two screws on each side.
2. Lift the drive from the mounting bracket.
OM09765
B
A
A
Intel ISP1100 Internet Server SCSI Cable Kit 7
Install the SCSI Hard Drive(s) in the Bracket(s)
For each SCSI hard drive:
1. Configure the SCSI ID for the drive according to the manufacturer’s guide.
2. Place the drive in the mounting bracket. Orient it with the component side down,
and the front of the drive facing the front of the mounting bracket (A).
3. Align the mounting bracket screw holes (B) with the matching holes (C) in the
drive housing.
4. Fasten the mounting bracket to the drive using the four screws (D) that were
holding the IDE drive in the bracket.
Note: Do not overtightenthescrews. Thebracketsides canbendinward, which
canaffectthealignment ofthe brackettabs withthe slotsin thechassis.
OM09766
C
B
A
D
D
Intel ISP1100 Internet Server SCSI Cable Kit
Remove the 3.5 Floppy Drive
You must remove the 3.5” floppy drive so you can route the SCSI cable underneath it.
You will reinstall the drive in a later step.
1. Remove the three screws (A) that hold the drive in the chassis.
2. Lift the back of the drive at an angle and disconnect the power (B) and data
cables (C).
3. Remove the drive from the bay and set it aside.
OMO9771
C
A
B
8
