Thank you for buying an Intel® Server System. The following information will help you

assemble your Intel®Server System and install components.

If you are not familiar with ESD [Electrostatic Discharge] procedures used during

system integration, see the complete ESD procedures described in your Service Guide.

This guide and other supporting documents are located on the web at:

http://www.intel.com/support.

Intel® Server System P4000SC Family

Quick Installation User's Guide

G63272-001

(This page is intentionally left blank.)

Table of Contents

General Installation Process ........................................................................................................ 3

System Overview .............................................................................................................................. 1

Preparing the System ....................................................................................................... 3

Remove the Side Cover ................................................................................................... 3

Remove the Air Duct ......................................................................................................... 3

Remove Processor Heat Sink(s) ................................................................................ 3

Install the Processor(s) .................................................................................................... 3

Install Heat Sink(s) ............................................................................................................ 4

Install DIMM Memory Modules ..................................................................................... 5

Install Tool-less CD-ROM or DVD-ROM Drive ........................................................ 5

Install Hard Drive ................................................................................................................. 6

Install PCI-e Card Assembly ........................................................................................... 7

Install Intel® Remote Management Module 4 NIC (optional) ....................... 9

Install RMM4 EMI Cover (optional) ............................................................................. 9

Install Alternate Serial Port (optional) ..................................................................... 9

Install Intel® RAID Smart Battery (optional) ...................................................... 10

Install Second Power Supply Module (optional) .............................................. 10

Rack Mount Conﬁguration (optional) .................................................................... 10

Install Feet (pedestal only) ......................................................................................... 10

Install Air Duct ................................................................................................................... 11

Install Side Cover .............................................................................................................. 11

Finishing Up ......................................................................................................................... 11

Install Software ................................................................................................................. 11

HDD Cage Cable Connection ...................................................................................... 12

Front Panel Controls and Indicators ...................................................................... 13

Cable Routing Diagram .................................................................................................. 13

Reference ............................................................................................................................................ 12

Warning

Read all caution and safety

statements in this document

before performing any of the

instructions. Also see the Intel

Server Board and Server Chassis

Safety Information document at:

http://www.intel.com/support/

motherboards/server/sb/cs-010770

.htm for complete safety information.

Warning

Installation and service

of this product to be

performed only by

qualified service personnel

to avoid risk of injury from

electrical shock or energy

hazard.

Caution

Observe normal ESD

[Electrostatic Discharge]

procedures during system

integration to avoid possible

damage to server board and/or

other components.

Tools Required

Anti-static

wrist strap

Phillips*

screwdriver

Flat Blade

screwdriver

Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the

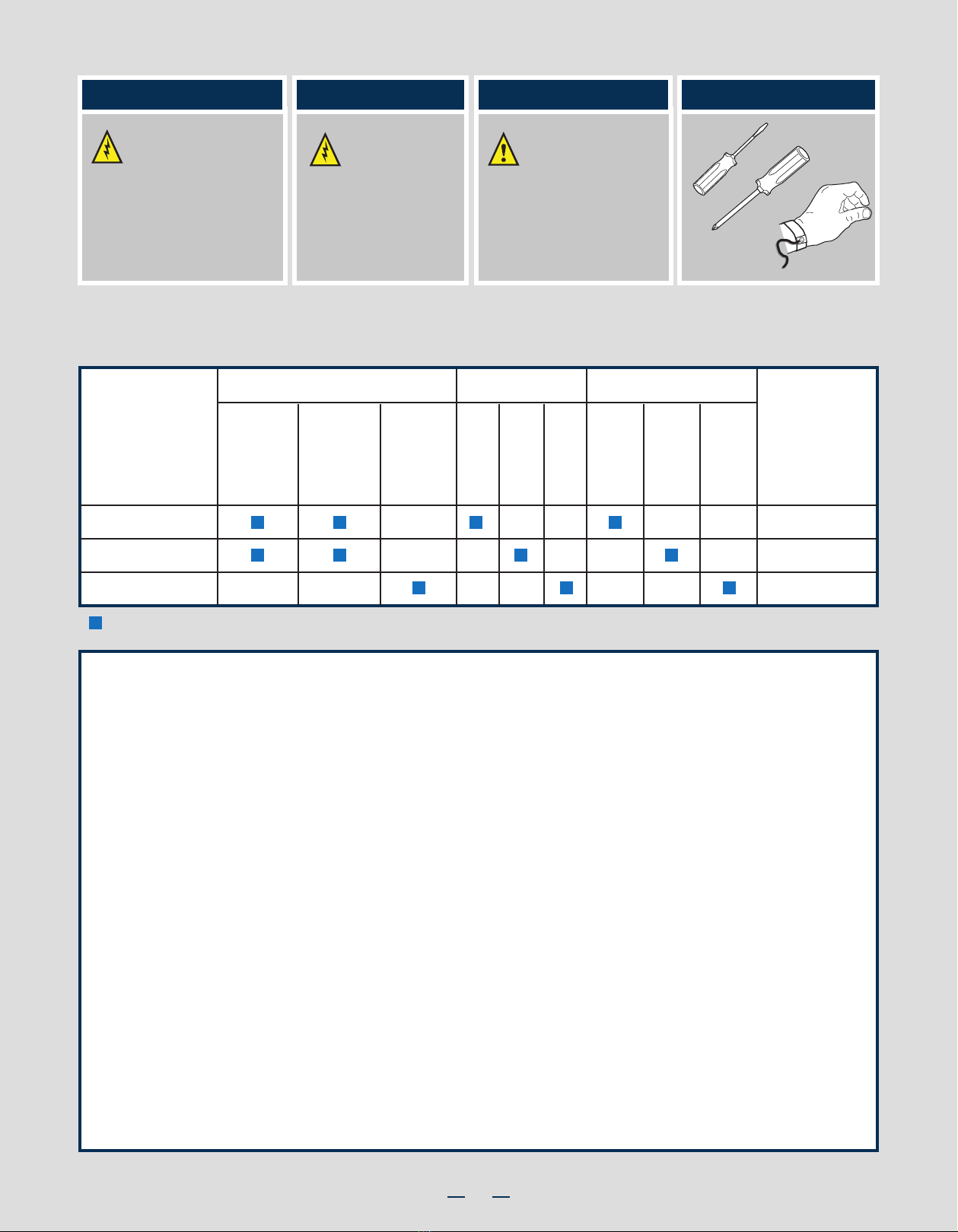

Thermal Operation and Conﬁguration Requirements

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and

configuration guidelines:

Intel® Server System P4000SC Family Product Configuration

= Configuration Feature

4 x 3.5"

Fixed

4 x 3.5"

Hot

Swap

8 x 3.5"

Hot

Swap

Hard DriveSystem Fan

One

Fixed

550W

Two

Hot Swap

750W

Two

Hot Swap

460W

RMM4 Lite

RMM4

Power Supply

P4304SC2SFEN

P4304SC2SHDR

P4308SC2MHGC

Intel® Server

System

Intel®

Remote

Management

Module

Five

Hot Swap

System

Fans

(80 x 38 mm)

One

Fixed

PCI Zone

Fan

(92 x 32 mm)

One

Fixed

CPU Zone

Fan

(92 x 32 mm)

Thermal Operation and Conﬁguration Requirements

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and configuration

guidelines:

• Ambient in-let temperature cannot exceed 35º C and should not remain at this maximum level for long periods of time. Doing so

may affect long term reliability of the system.

•The CPU-1 processor and CPU heatsink must be installed.

•DIMM Population on CPU-1: Install DIMMs in order; Channels A, B, and C. Start with 1st DIMM slot (blue) on each

channel.

• DIMM Population on CPU-2: Install DIMMs in order; Channels D, E, and F. Start with 1st DIMM slot (blue) on each

channel.

•All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied drive blank.

•The air duct must be installed at all times.

•In single power supply configurations, the second power supply bay must have the supplied filler blank installed at all times.

•The system top-cover must be installed at all times.

System Overview

Intel® Server System P4304SC2SHDR

System Features and Components

460W Hot Swap Power Supply (Two)

I/O Ports

A Kensington* Cable Lock Mounting Hole

PCI Add-in Board Slot Covers

AC Input Power Connector (Two)

Alternate Serial Port Knockout

Alternate RMM4 Knockout

Padlock Loop

RMM4 Knockout

Fixed System Fan

Heatsink

4 x 3.5" Hot-swap HDD Cage

Front Control Panel

5.25" Peripheral Bays

Server Board

Intel® Remote Management Module 4 Lite

QEMI Cover

NOTE: Airduct is not shown.

Intel® Server System P4304SC2SFEN

System Features and Components

550W Fixed Power Supply

I/O Ports

A Kensington* Cable Lock Mounting Hole

PCI Add-in Board Slot Covers

AC Input Power Connector

Serial Port Knockout

Alternate RMM4 Knockout

Padlock Loop

RMM4 Knockout

Front Control Panel

5.25" Peripheral Bays

Fixed System Fan

LHeatsink

Server Board

Fixed Hard Drive Carrier Tray

NOTE: Airduct is not shown.

System Overview

8 x 3.5" Hot-swap HDD Cage

0123

4567

Hot Swap Hard Drive

Bay Options and

HDD Numbering

4 x 3.5" Hot-Swap Drive Cage

8 x 3.5" Hot-Swap Drive Cage

0123

Intel® Server System P4308SC2MHGC

System Features and Components

750W Hot Swap Power Supply (Two)

I/O Ports

Alternate Serial Port Knockout

PCI Add-in Board Slot Covers

AC Input Power Connector (Two)

RMM4 Knockout

Alternate RMM4 Knockout

A Kensington* Cable Lock Mounting Hole

Padlock Loop

Hot-swap System Fan

Heatsink

Front Control Panel

5.25" Peripheral Bays

8 x 3.5" Hot-swap HDD Cage

Intel®Remote Management Module 4

PCI Retainer

Server Board

NOTE: Airduct is not shown.

General Installation Process

The installation instructions in this section are for general components of Intel® Server System

P4000SC family, but the illustrations are based on the Intel® Server System P4308SC2MHGC.

Minimum Hardware Requirements

■Processor

■Heat Sink

■Memory

■Hard Disk Drives

■Power

■Air Duct

To avoid integration difficulties and possible damage to your system,

make sure you have components from each category below.

Preparing the System

Observe normal ESD (Electrostatic Discharge) procedures.

Place your Intel®Server System on a flat anti-static

surface to perform the following integration procedures.

Observe ESD procedures before reaching inside to make

server board connections or install components.

3Remove the Air Duct

ARemove the air duct.

4Remove Processor Heatsink(s)

The heatsink is attached to the server

board/processor socket with captive fasteners.

Lift the heatsink straight up.

Proceed to screw 2 and loosen it by

giving it two rotations and stop.

Similarly, loosen screws 3 and 4.

Repeat steps A and B by giving each

screw two rotations each time until

all screws are loosened.

Using a #2 Phillips* screwdriver,

start with screw 1 and loosen it

by giving it two rotations and stop.

(IMPORTANT: Do not fully loosen.)

CAUTION: The heatsink has thermal interface material (TIM) on

the underside of it. Use caution so that you do not damage the

thermal interface material. Use gloves to avoid sharp edges.

Using a #2 Phillips* screwdriver, loosen the four

screws located on the heatsink corners in a

diagonal manner using the following procedure:

Air Flow

5Install the Processor(s)

A. Open the Socket Lever

1. When opening a socket,

DO NOT TOUCH the gold

socket wires.

2. When unpacking a processor,

hold by the edges only to

avoid touching the gold

contact wires.

CAUTION:

Push the lever handle down

and away from the socket to

release it.

Rotate the lever open all

the way.

Remove the Side Cover

Remove the screws.

NOTE:

A non-skid surface or a

stop behind the chassis

may be needed to prevent

the chassis from sliding on

your work surface.

Slide the side cover back and lift

the cover outward to remove it.

General Installation Process

6Install Heat Sink(s)

Server

Board

CPU 2 Heat Sink

CPU 1 Heat Sink

Air Flow

CAUTION:

Do not

over-tighten

fasteners.

NOTE: Heatsink

styles may vary

TIM

Chassis Front

If a protective ﬁlm covers the thermal interface material

(TIM) on the underside of the heatsink, remove the

protective ﬁlm.

Align the heat sink ﬁns to the front and back of the

chassis for correct airﬂow. Airﬂow goes from

front-to-back of chassis.

Using a #2 Phillips* screwdriver, ﬁnger-tighten

each fastener diagonally, according to the

white-circled numbers.

Securely re-tighten each fastener again in

the same order as performed in Step C.

(Optional:Please check your chassis User

Guide)Attach active heatsink fan power cable to

server board as shown.

Install the Processor(s) ... continued

B. Open the Load Plate

Open the load plate as shown.

Push the rear tab with your ﬁnger tip to bring the

front end of the load plate up slightly.

C. Remove the Processor

Protective Cover

ATake the processor out of the

box and remove the protective

shipping cover.

D. Install the Processor

CAUTION: The underside

of the processor has

components that may damage

the socket wires if installed

improperly.

DO NOT DROP processor

into the socket!

Components

Processor must align correctly

with the socket opening before

installation.

Install the Processor(s) ... continued

Orient the processor with the socket

so that the orientation notches on

the processor align with the two

orientation posts on the socket.

Install the processor as shown.

Orientation Posts

Orientation Notches

E. Close Load Plate and Socket Lever

Close the socket lever.

Close the load plate all the way as shown.

Remove the protective cover after it been automatically disengaged from

the load plate.

General Installation Process

7Install DIMM Memory Modules

DDR3 DIMM Memory Identiﬁcation:

DIMM

notch and

socket

bump must

align as

shown.

Other

Memory

DDR3

This server board supports up to 8 DDR3 800/1066/1333/1600 ECC

UDIMM/RDIMM.

CAUTION: Observe normal ESD (ElectroStatic Discharge) procedures

to avoid possible damage to system components.

CPU 2 Socket

CPU 1 Socket

DIMM E1 F1 F2

DIMM C1 B1 A1

Memory Conﬁgurations and Population Order:

Memory Type:

Minimum of one 1GB, DDR3 800/1066/1333/1600 MHz ECC UDIMM/RDIMM.

NOTE: For additional memory conﬁgurations, see the Techinical Product Speciﬁcation for Intel®Server Board

S2400SC at:

http://www.intel.com/support/motherboards/server

Memory sizing and conﬁguration is supported only for qualiﬁed DIMMs approved by Intel®. For a list of

supported memory, see the tested memory list at:

http://serverconﬁgurator.intel.com/default.aspx

Install DIMM Memory Modules ... Continued

To Install DIMMs:

Open both DIMM socket levers.

Note location of alignment notch.

CAUTION: Avoid touching contacts

when handling or installing DIMMs.

IMPORTANT! Visually check that each latch is fully closed and correctly engaged with each DIMM edge slot.

Push down firmly on the DIMM until it snaps into place and both levers close.

Insert DIMM making sure the connector edge of the DIMM aligns correctly with the slot.

8Install Tool-less CD-ROM or DVD-ROM Drive

Attach slides to the DVD or CD-ROM drive

by pressing the slides firmly into the side

dimples on the DVD or CD-ROM drive.

Get the slides from the

chassis side.

Insert the drive/slide assembly

into the device bay until the

slides lock into place.

Press the release latch and use

the finger holes to Pull out the

EMI shield.

Finger Holes

General Installation Process

Install Hard Drive ... Continued

3.5" Hot-Swap Hard Drive Carrier (For system with 3.5" hot-swap hard drive bay only)

Open the Hot-swap door and

remove the drive carrier by

pressing the green button and

opening the lever.

Slide the carrier out.

Remove the four screws securing the

HDD interface bracket and remove the

HDD interface bracket.

Install the hard disk drive using the

same four screws as shown. Make

sure the connector end of the drive

matches the backplane connector.

CAUTION: If you don’t install all

drives, empty drive bays must

be occupied by carriers with

plastic drive blank provided to maintain

proper system cooling.

With the lever open, insert the

hard disk drive assembly into the

cage opening and push until the

locking lever engaged.

Push in the lever to lock it into

place, then close the door.

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

3.5´´ HDD

Press the clip.

B. Install the Hard Disk Drive C. Install the EMI shield

Secure the 3.5" or 2.5"

HDD on the HDD carrier

tray with screws.

Pull out the HDD

carrier tray.

Insert the HDD carrier

tray into chassis.

Press the clip.

Fit the edges of the EMI Shield against

the sides of the chassis.

A. Remove the EMI

shield

Lift the EMI shield and

move EMI shield outward

from the chassis.

3.5" HDD

2.5" HDD

Install Hard Drive

Fixed Hard Drive Carrier (For chassis with ﬁxed hard drive bay only)

Slide the EMI Shield downwards until

the latches on the EMI Shield are

engaged with the chassis.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Intel Serveur

Intel

Intel SR1325TP1 - Entry Server Platform Manuel utilisateur

Intel

Intel R1000WT Series Guide de l'utilisateur

Intel

Intel ISP4400 - Server Platform - 0 MB RAM Manuel utilisateur

Intel

Intel NSC2U - IP Network Server Manuel utilisateur

Intel

Intel P4000IP Series Guide de configuration

Intel

Intel MFSYS25 - AXXPSU 1000W Power Supply Module Manuel utilisateur

Intel

Intel R1000GL Manuel utilisateur

Intel

Intel MFSYS25 - AXXPSU 1000W Power Supply Module Manuel utilisateur

Intel

Intel M50CYP2UR Series Guide de configuration rapide

Intel

Intel SSR212MC2 - Storage Server Hard Drive Array Mode d’emploi

Intel

Intel SR1630BC - Server System - 0 MB RAM Guide de configuration

Intel

Intel SERVER SYSTEM SR2500AL Manuel utilisateur

Intel

Intel S2600CW Manuel utilisateur

Intel

Intel R1000GZ Manuel utilisateur

Intel

Intel SR1695WB Manuel utilisateur

Intel

Intel H2000WP Manuel utilisateur

Intel

Intel SRKA4 - Server Platform - 0 MB RAM Manuel utilisateur

Intel

Intel SC5650HCBRP Guide de configuration

Intel

Intel 320014-003US Manuel utilisateur

Intel

Intel SR870BH2 - Server Platform - 0 MB RAM Manuel utilisateur

Intel

Intel M70KLP Series Guide de configuration

Intel

Intel R1000WF Series Guide de configuration rapide

Intel

Intel SR9000MK4U - Server System - 0 MB RAM Guide de l'utilisateur

Intel

Intel R1000SPO series Guide de configuration

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
