Intel S7000FC4UR - Server System - 0 MB RAM Manuel utilisateur

Intel®4-Processor Server System

S7000FC4UR

Configuration Guide

Intel Value and Enterprise Servers

Rev 1.7

A reference guide to assist customers in ordering components to configure

S7000FC4UR

4-Processor 4U SAS 2.5” and 3.5” Server

Revisions/Additions in blue font

S7000FC4UR Configuration Guide Page 1 of 12

1/7/2009 S7000FC4UR Configuration Guide Page 2 of 12

1. Table of Contents

1. Table of Contents..................................................................................................................2

2. Revision History....................................................................................................................3

3. Important Notes ....................................................................................................................3

4. Base System SKU Contents ................................................................................................4

5. Value and Enterprise System SKU Comparsion................................................................5

6. Production System Configuration Options........................................................................7

7. Base System Part Configurator...........................................................................................8

8. Complete Product Production Ordering Code Listings....................................................9

8.1 Table 1: Base System Codes...................................................................................9

8.2 Table 2: System Accessory Codes ..........................................................................9

8.3 Table 3: System Field Replaceable Units (FRUs) and Spare Part Codes.............11

9. Processor Codes Reference..............................................................................................12

9.1 Tray Processor Codes Reference..........................................................................12

9.2 Boxed Processor Codes Reference (does not include Heatsink) ..........................12

1/7/2009 S7000FC4UR Configuration Guide Page 3 of 12

2. Revision History

Date Rev Modification

Aug 29, 2006 0.1 NPI Draft

Dec 1, 2006 0.2 Alpha MM#s Added

Jan 15, 2006 0.3 Added Beta Placeholders

Feb 25, 2007 0.6 Updated Production and Beta SKU information

Mar 25, 2007 0.9 Updated Production Placeholders and Silver SKU information

April 20, 2007 0.95 Updated Production MM#s and Added Spares SKUs

June 22, 2007 0.98 Updated Production MM #s, added spares and Value vs. Enterprise pages

July 15, 2007 1.0 Promoted to rev 1.0 status, removed Pre-Production Order Codes, Improved description of

FFCCABLEKIT, added Boxed Processor Reference codes

July 30, 2007 1.1 Updated Config table with corrections

Sept 1, 2007 1.2 Revised with Corrections

April 21, 2008 1.3 Updated MM#s

Sept 1, 2008 1.4 Updated MM#s

Sept 12, 2008 1.5 Updated MM#s, and added Dunnington Boxed and Tray Processor Reference Codes

Dec 1, 2008 1.6 Updated MM#s

Jan 7, 2009 1.7 Added new SFC4URX 3.5” SKU and new spare Hot Swap Backplane; updated MM#

3. Important Notes

1. Each S7000FC4UR server system can accommodate up to four memory boards. System SKUs include one memory board

in the base configuration.

2. Product code SFC4URE comes preconfigured with redundant cooling and power.

3. Product code SFC4UR comes preconfigured with 1 power supply and an empty second power supply bay and 2 of 4 rear

fan modules. Additional accessories may be ordered for redundant power and cooling configuration requirements.

4. Systems will not ship with processors, hard drives, or memory. These parts must be obtained separately.

5. Heat sinks are not included with any server systems.

6. Processor thermal blanks must be ordered separately (if no processor is installed).

7. The S7000FC4UR memory board supports FBD 533 or 667 registered DIMMs.

8. The Intel factory will package board orders into single order packaging and ship to fill customer orders. Each board MM is a

self-contained shipping package of one board.

9. Power cords are not shipped with the system and must be obtained from local suppliers.

10. All parts listed below are fully RoHS compliant.

11. The SFC4URX 3.5” SKU requires a Host Bus Adapter (HBA) or RAID Adapter for operation. The SAS Riser AFCSASRISER

is not used with this SKU. Please refer to the Intel® Server System S7000FC4UR Tested Hardware and Operating System

List or consult your Intel support representative.

1/7/2009 S7000FC4UR Configuration Guide Page 4 of 12

4. Base System SKU Contents

System Part Description

SFC4URE

Enterprise

SKU

Production

SFC4UR

Value

SKU

Production

SFC4URX

3.5”

SKU

Production

1/2" DVD-ROM Drive 1 0 0

Base Chassis 1 1 1

Baseboard 1 1 1

Bezel 0 0 0

Button Control Panel 1 1 1

Button panel cable 1 1 1

Drive Power Cable (Tape Backup and DVD-ROM) 1 1 1

Fan Power Cable 1 1 1

Front Fan Module 2 2 2

Front Panel Cable (SAS to Front Panel) 1 1 1

Front Panel IO board 1 1 1

Integrated RAID activation key 0 0 0

Integrated RAID Battery 0 0 0

Integrated RAID Memory 0 0 0

Intel LCD Control Panel 0 0 0

Intel Remote Management Module 0 0 0

IO Riser 1 0 0

Memory Board (8 Slots per board) with 8 DIMM fillers 1 1 1

Memory Board Filler Baffles NA NA NA

Power Supply Filler Panel NA NA NA

Power Supply Modules (15Amp, 110/220V) 2 1 1

Processor Heatsinks 0 0 0

Processor Thermal Dummy 0 0 0

Rack Faceplate Assembly 1 1 1

Rack Handles (Pair) 1 1 1

Rear Fan Module 4 2 2

Sample Safety Label 1 1 1

SAS Riser to backplane cable 2 0 0

SAS Riser with Integrated RAID capability (Intel) 1 0 0

SAS/SATA 4U Backplane Board 1 1 1

SAS/SATA HDD Carrier (Black) 2.5” 8 8 NA

SAS/SATA HDD Carrier (Black) 3.5” NA NA 5

SATA Optical drive cable 1 1 1

SATA to IDE converter board 1 1 1

System Packaging (with Intel labeling) 1 1 1

System Serial # Label 1 1 1

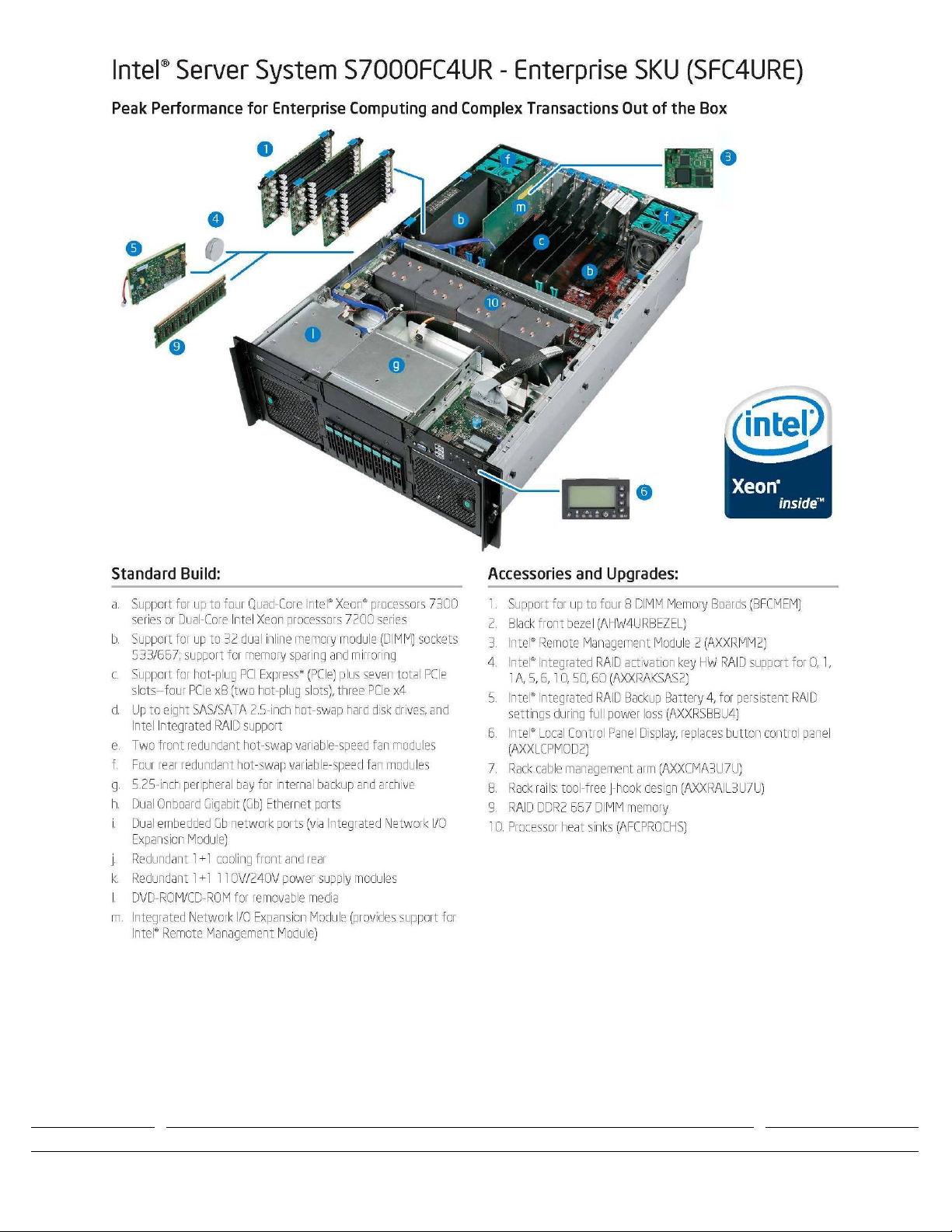

5. Value and Enterprise System SKU Comparsion

1/7/2009 S7000FC4UR Configuration Guide Page 5 of 12

1/7/2009 S7000FC4UR Configuration Guide Page 6 of 12

6. Production System Configuration Options

Processor

Heatsink

Processor

Blank

Mandatory Accessories

Optional Accessories

SFC4UR

Value 4U Server

Up to 3 additional

memory boards. ROMB Key

and Batter

Redundant

Power Supply

Bezel

SAS Expansion

Module Redundant Fans

Remote Management

Module 2 (RMM2) Rack Rails and

CMA

DVD-ROM

Drive

Included in SFC4URE

SFC4URE

Enterprise 4U Server

I/O

Module

SFC4URX 3.5”

4U Server

1/7/2009 S7000FC4UR Configuration Guide Page 7 of 12

1/7/2009 S7000FC4UR Configuration Guide Page 8 of 12

7. Base System Part Configurator

Mandatory Accessories

Feature Product

Processor heat sink

AFCPROCHS

Processor

Heat Sinks and Blanks

(All 4 sockets must have Processor + Heatsink

Processor Blank)

Processor blank

AFCPROCBLANK

Optional Accessories

Feature Product

LCD Control Panel LCD control panel

AXXLCPMOD2

Memory board 8 DIMM memory board

BFCMEM

RAID Solutions Intel® SAS 2.5” RAID Activation Key

AXXRAKSAS2

(only used with SAS Module above)

Intel® RAID Smart Battery

AXXRSBBU4

(only used with SAS Module and Activation Key above)

Rack rails

AXXRAIL3U7U

Rack Mount Solutions Cable Management Arm

AXXCMA3U7U

Front Bezel 4U Front bezel for rack mount

AHW4URBEZEL

Intel® Remote Server

Management Module (RMM2) RMM requires Network IO Module (FFCIORISER) to connect

AXXRMM2

(only used with IO Module above)

Below Accessories are included in Enterprise System SKU (SRFC4URE)

SAS Module Enables SAS Storage Capability with Intel Integrated RAID

AFCSASRISER

Integrated Network IO Module Dual Channel NIC Module, with connector for RMM2

FFCIORISER

Redundant Rear Fans Additional Cooling Reliability to Server (+2 fans per Server)

FFC4UBKFAN

Redundant Power Supply Additional Power Reliability to Server (+1 per Server)

AFC4UPWR

Optical DVD Media Drive DVD-ROM drive

AFCDVD

8. Complete Product Production Ordering Code Listings

The following table lists all of the product codes applicable to the Fox Cove platform (sorted by category). Following

the table are individual document sections which provide additional product descriptions for each product code.

8.1 Table 1: Base System Codes

Image MM /

UPC Product Code Description of Product Qty

Per Min

Order

899977 SFC4UR Intel® Server System S7000FC4UR. Base

Customizable (Value SKU) 1 1

899982 SFC4URE Intel® Server System S7000FC4UR. (Enterprise SKU) 1 1

900851 SFC4URX Intel® Server System S7000FC4UR. (3.5” SKU) 1 1

8.2 Table 2: System Accessory Codes

1/7/2009 S7000FC4UR Configuration Guide Page 9 of 12

Image MM /

UPC Product Code Description of Product Qty

Per Min

Order

899976 BFCMEM S7000FC4UR Memory board, 8 DIMM slots, FBD-

533/667. Single-Pack. 1 1

891016 AFC4UPWR Power supply module. 4U. 15Amp, 110/220V. 1 1

891013 AFCPROCHS

Intel® CEK processor heat sink.

1 1

861922 AHW4URBEZEL Bezel for front of S7000FC4UR. 1 1

891014 AFCPROCBLANK

Intel® CEK processor blank. One required for every

empty processor slot to maintain proper airflow for

cooling. 1 1

881379 AXXBCPMOD2 Button Control Panel Module. 1 1

879578 AXXLCPMOD2 Intel® Local Control Panel

862119 AXXCMA3U7U Rack cable management arm. 3U-7U chassis. Does

not include the rack rails. Supports S7000FC4UR. 1 1

881844 AXXRAIL3U7U Rack rails for 3U-7U chassis. Does not include the

cable management arm. Tool-less J-hook design.

Supports S7000FC4UR. 1 1

892106 AFCSASRISER SAS Controller Module with Integrated RAID for

S7000FC4UR. Includes interconnect cables: 2X SAS

cables and SES cable. 1 1

891290 AXXRAKSAS2 Intel® SAS RAID Activation Key. 1 5

1/7/2009 S7000FC4UR Configuration Guide Page 10 of 12

899346 AXXRSBBU4 Intel® RAID Smart Battery. 1 5

894383 AXXRMM2 Intel® Remote Management Module. 1 1

881681 FXX25HDDCAR Intel® 2.5" SAS Hard Drive Carrier. 10 1

880265 FXX10DVCARBLK Intel® 3.5" SAS Hard Drive Carrier. 10 1

891932 AFCDVD Slim Line DVD Spare 1 1

891570 FFC4UBKFAN Rear System fans for the S7000FC4UR. 2 1
