Insportline IN 6923 Manuel utilisateur

USER MANUAL – EN

IN 6923 Treadmill inSPORTline Borra Pro

CONTENTS

FITTINGS CHECKING................................................................................................................................. 3

OVERVIEW DRAWING .............................................................................................................................. 4

2.1

Wire Rod and Power Switch.................................................................................................................. 5

2.2

Running Belt and Lateral Incline Base.................................................................................................. 6

IMPORTANT SAFETY INSTRUCTIONS................................................................................................... 7

3.1

Power Requirement ............................................................................................................................... 7

3.2

Add Lubricant........................................................................................................................................ 8

3.3

Level Adjustment .................................................................................................................................. 9

3.4

Power Switch......................................................................................................................................... 9

3.5

Running Belt Adjustment...................................................................................................................... 9

ASSEMBLY INSTRUCTIONS................................................................................................................... 11

4.1

Pre-Assembly Check List.................................................................................................................... 11

4.2

Hardware Pack..................................................................................................................................... 12

4.3

Assembly Steps ................................................................................................................................... 13

PULSE DETECTION SYSTEM.................................................................................................................. 15

COMPUTER OPERATION INSTRUCTIONS........................................................................................... 16

6.1

Subject Instruction............................................................................................................................... 16

6.2

Key Functions (Any effectively key should create one sound) ........................................................... 19

6.3

General Operation and Instructions:.................................................................................................... 20

6.4

Exercise Program Summary:............................................................................................................... 21

6.5

Error Signal ......................................................................................................................................... 26

6.6

iPod Function Instructions................................................................................................................... 26

6.7

Project Mode ....................................................................................................................................... 29

PROGRAM DIAGRAMS............................................................................................................................ 34

PARTS LIST................................................................................................................................................ 44

EXPLODED VIEW ..................................................................................................................................... 49

10.

TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS .......................................... 50

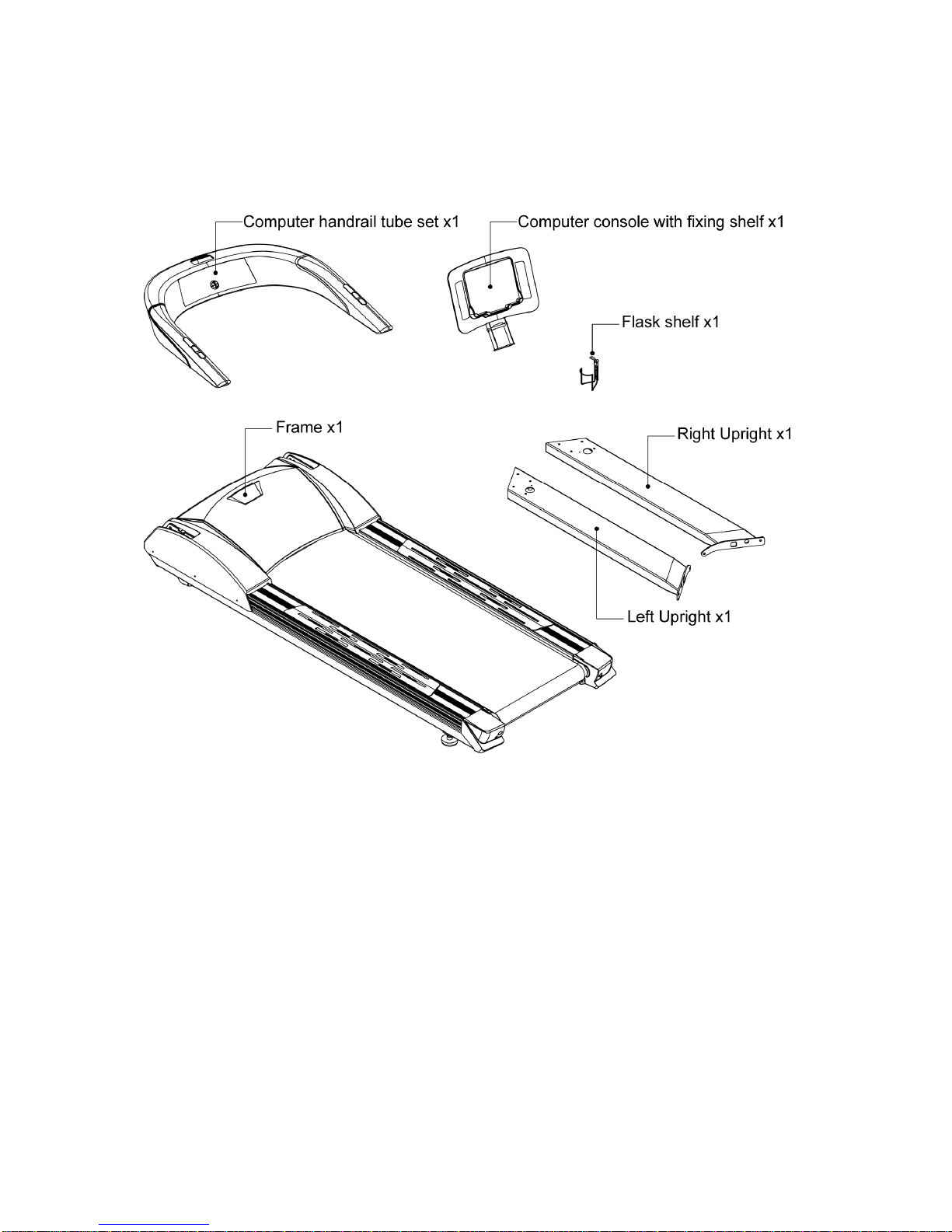

1. FITTINGS CHECKING

Check the following fittings after opening the box. If there is anything missing, please contact with the local

dealer.

2. OVERVIEW DRAWING

2.1 Wire Rod and Power Switch

Wire Rod:

Twist the power cord round the wire rod.

Note:

Don’t carry the treadmill by the wire rod. Pulling it by force will result in distortion.

Power Switch:

Circuit Breaker

If the current excesses rated current, the circuit breaker will bounce.

Press it back after 10 minutes.

Power Socket:

Please pay attention to the voltage of the socket (110V or 220V)

2.2 Running Belt and Lateral Incline Base

Running Belt:

Don’t touch the running belt by hand to avoid danger while the treadmill is running.

Lateral Incline Base:

The hand shouldn’t be close to the incline base to avoid danger while the treadmill is ascending or falling.

3. IMPORTANT SAFETY INSTRUCTIONS

When using this product, basic precautions should always be followed, including the following:

Please read the instruction carefully before starting to use this product.

Danger – To reduce the risk of electric shock：

：：

：

Always unplug this product from the electrical outlet immediately after using and before cleaning the treadmill.

Warning – To reduce the risk of burns, fire, electric shock, or physical injury：

：：

：

•The product should never be left unattended while plugged in.

•When using the treadmill, please step on the treadmill before start. Do not start the treadmill and then

step on the treadmill. Unplug the product from the outlet when not in use or before putting on or taking

off the clothes and other belongings.

•To avoid any danger, close supervision is necessary when this production is used by children, invalids

or disabled persons. So it is when the machine is working with such persons around.

•Not proper or excessive training may be harmful to your health.

•Be sure to use the product only for its intended use as described in this manual. Do not use any

attachment not recommended by the manufacturer in order to avoid any danger or accidents

•Never operate the product if it has a damaged cord or plug, if it is not working properly, if it has been

damaged, or dropped into water. Please return the product to the service center of seller for examination

and repair.

•Do not carry this product by the supply cord or use the cord as a handle.

•Keep the cord away from hot surfaces or ground.

•Never operate the product with the air vents blocked. Keep the air vents free of lint, hair, etc.

•Never drop or insert any objects into any vent of the treadmill.

•Do not use or operate outdoors.

•Place the treadmill on flat ground or flat roof.

•Please confirm 2000mmx1000mm space away behind the treadmill.

•Do not operate where aerosol (spray) products are being used or where oxygen is thin.

•Before turning the product power off, turn all controls to the off position then remove the plug from the

outlet

•Connect the product to a properly grounded outlet only.

•If the machine has folding mechanism, user should descend the incline to original position after

workout.

•The max weight of user is 150kg.

3.1 Power Requirement

Power Voltage (V) Frequency (H) Rated Current (A)

100 50/60 18

120 50/60 18

200 50/60 9

220 50/60 9

230 50/60 9

240+ 50/60 9

Wirings should be transported according to the electric law of the local country. High pressure wires, low

pressure wires and underground wires should be transported separately and can’t connect with or twist other

wires.

Improper connection of the grounding plug can result in the risk of electric shock. Check with a qualified

electrician or serviceman if you are in doubt as to whether the products are properly grounded. Do not modify

the plug provided with the product – If it will not fit the outlet, have a proper outlet installed by a qualified

electrician.

3.2 Add Lubricant

Use the Hex Wrench to unscrew the hex screws inside the Rear End Cap. Then pull the belt up and daub some

SILICON to the center of the board. After that, adjust the belt to the center of the deck, followed by tightening

the screw to the original set. Half a month should be checked once.

•Time of add SILICONE

When suggested time of adding SILICONE is achieved, please extend your hand to the center of the running

board to make sure whether there is any SILICONE before adding. If no SILICONE on the running board,

please add 30cc SILICONE to the running board. If there is still a little SILICONE, add 15cc SILICONE to the

running board.

•Area of adding SILICONE

Add SILICONE from the center of the running board to the running belt’s the left and right side which should

minus 6 cm.

3.3 Level Adjustment

The treadmill will wobble during workout and the incline angles will be affected if it is placed on uneven

ground.

The level adjustment method is as follows:

Turn A counter-clockwise to loosen it

Adjust B to the proper height

Turn A clockwise to tighten it.

The left side adjustment method is the same with the right side.

3.4 Power Switch

The Power Switch is on the bottom panel of the treadmill. 1 means on, 0 means off.

3.5 Running Belt Adjustment

After assembling the treadmill, check the operation of the running belt.

First, make sure the power supply is correct. After starting the treadmill, stand on the two sides of the pedal (At

the very start, don’t stand on the running belt). Press QUICK START key and then increase the speed to

4.0MPH (6.4KPH) by pressing + key.

If the running belt is moving towards the right side：

：：

：

Turn the right button 90°clockwise and contrarotate the left button (A) 90°. You will find the treadmill return to

the center position automatically.

If the running belt is moving towards the left side：

：：

：

Turn the left button 90°clockwise and contrarotate the right button 90°. You can also find the treadmill return to

the center position automatically.

If you find that the belt has not moved to the proper position, please repeat the steps above.

Note：

：：

：When adjusting the button, the angle cannot exceed 90°which will make it impossible to adjust the belt

to the proper position.
