USER MANUAL –EN

IN 21771 E-Scooter inSPORTline Lonix

2

CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
PRODUCT DESCRIPTION..................................................................................................................... 4
ASSEMBLY OF QUICKRELEASE LEVER AND FOLDING OF SCOOTER .......................................... 5
FOLDING............................................................................................................................................. 5
CONTROL PANEL .................................................................................................................................. 7
BATTERY................................................................................................................................................ 8
RECHARGE......................................................................................................................................... 8
USE ......................................................................................................................................................... 8
RIDING TECHNIQUE.............................................................................................................................. 9
CLEANING AND MAINTENANCE .......................................................................................................... 9
STORAGE............................................................................................................................................... 9
TECHNICAL SPECIFICATIONS........................................................................................................... 10
ENVIRONMENT PROTECTION ........................................................................................................... 10
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 10



SAFETY INSTRUCTIONS

•The scooter is designed to carry one person at the same time.

•Wear a helmet and other protective equipment, incl. proper boots.

•Do not ride on dangerous or ineligible roads.

•Before the first ride, try to control the scooter in the open spaces. If you are not sure, ask a

more experienced person for advice.

•Avoid dangerous maneuvers or one-hand steering while riding.

•When riding, keep both feet on the footboard.

•Do not drive directly over an obstacle higher than 3 cm, otherwise you can lose balance and

cause yourself injury or damage to the product.

•On uneven or bumpy roads, slow down and ride with caution. Do not endanger yourself or

others by careless riding.

•Before riding, it is necessary to set the correct handlebar height for your safety.

•Do not ride into the water, oil or on frozen surfaces.

•Do not immerse the scooter in water. The battery or motor will be destroyed.

•If possible, do not ride in poor weather conditions. Be extra caution during dark.

•Always make sure that you do not violate local regulations and laws before using the product.

The use of these and similar devices is not permitted everywhere. If in doubt, contact your

local authorities.

•Check that all parts are well held and the screws are not loosened. Ex. tighten them or contact

a service center.

•Unauthorized modifications or maintenance will reduce the safety of the equipment.

•Improper use can lead to serious (fatal) injury or damage.

•Check the product regularly for wear. Replace worn parts immediately.

•Do not use a damaged product. Do not use the product if sharp edges appear.

•Follow the manual for maintenance and use. Do not disassemble the device yourself.

•Check the battery level before riding. If it is not fully charged, do not start riding.

•The device is for personal use only. Commercial use is not allowed.

•Be careful while riding. Never ride after drinking alcohol or under the influence of drugs. Do not

carry anything on the device.

•Always keep the speed under control and be careful. Keep good vision around the area. Do

not exceed speed or weight limits to avoid injury.

•Keep your feet relaxed and your knees slightly bent when riding on an uneven surface.

•In the event of an accident, do not leave and wait for assistance.

•When riding in a group, keep a sufficient distance to avoid collision.

•Remember that your current height is greater when standing on the scooter than without it. Try

to keep your balance and avoid too narrow places.

•Other activities (phoning, listening to music) can significantly reduce your riding attention.

Don't be distracted.

•Check the condition of the tires regularly. Replace worn out immediately.

•Scooter meets standards: EN 60204-1:2006+A1:2009+AC:2010, EN ISO 12100:2011

•Weight limit: 120 kg

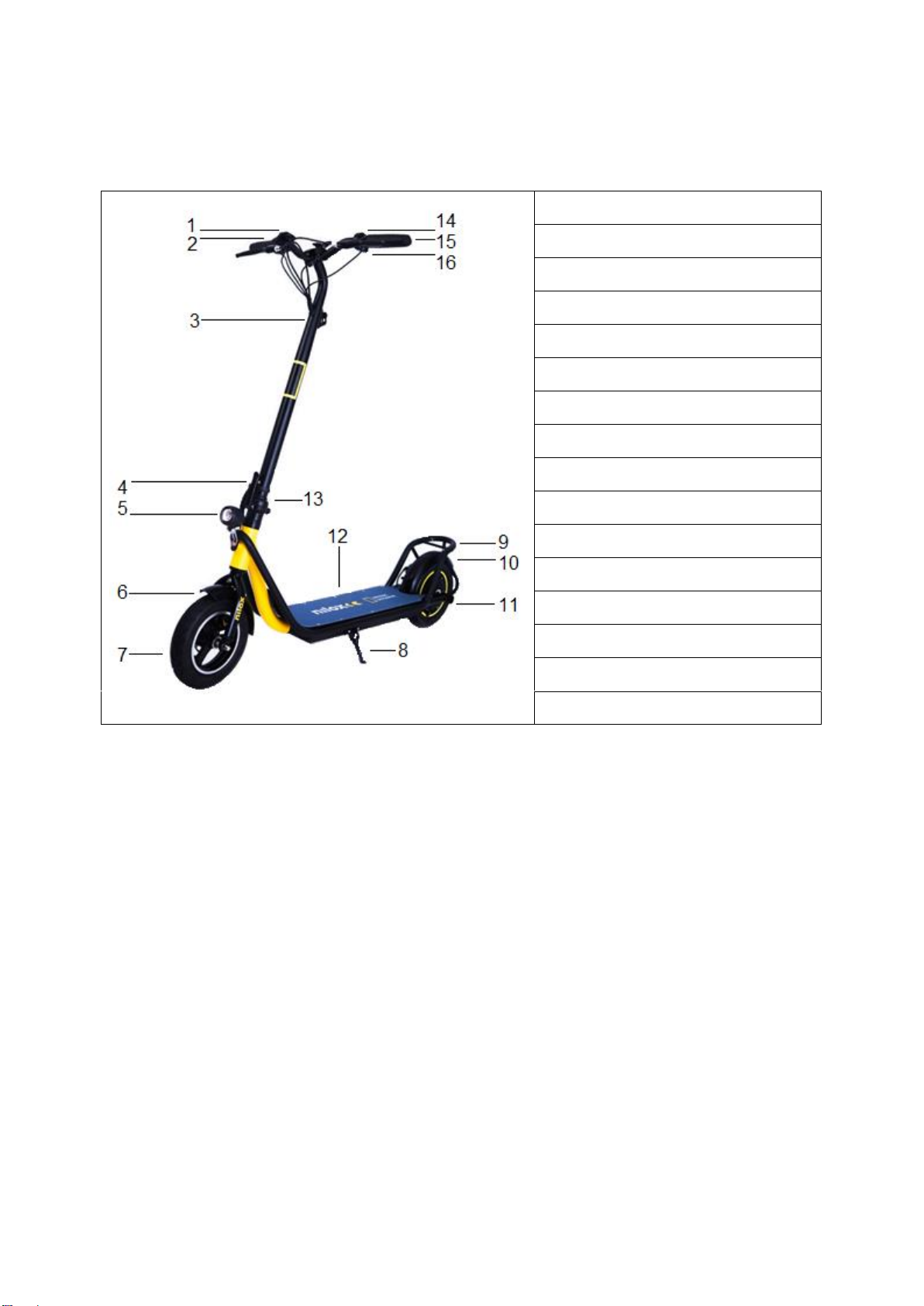

PRODUCT DESCRIPTION

1. Display with control panel

2. Accelerator

3. Hook

4. Quick release lever

5. Front light

6. Front mudguard

7. Front wheel

8. Stand

9. Rear light

10. Rear mudguard

11. Rear wheel

12. Footrest

13. Folding mechanism

14. Controls of light and horn

15. Handles

16. Brake

ASSEMBLY OF QUICKRELEASE LEVER AND FOLDING OF

SCOOTER

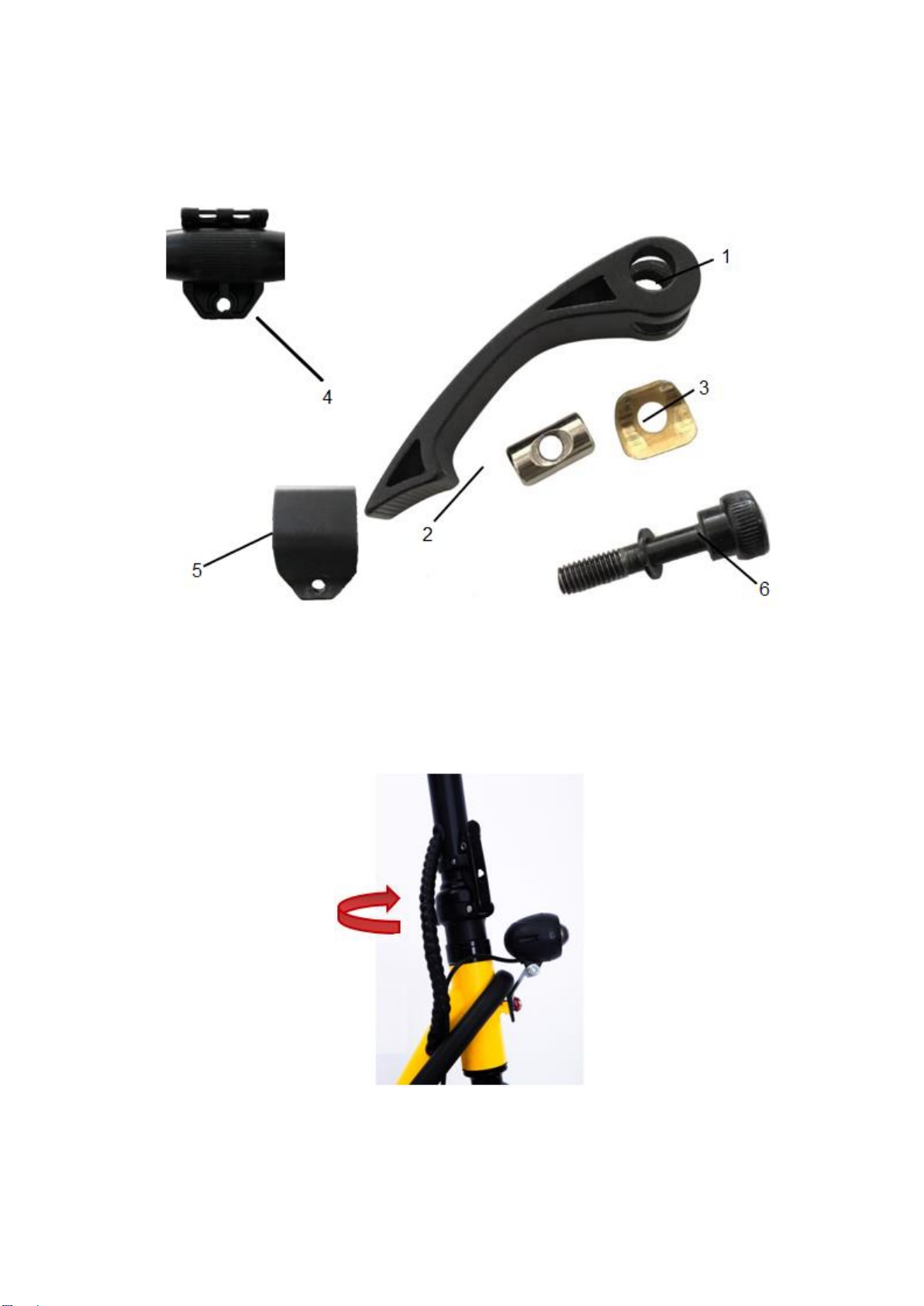

For assembly of quick release lever follows these steps: Insert bolt sleeve (2) to the lever (1). Then

attach gasket (3) with pads (4 and 5). Then attach the whole lever assembly with bolt (6).

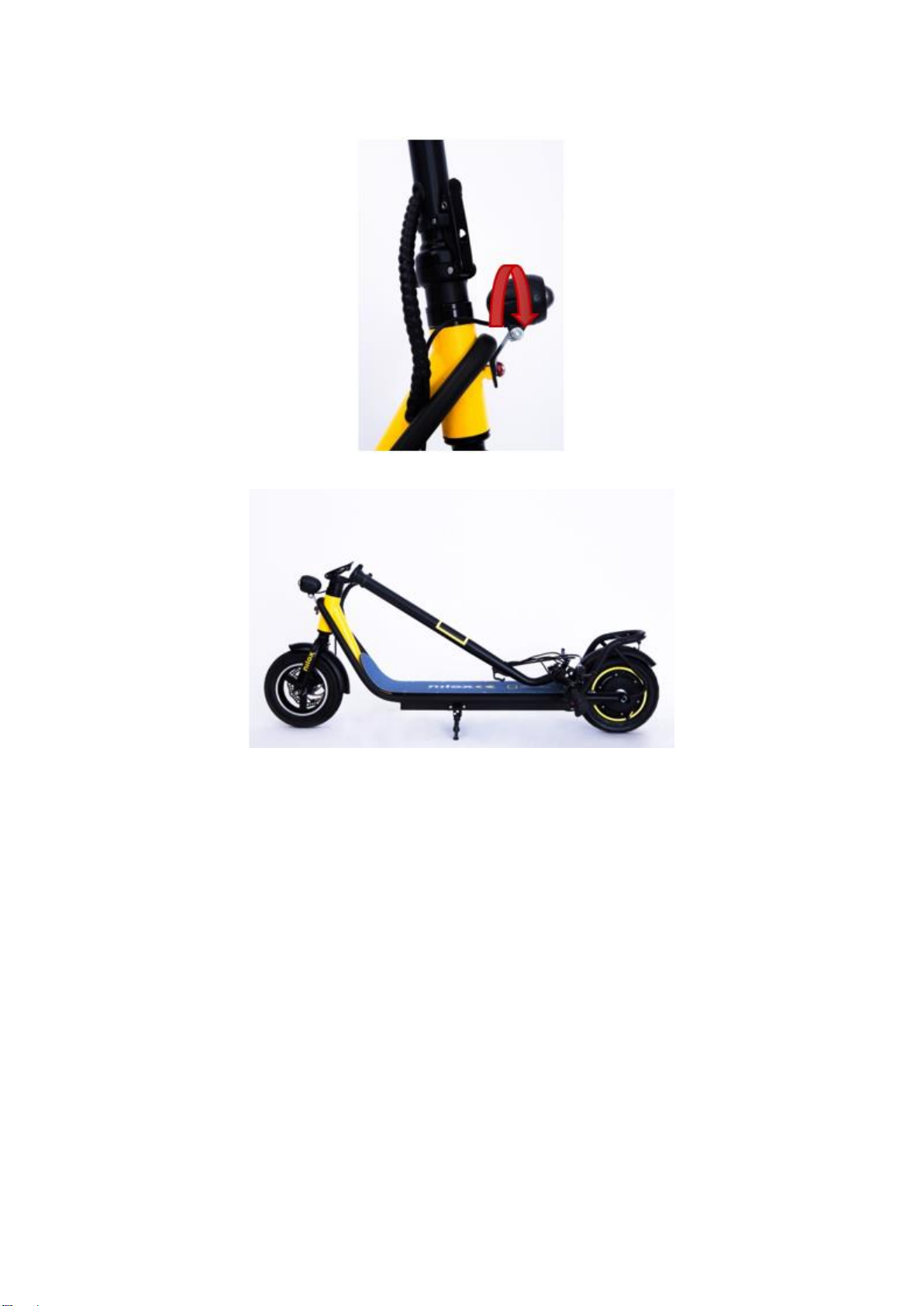

FOLDING

To fold the scoter release and turn the quick release lever.

Open the quick release lever.

Fold the scooter.

CONTROL PANEL

The scooter has 3 speed modes: 15/20/30 km/h. Use buttons +/- to select mode 1-2-3 (15/20/30

km/h). To slow down, apply the brake and release the accelerator (counterclockwise). To switch off,

press the switch off button.

To turn on press button. After turning on press button to change displayed data: ODO (total

distance), TRIP (current distance), RM, TM and error (chyby).

To turn off hold button.

Press +/- buttons to change speed mode. 1 –slower , 3 –fastest.

Hold + and –buttons to enter settings. With button choose parameter that you want to modify. With

+ and –buttons modify the value.

After you modify the value hold + and –buttons to save.

SETTINGS

Press + and –buttons to enter settings. Then press power button to adjust parameters. You can

change the value with + and –buttons. You can leave the setting by long press + and –buttons.

P02

Units: 0 KM, 1 miles

P03

Voltage: 24V, 36V, 48V, default: 36V

P04

Power saving: 0 –turned off, 1 –turned on 1 –60 min

P06

Wheel diameter, inch, accuracy 0.1

P07

Number of speed measuring magnetic steel: 1 –100

P09

Non-zero start: 0, zero start: 1, deault: 0

P11

Citlivost akcelerátoru: 1 – 24

P12

P15

P16

P17

P99

ERRORS:

ERRO starts flashing, press to display error number.

ERRO 1

Motor fault

ERRO 2

Shifter fault

ERRO 3

Controller fault

ERRO 4

Crank fault

ERRO 5

Low-voltage protection

ERRO 6

Communication fault, scooter does not receive signal from control panel

ERRO 7

Communication fault, control panel does not receive signal from scooter

BATTERY

6-month battery warranty –we guarantee that battery's nominal capacity does not fall below

70% of its total capacity within 6 months of the product’s sale.

•Fully charge the battery before using it for the first time.

•Do not allow the battery to fully discharge.

•Recharge the battery once a month when you are not using the scooter.

•The battery loses capacity during use.

RECHARGE

•The charger turns off when the battery is 100% charged.

•Protect the battery against water, shock, etc.

•To charge, remove the rubber cover of the battery charging port. Insert the charger. If the

indicator on the charger is red - it recharges the battery when the indicator is green - the

battery is fully charged. Always charge the scooter in a dry, shady, and well-ventilated area.

USE

•Before use, make sure that all parts are properly assembled, tightened, and not damaged.

•Check the brakes.

•Check that the folding mechanism is properly locked.

•Make sure the battery is properly charged.

•Make sure the tires are in good condition.

•Check the handlebar. It must be properly tightened.

•Do not drive on slippery surfaces.

•Wear personal protective equipment including a helmet and a sturdy shoe.

•Do not use if outdoor conditions are poor.

•Moisture reduces braking efficiency.

RIDING TECHNIQUE

•Know the scooter before first use and test your ability to control this product.

•Turn continuously and brake safely having enough free space.

•Practice your first ride in an open area without obstacles.

•Never let distract your mind during riding.

Foot position –put your foot on the board as close to the front part as possible. Let your other foot on

the ground. Make sure the route is clean and free. To start riding, push yourself forwards (like on a

non-motorized scooter). Push off with the foot that is on the ground. Immediately after pressing the

throttle downwards, tilt your body forwards as a prevention from falling back while increasing your

speed. Avoid excessive body pressing on the handlebars during speed changing. One foot is at front

and the second one is back. It is comfortable to place the feet like on a skateboard for optimal stability.

NOTE: Riding on a scooter can be dangerous. You use the product on your own responsibility and be

familiar with all the safety precautions before riding.

Turning –it is the same as on a surf or snowboard. The handlebar should be parallel to the body.

Before turning look at the approaching direction to be sure the operation is safe.

Braking–shift your weight backwards so that the braking is realized through your feet and not

through handlebar and steering system. Learn well to adjust the gravity center during stopping to

avoid turning over or excessive wearing of the braking and steering system

CLEANING AND MAINTENANCE

•The scooter must be switched off, disconnected from the charger and the charging port must

be covered before cleaning or maintenance.

•Clean the scooter with a damp cloth and a mild detergent.

•Do not use solvents or other aggressive cleaning agents.

•Keep the water out of the charging port.

•Never immerse the scooter.

•Do not use high-pressure cleaners.

•If the tire pressure is low, inflate it.

•If you need to replace tires / inner tubes, please contact your specialist dealer or

manufacturer.

•You can adjust the brake stiffness by loosening the M5 screw. Loosen the screw to the right,

tighten it to the left.

•Tighten or loosen the brake cable as required.

STORAGE

•Store in a dry and shady place.

•Avoid storage if the room temperature exceeds 50 ° C.

•Charge the battery at least once a month. Battery life is lower in cold conditions.

TECHNICAL SPECIFICATIONS

Wheel size

10“

Engine power

350 W

Maximal speed

30 km/h*

Maximum range

30 km*

Maximum surface inclination

5°

Battery capacity

36V –13 Ah

Charger

Input 100-240 V, Output 42V-1,5A

Charging

7-8 hod.

Maximal load capacity

120 kg

Dimensions

1250 x 600 x 1170

Weight

18 kg

* Values are based on user weight, terrain, speed and battery condition.

The package includes a manual, scooter and charger.

ENVIRONMENT PROTECTION

After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the

local laws and environmentally friendly in the nearest scrapyard.

By proper disposal you will protect the environment and natural sources. Moreover, you can help

protect human health. If you are not sure in correct disposing, ask local authorities to avoid law

violation or sanctions.

Don’t put the batteries among house waste but hand them in to the recycling place.

TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS

General Conditions of Warranty and Definition of Terms

All Warranty Conditions stated here under determine Warranty Coverage and Warranty Claim

Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 89/2012 Coll. Civil

Code, and Act No. 634/1992 Coll., Consumer Protection, as amended, also in cases that are not

specified by these Warranty rules.

The seller is SEVEN SPORT s.r.o. with its registered office in Strakonická street 1151/2c, Prague 150

00, Company Registration Number: 26847264, registered in the Trade Register at Regional Court in

Prague, Section C, Insert No. 116888.

According to valid legal regulations it depends whether the Buyer is the End Customer or not.

“The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not

conclude and execute the Contract in order to run or promote his own trade or business activities.

“The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the

purpose of using the Goods or services for his own business activities. The Buyer conforms to the

General Purchase Agreement and business conditions.

These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement

made between the Seller and the Buyer. All Warranty Conditions are valid and binding, unless

otherwise specified in the Purchase Agreement, in the Amendment to this Contract or in another

written agreement.

Warranty Conditions

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Insportline Scooter

Insportline

Insportline Futurisco ES1354 Manuel utilisateur

Insportline

Insportline Billar IN 20041 Manuel utilisateur

Insportline

Insportline IN S2351 Manuel utilisateur

Insportline

Insportline 21771 Manuel utilisateur

Insportline

Insportline W-TEC Billar II 500W 12 Manuel utilisateur

Insportline

Insportline 20044 E-scooter Amstro Manuel utilisateur

Insportline

Insportline IN I1-6.5 RayeeTech I1 Manuel utilisateur

Insportline

Insportline Skootie Manuel utilisateur

Insportline

Insportline IN 12570 Windrunner Handy X3 Manuel utilisateur

Insportline

Insportline W-TEC Billar 500W Manuel utilisateur

Insportline

Insportline Saturian Manuel utilisateur

Insportline

Insportline Lonix 21771 Manuel utilisateur

Insportline

Insportline IN 7230 worker tri 100 Manuel utilisateur

Insportline

Insportline Mantis Manuel utilisateur

Insportline

Insportline Swifter Manuel utilisateur

Insportline

Insportline Devron Zerga EH-100 Manuel utilisateur

Insportline

Insportline IN 24292 Manuel utilisateur

Insportline

Insportline IN 20043 Manuel utilisateur

Insportline

Insportline Mascarpo IN 20187 Manuel utilisateur

Insportline

Insportline Fricola IN 23786 Manuel utilisateur

Insportline

Insportline 12565-1 Manuel utilisateur

Insportline

Insportline IN 12568Handy J1 Manuel utilisateur

Insportline

Insportline Discola Manuel utilisateur

Insportline

Insportline Fulmino Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
