InSinkErator Model SS-1000 Manuel utilisateur

PROJECT: ITEM NO.:

Heavy-duty disposer designed for continuous operation in restaurants, hotels, hospitals and cafeterias. Food waste including

steak bones is quickly and efficiently removed with this labor-saving, self-cleaning, environmentally sound disposer.

CC-202 Control Center

(Auto-Reversing)

CC-101 Control Center

(Auto-Reversing)

AS-101 Control Center

AquaSaver®

(Auto-Reversing)

Our products appear on The KCL CADalog

CD-ROM based CAD Foodservice Symbol

Library. More information is available from

Kochman Consultants, Ltd. at www.kclcad.com.

Manual Switch

(Single Direction)

Manual Reverse Switch

(Dual Direction)

3-10 H.P. DISPOSER MODELS

MODEL & HORSEPOWER/ELECTRICAL REQUIREMENTS

208-230/460V, 60 Hz, 3 Ph, 6.0/7.4/3.7 amps, UL

208-230/460V, 60 Hz, 3 Ph, 6.0/7.4/3.7 amps, UL, short body

208-230/460V, 60 Hz, 3 Ph, 7.0/8.6/4.3 amps, CSA

208-230/460V, 60 Hz, 3 Ph, 7.0/8.6/3.7 amps, NOM

SS-300

3 H.P.

415V, 50 Hz, 3 Ph, 4.9 amps

220V, 50 Hz, 3 Ph, 7.2 amps

380V, 50/60 Hz, 3 Ph, 4.1/3.0 amps

208-230/460V, 60 Hz, 3 Ph, 8.6/8.8/4.4 amps, UL

208-230/460V, 60 Hz, 3 Ph, 8.6/8.4/4.4 amps, UL, short body

208-230/460V, 60 Hz, 3 Ph, 8.5/11.0/5.5 amps, CSA

SS-500

5 H.P.

230/460V, 50 Hz, 3 Ph, 9.0/4.5 amps

415V, 50 Hz, 3 Ph, 6.0 amps

380V, 50 Hz, 3 Ph, 8.9 amps

208-230/460V, 60 Hz, 3 Ph, 9.7/12.4/6.2 amps, UL

208-230/460V, 60 Hz, 3 Ph, 9.7/12.4/6.2 amps, UL, short body

SS-750

7-1/2 H.P.

208-230/460V, 60 Hz, 3 Ph, 11.7/12.6/6.3 amps, CSA

208-230/460V, 60 Hz, 3 Ph, 11.0/13.0/6.5 amps, UL

208-230/460V, 60 Hz, 3 Ph, 11.0/13.0/6.5 amps, UL, short body

SS-1000

10 H.P.

208-230/460V, 60 Hz, 3 Ph, 13.1/14.0/7.0 amps, CSA

InSinkErator is a division of Emerson Electric Co.

ELECTRICAL CONTROLS

SPECIFICATIONS

• Grind Chamber: Corrosion Resistant Stainless Steel

• Mounting: 3/4" (19.1 mm) rubber mounting above grinding chamber isolates sound and

eliminates vibration. Mounting is enclosed in chrome plated covers for sanitation and appearance.

• Motor: 3 – 10 HP Induction Motor, 1725 RPM, totally enclosed to provide protection against

outside moisture. Controlled power air flow cools motor for efficiency and longer life. Built-in

thermal overload protection.

• Cutting Elements: Stationary and rotating shredding elements made from cast nickel chrome

alloy for long life and corrosion resistance, designed for reverse action grinding.

• Main Bearings: Double-tapered Timken roller bearings provide a shock absorbing cushion.

• Motor Seals: Triple lip seal protects motor from water damage. Secondary spring-loaded oil

seal provides double protection against water and loss of grease.

• Finish: All Stainless Steel and Chrome plated. Paint-free for lasting sanitation.

• Warranty: 1 year full warranty from date of installation.

• A Disposer Package Includes: 1 Mounting/Bowl Assembly, 1 Electrical Control, 1 Syphon

Breaker, 1 Solenoid Valve, and 1 Flow Control Valve. The standard Flow Control Valve will be

sent with the unit unless the optional valve is specified.

NOTE: All amp ratings denote amp draw during a grind load.

The Emerson logo is a

trademark and a service mark

of Emerson Electric Co.

4700 21st STREET

RACINE, WI 53406

TEL: 800-845-8345

FAX: 262 554-3620

www.insinkerator.com/foodservice

DIMENSIONS

IMPORTANT: Use dimension chart below for adaptor height in place

of InSinkErator bowl sink height when mounting directly to a sink.

Bowl

Sinks

Flange O.D.

Work Table Hole

Flange I.D.

Height

12"

(304.8 mm)

13-1/2"

(342.9 mm)

12-1/4"

(311.2 mm)

12"

(304.8 mm)

6-1/2"

(165.1 mm)

15"

(381 mm)

16-1/2"

(419.1 mm)

15-1/4"

(387.4 mm)

15"

(381.0 mm)

6-1/2"

(165.1 mm)

18"

(457.2 mm)

19-1/2"

(495.3 mm)

18-1/4"

(463.6 mm)

18"

(457.2 mm)

6-1/2"

(165.1 mm)

Adaptors X Y Z Height

No. 6 7-13/16"

(198.4 mm)

6-7/8"

(174.6 mm)

6-5/8"

(168.3 mm)

1-3/16"

(30.2 mm)

No. 7 9-1/8"

(231.8 mm)

7-7/8"

(200.0 mm)

7-5/8"

(193.7 mm)

2-1/16"

(52.4 mm)

6-5/8"

(168.3 mm)

8-3/4"

(222.3 mm)

8-3/4"

(222.3 mm)

7-1/8"

(181.0 mm)

6-1/2"

(165.1 mm)

13"

(330.2 mm)

23-3/4"

31-1/8"

(603.3 mm

790.6 mm)

InSinkErator

BOWL SINK

EXTERNAL ELECTRICAL

CONNECTIONS ADJUSTABLE

LEGS

3" (76.2 mm)

N.P.T.

WASTE

OUTLET

1/2-14 N.P.T.

WATER INLET

NOTE:

• Adaptors are available upon request for all competitor

sink bowls or cones.

• Please have sink bowl/cone type with the necessary

dimensions when ordering adaptors.

• Also available as a short body model. Reduces overall

height of disposer by 3" (76.2 mm).

RECOMMENDED INSTALLATION

DISPOSER MOUNTING ASSEMBLIES (choose one)

Collar MountsBowl Mounts

#6 Collar Adaptor for welding into trough, provides

6-5/8" (168.3 mm) opening, includes splash baffle

#7 Collar Adaptor for welding into sink, provides

6-5/8" (168.3 mm) opening, includes splash baffle

and stopper

Type A Sink Bowl Assembly: Includes bowl, water

nozzle(s), bowl cover, splash baffle

Type B Sink Bowl Assembly: Includes bowl, water

nozzle(s), silver guard, splash baffle

Type C Sink Bowl Assembly: Includes bowl, water

nozzle(s), splash baffle

Sink Bowl Assembly Size

12" (304.8 mm) with one adjustable water nozzle

15" (381.0 mm) with one adjustable water nozzle

18" (457.2 mm) with two adjustable water nozzles

Standard Optional

SS-300 8 GPM

(30.3 LPM)

7 GPM

(26.5 LPM)

SS-500 8 GPM

(30.3 LPM)

7 GPM

(26.5 LPM)

SS-750 10 GPM

(37.9 LPM) N/A

SS-1000 10 GPM

(37.9 LPM) N/A

For additional information, see

Foodservice Product Information Binder.

RECOMMENDED WATER USAGE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels InSinkErator Élimination des déchets

InSinkErator

InSinkErator Evolution Essential Manuel utilisateur

InSinkErator

InSinkErator Model SS-50 Manuel utilisateur

InSinkErator

InSinkErator Badger 1 Manuel d'installation

InSinkErator

InSinkErator Evolution PRO Series Manuel utilisateur

InSinkErator

InSinkErator SS100-28 Manuel utilisateur

InSinkErator

InSinkErator PRO Series Manuel utilisateur

InSinkErator

InSinkErator EVOLUTION 200-2 Manuel utilisateur

InSinkErator

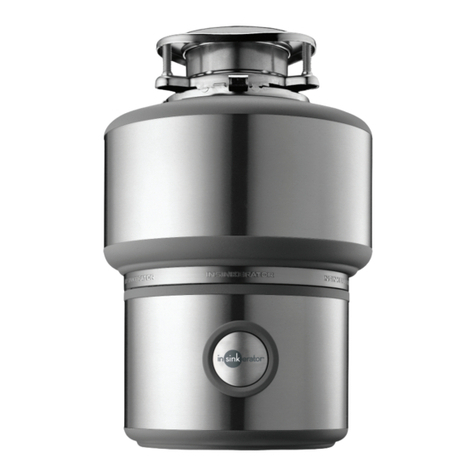

InSinkErator Evolution Excel Manuel utilisateur
