Part No. 13954 Rev. C

FOODSERVICE DISPOSER

Installation Manual

www.insinkerator.com/foodservice

Please be certain that the person who installs or uses this appliance carefully reads

and understands the Safety Instructions contained in this manual.

WARNING indicates a hazardous situation which, if not avoided, could result in

death or seious injury.

CAUTION indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE is used to address practices related to physical injury

Table of Contents

Introduction

Introduction .................................................................................... 4

Clean the Drain Line ....................................................................... 4

Typical Installation .......................................................................... 4

Required Tools/Materials ................................................................ 4

Instructions Pertaining to

Risk of Fire, Electrical Shock, or Injury to Persons.......................... 5

Installing the Disposer

Disposer Mounting ......................................................................... 6

Standard InSinkErator Mountings

Sink Bowl Mounting Assemblies .................................................... 7

Special InSinkErator Mountings ................................................................. 7

Plumbing Connections

Drain Line Connections .................................................................. 8

Water Supply Connections ............................................................ 8

Routing Water Flow......................................................................... 8

Standard Motor Connection Wiring Diagrams .......................................... 9

Electrical Connections

Electrical Connections ................................................................. 10

Disposer Controls ......................................................................... 10

Operating Instructions

Operating the Disposer ................................................................ 11

Grinding Tips ................................................................................ 11

Troubleshooting .......................................................................................... 12

Warranty ...................................................................................................... 16

Introduction

INTRODUCTION

The InSinkErator Foodservice food waste disposer is

UL®and cUL®Listed when installed in conjunction with

InSinkErator mounting adaptors and controls (see Figure

1 for typical installation).

See Table 1 (page 6) for the approved disposer/

mounting adaptor combinations.

Important – These installation instructions are for

the benet of the installing contractor. InSinkErator

and/or InSinkErator Factory Authorized Service

Centers do not make original installations. For technical

information not covered in these instructions,

contact the supplier, an InSinkErator Field Sales

Representative, or InSinkErator Foodservice Sales

and Service at 1-800-845-8345.

CLEAN THE DRAIN LINE

With a drain line auger, clear away all hardened waste

material in the horizontal drain pipe running from the

drain trap to the main waste line.

TYPICAL INSTALLATION

A typical Foodservice disposer installation incorporates

the following connections (see Figures 1 and/or 9):

• Water shut off valve

• Syphon breaker

• Solenoid valve

• Start/stop switch (Control Center)

• Sink or trough

• Flow control valve

REQUIRED TOOLS/MATERIALS

The following items are needed to install the disposer:

• Screwdriver

• Adjustable wrench

• Pipe wrench

• Wire nuts

• 7/16" nut driver

The following items may be needed to install

the disposer:

• Plumbing putty

• Hacksaw

• Drain auger

Figure 1. Typical Installation

Read all warnings before proceeding.

FIRE HAZARD

To minimize the possibility of re, do not store

ammable items near the disposer. Do not use

or store gasoline or other ammable liquids near

the disposer.

PERSONAL INJURY

• Food waste disposers are designed to grind

and dispose of normal food waste. Inserting

materials or items other than food waste into

the disposer could cause personal injury and/or

disposer damage.

• To reduce the risk of injury from materials that may

be expelled from the disposer grind chamber,

ensure that the disposer bafe is properly installed.

• To prevent the ejection of food waste and to keep

foreign materials out of the grind chamber, replace

the splash bafe when it becomes worn.

• Do not put any of the following items into the

disposer: clam or oyster shells, drain cleaner, glass,

china, plastic wrap, large bones, metal objects,

explosive materials, extremely hot water, grease,

oil, or syrup.

• Turn the power off before attempting to clear a jam,

remove an object, or press the reset button.

• Do not insert your ngers into the disposer. Use

long-handled tongs or pliers to remove objects

from the disposer.

• Loosen any jams with the dejamming bar.

• Be certain that all persons who will operate the

disposer read the safety and operating instructions

prior to operating the disposer.

• To prevent accidents, ensure that the disposer is

turned off before you leave the area.

ELECTRICAL SHOCK

• Disconnect the electrical supply before servicing

the disposer.

• Ensure the disposer and controls are

properly grounded.

INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

IMPORTANT SAFETY INSTRUCTIONS

PERSONAL INJURY/PROPERTY DAMAGE

If the electrical installer is not experienced in

electrical installation, we recommend seeking

competent professional assistance. Disposer or

accessory damage due to improper installation is

not covered under warranty. All installations must

comply with local electrical codes.

GROUNDING INSTRUCTIONS

ELECTRICAL SHOCK

• All control centers and disposers must

be grounded.

• A properly fused disposer control (with a marked

“off” position) that disconnects all ungrounded

supply conductors must be installed at the

electrical supply source.

• Turn off the electrical supply to the disposer before

installing/servicing. Test the circuit with a voltmeter

or circuit tester to ensure the power is off.

• Installation must confrom to all local

electrical codes.

• Be careful not to pinch or damage the electrical

wires when installing the terminal box.

• Do not reconnect electrical current at main service

panel until proper grounds are installed.

PROPERTY DAMAGE

• Disposers shipped from factory are not wired

for a specic voltage. Refer to the motor

connection wiring diagram in the terminal box for

voltage instructions.

• Ensure the disposer motor voltage and phase

match that of the electrical supply.

• The disposer motor wiring connection is shown in

the disposer terminal box.

NOTICE

SAVE THESE INSTRUCTIONS

Installing the Disposer

PROPERTY DAMAGE

To avoid excess vibration, InSinkErator

recommends a minimum countertop thickness

of 16 gage stainless steel.

PERSONAL INJURY

• For safe operation, install the disposer in

compliance with the minimum distance illustrated

in Figure 2.

• Disposer must be properly installed to prevent

serious injury from moving shredder part.

DISPOSER MOUNTING

WARNING NOTICE

23-3/4"

31-1/8"

(603.25 mm

790.58 mm)

6-1/2"

(165.10 mm)

8-3/4"

(222.25 mm)

8-3/4"

(222.25 mm)

7-1/8"

(180.98 mm)

13"

(330.20 mm)

(76.20 mm

)

SS-300 to SS-1000

6-5/8"

(168.28 mm)

7-3/8"

(187.33 mm)

7-3/4"

(196.85 mm)

2-3/4"

(69.85 mm)

18-7/16"

(468.31 mm)

1 Phase

19-1/4"

(488.95 mm)

3 Phase

(50.80 mm)

24-4/5"

33-4/5"

(629.92 mm

858.92 mm)

(WITH

OPTIONAL

LEGS

INSTALLED)

6-13 /16"

(173.04 mm)

SS-200

6-1/2"

(165.10 mm)

6-5/8"

(168.28 mm)

24-1/4"

32-1/2"

15.95 mm

825.

50 mm)

(WITH

OPTIONAL

LEGS

INST

ALLED)

6-13 /16"

(173.04 mm)

4-7/8"

(123.83 mm)

6-3/8"

(161.93 mm)

1-1/2"

(38.10 mm)

3-3/8"

(85.73 mm)

7-11/16"

(195.26 mm)

17"

(431.80 mm)

1 Phase

18-1/4"

(463.55 mm)

3 Phase

SS-100

6-1/2"

(165.10 mm)

6-5/8"

(168.28 mm)

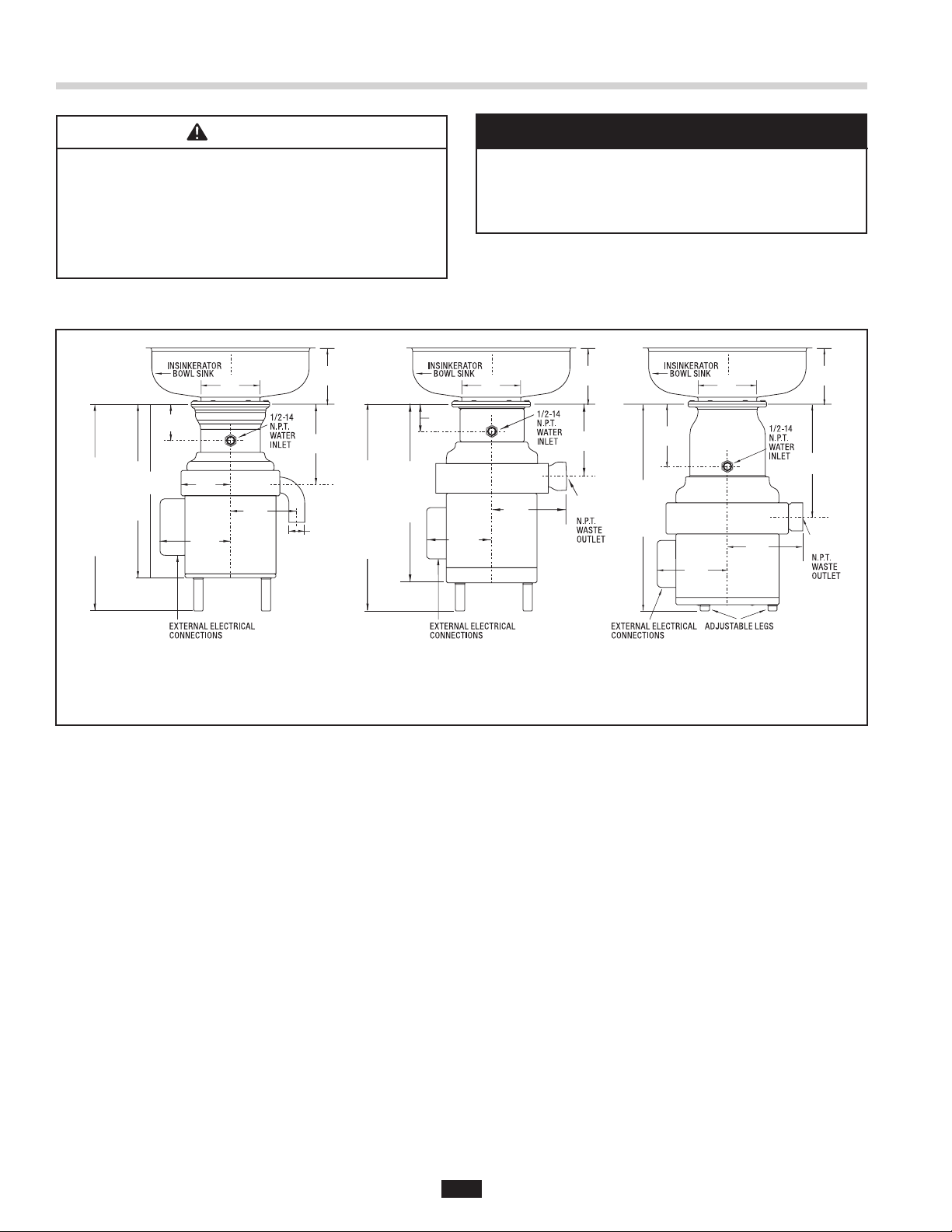

Figure 2. Distance from Table Top to Mounting Flange

NOTE: Minimum 1" (25.4 mm) clearance required between bottom of disposer

and floor for all 3 models.

Standard InSinkErator Mountings

1. Place the mounting flange (1) over the existing collar

adaptor connection lip or sink bowl flange (this may

require some force).

2. Push the mounting flange up out of the way and fit

the groove in the mounting gasket (2) onto the

connection lip. Make sure the gasket is fully seated

on the flange.

3. Push the mounting flange down over the mounting

gasket, fitting the threaded mounting flange fasteners

into the recesses in the top of the mounting gasket.

SINK BOWL MOUNTING ASSEMBLIES

4. From the bottom, insert two screws through opposite

sides of the flat gasket (3) and mounting flange, into

the threaded fasteners in the existing flange. The flat

gasket is used only in the #6 mounting assembly.

The screws should protrude about 1/4 inch below the

mounting gasket.

5. Position the disposer beneath the mounting gasket

and raise it to engage the two protruding screws in

the disposer body flange keyhole slots. Secure the

remaining screws and position the disposer correctly

for the plumbing connections. For SS200-SS1000

disposers, adjust the legs to support the disposer.

Figure 4. #6 Mounting Assembly Figure 5. #7 or Sink Bowl Mounting Assembly

Special InSinkErator Mountings

When installing an InSinkErator Foodservice disposer to any other mounting congurations, a special mounting

adaptor kit is required. The special mountings are described in the Mounting Adaptor Selection Guide (for more infor-

mation, call 1-800-845-8345, or go to www.insinkerator.com). Figures 6-8 show examples of non-InSinkErator sinks.

(Mounting instructions are included in each special mounting adaptor kit.)

Figure 6. Outward Flange Figure 7. Inward Flange Figure 8. Straight Flange

PROPERTY DAMAGE

These plumbing instructions were written for an

experienced competent installer. If the installer

is not experienced in plumbing installation,

InSinkErator recommends that competent

professional assistance is sought. Damage to

the disposer or accessories as a result of

improper installation is not covered under

warranty. All installations must comply with local

plumbing codes.

Plumbing Connections

DRAIN LINE CONNECTIONS

To allow easy access to overload reset button, the

disposer plumbing should be connected with the

electrical control box facing the operator.

When connecting the drain line, place the “P-trap” as

close to the disposer outlet ange as possible. Do not

connect the drain line to a grease trap, interceptor, or

drum trap.

All horizontal runs should be as short as possible, with a

minimum fall of 1/4 inch per foot.

WATER SUPPLY CONNECTIONS

When connecting the disposer to the incoming water

supply, use as few elbows and tees as possible.

Connect to the cold water line only. All water line

ttings are 1/2" NPT except the sink bowl nozzles

(1/2" compression).

Install the flow control valve, water solenoid valve, and

the syphon breaker according to the direction of the

flow arrows marked on each valve body (see Figure 9).

NOTE: A syphon breaker must be installed above the

sink ﬂood plane per local plumbing codes.

ROUTING WATER FLOW

• In a trough system, route all water ow to the end of

the trough to ush food waste.

• In a sink bowl system route all water through the

sink bowl.

• Table 2 provides Recommended Cold Water Flow and

Drain Line Diameter.

Disposer Standard

Flow Control

GPM (LPM)

Optional

Flow Control

GPM (LPM)

Drain

Line

Diameter

SS-100 5 (19) 3 (11) 1-1/2"

SS-200 7 (26) 5 (19) 2" NPT

SS-300 8 (30) 7 (26) 3" NPT

SS-500 8 (30) 7 (26) 3" NPT

SS-1000 10 (38) N/A 3" NPT

Table 2. Recommended Cold Water Flow

and Drain Line Diameter

Figure 9. Installation Diagram

NOTICE

Standard Motor Connection Wiring Diagrams

NOTE: The diagrams below show standard motor connection wiring for a manual switch operation. For alternate

controls, please refer to the control panel installation manual.

456

MOTOR LEAD WIRE#

L1 L2 L3

4105 612

MOTOR LEAD WIRE#

7283 9

234

MOTOR LEAD WIRE#

47 569

MOTOR LEAD WIRE#

L1 L2 L3

2310 11 12

Figure 12. Incoming 208-230V Three Phase Line Power

Figure 10. Incoming 115V Single Phase Line Power Figure 11. Incoming 208-230V Single Phase Line Power

Figure 13. Incoming 460V Three Phase Line Power

ELECTRICAL SHOCK

• Turn off the electrical supply to the disposer before

servicing. Test the circuit with a voltmeter or circuit

tester to ensure the power is off.

• Installation must conform to all local

electrical codes.

• All control centers and disposers must

be grounded.

• A properly fused disposer control (with a marked

“off” position) that disconnects all ungrounded

supply conductors must be installed at the

electrical supply source.

PROPERTY DAMAGE

• Disposers shipped from the factory are not wired

for a specic voltage. Refer to the motor

connection wiring diagram in the terminal box for

voltage instructions.

• Ensure the disposer motor voltage and phase

match that of the electrical supply.

• The disposer motor wiring connection is shown in

the disposer terminal box.

Electrical Connections

ELECTRICAL CONNECTIONS

To connect the disposer to the electricity:

1. Remove the screw in the center of the disposer

terminal box.

2. Pull the terminal box out of the stainless steel

trim shell.

3. Connect an electrical conduit connector to the hole in

the bottom of the exposed wiring compartment.

4. Connect the ground wire to the ground screw.

5. Connect the incoming wires to the motor leads. Make

sure the wiring connections are the same as those on

the electrical connection diagrams (see page 10).

6. Reinstall the terminal box cover on the trim shell.

7. Test the disposer to ensure the cutting elements

revolve and the water flows automatically. Make sure

the disposer is securely mounted and does not leak

from any of the connections.

ELECTRICAL SHOCK

Be careful not to pinch or damage the electrical

wires when installing the terminal box.

PERSONAL INJURY/PROPERTY DAMAGE

If the electrical installer is not experienced in

electrical installation, we recommend seeking

competent professional assistance. Disposer or

accessory damage due to improper installation is

not covered under warranty. All installations must

comply with local electrical codes.

NOTES:

• Pressure switches may be connected across the

line at 5 horsepower or less. Large horsepower

motors require connection in the pilot circuit of a

magnetic starter.

• The magnetic and manual starters supplied by

InSinkErator do not require heaters to complete the

circuit. InSinkErator disposers are equipped with

overload protectors.

• A time delay may only be used with a water

solenoid valve.

NOTICE

WARNING

Autres manuels pour Model SS-100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels InSinkErator Élimination des déchets

InSinkErator

InSinkErator Badger 1 Manuel utilisateur

InSinkErator

InSinkErator Badger 5 Manuel utilisateur

InSinkErator

InSinkErator Badger 500 Plus Manuel utilisateur

InSinkErator

InSinkErator Evolution PRO Series Manuel utilisateur

InSinkErator

InSinkErator Evolution Excel Mode d’emploi

InSinkErator

InSinkErator Evolution Compact Evolution Compact Manuel utilisateur

InSinkErator

InSinkErator EVOLUTION COVER CONTROL Manuel utilisateur

InSinkErator

InSinkErator Badger 1 Manuel utilisateur

InSinkErator

InSinkErator EVOLUTION 200-2 Manuel utilisateur

InSinkErator

InSinkErator Badger1 Manuel utilisateur

InSinkErator

InSinkErator Evolution Series Manuel utilisateur

InSinkErator

InSinkErator Evolution Septic Assist Manuel utilisateur

InSinkErator

InSinkErator Model SS-1000 Manuel utilisateur

InSinkErator

InSinkErator Model SS-100 Manuel utilisateur

InSinkErator

InSinkErator Badger 15ss Manuel utilisateur

InSinkErator

InSinkErator Evolution Pro Cover Control Plus Manuel utilisateur

InSinkErator

InSinkErator 13954 Instructions d'utilisation

InSinkErator

InSinkErator Evolution Essential Manuel utilisateur

InSinkErator

InSinkErator Badger 1 Manuel utilisateur

InSinkErator

InSinkErator AnswerLine EVOLUTION SEPTIC ASSIST Manuel utilisateur

InSinkErator

InSinkErator Model LC-50 Manuel d'utilisation

InSinkErator

InSinkErator Badger 100 Manuel utilisateur

InSinkErator

InSinkErator Evolution CoverControl Plus Manuel utilisateur

InSinkErator

InSinkErator Evolution Excel Manuel utilisateur

Manuels Élimination des déchets populaires d'autres marques

Insinger

Insinger I-6 Manuel utilisateur

Franke

Franke CE-50 Manuel d'utilisation

Leafield Environmental

Leafield Environmental Envirobank 140 Feuille d'instructions

Meiko

Meiko TopCut B Manuel utilisateur

KitchenAid

KitchenAid KCDB250G2 Manuel utilisateur

Gladiator

Gladiator Garage Compactor Manuel utilisateur

Maytag

Maytag DFC1500 Manuel d'installation

Weber mt

Weber mt CR 7 Mode d'emploi

THERMEx

THERMEx WASTEMINATOR II Manuel utilisateur

Weber mt

Weber mt CR 7-II Hd Mode d'emploi

ROBINHOOD

ROBINHOOD SE390 Manuel utilisateur

Whirlpool

Whirlpool GC2000PE2 Manuel utilisateur

Scheppach

Scheppach HP3000S Instructions de montage

Haigh

Haigh Quattro Vanguard Original Manuel utilisateur

Maxmatic

Maxmatic 5000 Fiche technique

Toro

Toro FP-2200 Manuel utilisateur

Elephants Foot

Elephants Foot eDiverter Manuel utilisateur

Zanussi

Zanussi DU 4400 Manuel utilisateur
