Insignia IS-PD101351 Manuel utilisateur

PORTABLE9"LCD MONITORAND DVDPLAYER

Owner s Manual

IS-PD101351

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Notice:

1.This Productincorporates copyright protection technology that is pro-

tectedby methodclaims of certain U.S. Patents andotherintellectual

property rights ownedby Macrovision Corporationandother rights own-

ers. Use ofthiscopyright protectiontechnologymust be authorizedby

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

inguses onlyunless otherwise authorized byMacrovision Corporation.

Reverse engineeringor disassemblyis prohibited.

2.Apparatus Claims ofU.S. PatentNos. 4,631,603;4,577,216; 4,819,

098 and 4,907,093 licensed for limited viewinguses only.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Content

A.Introduction............................................................................1

B.CautionsandWarnings........................................................ 1

C.Contents............................................................................... 3

D. Poweringandinstallation ..................................................... 3

E.Controls,Indicators,andConnectors ................................... 4

F. Loading andPlaying aDisc.................................................. 5

G. Setup.................................................................................. 6

H. BasicOperation....................................................................12

I. Menu ....................................................................................13

J. Display................................................................................ 13

K. Playing Audio CDS ..........................................................19

L. PlayingMP3Discs ........................................................... 21

M.PlayingJPGfile....................................................................23

N.ConnectingtoaTVoranothermonitor.................................24

O.Specifications......................................................................25

P.Rechargeable BatteryInstallationand Use ......................... 25

Q. Troubleshooting ................................................................. 28

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

A.Introduction

Thankyou for choosingthe IS-PD101351 portable DVD player. The

main featuresinclude a9" Wide Screen (16:9 Aspect Ratio) Liquid

Crystal Display(LCD) monitor anda DVD player. Theunit applies

the lateststate ofthe art electronicsand is designed foruse in hotels,

officesor your home. The unitisconstructed to provide years of

reliable, trouble-free service, andis compact so that youcan take it

with you anywhereand is designedforquick andeasyinstallation.

Please read the entireinstruction manual supplied with thisproduct

prior to using. The documentationwillassist you in installingthe sys-

temproperly to obtain thebest equipment performance. Pleasesave

this manual for later use.

B. Cautions and Warnings

1. Placement

Toprevent fireorelectric shock,donotexpose this appliance to

rain or moisture.Donot place the set on an unstable cart, stand,

tripod, bracket ortable toprevent it fromfalling. Keeptheunit away

from strongmagnets,heatsources,directsunlight, excessive dust.

Ifthe unit is brought directlyfrom a cold to a warm location, mois-

ture maycondense inside the unit. When you move it from a cold

toa warm location, wait forabout one hourbefore operating the

unit, or removethe discandleave theunitturnedonuntilthemois-

ture evaporates.

2. Installation

Ensure that the 9 portable DVD player isinstalled in accordance

with the instructions and illustrations provided in this manual.

3. Caution

Do not push objects ofany kindinto the unit throughopenings;

do not spill or sprayliquid ofanykind on or in the system (this

mayresult in a fire or electric shock). Do not place anything

heavy onthe unit. Toensure proper ventilation and proper

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

operation,never cover or blocktheslots and openings with acloth

or other material. Keepthe unit awayfrom an open flame such as

fire,candle etc. Itishazardous toreplacethe batteryincorrectly.

Replacethe batteryonly with thesame or equivalenttype, in order

to protect the enviromnent, please dispose the batteryproperly.

Do not use the unit in temperatures higher than 95 degrees Fahr-

enheit or 35 degrees Celsius.

4.Disassemble

Do not attempt to disassemble the cabinet. There is ariskofelec-

tricshock and/orexposure to LaserRadiation. Contact qualified

service personnel ifyour system needs repair.

5.Cleaning Unit

Whencleaning,makesurethesystem isunplugged fromthepower

source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth

lightly dampenedwith waterfor cleaningtheexterior ofthe system

only.

6. Disc

Do not use irregularlyshaped discs such asheart orstar-shaped

discs as theymay cause the unittomalfunction.Donotstickpaper,

tapeor glue on the disc. Do not expose thedisc to direct sunlight

or heat sources. Do not touchthe surface ofdisc. Handle thedisc

by itsedge. Cleanthedisc bywipingthedisc from the center out

with acleaning cloth. Removethe disc from the unit and store it in

its case after playing. Some playbackoperationsofdiscs maybe

intentionally fixed bysoftwareproducers. Since this unitplays discs

according to the disc contentsthesoftwareproducers designed,

some playbackfeatures maynot be available. Also refer to the in-

structionssuppliedwiththediscs.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7.RegionalCoding

Both theDVDplayer and disc are coded by region. These

regional codes must match inorder for thedisc toplay.Ifthe

codesdon’t match, the disc won’t play. This unit’s code is region

1. DVD is with other regional codes cannot be played in thisunit

C. Contents

1. 1 x 9’’ LCDMonitor &DVD Player Combo

2. 1 xRemote Control with battery(CR2025)

3. 1xAudio/Video Cable

4. 1 xAC to DCAdapter

5.1 XCigaretteLighterAdapter

6. 1x Instruction Manual

7. 1 X Rechargeable Battery

D. Powering and installation

1. Powering the system indoors (Refer to Figure 1)

Plug one end of theAC to DC adapterinto the DCinputjackon the

leftside ofthe mainunit, then plugthe otherendinto the120VAC

powerreceptacle.

2. Powering the systemin a car

Plugoneend ofthecigarette lighteradapter into the DC inputjack

on the unit, then plugthe otherendintothe cigarettelightersocket.

Figure1

Note: Unplugthe apparatus when not usingfor alongtime or

intent to disconnect from the Mains power.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

E. Controls, Indicators, and Connectors

1. UnitView (Refer to Figure2)

Figure 2

1)LCD Panel Shut Off Switch

2) Stop Button

3) Previous Button

4) NextButton

5) MENUButton

6) Wide Button

7) UpButton

8) RightButton

9) Play/OK Button

10) LeftButton

11) DownButton

12)DC9V Input Jack

13)AVJack

14)AV in/out SW

15)PowerOn/Off Switch

16) PowerLED

17) Remote Control Sensor

18)Open Switch

19) Brightness Up/Down Control

20) Volume Up/DownControl

21)HeadphoneJack 1

22)HeadphoneJack 2

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

2. Remote ControlView (Refer to Figure3)

1) DisplayButton

2) AngleButton

3) Subtitle Button

4) AudioButton

5) Zoom Button

6), , ,

ENTER Buttons

7) Return Button

8) A-BButton

9) Forward Button

10) Reverse Button

11)Slow Button

12) Stop Button

13) Numeric Keypad

14) Setup Button

15)MenuButton

16) Repeat Button

17) SKIP- (Previous) Button

18) SKIP+(Next) Button

19) Play Button Figure3

20)Pause Button

F. Loading and Playing a Disc

a.After connecting powerto theunit, poweron “DVDplayer with the

power switch. The powerindicator will light.

b. Open thedisc tray byswitching “OPEN , and place a disc intothe

traywith the label side facingup.

c. Close the tray.The unit will load the disc and start playing.

d.Rotate BRIGHTNESS andVOLUME toadjust theLCD’sbright-

nessand the DVD player’s volume.

e. To stopplaying adisc,pressSTOP.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

G. Setup

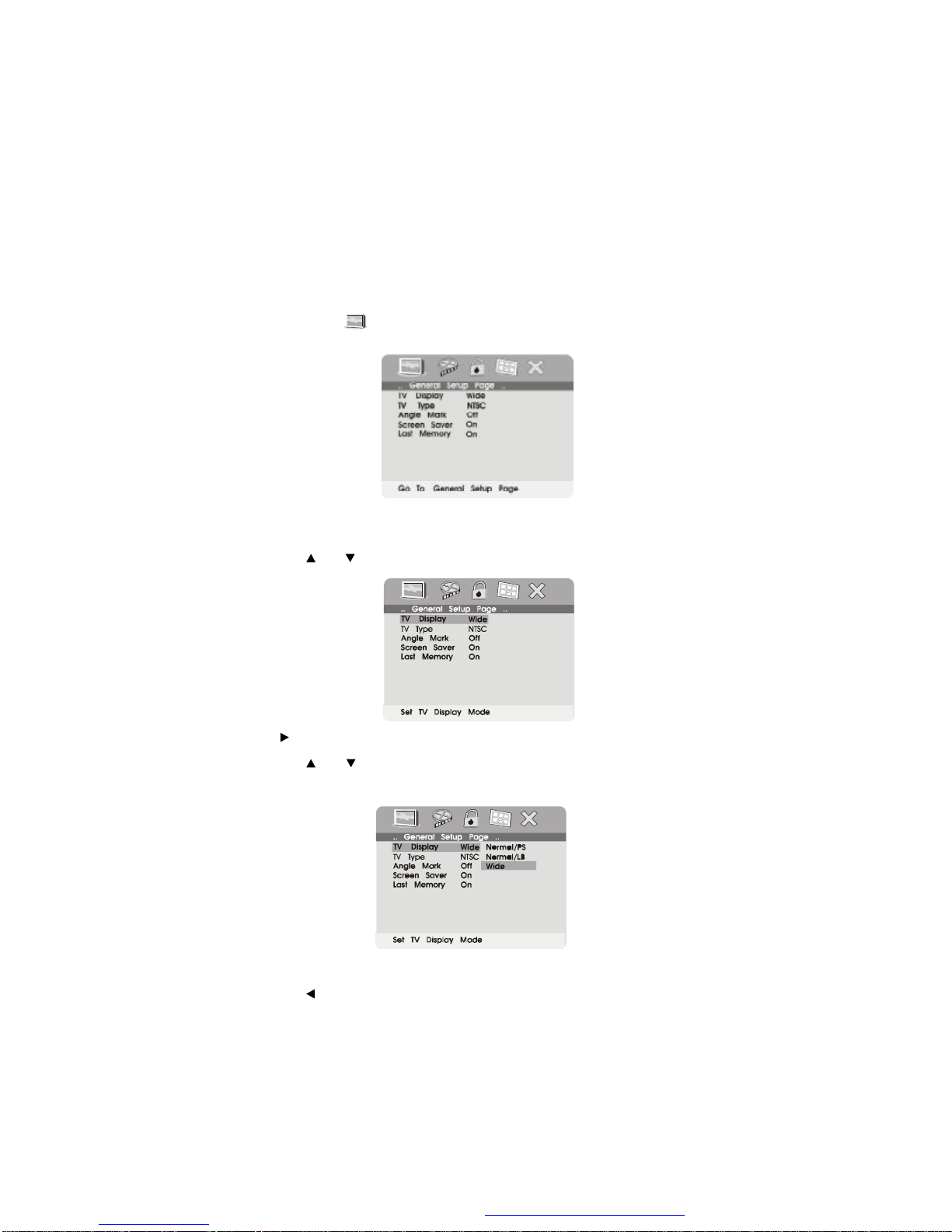

1. GeneralSetup Page

1)Withnodiscinsidetheplayer,press‘SETUP’todisplaythe Mainscreen

ofthe Setup Menu on the screen and “General Setup Page appears.At

the same time, “ ishighlighted. Press ‘SETUP’againto exitthe

Setup Menu and theunit will resume it’slast playbackmode.

Main SetupMenu Screen

2)Press the ENTER button, “TV Display ishighlighted.

3) Press the or buttonto select the the other menus in general

setuppage.

4) Press to enter the sub menu.

5) Press the or button to select the sub menu and press the

ENTER to confirm your selection.

6) Repeat steps 3-5 for other menus.

Note: Press to return the previous menu.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

a) TVDisplay

* Normal/PS: When the player outputs signal toa normal TV, a nor-

mal picture is shown on the full screen.

* Normal/LB: When the player outputs signal to a normal TV, a nor-

mal picture is shownon the screen withablackstripatboththetop

andbottom ofthescreen.

*Wide:When theplayeroutputs signal to awidescreenTV, a

wide picture is shown on the full screen.

b).TV Type

NTSC: The standard TV system used in the USA, Canada, Japan and

manyother countries.

PAL: The standard system used in Europe, Africa and the Middle East,

amongother places.

c).AngleMark

*On:Thescreenwillshow the angle mark icon.(*If an angle option is

available).

* Off:The screen will not display theAngle Mark

NOTE: Not all discs contain abovefeatures. The abovefeatures are

discdependent.

d). ScreenSaver

*On:Enables screensaver

*NOTE: The DVD playerwill enter the Screen Savermode after ap-

proximately fiveminutes ifthe same imageremains on thescreen.

*Off:Disables screen saver(off)

e). Last Memory

*On: The unit will return to the last position on the disc.

*Off: Theunit will not return to the last position on the disc.

Note: The Last position memoryfunction onlyeffect for OPEN

operation.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Table des matières

Autres manuels Insignia Lecteur DVD portable

Insignia

Insignia NS-D7PDVD Guide de démarrage rapide

Insignia

Insignia NS-P7DVD15 Manuel utilisateur

Insignia

Insignia NS-P10DVD11 Guide de démarrage rapide

Insignia

Insignia IS-PDVD10 Manuel utilisateur

Insignia

Insignia NS-DD10PDVD19 Manuel utilisateur

Insignia

Insignia NS-P10DVD Manuel utilisateur

Insignia

Insignia NS-P10DVD11 Manuel utilisateur

Insignia

Insignia NS-10PDH Guide de démarrage rapide

Insignia

Insignia NS-P10DVD11 Guide de démarrage rapide

Insignia

Insignia NS-P10DVD11 Manuel de la liste des pièces

Insignia

Insignia NS-PDVD8 Manuel utilisateur

Insignia

Insignia NS-PDVD9 Manuel utilisateur

Insignia

Insignia NS-D7PDVD Manuel de la liste des pièces

Insignia

Insignia NSD7PDVDOM Manuel utilisateur

Insignia

Insignia NS-P10DVD Manuel utilisateur

Insignia

Insignia NS-CPDVD7 Manuel utilisateur

Insignia

Insignia NS-DS9PDVD15 Manuel utilisateur

Insignia

Insignia NS-P8DVD Manuel utilisateur

Insignia

Insignia NS-P10DVD Manuel utilisateur

Insignia

Insignia NS-A2202 Manuel utilisateur

Insignia

Insignia NS-D7PDVD Guide de démarrage rapide

Insignia

Insignia NS-7DPDVD - DVD Player - 7 Manuel utilisateur

Insignia

Insignia NS-SKPDVD - DVD Player - 7 Guide de démarrage rapide

Insignia

Insignia NS-MDDVD10 Manuel utilisateur

Manuels Lecteur DVD portable populaires d'autres marques

Philips

Philips PET718/77 Manuel utilisateur

Impecca

Impecca DVP775 Manuel utilisateur

NextBase

NextBase MULTI-VISION SET PRO Manuel utilisateur

Impecca

Impecca DVP-1017 Manuel utilisateur

Akura

Akura APDVD6008 Manuel utilisateur

TV Star

TV Star TD3 LCD COMBO Manuel utilisateur

LENCO

LENCO MES-202 Manuel utilisateur

Philips

Philips PET940/98 Manuel utilisateur

Philips

Philips PET702P Manuel utilisateur

Philips

Philips PD7016 Manuel utilisateur

Logik

Logik L7SPDVD11 Manuel utilisateur

LG DP650 Manuel utilisateur

Mustek

Mustek MVP850B Manuel utilisateur

Philips

Philips PD9000/12 Manuel utilisateur

LENCO

LENCO DVP-1027 Manuel utilisateur

Philips

Philips PD7010/05 Manuel utilisateur

Technika

Technika PDVDTWINSS10 Guide de l'utilisateur

LENCO

LENCO DVP-846 Manuel utilisateur
