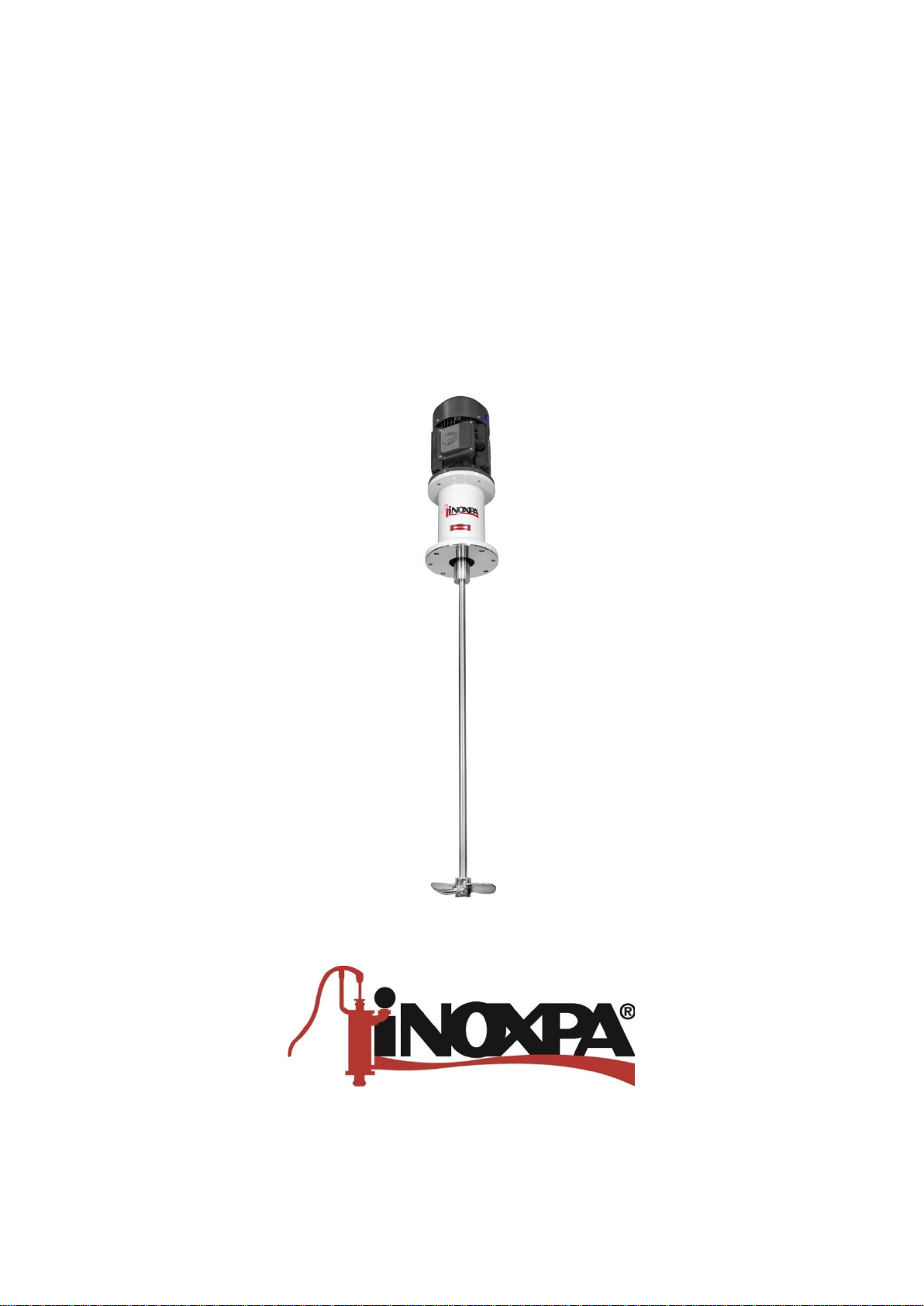

INOXPA BMI Manuel

INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS

VERTICAL AGITATOR

BMI

Original Manual

20.003.30.02EN

(A) 2021/12

20.003.32.0010

4INOXPA S.A.U. 20.003.30.02EN · (A) 2021/12
Table of Contents
Table of Contents
Generalities
1.Instructions manual.......................................................................................................................................5
2.Compliance with the instructions ..................................................................................................................5
3.Warranty........................................................................................................................................................5
Safety
1.Warning symbols...........................................................................................................................................6
2.General safety instructions ...........................................................................................................................6
General Information
1.Description....................................................................................................................................................8
2.Operating principle........................................................................................................................................8
3.Application.....................................................................................................................................................8
Installation
1.Reception of the agitator...............................................................................................................................9
2.Identification of the agitator...........................................................................................................................9
3.Transport and storage.................................................................................................................................10
4.Location.......................................................................................................................................................11
5.Electrical installation ...................................................................................................................................11
6.Assembly.....................................................................................................................................................12
Start-up
Troubleshooting
Maintenance
1.General considerations...............................................................................................................................16
2.Maintenance................................................................................................................................................16
3.Lubrication...................................................................................................................................................16
4.Spare parts..................................................................................................................................................16
5.Conservation...............................................................................................................................................16
6.Disassembly and assembly of the agitator .................................................................................................17
Technical Specifications
1.Materials......................................................................................................................................................19
2.Other features.............................................................................................................................................19
3.Weights.......................................................................................................................................................19
4.Dimesnions .................................................................................................................................................20
5.BMI Agitator with one bearing exploded drawing and parts list..................................................................21
6.BMI Agitator with two bearings exploded drawing and parts list ................................................................22

Generalities

INOXPA S.A.U. 20.003.30.02EN · (A) 2021/12 5

2. Generalities

2.1. INSTRUCTIONS MANUAL

This manual contains information about the reception, installation, operation, assembly, disassembly and

maintenance of the BCI vertical agitator.

Carefully read the instruction prior to starting the agitator, familiarize yourself with the installation, operation and

correct use of the agitator and strictly follow the instructions. These instructions should be kept in a safe location

near the installation area.

The information published in the instruction manual is based on updated data.

INOXPA reserves the right to modify this instruction manual without prior notice.

2.2. COMPLIANCE WITH THE INSTRUCTIONS

Not following the instructions may impose a risk for the operators, the environment and the machine, and may

result in the loss of the right to claim damages.

This non-compliance may result in the following risks:

•Failure of important machine/plant functions.

•Failure of specific maintenance and repair procedures.

•Possible electrical, mechanical and chemical hazards.

•Risk to the environment due to the type of substances released.

2.3. WARRANTY

Any warranty will be void immediately and lawfully and, additionally, INOXPA will be compensated for any civil

liability claims submitted by third parties, in the following cases:

•The service and maintenance work have not been carried out in accordance with the service instructions,

the repairs have not been carried out by our personnel or have been carried out without our written

authorisation.

•Modifications have been carried out on our material or equipment without written authorisation.

•The parts or lubricants used are not original INOXPA parts and products.

•The material or equipment has been improperly used, has been used negligently, or has not been used

according to the instructions and their intended.

The General Conditions of Delivery already in your possession are also applicable.

The machine may not undergo any modification without prior approval from the manufacturer. For

your safety, only use original spare parts and accessories.

The usage of other parts will relieve the manufacturer of any liability.

Changing the service conditions can only be carried out with prior written authorization from

INOXPA.

Please do not hesitate to contact us in case of doubts or if further explanations are required regarding

specific data (adjustments, assembly, disassembly, etc.).

Safety

6INOXPA S.A.U. 20.003.30.02EN · (A) 2021/12

3. Safety

3.1. WARNING SYMBOLS

Safety hazard for people in general and/or for equipment

Electric hazard

Important instruction to prevent damage to the equipment and its functions

3.2. GENERAL SAFETY INSTRUCTIONS

Read the instruction manual carefully before installing and starting the agitator. Contact INOXPA in

case of doubt.

3.2.1. During the installation

The Technical Specifications of chapter 9 should always be observed.

The installation and use of the agitator should always be in accordance with applicable regulations

in regard to health and safety.

Before starting up the agitator, check that it is properly anchored and its shaft is perfectly aligned.

Incorrect alignment and/or excessive stress during coupling can cause serious mechanical

problems in the agitator.

Take all possible precautions when lifting the agitator. Always use properly attached slings when

moving the agitator with a crane or other lifting device.

Keep the motor and the switchboard under control, particularly in areas where there is a risk of fire

or explosion.

When cleaning, do not spray directly on the engine.

Do not disassemble the agitator until the switchboard has been disconnected. Remove the fuses

and disconnect the power cable supplying the motor.

All electric work should be carried out by specialised personnel.

3.2.2. During operation

The Technical Specifications of chapter 9 should always be observed. Under no circumstances can

the specified limit values be exceeded.

Before starting up the agitator, remove all the tools used during the assembly.

Do not operate the agitator when the rotating parts are not equipped with their guards or are not

properly assembled.

The agitator has rotating parts. Do not place hands or fingers in the agitator while it is operating.

This may cause serious injuries.

Do not touch the parts of the agitator that are in contact with the fluid when in operation. When the

agitator operates with hot fluids (temperatures above 50ºC), there is a risk of skin burning. In such

cases, collective-protection means (in this order or priority: separation, protective screen, heat-

insulating material) or, in the absence of this, individual protection gear (gloves) must be used.

ATTENTION

Safety

INOXPA S.A.U. 20.003.30.02EN · (A) 2021/12 7

The agitator and its installation can generate sound levels above 85 dB(A) under unfavourable

operating conditions. In such cases, the operators must use devices for protection against noise.

3.2.3. During maintenance

The Technical Specifications of chapter 9 shall always be observed.

The agitator cannot operate without fluid. Standard agitators are not designed to work during the

filling or emptying of tanks.

The maximum operating conditions of the agitator should not be exceeded. Nor should the

operating parameters for which the agitator was initially designed be modified without written

authorisations from INOXPA.

Do not leave loose parts on the floor.

Do not disassemble the agitator until the switchboard has been disconnected. Remove the fuses

and disconnect the power cable supplying the motor.

All the electric work should be carried out by specialised personnel.

General Information

8INOXPA S.A.U. 20.003.30.02EN · (A) 2021/12

4. General Information

4.1. DESCRIPTION

The BMI series range is vertical agitators with a stainless steel base and a lip seal as a sealing system.

Although these agitators are very compact, they have a bearing bracket which is totally independent of the

motor. The half shaft is guided by one or two bearings which withstand the axial and radial forces transmitted by

the agitation element. The agitator shaft is directly attached to half shaft with two allen studs.

4.2. OPERATING PRINCIPLE

The agitators are usually installed off-centre to prevent product rotation but can also be installed centred in

conjunction with deflector baffles in the tank.

The rotating propeller pushes the product towards the bottom of the tank, where it is diverted generating an

upward flow along the tank walls so that the product reaches the surface of liquid. This effect is enhanced if the

tank has a rounded base.

4.3. APPLICATION

The BMI vertical agitators can be used in mixing, dissolution, dispersion and maintenance processes requiring

strong agitation at high speeds, as well as in the food processing, cosmetics and chemical industries selecting

the appropriate finish in each case.

Applicable to tanks with capacities of up to 10.000 litres usually with low viscosity products.

Each agitator has performance limits. The agitator was selected for a given set of mixing conditions

when the order was placed. INOXPA shall not be held responsible for any damage that might be

suffered or malfunctioning of the equipment of the information provided by the buyer is incomplete

or incorrect. (e.g. nature of the fluids or installation details).

Installation

INOXPA S.A.U. 20.003.30.02EN · (A) 2021/12 9

5. Installation

5.1. RECEPTION OF THE AGITATOR

INOXPA is not liable for any deterioration of the material caused by its transport or unpacking.

Visually check that the packaging has not been damaged.

If the agitator is supplied without a drive or other element, the purchaser shall be responsible for its

assembly, installation, start-up and operation.

When receiving the agitator, check the packaging and its content to ensure that it matches the delivery note.

INOXPA packs the agitators in their fully assembled form or disassembled on a case-by-case basis. Ensure that

the agitator has not been damaged in any way. If it is not in good condition and/or any parts are missing, the

carrier must submit a report as soon as possible.

The following documentation is included with the agitator:

•shipping documents,

•instructions and Servicing manual for the agitator,

•instructions and Servicing manual for the gear-motor when the agitator is supplied with a motor by

INOXPA.

5.2. IDENTIFICATION OF THE AGITATOR

The agitator is identified using a rating plate fixed onto the motor. The type of agitator and the serial number

appear on the nameplate.

Serial number

20.003.32.0009

Installation

10 INOXPA S.A.U. 20.003.30.02EN · (A) 2021/12

BMI

011

150

Diameter of the agitation element

150

150 mm

160

160 mm

175

175 mm

200

200 mm

225

225 mm

Motor

IP-55

IP-65

Flameproof

Explosion-proof

Single phase

Motor power

007

0,75 kW

011

1,1 kW

015

1,5 kW

022

2,2 kW

030

3 kW

040

4 kW

055

5,5 kW

Motor speed

4 poles

1.500 rpm

6 poles

1.000 rpm

Type of agitation elements

Marine type

Sawtooth type

Number of agitation elements

One agitation element

Two agitation elements

Name of the agitator

BMI

Vertical agitator with motor

5.3. TRANSPORT AND STORAGE

According to the model, the agitators are too heavy to be stored or installed manually. Use an

appropriate mode of transport. Do not handle the agitator by the shaft as this may become

deformed.

ATTENTION

Table des matières

Autres manuels INOXPA Mixer

INOXPA

INOXPA DINAMIX SMX Manuel

INOXPA

INOXPA PBC Manuel

INOXPA

INOXPA 6100 Series Manuel

INOXPA

INOXPA 875 Series Manuel

INOXPA

INOXPA ME-6100 Manuel

INOXPA

INOXPA 4100 Series Manuel

INOXPA

INOXPA LR Series Manuel

INOXPA

INOXPA ME-1100 Manuel

INOXPA

INOXPA 6100 Ex Series Manuel

INOXPA

INOXPA M-226 Ex Manuel

Manuels Mixer populaires d'autres marques

Bosch

Bosch GRW 9 Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman WM45E Mode d’emploi

KitchenAid

KitchenAid KSM7581BZ0 Guide rapide

Jay-Lor

Jay-Lor 5050 Manuel utilisateur

Sunbeam

Sunbeam FPSBSM210X Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman MC94S Mode d’emploi

Thinky

Thinky ARE-250 Manuel utilisateur

Midas

Midas XL4 Manuel utilisateur

bianco

bianco PURO 4 Manuel utilisateur

Paso

Paso DAG9200 Manuel utilisateur

Sima

Sima SFX-9A Manuel utilisateur

better chef

better chef IM-815WC Instructions d'installation

ALLEN & HEATH

ALLEN & HEATH GR1 Manuel utilisateur

Lacor

Lacor 69083 Fiche technique

M-Audio

M-Audio Midiman SAM Manuel utilisateur

Buffalo

Buffalo CP921 Manuel utilisateur

Pentair

Pentair HYPRO Cleanload 3376-0870 Instructions de fonctionnement

Cuisinart

Cuisinart SM50WHE Manuel utilisateur
