Innodisk NanoSSD Series Mode d’emploi

nanoSSD Design Manual

1Rev. 1. 5 MAR, 2016

Design Manual

nanoSSD Design Manual

2Rev. 1. 5 MAR, 2016

Contents

1. INTRODUCTION..........................................................................................................................................................6

2. EXTERNAL COMPONENTS SPECIFICATION........................................................................................................7

2.1 POWER SUPPLY............................................................................................................................................................8

2.1.1 Power supply......................................................................................................................................................8

2.1.2 Power consumption............................................................................................................................................9

2.2 SATA AC COUPLING CAPACITORS...............................................................................................................................10

2.3 RELIABILITY ...............................................................................................................................................................10

3. MECHANICAL SPECIFICATION.............................................................................................................................11

3.1 BALL AND SIGNAL DESCRIPTION .................................................................................................................................11

3.2 GPIO TABLE WITH FUNCTION DESCRIPTION ................................................................................................................19

4. COMPONENT PLACEMENT AND ROUTING REQUIREMENTS .......................................................................20

4.1 SATA DIFFERENTIAL SIGNALS.....................................................................................................................................20

4.2 POWER DISTRIBUTION................................................................................................................................................20

5. TEMPERATURE AND THERMAL............................................................................................................................20

6. REFERENCE DESIGN...............................................................................................................................................21

6.1 SCHEMATIC............................................................................................................................................................21

6.2 LAYOUT GUIDE...........................................................................................................................................................21

6.3 DEMO BOARD.............................................................................................................................................................21

7. PRODUCTION GUIDE...............................................................................................................................................21

7.1 PREHEAT ...................................................................................................................................................................21

7.2 REFLOW PROFILE ......................................................................................................................................................21

8. PRODUCT SPECIFICATION / ORDER INFORMATION......................................................................................23

9. APPENDIX...................................................................................................................................................................24

nanoSSD Design Manual

3Rev. 1. 5 MAR, 2016

TABLE 1VCC POWER SUPPLY SPECIFICATION ..................................................................................................................8

TABLE 2POWER CONSUMPTION........................................................................................................................................10

TABLE 3NANOSSD BALLAND SIGNAL DESCRIPTION.......................................................................................................18

TABLE 4NANOSSD GPIO TABLE.......................................................................................................................................19

TABLE 5TEMPERATURE RANGE OF NANOSSD..................................................................................................................20

TABLE 6REFLOW PROFILE................................................................................................................................................22

FIGURE 1BLOCK DIAGRAM OF NANOSSD...........................................................................................................................8

FIGURE 2MECHANICAL DRAWING OF NANOSSD..............................................................................................................11

FIGURE 3INNODISK SERVERDOM IS AS NANOSSD DEMO BOARD ..................................................................................21

nanoSSD Design Manual

4Rev. 1. 5 MAR, 2016

REVISION HISTORY

Revision Description Date

Preliminary First Released July, 2013

Rev. 0.1 Modify Ball and pin definition July, 2013

Rev. 0.2

Modify block diagram

Modify pin assignment

Sep, 2013

Rev. 0.3

Wording correction

Modify pin assignment

Sep, 2013

Rev. 0.4

Modify Power supply info.

Modify Block diagram

Update attached files

Added chapter 10 ( table for attachment files)

Nov, 2013

Rev. 0.41 Modify schematic symbol Nov, 2013

Rev. 0.5

Update product photo,

Add “UART” in pin L16, L17 in description,

Modify description of attachment table and add nanoSSD demo board design guide item,

Change demo board Gerber file name from RAR to txt ( due to file compatibility issue in various

PDF readers)

Jan, 2014

Rev. 0.51 Update attached file – nanoSSD schematic from Ver. A01 to Ver. A1 Feb, 2014

Rev. 0.6

Update mechanical drawing,

Update reflow profile,

Update demo board related documents.

Feb, 2014

Rev. 061 Update GPIO table and related attachment Feb, 2014

Rev. 062 Update nanoSSD design guide ( added power sequence info) JUL, 2014

Rev. 063 add nanoSSD 3SE performance and LBA info AUG, 2014

Rev. 064

Update 2.1.1 power supply info. (MLC & iSLC)

Add 2.1.2 power consumption (MLC & iSLC)

SEP, 2014

Rev. 065 Add 2.1.1 power supply info. (SLC) OCT, 2014

Rev. 066 Update 2.1.1 power consumption (MLC & iSLC) NOV, 2014

Rev. 067 Revise MLC and iSLC LBA info. NOV, 2014

Rev. 068

Added nanoSSD power sequence requirement as attachment.

Add SLC 16GB performance info.

DEC, 2014

Rev. 069 Added ESD test report, ROHS and REACH declaration of conformity JAN, 2015

Rev. 070

Added GPIO table

Revised MLC / iSLC performance by using firmware version S141002C.

MAR, 2015

Rev. 1.0 Official release July, 2015

Rev. 1.1 Modify chapter 8 by adding order information AUG, 2015

Rev. 1.2

Modify chapter 8, laser marking and order information

Modify page 5, 3ME 32GB performance

OCT, 2015

nanoSSD Design Manual

5Rev. 1. 5 MAR, 2016

Rev. 1.3 Add 2.3 Reliability section NOV, 2015

Rev. 1.4

Modify 3.1 GPIO2 and GPIO3 Type and description

Modify Chapter 8 description

FEB, 2016

Rev. 1.5

Update 3.1 GPIO description

Update Chapter 9 Apendix

MAR, 2016

nanoSSD Design Manual

6Rev. 1. 5 MAR, 2016

1. Introduction

Innodisk nanoSSD is an integrated SATA storage device that combines Innodisk ID167 NAND flash

controller and latest NAND flash in a JEDEC MO-276(μSSD) form factor with ball grid array (BGA)

package.

The nanoSSD supports SATA III 6Gbps within a tiny dimension, as well as having lower power

consumption and being high reliable. It offers an ideal solution for embedded, automotive,

medical, gaming and most industrial applications.

Features:

- Compliant with JEDEC MO-276 footprint #11 Specification

- SATA III 6Gbps

- Support NCQ

- Intelligent flash management & real time garbage collection

- Supports S.M.A.R.T, and iSMART utility

- Zero mechanical interference

Performance:

Item 8GB 16GB 32GB 64GB

nanoSSD 3ME

Sequential Read 120 MB/s 240 MB/s 440 MB/s 480 MB/s

Sequential Write 20 MB/s 40 MB/s 80 MB/s 160 MB/s

nanoSSD 3IE

Sequential Read 250 MB/s 470 MB/s 480 MB/s N/A

Sequential Write 70 MB/s 140 MB/s 270 MB/s N/A

nanoSSD Design Manual

7Rev. 1. 5 MAR, 2016

Item 2GB 4GB 8GB 16GB

nanoSSD

3SE

Sequential Read 110 MB/s 220 MB/s 340 MB/s 450 MB/s

Sequential Write 28 MB/s 55 MB/s 110 MB/s 200 MB/s

C.H.S & LBA:

Item Head Sector Cylinder LBA

nanoSSD

3ME

8GB 16 63 13587 13695696

16GB 16 63 16383 29323728

32GB 16 63 16383 60579792

64GB 16 63 16383 121138416

Item Head Sector Cylinder LBA

nanoSSD

3IE

8GB 16 63 13587 13695696

16GB 16 63 16383 29323728

32GB 16 63 16383 60579792

Item Head Sector Cylinder LBA

nanoSSD

3SE

2GB 16 63 3897 3928176

4GB 16 63 7773 7835184

8GB 16 63 15525 15649200

16GB 16 63 16383 31277232

2. External Components Specification

The nanoSSD is designed to have minimal peripheral circuits. It requires three power voltage

nanoSSD Design Manual

8Rev. 1. 5 MAR, 2016

level and a few passive components to be completely functional. The required specifications for

these components are listed below. The reference design section of this document has the list of

recommended components which meet these specifications.

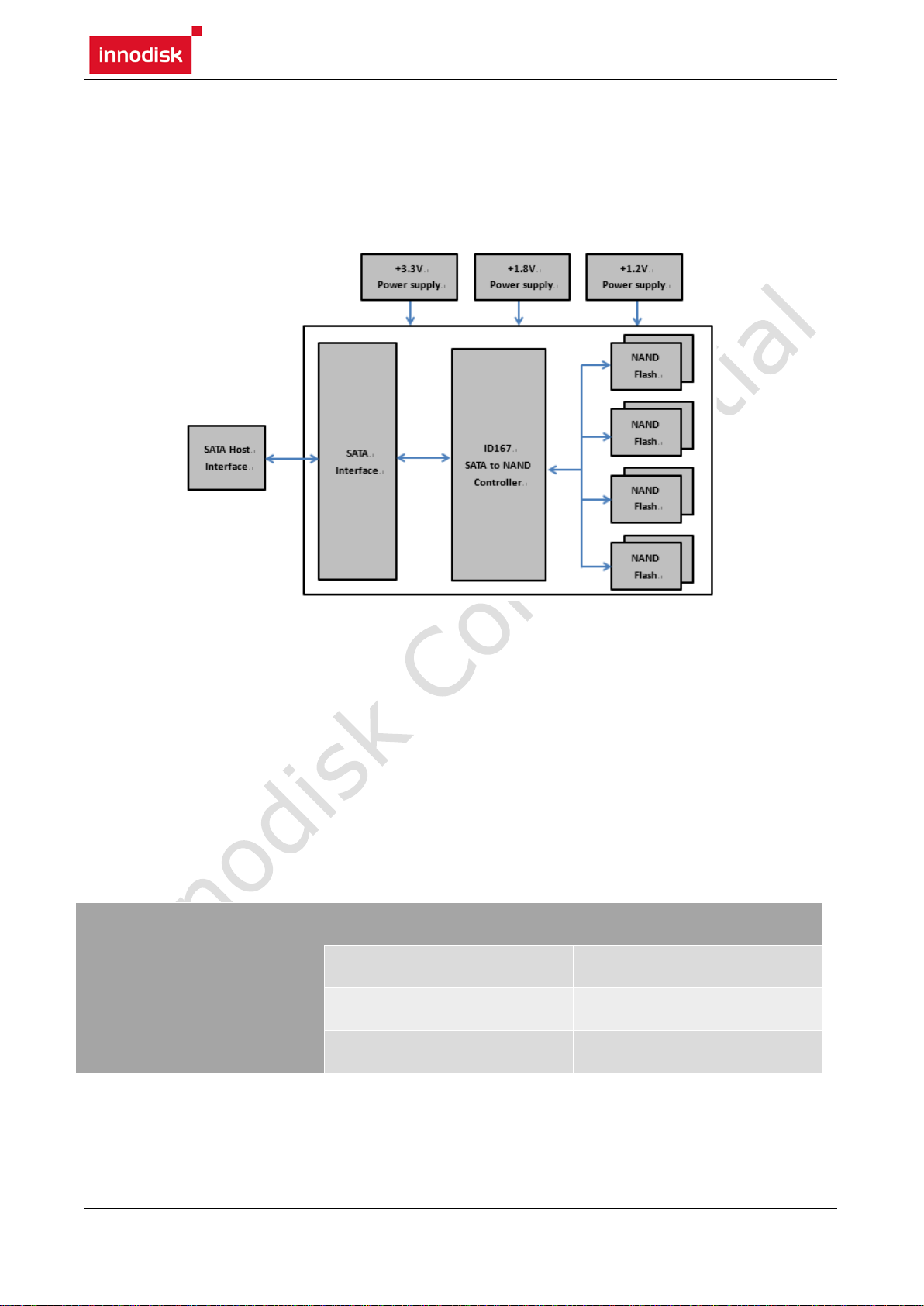

Figure 1 Block diagram of nanoSSD

2.1 Power Supply

This section lists the specifics for input power that is required by the nanoSSD.

2.1.1 Power supply

The power values defined in the table, below, are typical and subject to process and variation of

up to ±10%.

Input voltage

Voltage rail Specification

Main power supply 3.3V± 10%

Flash IO supply 1.8V ± 10%

Controller core supply 1.2V ± 10%

Table 1 VCC Power Supply Specification

nanoSSD Design Manual

9Rev. 1. 5 MAR, 2016

2.1.2 Power consumption

Voltage Rail Parameter MLC 8GB MLC 16GB MLC 32GB MLC 64GB

SATA 6Gb/s Host interface

Main power

supply

Read (mA) 186 310 408 440

Write(mA) 194 219 321 560

Idle(mA) 137 153 158 160

Flash IO supply

Read (mA) 227 240 277 345

Write(mA) 202 230 260 320

Idle(mA) 137 161 169 176

Controller core

supply

Read (mA) 320 328 335 350

Write(mA) 303 321 325 330

Idle(mA) 145 148 152 160

Voltage Rail Parameter iSLC 8GB iSLC 16GB iSLC 32GB

SATA 6Gb/s Host interface

Main power

supply

Read (mA) 310 408 440

Write(mA) 219 321 560

Idle(mA) 153 158 160

Flash IO supply

Read (mA) 240 277 345

Write(mA) 230 260 320

Idle(mA) 161 169 176

Controller core supply

Read (mA) 328 335 350

Write(mA) 321 325 330

Idle(mA) 148 152 160

nanoSSD Design Manual

10 Rev. 1. 5 MAR, 2016

Voltage Rail Parameter SLC 2GB SLC 4GB SLC 8GB SLC 16GB

SATA 6Gb/s Host interface

Main power

supply

Read (mA) 162 245 292 315

Write(mA) 140 190 252 440

Idle(mA) 104 108 113 113

Flash IO supply

Read (mA) 130 155 182 228

Write(mA) 112 140 156 190

Idle(mA) 85 92 103 105

Controller core

supply

Read (mA) 182 191 213 220

Write(mA) 182 182 190 191

Idle(mA) 106 106 106 110

Table 2 Power consumption

2.2 SATA AC Coupling capacitors

10nF X5R MLCC

For more details please refer to design kit

2.3 Reliability

Parameter Value

Read Cycles Unlimited Read Cycles

Wear-Leveling Algorithm Support

Bad Blocks Management Support

Error Correct Code Support

TBW (Sequential)

Item 8GB 16GB 32GB 64GB

nanoSSD 3ME 21.6 43.2 86.4 172.8

nanoSSD 3IE 144 288 576 N/A
