InFocus LP610 Manuel utilisateur

Installation Guide

LitePro 600 Series

Ceiling Mount

Installation Guide

LitePro 600 Series

Installationhandbuch zur

Deckenbefestigung

English. . . . . . . . page 1

Deutsch . . . . . page 13

010-0132-02-eng-ger.fm Page -1 Monday, March 31, 1997 11:23 AM

010-0132-02

010-0132-02-eng-ger.fm Page 0 Monday, March 31, 1997 11:23 AM

CEILING MOUNT INSTALLATION GUIDE

The LitePro 600 Series LiteMountTM makes it easy

to hang your LitePro from the ceiling for fixed

installation use in meeting, auditorium and

training room settings.

WARNING: This installa-

tion must be performed in

compliance with your

local building code require-

ments. Local require-

ments take precedence

over any instructions given

in this guide.

You must determine the suitability of this prod-

uct for your intended use and assume all risk

and liability in connection therewith. In Focus

recommends that a professional contractor or

other facilities professional assist you in mount-

ing this device. Be sure to take precautions to

meet all local building codes.

Additional LiteMount Products

In Focus offers two additional LiteMount prod-

ucts that may make your ceiling mount installa-

tion easier.

•The LiteMount False Ceiling Plate

(SP-LTMT-PLT) is designed for suspended ceil-

ings with acoustic tiles. It mounts in your ceil-

ing in place of a ceiling tile. It is pre-drilled

with holes to install the LiteMount brackets.

•The LiteMount Pipe Tubing Extension (SP-

LTMT-EXT) allows you to install the projector

in a room with a high ceiling. With the exten-

sion, you can place the projector from 12”

(30.5) to 46” (117 cm) from the ceiling.

Contact your In Focus dealer to order these

products.

Placing the Projector

To ensure that the projected image is not dis-

torted, the projector must be installed so that the

center of the lens is at the same height as the top

of the projection screen.

010-0132-02-eng-ger.fm Page 1 Monday, March 31, 1997 11:23 AM

Placing the Projector

The distance from the projector lens to the screen

determines the size of the projected image. Refer

to the Appendix of the LitePro User’s Guide for

charts and tables showing these measurements.

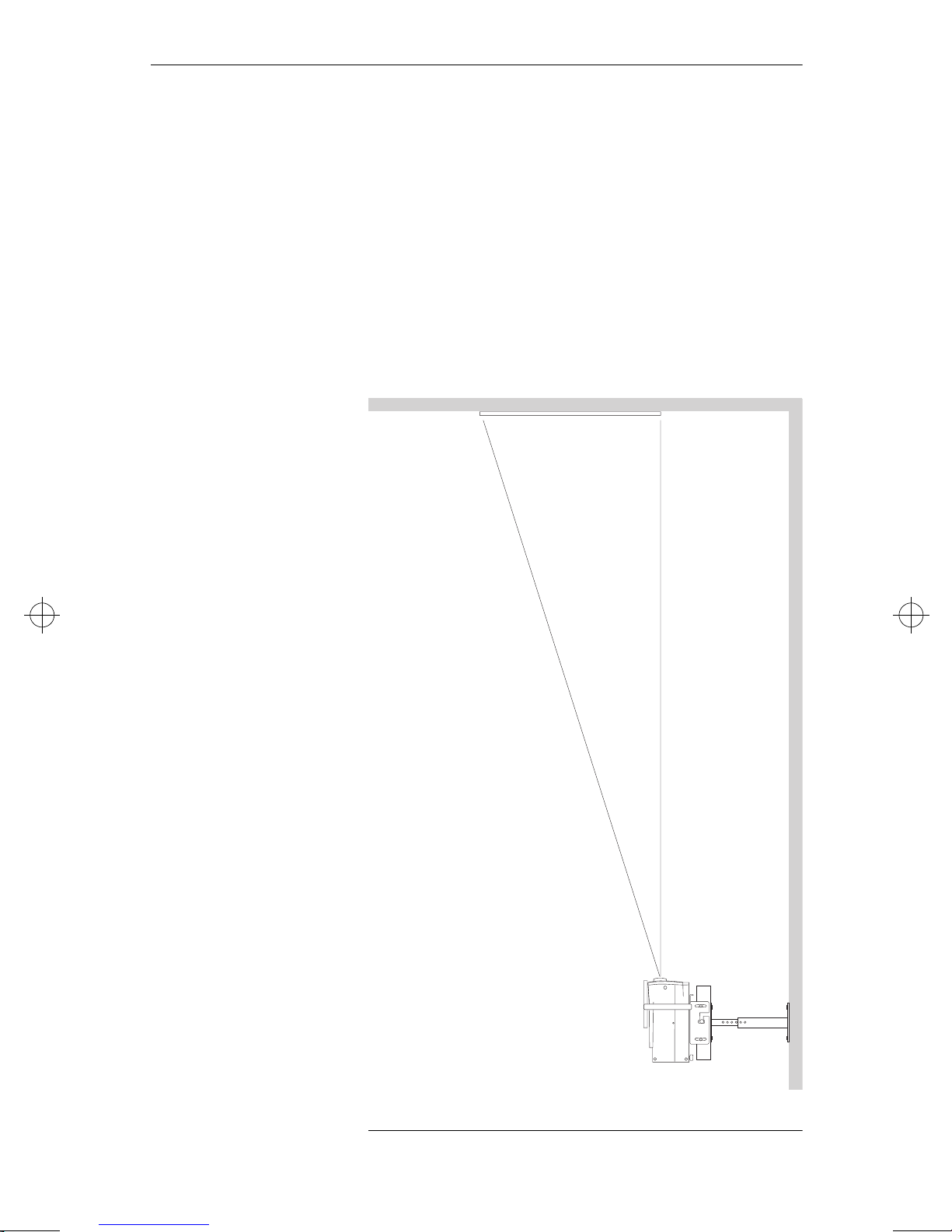

Figure 1 shows an example of a proper LitePro

600 LiteMount installation. The room in this

example has a high ceiling, so the projector is

mounted on the LiteMount Pipe Tubing Exten-

sion. Note that the projector’s lens is at the same

height as the top of the projection screen.

FIGURE 1

Ceiling-Mounted LP600 Series Projector

010-0132-02-eng-ger.fm Page 2 Monday, March 31, 1997 11:23 AM

Contents

The LitePro 600 Series Ceiling Mount package

contains:

1Installation Guide

2ceiling mount base box

3projector mounting bracket

4hardware for installing the projector mount-

ing bracket on the projector:

•four (4) 10/32 x 3/8” Phillips-head screws

with washers

5hardware for installing the projector (with

mounting plate) to the base box in the ceiling:

•two (2) 8mm hinge pin bolts

•two (2) 10mm black spacers

•two (2) 8mm washers

•four (4) 6mm slotted angle locking bolts

010-0132-02-eng-ger.fm Page 3 Monday, March 31, 1997 11:23 AM

Install the Ceiling Mount Base Box on the Ceiling

Install the Ceiling Mount Base Box on the

Ceiling

WARNING: The ceiling

structure must be able to

support at least 5 times

the weight of the projector

and mounting hardware. If

not, it must be reinforced

according to your local

building codes.

Instructions for installing the ceiling mount on

the LiteMount Flase Ceiling Plate and the Lite-

Mount Pipe Tubing Extension are given in this

installation guide. If you have not purchased

either of these products, consult a professional

contractor or other facilities professional to

ensure a safe installation.

Please refer to the LiteMount False Ceiling Plate

and LiteMount Pipe Tubing Extension installa-

tion instructions for lists of included hardware.

1Center the ceiling mount base box on the ceil-

ing plate as shown in Figure 2.

2a LiteMount False Ceiling Plate - Align the

holes in the base box with the threaded studs

on the plate. Install the 4 washers and nuts as

shown in Figure 2.

NOTE: Refer to the

installation instructions

that came with the

LiteMount False Ceiling

Plate and the LiteMount

Pipe Tubing Extension for

important additional

information.

2b LiteMount Pipe Tubing Extension - Line up

the holes in the base box with the holes in the

plate at the end of the pipe extension. Install

the hardware as shown in Figure 3.

010-0132-02-eng-ger.fm Page 4 Monday, March 31, 1997 11:23 AM

3Place the ceiling plate or pipe extension in the

ceiling so that the base box hangs down into

the room.

WARNING: The cables

are not rated for use in

air-handling plenums. If

the dropped ceiling is an

air-handling plenum, the

cables should be installed

within conduit.

4Route the projector’s cables through your

ceiling and out the hole in the ceiling

(Figure 6).

NOTE: When the projec-

tor is mounted on the ceil-

ing from the LiteMount

False Ceiling Plate, it

descends 12.25 inches

(31 cm) from the ceiling.

FIGURE 2

Install the base box to the LiteMount False Ceiling Plate

010-0132-02-eng-ger.fm Page 5 Monday, March 31, 1997 11:23 AM

Install the Ceiling Mount Base Box on the Ceiling

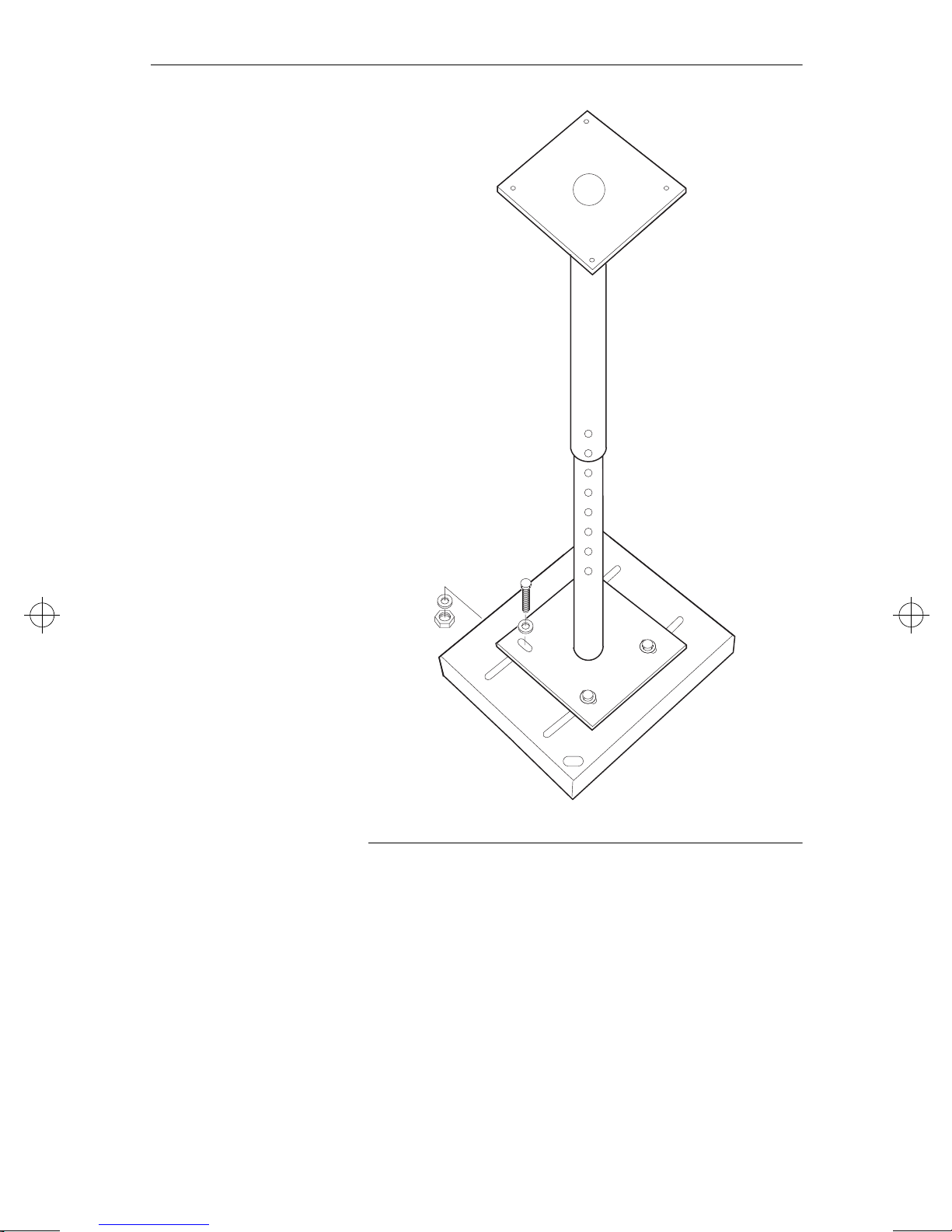

FIGURE 3

Install the base box to the LiteMount Pipe Tubing Extension

010-0132-02-eng-ger.fm Page 6 Monday, March 31, 1997 11:23 AM

Attach the Mounting Plate to the LitePro

1Set the LitePro on its side on a table. Align the

4 holes in the mounting plate with the holes

in the bottom of the projector (Figure 4).

CAUTION: Use only the

hardware that is provided

with the LitePro 600

Series Ceiling Mount.

Using different hardware

may damage the projector.

2Install the 4 screws.

FIGURE 4

Attach the mounting plate to the projector

010-0132-02-eng-ger.fm Page 7 Monday, March 31, 1997 11:23 AM

Hang the LitePro on the Ceiling

1Assemble the hinge pin bolts, washers and

spacers to each side of the base box as shown

in Figure 5. Be sure to place the flat side of the

black spacers towards the base box. Do not

tighten the bolts at this time, leave them very

loose.

NOTE: One surface of

the black spacers

appears to be flat, but it is

actually slightly concave.

When you hang the

projector on the base box,

be sure the concave side

of the spacer is towards

the base box.

FIGURE 5

Attach hinge pin bolt, washer and spacer to the side of the

base box

2Carefully lift the projector and turn it upside

down so the mounting plate faces the ceiling.

3Slide the slot openings of the mounting plate

onto the hinge pins in the base box. Make

sure the mounting plate is between the black

spacers and the base box (Figure 5).

4Slide the projector until the hinge pin bolts

rest fully at the end of the slots and support

the projector.

5Insert the angle locking bolts (6mm slotted

bolts), two on each side of the base box (Fig-

ure 6). Hand-tighten them.

black spacer

silver washer

slide projector

bracket here between

the base box and the spacer

010-0132-02-eng-ger.fm Page 8 Monday, March 31, 1997 11:23 AM
