InFocus LP 740 LiteMount Manuel utilisateur

TABLE OF CONTENTS

Safety Summary iii

Introduction 1

Image Resolution 1

Compatibility 1

Unpacking the Projector 1

Usage Guidelines 4

If You Need Assistance 4

Warranty 4

Setting up the Projector 5

Connecting a Computer 7

Connecting a Video Player 8

Powering up the Projector and Adjusting the Image 9

Turning Off the Projector 10

Using the Projector 11

Basic Image Adjustment 11

Adjusting the Projector 11

Using the Remote and Keypad Buttons 13

Using the On-Screen Menus 16

Image control 19

Custom setup 21

Information 22

Maintenance & Troubleshooting 25

Cleaning the Lens 25

Cleaning the Fan Intake Filter 25

Replacing the Projection Lamp 26

Troubleshooting 29

Table of Contents

Appendix 33

Specifications 33

Accessories 34

Portable and Laptop Activation Chart 35

Using Video Mirroring with a PowerBook Computer 40

Projected Image Size 41

RS-232 Terminal Specifications 43

Index 45

iii

SAFETY SUMMARY

Please read these instructions carefully before using your LP 740.

Failure to comply with them could result in fire, electrical shock,

personal injury or damage to equipment.

These graphics are used throughout this manual to draw your

attention to important information about the projectors.

NOTE: Additional useful details or tips.

CAUTION: Steps to take to avoid damage to your equipment.

WARNING: Steps to take to avoid personal injury.

These graphics are used on the projector’s labels.

Attention - Refer to this User’s Guide for important

safety information.

CAUTION-Hot Surfaces - Avoid touching hot surfaces.

Do not touch until the projector has cooled.

Do Not Look Into The Lens!

Be extremely careful not to look into the projection lens when the projec-

tor is turned on. The bright light may harm your eyes. Be especially care-

ful to keep children from looking into the lens.

Power Source

Use only a three-wire grounding type power source. The power source

should not exceed 250 volts rms between the supply conductors or

between either conductor and the ground.

Power Cord

Use only the power cord that was shipped with the projector. Although

other power cords might be similar in appearance, they have not been

safety-tested with the projector. Do not use a power cord if it has become

damaged or frayed. Contact your In Focus dealer or call In Focus if you

need to replace your power cord.

Safety Summary

Grounding

The projector is grounded through the grounding conductor on the

power cord. To avoid electric shock, plug the power cord into a properly

wired receptacle. Do not defeat the purpose of the grounding-type plug.

Lamp

To avoid overheating and unacceptable image quality, replace the projec-

tion lamp with a lamp of the specified type. Refer to page 33 for lamp

specifications and to page 26 for instructions on replacing the lamp.

Lamp Compartment

To avoid burns, do not open the lamp module door until the projector is

turned off and the lamp has cooled for at least 30 minutes. Follow the

instructions in this manual for lamp replacement carefully.

Hot Surfaces

Allow the projector to cool at least 30 minutes before replacing a lamp.

When you open the lamp housing, be very careful not to touch the hot

surfaces inside.

Ventilation and Overheating

Openings in the projector case provide ventilation to protect it from

overheating. Keep loose papers and other objects well away from the

grills. Do not place the projector on top of or close to a computer or other

heat-producing equipment.

Liquid Spills

Do not set drinks on top of the projector. Spilled liquids can flow inside

and cause damage.

NOTE: If you open the projector

case, you will void the warranty.

Do Not Disassemble

All service must be performed by an authorized In Focus service center.

The only user-serviceable part in the projector is the projection lamp,

which you can replace by opening the lamp cover on the bottom of the

projector (see page 26). Do not open any other part of the projector. If

your projector needs repair, call your local Authorized Service Provider

or In Focus Technical Support as described on page 4. Before you call,

refer to “Troubleshooting” starting on page 29 to see if you can resolve

the problem yourself.

INTRODUCTION

The In Focus LP 740™ is a multimedia projector that packs SXGA

graphics (1280x1024) with 16.7 million colors. It generates crisp,

clear images using a new and innovative reflective technology.

The LP 740 is ideal for high-performance business, engineering

and imaging applications that demand exceptional resolution

and color quality.

NOTE: You can resize your

640x480, 800x600, or

1024x768 images to 1280x1024

by pressing the Resize button on

the keypad or remote.

Image Resolution

The SXGA resolution of the 740’s projected image is 1280x1024. If

your computer’s screen resolution is higher than 1280x1024, reset

it to a lower resolution before you connect the 740.

Compatibility

The projector is compatible with a wide variety of computers and

video devices, including:

•IBM, SUN, SGI, and selected HP and DEC workstations, up to

1280x1024 resolution.

•IBM-compatible computers, including laptops, up to 1280x1024

resolution.

•Apple Macintosh and PowerBook computers up to 1280x1024

resolution.

•Most standard VCRs, camcorders and laser disc players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to

make sure all are included. Contact your In Focus dealer imme-

diately if anything is missing.

If you are experienced in setting up presentation systems, use the

LP 740 Quick Start card that was included in the shipping box. For

complete details on connecting and operating the projector, refer

to this User’s Guide. User’s Guides are also available for down-

load from our website at www.infocus.com.

Introduction

NOTE: The contents of your

shipping box may vary depending

on the projector configuration

you’ve ordered.

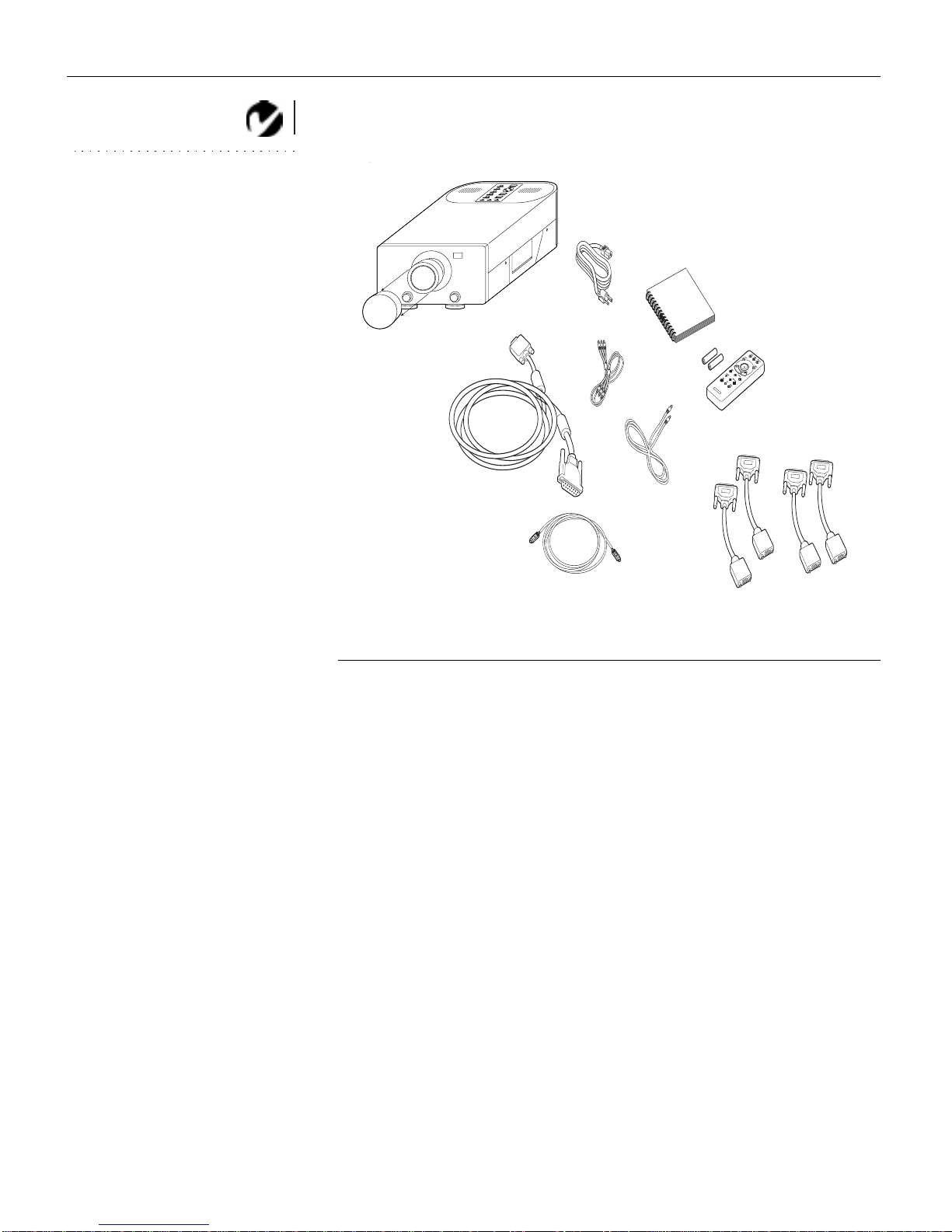

FIGURE 1

Shipping box contents

1. LP 740 projector with lens cap 6. SGI adapters

2. power cord 7. S-video cable

3. LP 740 User’s Guide 8. computer cable

4. remote control and batteries 9. video cable

5. SUN adapters 10. audio cable

FIGURE 2

Side view of projector

FIGURE 3

Back view of projector

lens cap foot adjuster buttons

speakers

keypad

handle

L R

Computer

Data Out Data In

Audio Out

Audio In

Remote RS-232

Video

Computer

L R

S C

Audio In

Video In

L R

power

cord

connector vent fan

connector panel IR receiver

Introduction

Usage Guidelines

•Do not look directly into the projection lens when the projector

is turned on. The bright light may harm your eyes.

•Do not block the grills on the projector. Restricting the air flow

can cause it to overheat and turn off. If this happens, you must

wait a minute before attempting to turn it back on.

•Handle the projector as you would any product with glass

components. Be especially careful not to drop it.

•Avoid leaving the projector in direct sunlight or extreme cold

for extended periods of time. If this happens, allow it to reach

room temperature before use.

•This projector is not intended for use in a mainframe computer

room as defined in the Standard for the Protection of Electronic

Computer/Data Processing Equipment, ANSI/NFPA 75.

•Transport the projector in a vendor-approved hard or soft case.

Part numbers for these cases are listed on page 34. Call your In

Focus dealer to order.

If You Need Assistance

The first place to look for help is in this manual. Be sure to check

the guidelines in “Troubleshooting” on page 29.

If this manual doesn’t answer your question, call your In Focus

dealer. You can also call In Focus Customer Service directly at

1-800-799-9911. Call between 5 a.m. and 5 p.m. PST, Monday

through Friday. In Europe, call In Focus in The Netherlands at

(31) 23-5540310. In Singapore, call (65) 740-6435. Or, send us an

e-mail at techsupport@infocus.com

Our World Wide Web address is http://www.infocus.com.

Warranty

This product is backed by a limited one-year warranty. The

details of the warranty are printed at the back of this manual.

Longer term warranties can be purchased from your In Focus

dealer. Refer to page 34 for part numbers.

SETTING UP THE PROJECTOR

1Place the projector on a flat surface parallel to the floor.

•The projector must be within 10 feet (3 m) of your power

source and within 6 feet (1.8 m) of your computer.

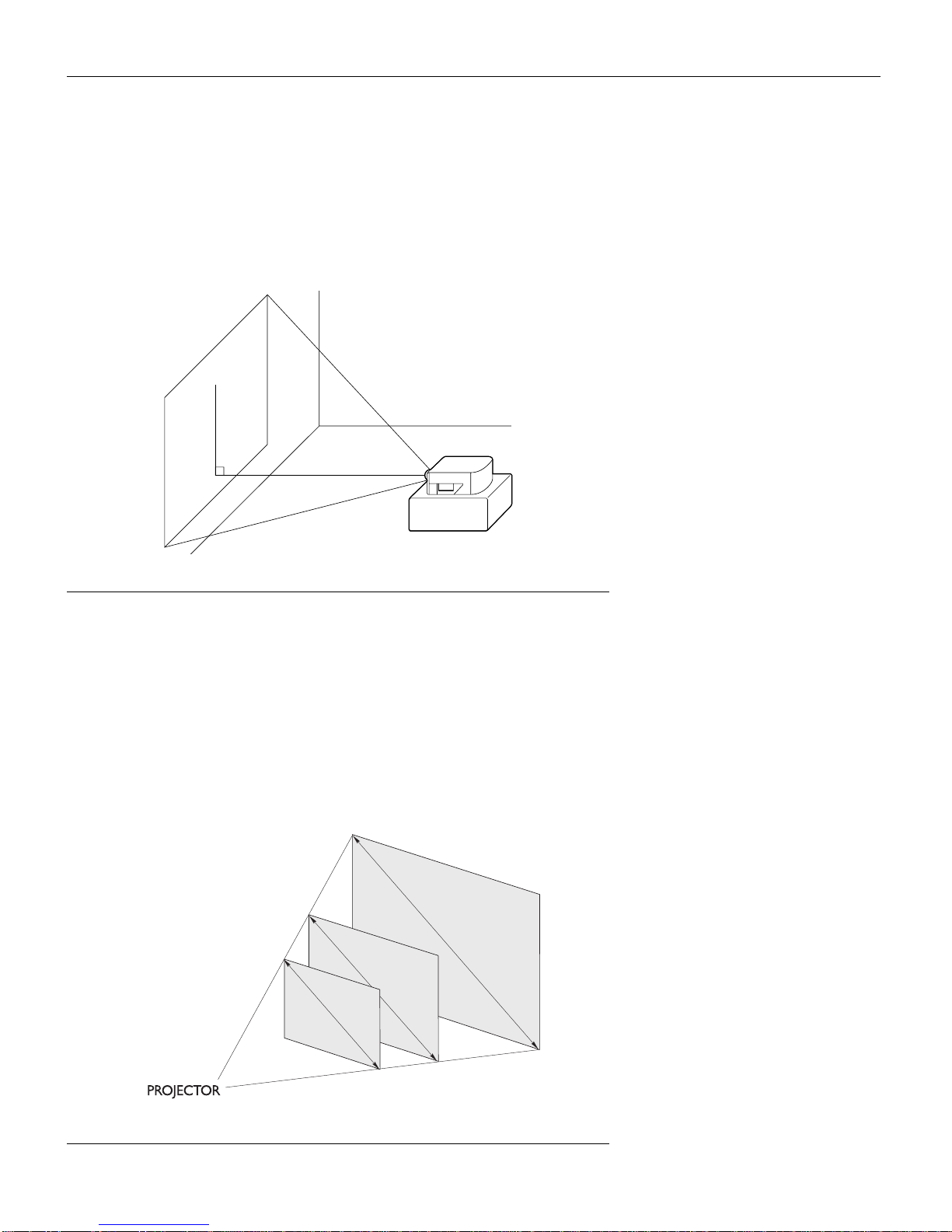

FIGURE 4

Placing the projector

2Position the projector the desired distance from the screen.

The distance from the lens of the projector to the screen deter-

mines the size of the projected image. Figure 5 shows three

projected image sizes. For more information about image size,

see “Projected Image Size” on page 41.

3Make sure the projector and your computer are turned off.

FIGURE 5

Projected image size

3.5ft.

15ft.

6.1ft.

5.6 ft.10 ft. 25 ft.

Setting up the Projector

NOTE: Before you continue,

make sure the projector and your

equipment are turned off. If you’re

connecting a computer, make sure

the distance between it and the

projector is 6 feet or less.

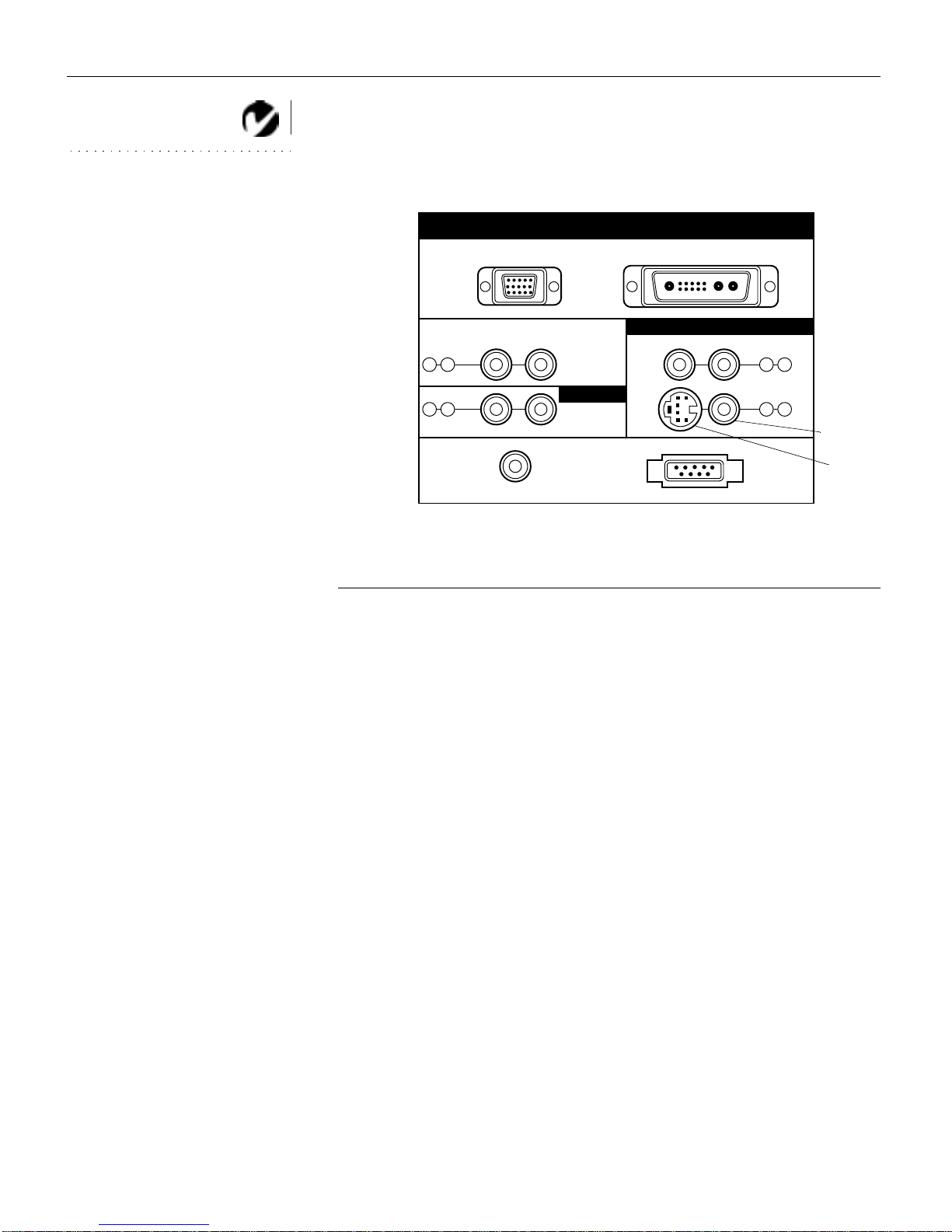

FIGURE 6

Connector panel

L R

Computer

Data Out Data In

Audio Out

Audio In

Remote RS-232

Video

Computer

L R

S C

Audio In

Video In

L R

S-video

composite

video

wired remote

L/R audio

monitor computer

external

speakers

computer

audio

RS-232 input
