Infinix X697 Manuel utilisateur

Infinix X697

User Manual (C)

CTP+LCM)6.95FHD

F hsg asm

PCBA MB

Bat

Motor Linea

PCBA SUB

SPK

UP SPK Con Graphite Film

Bat FPC con rubber

LCM CONN Rubber

CAM AF 64M

CAM FF 2M

CAM AF 13M

Coaxial Cable

SPK

CAM FF 16M

MAIN Cop foil

F CAM Con Graphite Film

PA Tcs Rubber

F CAM Rubber

MAIN Graphite Film

LT sensor Rubber

R CAM Rubber

R CAM Con Foams 64M

R CAM Con Foam 2M

R CAM Con Foams 13M

FPC MAIN

DOWN SPK Graphite Film

MAIN Waterproof Mylar

R CAM Deco asm

R flash Lens

PCBA SUB FLASH

FPC Side Key

R CAM Lens

Mi housing

screw L3.5

REC Deco part

F CAM Frame

MAIN WaterproofFrameasm

Card Holder

Earphone Rubber

USB Rubber

DOWN SPK Frame asm

screw L2.5

Bat cover asm

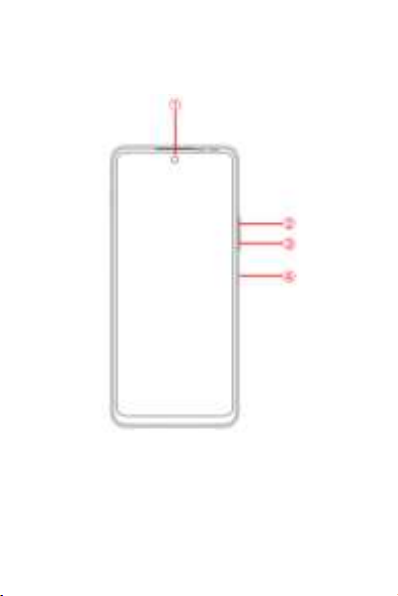

Know your phone

1. Front camera

2. Volume + key

3. Volume - key

4. Power key & side fingerprint sensor

①

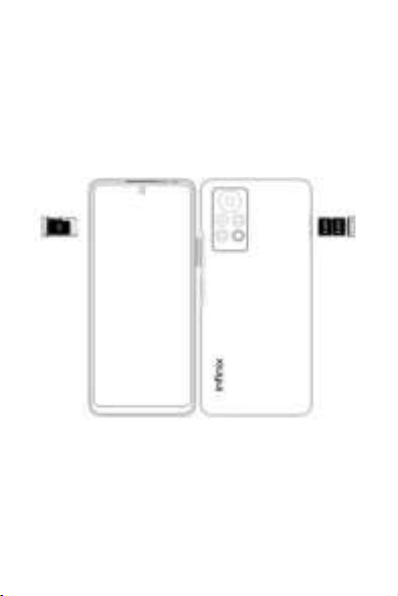

SIM/SD card installation

1. Power off mobile.

2. Refer to the following picture for SIM / SD card

installation.

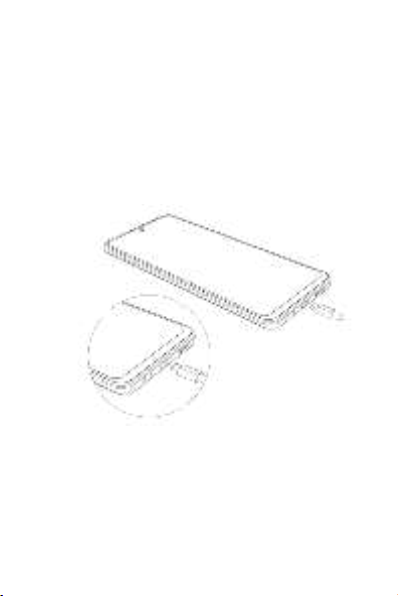

Charging the phone

You can charge your device using a charger or by connecting

it to the computer using a USB cable (comes with the

phone).

Use only INFINIX charger and cables. Other chargers or

cables may damage the device. This will invalidate your

phone warranty.

FCC Statement

1.This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received,

including interference that may cause undesired operation.

2.Changes or modifications not expressly approved by the

party responsible for compliance could void the user's

authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.

This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.`

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician

for help.

SAR Information Statement

Your wireless phone is a radio transmitter and receiver. It is

designed and manufactured not to exceed the emission

limits for exposure to radiofrequency (RF) energy set by the

Federal Communications Commission of the U.S.

Government. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for

the general population. The guidelines are based on

standards that were developed by independent scientific

organizations through periodic and thorough evaluation of

scientific studies. The standards include a substantial safety

margin designed to assure the safety of all persons,

regardless of age and health. The exposure standard for

wireless mobile phones employs a unit of measurement

known as the Specific Absorption Rate, or SAR. The SAR

limit set by the FCC is 1.6 W/kg. * Tests for SAR are

conducted with the phone transmitting at its highest

certified power level in all tested frequency bands.

Although the SAR is determined at the highest certified

power level, the actual SAR level of the phone while

operating can be well below the maximum value. This is

because the phone is designed to operate at multiple

power levels so as to use only the power required to reach

the network. In general, the closer you are to a wireless

base station antenna, the lower the power output. Before a

phone model is available for sale to the public, it must be

tested and certified to the FCC that it does not exceed the

limit established by the government adopted requirement

for safe exposure. The tests are performed in positions and

locations (e.g., at the ear and worn on the body) as required

by the FCC for each model. The highest SAR value for this

model phone when tested for use at the ear is 1.396W/Kg

and when worn on the body, as described in this user guide,

is 0.581W/Kg(Body-worn measurements differ among

phone models, depending upon available accessories and

FCC requirements). The maximum scaled SAR in hotspot

mode is 0.581W/Kg. While there may be differences

between the SAR levels of various phones and at various

positions, they all meet the government requirement for

safe exposure. The FCC has granted an Equipment

Authorization for this model phone with all reported SAR

levels evaluated as in compliance with the FCC RFexposure

guidelines. SAR information on this model phone is on file

with the FCC and can be found under the Display Grant

section of http://www.fcc.gov/ oet/fccid after searching on

FCC ID: 2AIZN-X697 Additional information on Specific

Absorption Rates (SAR) can be found on the Cellular

Telecommunications Industry Asso-ciation (CTIA) web-site

at http://www.wow-com.com. * In the United States and

Canada, the SAR limit for mobile phones used by the public

is 1.6 watts/kg (W/kg) averaged over one gram of tissue.

The standard incorporates a sub-stantial margin of safety to

give additional protection for the public and to account for

any variations in measurements.

Body-worn Operation

This device was tested for typical body-worn operations. To

comply with RF exposure requirements, a minimum

separation distance
