Infinix X666 Manuel utilisateur

Infinix X666

User Manual (C)

Explosion diagram specification

P740AE 6.6HD+V/MDT Panda/B lack INCELL

assembly

2 P740AE LCM CONDUCT FOAM 2

P740AE LCM CONDUCT FOAM 1

P740AE REC DECO

P740AE REC NET

P740AE FRG GRAPHITE

P740AE FRO FLASH MYLAR

P740AE SIM MYLAR

P740AE CPU GRAPHITE SHEET

P740AE FRO HSG PART

P740AE SIM RUBBER

P740AE REC PET

P740AE SIM FOAM

P740AE FLAS H GUIDE

P740AE CAM PRESS FOAM

P740AE PL GUIDE

P740AE PL RUBBER

P740AE REAR CAM1 COPPER FOIL

P740AE BB SHIELD COPPER FOIL

P740AE REC FOAM

P740A E Receiver

P740AE FRO CAM RUB TT

P740AE Front cam

P740AE PCBA

P740AE Screw1

P740AE CARD DOOR ASSY

P740AE FOAM LCD WATERPROOF

P740AE FOAM FIN WATERPROOF

P740AE Back cam

P740AE FOAM VICE CAM REAR

P740AE SEAL FOAM MAIN FPC BTB

P740AE LCM CON STEEL

P740AE SEAL FOAM FLASH

P740AE CAM FLA 2

P740AE ADH FLASH

P740AE FOAM BTB LCM PCB UP

P740AE FOAM BTB BATTERY

P740AE RF SHI GRAPHITE

P740AE NFC FPC ASSY

P740AE Main Back cam

P740AE FOAM MAIN CAM REAR

P740AE CONDUCT SPONGE FRO CAM

P740AE REA HSG UP

P740AE Screw2

P740AE BAT COV GRAPHITE SHEET

P740AE BAT WATERPROOF PORON

P740AE BAT CAM SPONGE

P740AE Antenna GPS & Antenna MHB-UHB

MIMO2

50 P740AE Diversity antenna UHB & WiFi

P740AE Diversity antenna LMB

P740AE Antenna MHB-UHB MIMO1 & Main Antenna 5G

P740AE BAT KEY

P740A E Battery cover

P740AE ADH CAM LEN

P740AE CAM LEN

P740AE BAT PORON

P740AE Main Antenna HB-4G

P740AE Main Antenna LMB

P740AE MIC RUBBER

P740AE MIC ADHES IVE

P740AE BOX GRAPHITE SHEET

P740AE REA HSG DOWN

P740AE SPEAKER FOAM

P740AE FOAM MAIN FPC BTB DOWN

P740AE SPK

P740AE SPEAKER FOAM

P740AE Coaxial black

P740AE Coaxial white

P740AE SPEAKER CONDUCT FOAM

P740AE SPEAKER RUBBER

P740AE battery

P740AE SPEAKER NET

P740AE FINGER

P740AE Sub PCBA

P840AE BATT PRO MEM

P740AE Moto

P740AE JACK RUB

P740AE BAT ADHESIVE

P740AE USB RUB

P740AE MIC FOAM

P740AE SPK FPC ASSY

P740AE SPEAKER NET 1

P740AE SIDEKEY FPC ASSY

P740AE USB CONDUCT FOAM

P740AE SIDEKEY FPC CONDUCT

P740AE LCD graphite flake

Know your phone

1. Front camera

2. Volume + key

3. Volume - key

1. Power key & side fingerprint sensor

SIM/SD card installation

1. Power off mobile.

2. Refer to the following picture for SIM / SD card

installation.

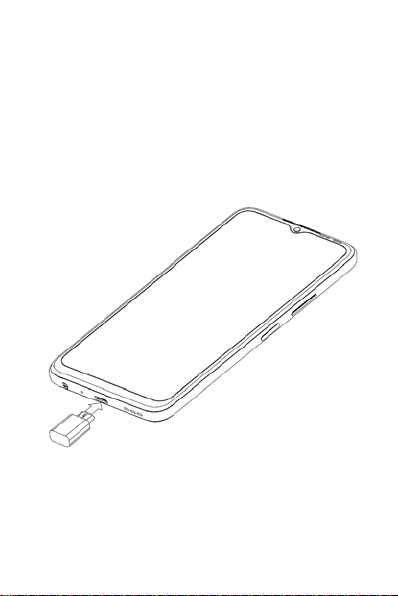

Charging the phone

You can charge your device using a charger or by connecting

it to the computer using a USB cable (comes with the

phone).

Use only INFINIX charger and cables. Other chargers or

cables may damage the device. This will invalidate your

phone warranty.

FCC Statement

1. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received,

including interference that may cause undesired operation.

2. Changes or modifications not expressly approved by the

party responsible for compliance could void the user's

authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.

This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician

for help.

SAR Information Statement

Your wireless phone is a radio transmitter and receiver. It is

designed and manufactured not to exceed the emission

limits for exposure to radiofrequency (RF) energy set by the

Federal Communications Commission of the U.S.

Government. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for

the general population. The guidelines are based on

standards that were developed by independent scientific

organizations through periodic and thorough evaluation of

scientific studies. The standards include a substantial safety

margin designed to assure the safety of all persons,

regardless of age and health. The exposure standard for

wireless mobile phones employs a unit of measurement

known as the Specific Absorption Rate, or SAR. The SAR

limit set by the FCC is 1.6 W/kg. * Tests for SAR are

conducted with the phone transmitting at its highest

certified power level in all tested frequency bands.

Although the SAR is determined at the highest certified

power level, the actual SAR level of the phone while

operating can be well below the maximum value. This is

because the phone is designed to operate at multiple

power levels so as to use only the power required to reach

the network. In general, the closer you are to a wireless

base station antenna, the lower the power output. Before a

phone model is available for sale to the public, it must be

tested and certified to the FCC that it does not exceed the

limit established by the government adopted requirement

for safe exposure. The tests are performed in positions and

locations (e.g., at the ear and worn on the body) as

required by the FCC for each model. The highest SAR value

for this model phone when tested for use at the ear is

1.184W/Kg and when worn on the body, as described in

this user guide, is 1.186W/Kg (Body-worn measurements

differ among phone models, depending upon available

accessories and FCC requirements). The maximum scaled

SAR in hotspot mode is 1.379W/Kg. While there may be

differences between the SAR levels of various phones and

at various positions, they all meet the government

requirement for safe exposure. The FCC has granted an

Equipment Authorization for this model phone with all

reported SAR levels evaluated as in compliance with the

FCC RFexposure guidelines. SAR information on this model

phone is on file with the FCC and can be found under the

Display Grant section of http://www.fcc.gov/ oet/fccid after

searching on

FCC ID: 2AIZN-X666 Additional information on Specific

Absorption Rates (SAR) can be found on the Cellular

Telecommunications Industry Asso-ciation (CTIA) web-site

at http://www.wow-com.com. * In the United States and

Canada, the SAR limit for mobile phones used by the public

is 1.6 watts/kg (W/kg) averaged over one gram of tissue.

The standard incorporates a sub-stantial margin of safety to

give additional protection for the public and to account for

any variations in measurements.
