Infinity Interlude Series Manuel utilisateur

Interlude Series

IL60 L/R

Powered Loudspeaker

Service Manual

Infinity Systems, Inc

250 Crossways Park Dr.

Woodbury, New York 797

REV 55/2005

IL60

CONTENTS

SPECIFICATIONS …….……………………………………………….3

DETAILED SPECIFICATIONS …………………….…………………4

CONTROLS and CONNECTIONS …………………….….…………6

OPERATION……………………………………..………..…….……..10

BASS OPTIMIZATION SYSTEM……………………….….…………10

MECHANICAL PARTS LIST…………………….……………………12

EXPLODED VIEW ……………………………………….……………13

EXPLODED VIEW OF AMPLIFIER…………………….……………14

SERVICE TIPS……………………………..……………………….…15

TEST SET UP PROCEDURE……………………..…….……………16

IL60 ADJUST BIAS PROCEDURE………………..…………………17

SERVICE BULLETIN INF2000-04…….…………….….……………18

SERVICE BULLETIN INF2001-04…….…………….….……………19

TECH TIP INFTT2003-03…….…………….…………………………21

PACKAGING …………………………….………………………….…22

PRINTED CIRCUIT BOARD DIAGRAMS………………..…………23

ELECTRICAL PARTS LIST (120v)…………………….….…………27

INTEGRATED CIRCUIT DIAGRAMS ………………………………33

WIRING DIAGRAM CROSSOVER NETWORK SCHEMATIC..….34

IL60 SCHEMATICS…………..………….……………………………35

IL60 L/R

Specifications

IL60 L/R Frequency Response: 28Hz - 22,000Hz (±3dB)

Recommended Amplifier Power Range 15-175 watts*

Subwoofer Amplifier Output: 500 watts (In to 8Ωfrom 20 Hz - 100Hz

with no more than 0.1% THD)

Sensitivity: 89dB (2.83V @ 1 meter)

Nominal Impedance: 8Ω

Crossover Frequencies: 150Hz; 500Hz,2800Hz, 24dB/octave

Low-Frequency Driver: 12" C.M.M.D., magnetically shielded

Mid-Bass Driver: 6-1/2” C.M.M.D., magnetically shielded

Midrange Driver: 4” C.M.M.D., magnetically shielded

High-Frequency Driver: 1” C.M.M.D., magnetically shielded

Dimensions (H x W x D): 48" x 9-1/4" x 17-1/4"

(1219mm x 235mm x 438mm)

Weight: 75 lb (34kg)

* The maximum recommended amplifier power rating will ensure proper system headroom to allow

for occasional peaks. We do not recommend sustained operation at these maximum power levels.

Detailed Specifications

IL60 L/R

Detailed Specifications (Cont.)

IL60 L/R

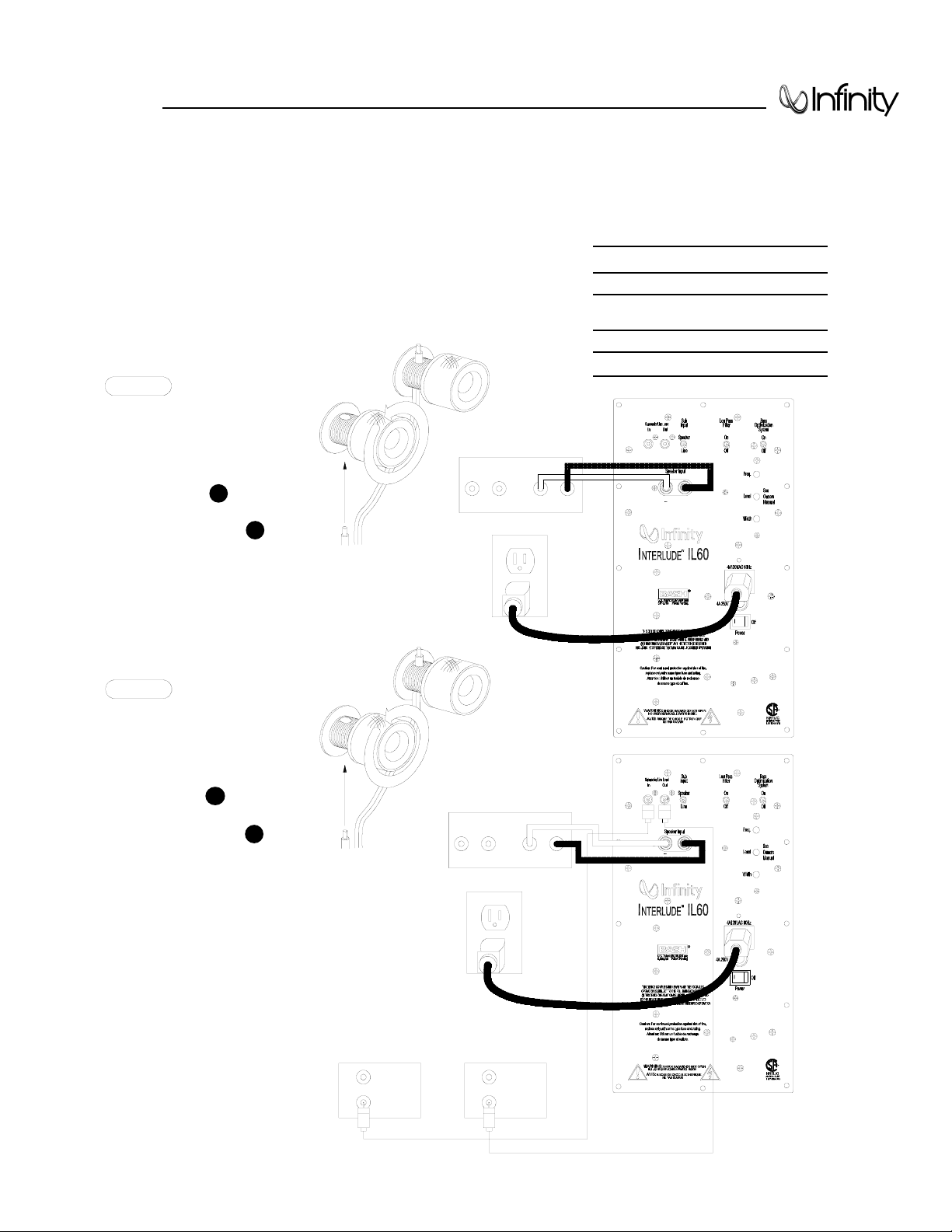

Controls and Connections

IL60 L/R

Controls and Connections

SPEAKER

OUTPUTS

+- +-

SPEAKER

OUTPUTS

+- +-

(ONE CHANNEL SHOWN)

AMPLIFIER/RECEIVER

LEFT RIGHT

AMPLIFIER/RECEIVER

SPEAKER OUTPUTS

(ONE CHANNEL SHOWN)

PREAMP OUTPUTS AMPLIFIER INPUTS

1. LOOSEN TERMINALS

2. INSERT BARE END:

TIGHTEN TERMINALS

3. SET

INPUT SUB

TO "LINE LEVEL"

4. SET

LOW-PASS FILTER

"ON"

METHOD 2

NO STRIPE = -

BLACK = -

STRIPE= +

RED = +

00354

00359-2

1. LOOSEN TERMINALS

2. INSERT BARE END:

TIGHTEN TERMINALS

3. SET

INPUT SUB

TO "SPEAKER"

4. SET

LOW-PASS FILTER

"ON"

METHOD 1

NO STRIPE = -

BLACK = -

STRIPE= +

RED = +

AC CORD

The Interlude IL50 and IL60 offer unprecedented flexibility for connecting the

system to any type of audio or home-theater system. Consult the table at right

to determine which system description most closely matches your own, then

follow the hook-up method corresponding to that system.

If none of these system configurations seem to match yours, consult your dealer

or Infinity customer service for direction on how best to hook up your system.

For methods 2, 3a, 3b and 4, make sure all bass-management features are

properly set. The Audio channels should all be set to “Small” or “High-Pass”

and the subwoofer set to “On.”

2-Channel receiver or integrated amplifier 1

that has no subwoofer output or

Pre-out/Main-In connectors

2-Channel receiver or integrated amplifier 2

with preamp output and input connectors

2-Channel system with separate preamplifier 2

and power amplifier

Dolby* Pro Logic* with THX®, Dolby Digital, 3a

or DTS®receiver with a filtered subwoofer

(or LFE) output connector

Dolby Digital or DTS processor with separate 3b

power amplifiers or multichannel amplifier

Non-THX certified Dolby Pro Logic receiver 4

with full-range subwoofer outputs

System Type Connection

Methods

IL60 L/R

METHOD 3a

NO STRIPE = -

BLACK = -

STRIPE= +

RED = +

00354

STRIPE = +

METHOD 3b

BLACK = -

NO STRIPE = -

RED = +

Controls and Connections (Cont.)

IL60 L/R

Controls and Connections (Cont.)

SUBWOOFER

OUTPUTS

(ONE CHANNEL SHOWN)

RECEIVER

SPEAKER

OUTPUTS

1. LOOSEN TERMINALS

2. INSERT BARE END:

TIGHTEN TERMINALS

3. SET

INPUT SUB

TO "LINE LEVEL"

4. SET

LOW-PASS FILTER

TO "ON"

METHOD 4

STRIPE = +

NO STRIPE= -

BLACK = -

RED = +

AC CORD

00395-4

Final Positioning

After correctly connecting the loudspeaker and

verifying that both the subwoofer and main section

portions are playing, it is time to optimize the

system for your particular listening room.

Earlier, you placed the loudspeakers in their general

location. Finding the exact location for optimum

performance sometimes only involves moving the

speakers a few inches in any direction. We urge

you, therefore, to experiment with placement until

your speakers deliver their full potential. When the

speakers are moved inward (toward each other)

there is generally better focus of instruments and

vocalists; however, moving the speakers too close

together can reduce the spaciousness of the stage

effect and you may need to experiment with the

trade-off between focus and imaging. If your

listening room is larger than average and your

listening position is relatively far from the speakers,

wider placement of the speakers may be required.

IL60 L/R

Operation/Bass Optimization S stemTM
