Infinity ERS 110DT Manuel utilisateur

ERS 110II

ERS 110DT

ERS 210II

ERS 310

ERS HV250

Owner’s Guide

TOTAL SPEAKER SOLUTIONS

™

INTRODUCTION

Infinity ERS™Series

The ERS Series of in-wall/ceiling loudspeakers continues

Infinity’s longstanding commitment to accurate sound

reproduction. Our patented Ceramic Metal Matrix Diaphragm

(CMMD™) drivers and precision dividing networks deliver

uncompromised performance in any stereo, multichannel home

theater or whole-house music system.

Unpacking the Speakers

Carefully unpack the speakers. If you suspect damage from transit,

report it immediately to your dealer and/or delivery service. Keep

the shipping carton and packing materials for future use.All

models include a mounting template and paint shield.

2ERS IN-WALL SPEAKERS

PLANNING YOUR SYSTEM

Before deciding where to best place your speakers, survey your

room and study Figures 1–3.

Couch

Left

Front

Channel

Right

Front

Channel

Infinity Subwoofer

(optional)



Couch

Left

Front

Channel

Left

Surround

Channel

Right

Surround

Channel

Right

Front

Channel

Center

Channel

Infinity Subwoofer

(optional)



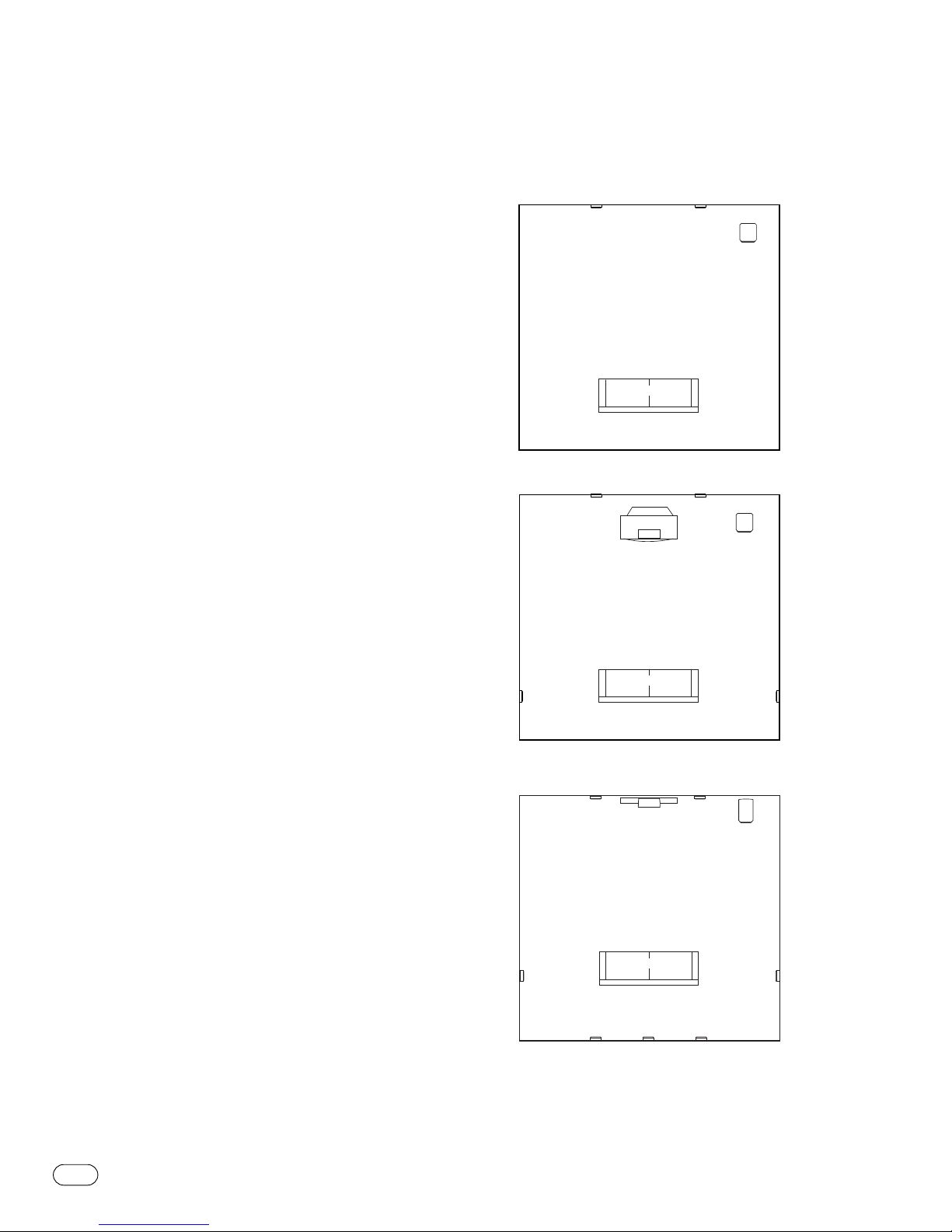

Figure 2. This overhead view shows a typical home theater

system arrangement.

Figure 1.

Figure 3.This overhead view shows a 6- or 7-channel home

theater system arrangement. Left/right rear channels are for

a 7-channel system. Center rear channel is for a 6-channel

system.

Note: Figures 1, 2 and 3 show recommended speaker locations.

You may also follow these general placement suggestions

when installing the speakers in the ceiling.

Couch

Left

Front

Channel

Left

Surround

Channel

Right

Surround

Channel

Right

Front

Channel

Center

Channel

Left

Rear

Channel

Right

Rear

Channel

Center

Rear

Channel

(above or below TV) Subwoofer

ERS IN-WALL SPEAKERS

INSTALLATION

The ERS Series in-wall speakers were designed to be easily

installed. However, if you are unsure of your ability to properly

install these loudspeakers, please contact your dealer or a

qualified installer.

Tools Needed

PLACEMENT

Stereo

Before deciding where to place your ERS Series speakers, survey

your room and think about placement, keeping the following

points in mind, and using Figure 1, on previous page,as a guide:

• For best results, place the speakers 6'–8' apart.

• When installing in the wall, position each speaker so that the

tweeter is as close to ear level as practical.

• Refer to“Home Theater”below if you also plan to use the

speakers in a home theater system.

HomeTheater

For front-channel use, place one speaker on the left and another

on the right along either side of the television.

A center channel speaker should go directly above or below the

television and can be an in-wall or freestanding center channel.

For left and right surround channels, place one speaker on the

left and another on the right, to the side of or slightly behind the

listening area.The surround speakers should be mounted at a

height of between 4 feet and 7 feet.

In 6- or 7-channel configurations, place the rear channel(s)

behind the listening position, as shown in Figure 3.

Note: An Infinity powered subwoofer will add impact and

realism to both music and film soundtracks. Contact your

Infinity dealer for recommendations on subwoofer models for

your application.

Proper placement of the speakers is an important step

in obtaining the most realistic soundstage possible.These

recommendations are for the optimal placement of the loud-

speakers. Use these placement recommendations as a guide.

Slight variations will not diminish your listening pleasure.

Phillips #2 screwdriver

Measuring tape Utility knife

Pencil

Carpenter’s level Awl

4ERS IN-WALL SPEAKERS

SPEAKER CONNECTIONS

Turn Off All Power

Before completing the installation, you must connect your

speakers to your system. First, turn off all audio-system power.

Use high-quality speaker wire to make your connections. Use

at least #16-gauge speaker wire with polarity coding. Heavier

gauge wire is recommended for larger distances. Consult the

chart below left or your dealer for recommendations.The side

of the wire with a ridge or other coding is usually considered

positive (+) polarity. Also, consult the owner’s manuals

that were included with your amplifier or receiver to confirm

connection procedures.

Observe polarities when making speaker connections,as

shown in Figure 4. Connect each + terminal on the back of

the amplifier or receiver to the respective + (red) terminal on

each speaker. Connect the – (black) terminals in the same way.

Important!

Do not reverse polarities (i.e., + to – , or – to +) when making

connections. Doing so will cause poor imaging and diminished

bass response. Be certain that positive and negative wire strands

are completely isolated to avoid short circuits that may damage

your equipment.

Wire Length Recommended Size

Up to 100 ft. 16-gauge

Greater than 100 ft. 12-gauge

Figure 4.

EXISTING CONSTRUCTION

ERS IN-WALL SPEAKERS

ERS 210II, ERS HV250

1. Remove the plastic paint

shield from the speaker

frame.

2. Determine the correct speaker

location.

Note: Use the included template

when cutting the drywall.

3. Note: Always allow at least

one-half inch between a wall

stud and the speaker cutout or

the locking tabs will not be

able to swivel into place.

≥1/2"

4. Cut the drywall.

5. Connect the speaker wires

to the speaker.

8.Attach the metal grille.

6. Place the speaker

assembly in the wall.

7. Screw down each of the six

Phillips head screws.The locking

tabs will swivel into place and

secure the unit to the rear

surface of the drywall.

ERS 110II, ERS 110DT,ERS 310

1. Remove the plastic paint

shield from the speaker frame.

≥1/2"

4. Cut the drywall.

5. Connect the speaker wires

to the speaker.

6. Place the frame assembly

in the wall.

7. Screw down each of the

four Phillips head screws.The

locking tabs will swivel into

place and secure the unit to

the rear surface of the

drywall.

8.Attach the metal grille.

Note: Always allow at least

one-half inch between a wall

stud and the speaker cutout or

the locking tabs will not be

able to swivel into place.

2. Determine the correct speaker

location.

Note: Use the included template

when cutting the drywall.

6ERS IN-WALL SPEAKERS

NEW CONSTRUCTION

If you wish to preinstall a rough-in frame before the drywall

is installed, you will need to purchase the correct rough-in-frame

kit for your model:

Speaker Model Rough-In-Frame Kit

ERS 110II, ERS 110DT ERS 110RIF or IW6R RIF

ERS 210II ERS 210RIF

ERS 310 IW8R RIF

ERS HV250 IW55 RIF

Detailed installation instructions are supplied with the

rough-in kit.

Painting the Speaker Frame and Grille

ERS Series loudspeakers can be painted to match any décor.

If you wish to change their color, the satin finish on the grille

and frame will function as a primer coat. Before painting, install

the paint shield (inner section of template in the assembly kit)

securely into the recess in the baffle.This will protect the

speaker components and baffle from paint residue. Use a

high-quality spray paint, and apply a thin coat of color.

Be certain the grille perforations remain free of paint.

Filling them with paint will diminish the sound quality.

Note: Gently remove the acoustical foam blanket from

the grille before painting. Reattach the blanket after the

paint has dried.

OPERATION

Surround Modes

When using the system in a Dolby* Digital or DTS®home theater

system, make sure all speakers are set to“Small.”When using

the ERS Series in a Dolby Pro Logic* home theater system,

make sure the receiver’s center channel mode is set to“Normal.”

Some Dolby Digital-equipped receivers/processors offer different

setup options for each source or surround mode: e.g., CD-stereo,

videotape, Dolby or Pro Logic. In each case, follow your

equipment’s instructions to ensure that the subwoofer (if you have

one) output is turned on and that the speakers are set to“Small”

in each mode.

ERS IN-WALL SPEAKERS

Declaration of Conformity

We, Harman Consumer Group International

2, route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility that the products

described in this owner’s manual are in compliance

with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Laurent Rault

Harman Consumer Group International

Chateau-du-Loir, France 1/05

SPECIFICATIONS

ERS Series ERS 110II ERS 110DT ERS 310 ERS 210II ERS HV250

Frequency Range

47Hz – 22kHz (±3dB) 47Hz – 22kHz (±3dB) 45Hz – 22kHz (±3dB) 47Hz – 22kHz (±3dB) 45Hz – 22kHz (±3dB)

35Hz (–10dB) 35Hz (–10dB) 29Hz (–10dB) 35Hz (–10dB) 38Hz (–10dB)

Recommended 10 – 125 Watts 10 – 130 Watts 10 – 135 Watts 10 – 125 Watts 10 – 125 Watts

Amplifier Power Range (65 WPC)

Sensitivity 89dB 88dB/Channel 89dB 89dB 89dB

(2.83V @1 meter)

Nominal Impedance 8 8 /Channel 8 8 8

Crossover Frequency 2,300Hz; 2,400Hz; 2,300Hz; 2,300Hz; 2,600Hz;

24dB/Octave 12dB/Octave 12dB/Octave 24dB/Octave 12dB/Octave

Low-Frequency Driver(s) 6-1/2" (165mm) 6-1/2" (165mm) 8" (200mm) 6-1/2" (165mm) Dual 5" (130mm)

(CMMD™)Dual voice coil

High-Frequency Driver(s) 3/4" (19mm) Dual 3/4" (19mm) 1" (25mm) 3/4" (19mm) 3/4" (19mm)

(CMMD™)

External Dimensions (W x H) Diameter: 9-3/16" Diameter: 9-3/16" Diameter: 10-7/8" 8-3/4" x 12-3/4" 15-3/8" x 7-1/2"

(233mm) (233mm) (276mm) (222mm x 324mm) (391mm x 191mm)

Mounting Cutout Size (W x H) Diameter: 7-7/8" Diameter: 7-7/8" Diameter: 9-1/2" 7-5/8" x 11-3/8" 13-7/8" x 6-3/16"

(200mm) (200mm) (241mm) (194mm x 289mm) (352mm x 157mm)

Mounting Depth 3-1/2" (89mm) 3-1/2" (89mm) 4-1/4" (108mm) 3-1/4" (83mm) 3-7/8" (98mm)

Weight (Net) 3.1 lb (1.4kg) 4 lb (1.8kg) 5.6 lb (2.5kg) 3.5 lb (1.6kg) 5.7 lb (2.6kg)

Infinity continually strives to update and improve existing products, as well as create new ones.

The specifications and construction details in this and related Infinity publications are

therefore subject to change without notice.

Ω

Infinity Systems,250 Crossways Park Drive,Woodbury, NY 11797 USA 516.674.4INF (USA only) www.infinitysystems.com

* Trademarks of Dolby Laboratories. DTS is a registered trademark of DigitalTheater Systems, Inc.

Infinity is a registered trademark,and ERS and CMMD (patent nos. 6,327,372 and 6,404,897) are trademarks,of Harman International Industries, Incorporated. Part No.406-000-05203 1/05

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Infinity Intervenants

Infinity

Infinity Intermezzo 3.5c Manuel utilisateur

Infinity

Infinity DPF-8000 Manuel utilisateur

Infinity

Infinity Classia CC225 Instructions de montage

Infinity

Infinity Intermezzo 3.5c Manuel utilisateur

Infinity

Infinity Prelude MTS Center Manuel utilisateur

Infinity

Infinity Sigma Manuel utilisateur

Infinity

Infinity Total Solutions TSS-SAT800 Manuel utilisateur

Infinity

Infinity L-MPS Manuel utilisateur

Infinity

Infinity 2000.1 Manuel utilisateur

Infinity

Infinity Primus Theater Pack II Manuel utilisateur

Infinity

Infinity Intermezzo 4.1t Manuel utilisateur

Infinity

Infinity CLASSIA C255ES Manuel utilisateur

Infinity

Infinity Compositions Series Manuel utilisateur

Infinity

Infinity Reference 1021t Manuel utilisateur

Infinity

Infinity Total Solutions TSS-1200 Manuel utilisateur

Infinity

Infinity 652M Manuel utilisateur

Infinity

Infinity Crescendo CS 3006 Manuel utilisateur

Infinity

Infinity 602M Manuel utilisateur

Infinity

Infinity Beta 50 Manuel utilisateur

Infinity

Infinity Reference 6832cf Manuel utilisateur

Infinity

Infinity INTERLUDE IL40 Manuel utilisateur

Infinity

Infinity Total Solutions TSS-800 Manuel utilisateur

Infinity

Infinity REF-3002cfx Manuel utilisateur

Infinity

Infinity Overture 3 Compositions Series Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
