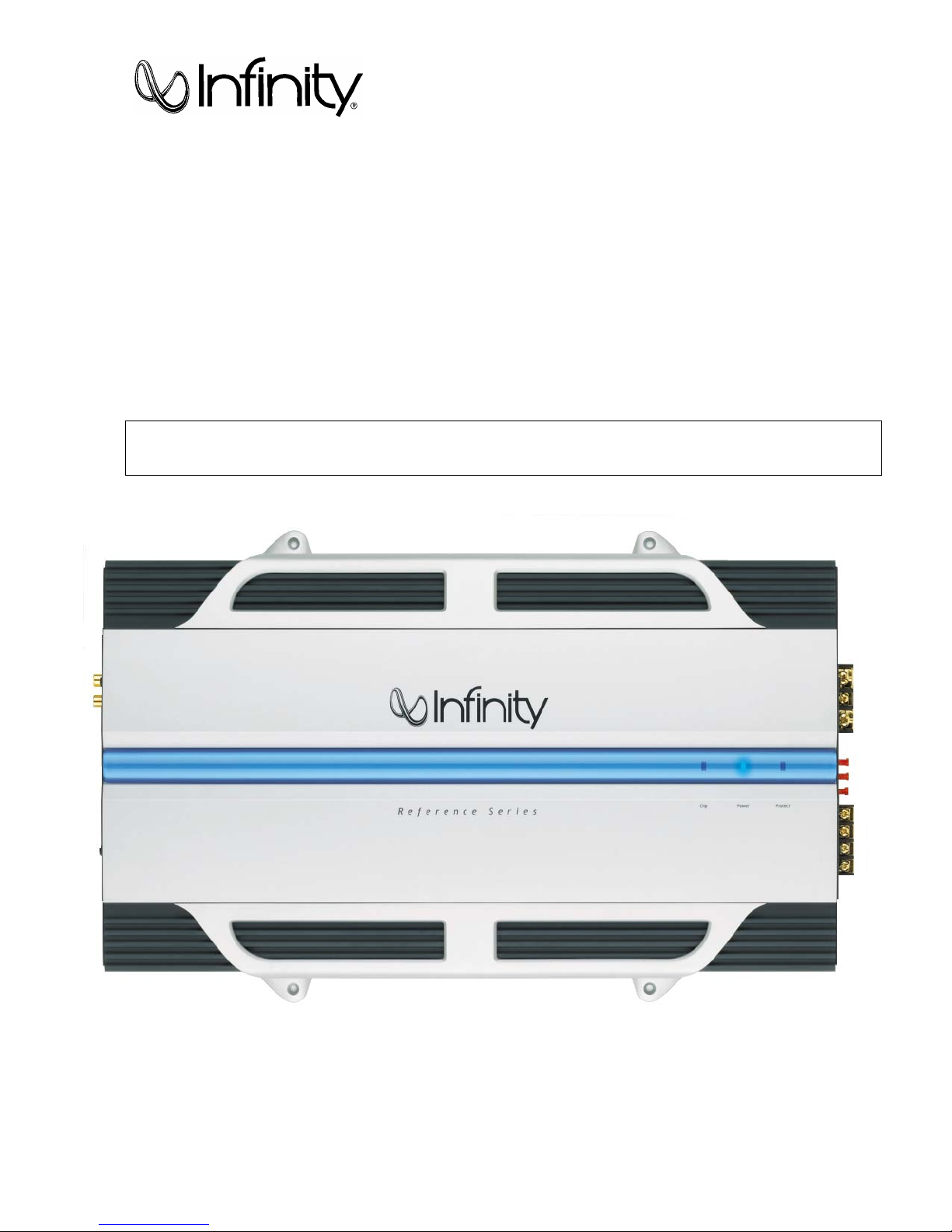

1 CHANNEL POWER AMPLIFIER

SERVICE MANUAL

Infinity Systems, Inc.

250 Crossways Park Dr.

Woodbury, New York 11797 Rev2aa10/2005

- CONTENTS -

SPECIFICATIONS ………………………………….……..1

FEATURES/TEST CONDITIONS……..…………………2

CONTROLS/CONNECTIONS………….……..…...…..…3

INSTALLATION………………….……...……..…...…...…5

BASIC TROUBLESHOOTING..…….…….………………7

TYPICAL SYSTEM WIRING..…….…….……………..…8

EXPLODED VIEW/PARTS LIST………………………....9

MECHANICAL PARTS LIST…………………………….10

AMPLIFIER BLOCK DIAGRAM…………………………11

P.C.B. DRAWINGS….…………………………………….12

ELECTRICAL PARTS LIST ……………………………. 16

REF 1211a ELECTRICAL PARTS LIST ADDENDUM…...…20

IC/TRANSISTOR PINOUTS..…………………………….21

REF 1210a SCHEMATICS………..…………..……..…..27

REF 1211a SCHEMATICS………..……………………..30

PACKING……………………….…………………………33

Reference 1210a/1211a Specifications

Output Power: 854W RMS x 1 @ 4 ohms; ≤1% THD + N

(14.4 VDC) 1300W RMS x 1 @ 2 ohms; ≤1% THD + N

Signal-to-noise ratio: 72dBA (reference 1W into 4 ohms)

Dynamic power: 1516W channels @ 2 ohms

Effective damping factor: 6.357 @ 4 ohms

Frequency response: 17Hz – 302Hz (-3dB)

Maximum input signal: 5.7V

Maximum sensitivity: Reference 1210a - 260mV

Reference 1211a - 75mV

DC Offset <50mV (-50%)

Output regulation: .132dB @ 4 ohms

Idle Current 2.8A

Input Impedance 22kΩ

Max Current Draw 70A @ 4 ohms

125A @ 2 ohms

Dimensions: 12 x 18 1/2 x 2 11/16” (L x W x D)

(305mm x 470mm x 68mm)

Fuse: 3 x 40A

Infinity continually strives to update and improve existing products, as well as create new ones. The specifications and details in

this and related JBL publications are therefore subject to change without notice.

Power Amplifier Reference 1210a/1211a

Features

x1-Channel Operation

xAdvanced MOSFET Oversized Floating Rail Power Supply

xFloating Ground Factory

-Head -Unit Speaker -Level input

xVariable lnput Sensitivity (250mV -6V)

xFully Complementary Output Stage with Class-D Voltage Amplification

xGold-plated Power, lnput and Output Connectors

x2-Ohm Stable

Test Conditions and Notes

xAll tests to be done, unless otherwise specified, from 10Hz to 302Hz at 14.4V DC

into 2 ohm loads and adjust the units gain so that with a .250 volt input signal the

unit is at Its maximum rated output. All measurements will be done using an

Audio precision system one and the supply voltage.

xAn A+ line voltage of 14.4V DC shall be applied to the unit under test for all

measurements unless otherwise specified. The voltage applied to the unit shall

be measured at the power connection on the Amplifier.

xSignal Source

Unless otherwise specified, all tests shall be conducted with the Audio Signal

Generator output configured to be balanced, less than or equal to 50 ohm source

impedance, and floating. The signal source "GND" shall be connected to the

Amplifier PWR GND at the Amplifier.

xOutput Load

Unless otherwise specified, all tests shall be conducted with 2 ohm resistive

loads having less than 10% reactive components at any frequency below 302Hz.

Each resistor shall have a value that remains within 1 %while dissipating the

rated output of the unit under test.

xPower Indicator Green LED steadily illuminates for normal operation. Illuminates

up Red LED blinks when protection circuitry is engaged, and during power up.

Power Amplifier Reference 1210a/1211a

If the amplifier’s fuse must be replaced, use

only the same type and rating as that of the

original. Do not substitute another kind.

The Reference amplifiers are capable of

delivering high power levels, and require a

reliable connection to the vehicle’s electrical

system in order to perform optimally. See

Figure 1 for connection location. Please

adhere to the following instructions carefully.

GROUND CONNECTION

Connect the amplifier’s Ground (GND) terminal

to a solid point on the vehicle’s metal chassis,

as close to the amplifier as possible. Refer to the

chart below to determine minimum wire-gauge

size. Sand away any paint from this location; use

a star-type-lock washer to secure the connection.

POWER CONNECTION

Connect a wire (see chart at right for appropriate

gauge) directly to the vehicle’s positive battery

terminal, and install an appropriate fuse holder

within 18" of the battery terminal. Do not

install the fuse at this time. Route the wire to

the amplifier’s location, and connect it to the

amplifier’s positive (+12V) terminal. Be sure to

use appropriate grommets whenever routing

wires through the firewall or other sheet metal.

Failure to adequately protect the positive wire

from potential damage may result in a vehicle

fire. When you are done routing and connecting

this wire to the battery and to the amplifier,

you may install the fuse at the battery. The

fuse value should be selected based on total

amplifier-current draw; see chart at right.

REMOTE CONNECTION

Connect the amplifier’s Remote (REMOTE)

terminal to the source unit’s Remote Turn-On

lead using a minimum of 18-gauge wire. If your

source unit does not have a remote turn-on

connection, connect the amplifier’s (REMOTE)

terminal to the vehicle’s accessory circuit.

WIRE-GAUGE CHART

Amplifier Maximum Minimum

Model Current Draw Wire Gauge

AWG

1210a/1211a 115A #4 AWG

These recommendations assume 7' – 10' wire

runs. If your installation differs markedly, you

will need to adjust the wire gauge accordingly.

SPEAKER CONNECTIONS

Refer to the application guides on the pages

that follow. Speaker connections should be

made using a minimum of 16-gauge wire.

NOTE: When using the low-level or high-level

inputs, the AUX outputs can be used to pass a

full-range line-level signal to another amplifier.

POWER CONNECTIONS

Figure 1.T

erminal-connection end plate.

Power Amplifier Reference 1210a/1211a

Figure 4. Reference subwoofer amplifier with one woofer connection.

Figure 3. Reference subwoofer amplifier with two woofer connections.

The Reference subwoofer amplifiers are

single-channel amplifiers.There are two sets of

terminals to make it easy to connect multiple

woofers. Either set of (+/–) terminals may be

used when connecting woofers.

To the right are two application diagrams to help

plan your subwoofer system installation. Figures

3 and 4 show how to configure the Reference

subwoofer amplifiers (models 311a, 611a and

1211a).

NOTE: For simplicity, Figures 3 and 4 do not

show power, remote and input connections.

NOTE: Minimum speaker load is 2 ohms.

APPLICATIONS –1201a/1211a

Power Amplifier

Reference 1210a/1211a

SETTING INPUT SENSITIVITY

1. Initially turn the INPUT LEVEL control(s) to

minimum (counterclockwise).

2. Reconnect the (–) negative lead to the vehi-

cle’s battery. Apply power to the audio system

and play a dynamic music track.

3. On the source unit, increase the volume

control to 3/4 volume. Slowly increase the

INPUT LEVEL control(s) toward three o’clock

until you hear slight distortion in the music.

Then reduce the INPUT LEVEL slightly until

distortion is no longer heard.

NOTE: After the source unit is on, blue LEDs (on

the top panel) will light, indicating the amplifier

is on. If not, check the wiring, especially the

remote connection from the source unit. Also

refer to “Troubleshooting” on page 7.

REMOTE LEVEL CONTROL (OPTIONAL)

All three Reference subwoofer amplifiers and

the 5761a amplifier have inputs for an optional

remote level control (100rc).This will allow the

subwoofer level to be adjusted from the listening

position. Connect the optional remote level

control using the RJ-11 jack on the side of the

amplifier. Install the control module in the front

of the vehicle within easy reach of the driver.

Both the underside of the dash and the center

console are suitable locations. Refer to the

mounting instructions accompanying the 100rc.

AUX OUTPUT

Reference amplifiers (except 5761a) are equipped

with full-range outputs that can be used to

connect additional amplifiers.

NOTE: When using the low- or high-level inputs,

the AUX outputs can be used to pass a full-range

line-level signal to another amplifier.

Figure 13. Control end panel.

Power Amplifier

Reference 1210a/1211a

STATUS LEDs

Clip: Indicates the amplifier is being overdriven,

and your speakers may be in danger. This

should blink only on musical peaks, and not

be on constantly.

Power: Indicates the amplifier is on.

Protection: Refer to “Troubleshooting” for specific

indications.

Figure 15. LED status.

SETTING DBO™(310a, 610a and 1210a)

The Dynamic Bass Optimizer (DBO) is used to

enhance low-frequency reproduction in a vehicle.

Conventional bass-boost circuits only increase

bass at a fixed frequency, and cause the amplifier

to consume considerable power. The DBO allows

you to adjust the frequency (20Hz – 80Hz) as well

as the boost level (up to 12dB; see Figure 14),

allowing you to fine-tune the bass in your system

to optimize performance.

For sealed enclosures, the DBO can be used

to enhance the lower bass region of sealed

enclosures.

For bigger/fuller bass, adjust the HP FREQ

between 35Hz and 45Hz; adjust the BOOST

control according to your preference.

For tighter-sounding bass, adjust the HP FREQ

between 45Hz and 55Hz; adjust the BOOST

control according to your preference.

For vented enclosures, the DBO should be used

as a subsonic filter to reduce overexcursion

of the woofers. Set the HP FREQ control 10Hz

below the tuning frequency of the enclosure

(e.g., 25Hz for a box tuning of 35Hz); adjust the

BOOST control to taste.This will conserve

amplifier power typically wasted on frequencies

below the tuned frequency of the enclosure.

For infinite-baffle applications, set the HP FREQ to

the speaker’s Fs value (reducing overexcursion of

the woofer); adjust the Boost control to taste.

Figure 14. Frequency-response curves show

typical DBO control ranges.

INSTALLATION AND SETUP (CONT.)

-9

-6

-3

-12 20 80 Freq. (Hz)

DBO HP FREQ Control

(adjusts cut-off

frequency)

HP FREQ

100Hz20Hz

-6

-12 20 80 Freq. (Hz)

DBO BOOST Control

(adjusts boost amount

at cut-off frequency)

BOOST

MAXMIN

Power Amplifier Reference 1210a/1211a

•

PROBLEM:

No audio (POWER LED is off).

CAUSE and SOLUTION:

No voltage at BATT+ and/or REM terminals, or

bad or no ground connection. Check voltages

at amplifier terminals with VOM.

•

PROBLEM:

No audio (PROTECT LED flashes every

4 seconds).

CAUSE and SOLUTION:

DC voltage on amplifier output. Amplifier may

need service; see enclosed warranty card for

service information.

•

PROBLEM:

No audio (PROTECT LED is on).

CAUSE and SOLUTION:

Amplifier is overheated. Make sure amplifier

cooling is not blocked at mounting location;

verify that speaker-system impedance is within

specified limits.

•

PROBLEM:

No audio (PROTECT and POWER LEDs flash).

CAUSE and SOLUTION:

Voltage less than 9V on BATT+ connection.

Check vehicle charging system.

•

PROBLEM:

No audio (PROTECT LED is on).

CAUSE and SOLUTION:

Voltage greater than 16V or less than 8.5V on

BATT+ connection. Check vehicle charging

system.

•

PROBLEM:

Distorted audio.

CAUSE and SOLUTION:

Input sensitivity is not set properly, or amplifier

or source unit is defective. Check INPUT LEVEL

setting, or check speaker wires for shorts or

grounds.

•

PROBLEM:

Distorted audio (PROTECT LED flashes).

CAUSE and SOLUTION:

Short circuit in speaker or wire. Remove

speaker leads one at a time to locate shorted

speaker or wire, then repair.

•

PROBLEM:

Music lacks “punch.”

CAUSE and SOLUTION:

Speakers are not connected properly. Check

speaker connections for proper polarity.

TROUBLESHOOTING

Power Amplifier Reference 1210a/1211a

Reference 1210a/1211a

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Infinity Amplificateur

Infinity

Infinity Kappa 202a Manuel utilisateur

Infinity

Infinity KAPPA K2 Manuel de programmation

Infinity

Infinity Kappa 255A Manuel utilisateur

Infinity

Infinity Basslink 4SC Manuel utilisateur

Infinity

Infinity 7540a Manuel utilisateur

Infinity

Infinity 5760a Manuel utilisateur

Infinity

Infinity Beta Powersource Digital 300 Manuel de programmation

Infinity

Infinity kappa series Manuel utilisateur

Infinity

Infinity 310a Manuel utilisateur

Infinity

Infinity 611A Manuel utilisateur

Infinity

Infinity DPA 275 Manuel de programmation

Infinity

Infinity K600 Manuel utilisateur

Infinity

Infinity 311a Manuel utilisateur

Infinity

Infinity reference series Manuel utilisateur

Infinity

Infinity Basslink 4SC Manuel utilisateur

Infinity

Infinity Reference 1300A Manuel utilisateur

Infinity

Infinity 5760a Manuel utilisateur

Infinity

Infinity Kappa 102a Manuel utilisateur

Infinity

Infinity 475a Manuel utilisateur

Infinity

Infinity REF-704a Manuel utilisateur

Infinity

Infinity 7520a Manuel utilisateur

Infinity

Infinity KAPPA FIVE Manuel utilisateur

Infinity

Infinity Kappa Center Manuel utilisateur

Infinity

Infinity Reference 5350A Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
