Infinite Peripherals DPP-250 Manuel utilisateur

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com

DPP-250 User Manual v1.01

Thermal Printer

DPP-250

User Manual

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com Page 2

DPP-250 User Manual v1.01

Legal notice

The Bluetooth®word mark and logos are owned by the Bluetooth SIG, Inc.

and any use of such marks by Infinite Peripherals is under license.

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com Page 3

DPP-250 User Manual v1.01

Contents

Contents...............................................................................................3

Technical Data.....................................................................................4

Box Contents.......................................................................................5

Compatible Devices............................................................................6

Getting Started ....................................................................................7

About Your DPP-250...........................................................................8

Status & Operating Modes ...............................................................10

Loading Paper ...................................................................................11

Diagnostic Information.....................................................................12

Self-test..............................................................................................13

Dip Switch Settings...........................................................................14

Memory Switch Settings...................................................................16

Communication Configuration.........................................................20

Bluetooth®Setup...............................................................................22

Loading Drivers.................................................................................23

Magnetic Card Reader (MS Version only).......................................24

Smart Card Reader (SC Version only).............................................25

Replacing Battery..............................................................................26

Developing Solution..........................................................................27

Troubleshooting................................................................................28

Contact Information..........................................................................29

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com Page 4

DPP-250 User Manual v1.01

Technical Data

Feature Specifications

Printing method Line thermal dot printing

Printing speed 60 mm/s (480 dots/sec) at 8.5 V

Print Width 48 mm / 384 dots per line

Resolution 203 dpi (8 x 8 dots/mm)

Dot pitch Horizontal – 0.125 mm (8 dots/mm)

Vertical – 0.125 mm (8 dots/mm)

Resident fonts A: 12 x 24 dots B: 9 x 16 dots

Loadable fonts C: 12 x 24 dots D: 9 x 16 dots

Resident Fonts Font А: 12 х24 dots (48 char. per line);

Font B: 9 х16 dots (64 char. per line);

Loadable Fonts Font C: 12 х24 dots (48 char. per line);

Font D: 9 х16 dots (64 char. per line);

Logo

Registration

1 Black & White BMP format ( 1-bit per pixel)

Size: 384 x 248

Input Buffer 128 KB (131072 bytes)

Resident

Barcodes

EAN13, EAN8, UPC-A, UPC-E, Codebar, Code39,

Code128, PDF417, QR Code

Communications

RS232 C – max. 115200 bps,

USB v 1.1, compatible with 2.0

Bluetooth®(Optional)

Readers Magnetic Card Reader - 3 track head, ISO7811 (optional)

Smart Card Reader, ISO 7816-1/2/3 (optional)

Emulation ESC/POS

Label/Black Mark Mode

Rechargeable Li-ion battery (7,4 V / 1100 mAh)

Battery capacity: Per Charge (~20,000 lines)

Power supply AC adapter – DC 9 V, 1 A

AC 100 – 240 V, 1,3 A, 50/60 Hz

Environment Operating temp. +0°C to +45°C @ 35 to 85 % RH

Storage temp. -20°C to +60°C @ 10 to 90% RH

Reliability (MTBF) 50km (printing rate 25% max)

Dimensions 86 (W) X 113 (D) Х57 (H)

Weight 295 g (without paper)

350 g (with paper)

Thermal paper 58mm +0/-1mm X 45mm diameter, thickness 60 μm

Table 1

Box Contents

Your IPC DPP-250 comes with the following items listed below:

Item Part Number Descriptions Image

1 DPP-250xx DPP-250 Thermal printer

2 - AC charger

3 - 1 Roll of thermal paper

4 - User's manual

5 - RS-232 interface cable

Table 2

Software ( Drivers & SDK ):

Because of the continually evolving Driver & SDK to support new

mobile devices, Drivers & SDK are distributed online and is

available for download at our website indicated below. For details

on using the DPP-250 Drivers & SDK, please refer to the SDK’s

documentation.

For the latest DPP-250 SDK’s, visit our developer web site at:

http://www.ipcprint.com/support/default.asp

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com Page 5

DPP-250 User Manual v1.01

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com Page 6

DPP-250 User Manual v1.01

Compatible Devices

The DPP-250 (Serial & USB) / DPP-250 (Bluetooth®) portable

thermal printer is designed specifically for use with most PDA &

Smartphone devices.

The DPP-250 can be used in a variety of applications where

Printing / Card Reading is required.

User Notes:

Compatibility depends on the type of communication method

“Serial / USB / Bluetooth®” your PDA or Smartphone supports and

the availability of DPP-250 driver for your device.

•Determine the method of communications your device supports.

•Next determine if your device is supported by the DPP-250

Drivers & SDKs.

Compatible devices are added continually. Visit our web site at:

http://www.ipcprint.com

Because of the continually evolving Driver & SDK to support new

mobile devices, visit our developer web site at:

http://www.ipcprint.com/support/default.asp

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com Page 7

DPP-250 User Manual v1.01

Getting Started

The IPC DPP-250 allows you to printer information from your PDA

& Smartphone. Before using the DPP-250 thermal printer the

battery should be properly charged. The following Quick Start

guide will help to get your DPP-250 ready for use.

Quick Start:

Steps What to do Purpose Where to find more

information

Charge the

DPP-250

rechargeable

battery pack as

recommended in

this manual.

The Lithium Ion

battery pack

should be fully

charged before

use to ensure

long battery life.

Charging Battery, Page 9

Load DPP-250

print media

(Thermal Paper)

DPP-250 requires

Thermal paper for

printing.

Loading Paper, Page 11

3 Setup Bluetooth

Pairing.

Setup Bluetooth®

pairing to allow

DPP-250 to

communicate with

Bluetooth®

devices.

Bluetooth®Setup, Page 16

4 Install DPP-250

Software

To print

information from

your device,

software needs to

be installed onto

your device.

Printing software is not

provided by IPC. Please

contact your DPP-250

reseller or Infinite

Peripherals for

recommendations on

Third-Party solutions.

Developers should refer to

the section in this manual

on “Developing Solutions”.

Table 3

About Your DPP-250

♦DPP-250 left view

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com Page 8

DPP-250 User Manual v1.01

Paper Cover Latch

Online / Error LED

Paper Feed

Paper Cover Lever

Mini USB Port

Charger Input

Power On/Off Switch

Figure 1

♦DPP-250 right view

Bluetooth Connection LED

Battery Level LED

Serial Port

Smart Card Reade

(Optional) Magnetic Card Reade

(Optional)

Figure 2

Charging the DPP-250

The DPP-250 uses a Lithium Ion rechargeable battery pack. Before

first use, the DPP-250 battery pack should be charged for at least

12 hours.

To prevent electrical damage to the DPP-250 and/or battery pack,

please use approved AC Charger only.

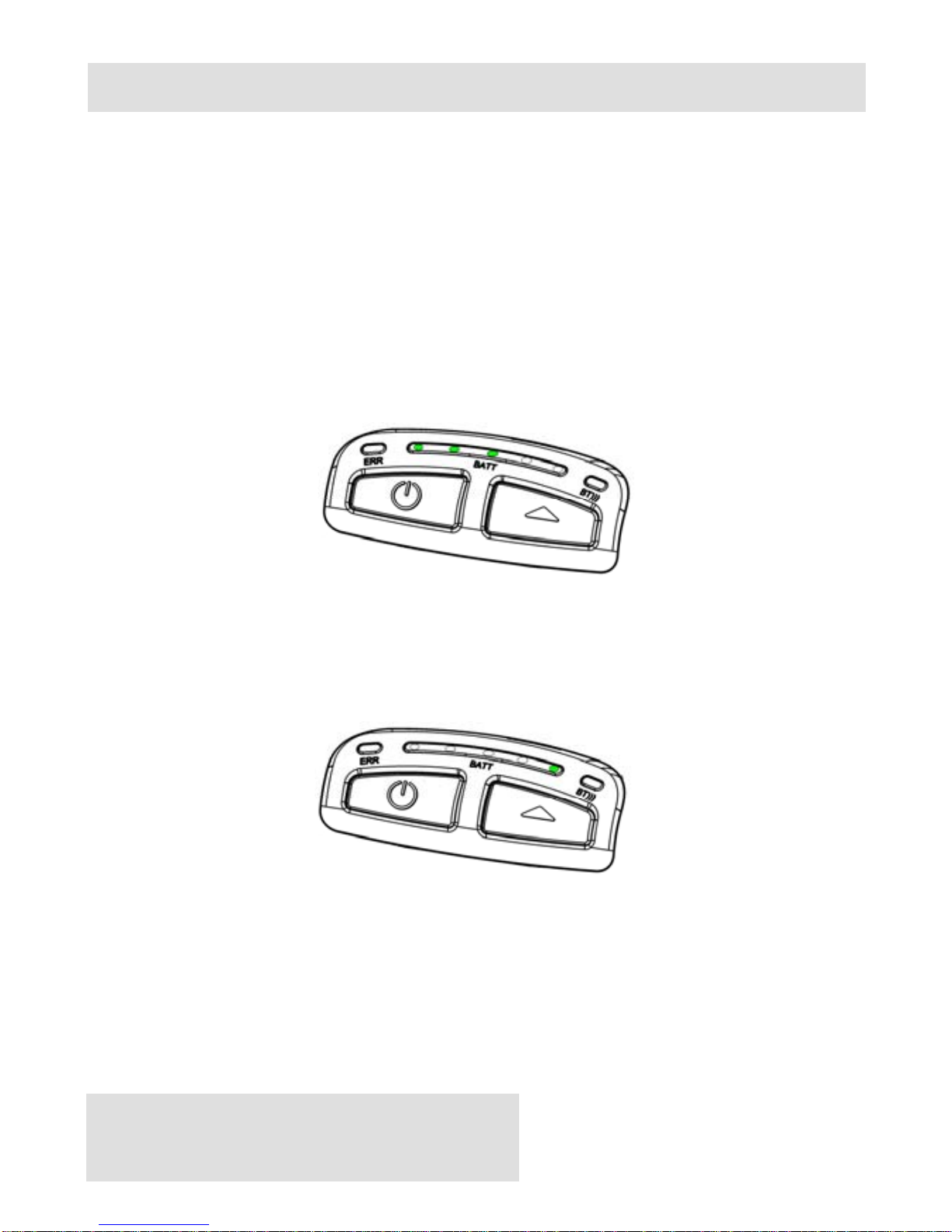

♦DPP-250 Charging

LED Flashing

Figure 3

♦DPP-250 Full Charge

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com Page 9

DPP-250 User Manual v1.01

LED Stopped Flashing

Figure 4

. . . . . . . . . . . . . . . . . . . .

Infinite Peripherals, Inc.

www.ipcprint.com Page 10

DPP-250 User Manual v1.01

Status & Operating Modes

The DPP-250 uses LEDs to indicate various conditions of operation.

This may be charging, active or online, battery low conditions. The

following explains these conditions and LED indication.

LED Function

ERR

1. It lights in green – the printer power is on.

2. It lights in red – end of the paper or paper out. After the

loading a new paper roll, LED turns green.

3. It flashes green/red – the printer thermal head is

overheating. The printer stops printing. When the printer head

temperature returns to normal the STATUS LED light green and

the printer continues to print.

4. It flashes green – low battery.

5. When switching ON the printer, while the LF button is

pressed, red and green lights are rotated after every beep (up

to the fifth).

6. In the long pressing the button it flashes green/red after a

beep. After releasing the ON/OFF button it lights green.

BATT

1. When the adapter is switched ON only one of the BATT LED

diodes is lighting green, depending on the battery status (from

left to right - low battery to fully charged battery).

For details see Section "Charging the Battery".

2. When the adapter is switched ON the BATT LED diodes are

lighting as shown on the illustration in Section "Charging the

Battery", up to full battery charging.

3. When reading a Magnetic Card, the BATT LED are lighting

simultaneously in both directions – from the middle outwards to

the left and right

BT 1. It lights blue when PAIRING.

Table 4
