OPERATING MANUAL

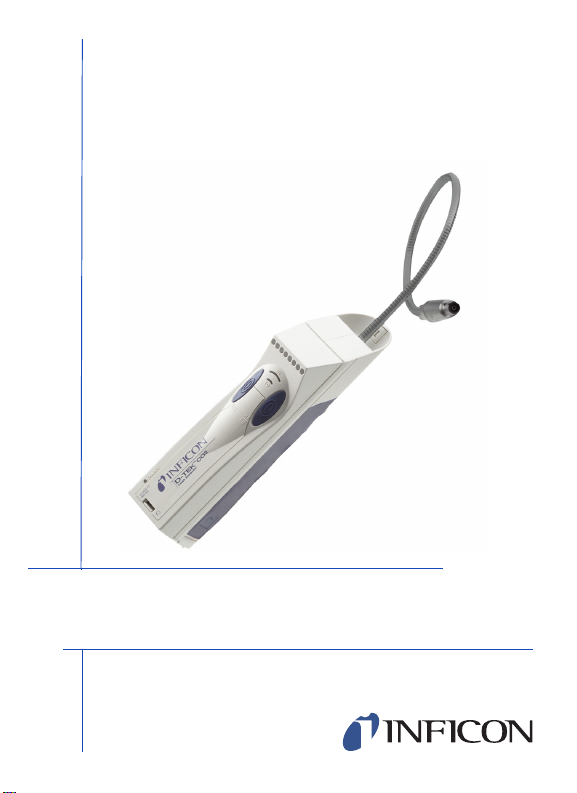

D-TEK®CO2
Carbon Dioxide Leak Detector
English · Español · Deutsch · Français · Italiano
2
English
EU DECLARATION OF CONFORMITY
This declaration is issued under the sole responsibility of the manufacturer
INFICON. The object of the declaration is to certify that this equipment, designed
and manufactured by INFICON, is in conformity with the relevant Community
harmonization legislation. It has been constructed in accordance with good
engineering practice in safety matters in force in the Community and does not
endanger the safety of persons, domestic animals or property when properly
installed, maintained and used in applications for which it was made.
Equipment Description . . . . . . . . . D-TEK CO2 Leak Detector
Model Number . . . . . . . . . . . . . . . 716-202-Gxx (Applicable to all group numbers)
Applicable Directives . . . . . . . . . . 2014/35/EU (LVD)
2014/30/EU (EMC)
2011/65/EU (RoHS)
2006/66/EC as amended by 2013/56/EU
(Battery Directive)
Applicable Standards . . . . . . . . . . EN 61010-1:2010
EN 61326-1:2013 (Class A)
EN 62133:2012 (CB Test Cert. FI-17925)
CISPR 11/EN 55011:2009 (+A1:2010)
EN 50581:2013 (Class A)
CE Implementation Date . . . . . . . April 20, 2016
Any questions relative to this declaration or to the safety of INFICON products
should be directed, in writing, to the quality assurance department at the above
address.
INFICON® and D-TEK® are trademarks of INFICON.
Manufacturer Representative
Brian King
INFICON
General Manager – Service Tools
Two Technology Place
East Syracuse, NY USA 13057
EU Authorized Representative
INFICON GmbH
50968 Köln, Bonner Str. 498
3
English
To get the best performance from D-TEK CO2, please read this manual carefully
before using the instrument. If you have any questions or need additional
assistance, please call 800-344-3304. We’ll be happy to help you.
WARNING
This symbol is used to alert the user to the presence of important
operating and maintenance instructions in the literature
accompanying this instrument.
Getting Started
D-TEK CO2 is shipped with the infrared cell and battery already installed. The
battery must be charged before using D-TEK CO2.
Leak Indicators
(Yellow)
HI/LO
Button
Power
Button
Battery
Door
Filter
Cartridge
Flexible
Probe
Rubberized
Grip
Tip
Power
Jack
Headphone
Jack
HI/LO
Indicators
Charge
Indicator
IR Cell
Access Door
Probe
Cap
Power Indicator
(Green)
4
English
Charging the Battery
Connect the supplied AC wall charger or DC car charger to the D-TEK CO2 power
jack and appropriate power source to charge the battery.
While charging, the Charge indicator will flash
Allow at least 10 hours to fully charge the battery
The Charge indicator will illuminate when the battery is fully charged or after
12 hours of charging
Low battery is indicated by the green power indicator flashing
When the battery is fully depleted, D-TEK CO2 will turn OFF and the green
power indicator, the last yellow leak indicator, and the Charge indicator will
flash
NOTE: You should expect approximately 6½ hours of operation from a fully
charged battery. Connect D-TEK CO2 to the AC wall charger to leak
check while charging the battery. The battery does not need to be fully
charged to operate or fully depleted to charge.
NOTE: If the power indicator, HI, and LO indicators alternate flashing while the
wall charger is connected, the battery may be unplugged or the connector
is backwards. This could also indicate a faulty battery.
WARNING
Only use car or wall chargers supplied by INFICON and designed
for D-TEK CO2. Using other chargers may damage the instrument.
Using Your INFICON D-TEK CO2
WARNING
DO NOT OPERATE THIS INSTRUMENT IN THE PRESENCE OF
GASOLINE, NATURAL GAS, PROPANE, OR OTHER COMBUSTIVE
ATMOSPHERES.
Using D-TEK CO2 is simple. Press the power button once to turn the detector ON.
The green power indicator will illuminate, and the yellow leak indicators will
illuminate from left to right in a scrolling fashion while the infrared cell warms up
(approximately 60 seconds). When the detector is ready for use, the yellow leak
indicators will extinguish and a steady beeping will begin. Long press the Power
button to turn D-TEK CO2 OFF.
5
English
D-TEK CO2 is highly selective for CO2 (carbon dioxide). The atmosphere has a
natural background concentration of carbon dioxide of approximately 0.035%. To
prevent false alarms, it may be necessary to take steps to limit changes in this
background concentration from sources such as vehicle exhaust or your own
breath.
Headphone sets may be used with D-TEK CO2. When the headphones are
plugged into the detector, the audio signal will only be heard through the headset.
WARNING
ONLY USE HEADPHONE SETS SUPPLIED BY INFICON. SERIOUS
HEARING DAMAGE MAY OCCUR IF OTHER HEADPHONE SETS
ARE USED.
Finding Leaks
1. Press the HI/LO button until the HI indicator is illuminated.
2. Place the tip of the leak detector probe close to the site of the suspected leak.
Try to position the probe within 1/4 inch of the possible leak source.
3. Slowly (approximately 1-2 inches per second) move the probe past each
possible leak point.
NOTE: It is important to move the tip of the probe past the leak to get a correct
reading. D-TEK CO2 only responds to changes in concentration of
CO2 from the leak. Moving the probe permits the instrument to
respond properly to these changes.
4. Watch for the yellow leak indicators to illuminate, and listen for a tone. When
the instrument detects a leak source, the yellow leak indicators will illuminate
and it will emit a different audible tone.
5. When D-TEK CO2 signals a leak, pull the probe away from the leak for a
moment, then bring it back to pinpoint the location.
6. If the concentration of carbon dioxide is high, press the HI/LO button once to
switch to LO sensitivity before repositioning the probe at the suspected leak
source. The LO sensitivity setting helps find the exact site when a leak is large.
7. Once you have isolated the leak source, press the HI/LO button to return the
sensitivity setting to HI to continue using D-TEK CO2.
8. When you have finished leak-testing, long press the power button to turn
D-TEK CO2 OFF.
6
English
Auto Zero Mode
D-TEK CO2 by default will automatically zero to the background, allowing you to
search for a higher concentration and help pinpoint the leak source. For example,
if a leak is detected and D-TEK-CO2 is held in that area for several seconds, the
alarm will stop. This indicates the unit has zeroed to the new background. It will
now take a larger concentration of CO2 to cause an alarm. Holding D-TEK CO2 in
clean air (no CO2) for several seconds will reset the zero point to normal.
Manual Zero Mode
D-TEK CO2 can be changed to manual mode, which disables the auto zero
feature and allows the user to manually zero to the current background.
NOTE: For best performance, allow D-TEK CO2 to warm up for 5 to 10 minutes
before enabling manual zero mode.
1. To enable manual zero mode, press and hold the HI/LO button for 5 seconds.
The HI and LO indicators will flash quickly for several seconds followed by a
steady flashing of the HI indicator when manual zero mode is active.
2. Press the HI/LO button to zero to the current background. The HI and LO
indicators will flash quickly while D-TEK CO2 zeros.
NOTE: While in manual zero mode, it is best to periodically zero to the current
background even if a leak is not detected.
3. To return to auto mode, press and hold the HI/LO button until the HI indicator
becomes steady.
NOTE: When D-TEK CO2 is turned ON, it will always default to auto zero mode.
Changing the Filter Cartridge
D-TEK CO2 utilizes a specially designed filter cartridge that fits into a protective
cap. The filter cartridge should be changed when it appears dirty or when
substances trapped in the filter cartridge seem to be affecting the sensitivity of
D-TEK CO2.
NOTE: Water or oil will not penetrate the filter material, but will prevent airflow
through the filter and affect sensitivity.
Always operate D-TEK CO2 with a filter cartridge installed.
Operating without a filter can cause serious damage to the
instrument.
1. Ensure D-TEK CO2 is OFF.
2. With the probe tip pointing downward, unscrew and remove the probe cap.
NOTE: Do not allow moisture or dust to get into the probe.
7
English
3. Pull out the used filter cartridge and discard.
4. Install a new filter cartridge.
5. Screw on the probe cap (do not overtighten).
NOTE: Always use a new filter. Do not attempt to clean or disassemble a filter
cartridge.
Changing the Infrared Cell
WARNING
COMPONENTS MAY BE HOT. DO NOT REMOVE THE IR CELL
ACCESS DOOR WHILE D-TEK CO2 IS TURNED ON OR PLUGGED
IN.
D-TEK CO2’s infrared cell (IR cell) is located in the body of the detector. The IR
cell is a complete assembly consisting of a metal tube, connectors and electronic
components. The IR cell is not designed to be taken apart. Doing so will destroy
the cell. This specialized IR cell will operate for about 800 hours.
All leak indicators will flash when the IR cell has reached the end of its useful life.
To replace the IR cell:
1. Ensure D-TEK CO2 is OFF and not connected to any car or wall outlets.
2. Locate on the top cover (at the rear of the detector) the latch for the IR cell door.
3. Using a small screwdriver, pull the latch forward and remove the door.
4. Pull the IR cell straight out by grasping both edges of the label and pulling
evenly. Discard the old IR cell appropriately, in accordance with local
regulations.
5. Remove the replacement IR cell from the protective package.
6. Carefully align the male leads and air tubes on the IR cell with the connectors
mounted on the circuit board. Insert the leads into the sockets and push the IR
cell straight down.
NOTE: Ensure the lead connectors on the IR cell ends are not bent and the cell
is seated tightly.
8
English
Replacing the Battery
1. Ensure D-TEK CO2 is OFF and not connected to any power source.
2. With one hand, firmly press the square release buttons on either side of the
rubberized grip.
3. With the release buttons pressed, remove the battery door by pulling out from
the bottom of the instrument.
NOTE: Wiggling the battery door may help.
4. Carefully unplug the electrical connector by pulling straight out.
5. Slide the battery out and discard appropriately, in accordance with local
regulations.
6. Slide a new battery in where the old battery was removed.
7. Carefully connect the electrical connector.
8. Squeeze the battery door tabs and replace the battery door.
NOTE: Ensure the battery wires are clear of the battery door.
9. Connect D-TEK CO2 to a car or wall charger and allow the battery to charge for
10 to 12 hours to ensure a full charge.
NOTE: If the power indicator, HI, and LO indicators alternate flashing while the
wall charger is connected, the battery may be unplugged or the connector
is backwards. This could also indicate a faulty battery.
9
English
Replacement Parts and Accessories
Replacement parts and accessories for D-TEK CO2 are available through the
same dealer from whom you bought the instrument.
Molded plastic storage case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 716-702-G1
Headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 032-0430
12 V (dc) car charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 703-055-P1
100 V (ac) wall charger (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 033-0018-G1
115 V (ac) wall charger (US) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 033-0019-G1
230 V (ac) wall charger (Euro) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 033-0020-G1
230 V (ac) wall charger (UK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 033-0022-G1
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 712-700-G1
Replacement infrared cell for D-TEK CO2. . . . . . . . . . . . . . . . . . . . . . 716-701-G1
Filter cartridges, package of 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 712-707-G1
Replacement probe cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 712-705-G1
Specifications
Usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indoor or Outdoor
Minimum sensitivity to CO2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 g/yr (0.2 oz./yr)
Input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 to 16 V (dc)
Input current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 mA Max.
Operating and charging temperature range* . . . . . . . . . . . . . . . . . . . -20 to +50 °C
(-4 to 122 °F)
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20 to +60 °C
(-4 to 140 °F)
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95% RH NC Max.
Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6500 ft. (2000 m)
Pollution degree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Overvoltage category. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Weight (with battery) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.05 lb (0.48 kg)
*May be operated for a limited time in lower temperature environments.
10
English
Troubleshooting Guide
Problem Cause Remedy
1) All yellow leak
indicators flashing
together.
1a) IR cell has
become unseated.
1a) Remove IR cell access
door and push both ends of
the IR cell down. (Do not
remove/reinsert sensor IR
cell.)
1b) IR cell has failed. 1b) Replace with new IR
cell.
2) Will not detect
CO2.
2a) Unit is not
warmed up and
ready to use.
2a) Verify unit is beeping
and no yellow leak
indicators are flashing.
(Single green light flashing
while unit is beeping is OK.)
If yellow leak indicators are
scrolling across, wait 90
seconds for the unit to beep.
If not, contact INFICON.
2b) Pump failure. 2b) Verify battery is charged
and properly connected. If
pump still cannot be heard
running with D-TEK CO2 ON
and warmed up, contact
INFICON.
2c) Filter cartridge is
clogged, preventing
air and refrigerant
from passing into IR
cell.
2c) Install new filter
cartridge.
2d) Battery failure. 2d) See #3 below.
3) After warm up, the
green power
indicator, the last
yellow leak indicator,
and the Charge
indicator flash.
3a) Battery needs
charging.
3a) Charge battery for 10 to
12 hours.
3b) Battery failure. 3b) Install a new battery.
Autres manuels pour D-TEK CO2
1
Table des matières
Langues :
Autres manuels Inficon Capteur de sécurité
Inficon
Inficon UL6000 Fab Guide rapide
Inficon
Inficon TEK-Mate Manuel utilisateur
Inficon
Inficon HLD6000 Manuel utilisateur
Inficon
Inficon D-TEK Stratus Manuel utilisateur
Inficon
Inficon D-TEK CO2 Manuel utilisateur
Inficon
Inficon UL6000 Fab Guide rapide
Inficon
Inficon XL3000flexRC Guide rapide
Inficon
Inficon Modul1000 Manuel utilisateur
Inficon
Inficon D-TEK Stratus 724-202-G1 Manuel utilisateur
Inficon
Inficon D-TEK Stratus 724-202-G Series Manuel utilisateur
Inficon
Inficon D-TEK 3 Manuel utilisateur
Inficon
Inficon HLD6000 Manuel utilisateur
Inficon
Inficon Southern Cross IRwin Manuel utilisateur
Inficon
Inficon Sion Manuel utilisateur
Inficon
Inficon Ecotec E3000 Manuel utilisateur
Inficon
Inficon Sensistor ISH2000 HySpeed Manuel utilisateur
Inficon
Inficon Sensistor ISH2000 HySpeed Manuel utilisateur
Inficon
Inficon D-TEK Stratus EA705EJ-30 Manuel utilisateur
Inficon
Inficon D-TEK Stratus 724-202-G1 Manuel utilisateur
Inficon
Inficon Sensistor ISH2000 HySpeed Manuel utilisateur
