infaco A3M V2.0 Manuel d'installation et d'exploitation
INSTRUCTIONS FOR USING THE
A3M V2.0 12V TYING MACHINE:
3
SAFETY INSTRUCTIONS ______________________________________________ 4
GENERAL PRESENTATION ____________________________________________ 5
USING YOUR MACHINE FOR THE FIRST TIME __________________________ 6
CARRYING THE MACHINE ___________________________________________ 6
SWITCHING ON _____________________________________________________ 7
LOADING THE REEL__________________________________________________ 8
REMOVING THE REEL ______________________________________________ 10
USER GUIDE _______________________________________________________ 11
RECHARGING THE BATTERY ________________________________________ 13
DAILY MAINTENANCE ______________________________________________ 16
ANNUAL MAINTENANCE ___________________________________________ 16
OPERATING PROBLEMS ____________________________________________ 17
SAFETY INSTRUCTIONS ___________________________________________ 21
APPROPRIATE TYING METHOD ______________________________________ 22
GUARANTEE CONDITIONS _________________________________________ 24
GUARANTEE COUPON ______________________________________________ 29
SPECIFICATIONS __________________________________________________ 31
DECLARATION OF CONFORMITY_____________________________________ 32
Contents
3
Keep all safety warnings and instructions so that you can refer to them at
a later date.
The term “tool” in the warnings refers to your electrical tool run off the main
supply (with supply power cord) or your electrical battery-operated tool (without
a supply power cord).
WARNING. Read all safety warnings and all instructions. Failure to
abide by warnings and instructions could lead to an electric shock, fire
and/or serious injury
ENVIRONMENTAL PROTECTION
Follow the specific instructions for waste elimination in your
country. Electrical appliances should not be thrown in the garbage.
The device, accessories and packaging should be recycled.
Ask your specialist INFACO retailer for the latest information on
eco-compatible waste elimination.
SAFETY INSTRUCTIONS
54
54
GENERAL PRESENTATION
01. TOOL CARY BAG
02. INSTRUCTIONS FOR USE
03. 12VOLT BATTERY POUCH
04. 12VOLT BATTERY CHARGER
05. PINCERS
06. GREASE SPRAY
07. A3M V2 MACHINE
08. TYING HEAD UNLOCKING KEY
09 . TYING HEAD
10 . ADJUSTMENT WHEEL
Adjusts the number of turns: 3 to 6 twists.
11 . MULTIFUNCTION CONTROL SWITCH
Short pressure = controls the blade only.
Sustained pressure = controls the tying cycle.
12 . LEVER
Used to activate a roller system to prevent the wire
from moving backwards.
13 . REEL OF WIRE
Wire available in Ø 0.40 / 0.46/ 0.50 mm.
14 . 12Volt SUPPLY CABLE
BEFORE USING YOUR MACHINE FOR THE FIRST TIME
CARRYING THE MACHINE
Attach the belt 01 around your waist.
Place the battery on your stomach side.
In wet weather, the battery belt must be worn under waterproof clothing to keep the bat-
tery unit dry.
6
Please read these instructions carefully before using the machine.
We strongly recommend that you ask for assistance from your retailer, who is
authorised to give you all the advice you need to use the machine properly and
achieve a good output.
It will take a day’s use to acquire a sound knowledge of how to operate
the machine.
Charger the battery for at least 3 hours before starting your first day’s work.
(See chapter P9 battery recharge).
Disconnect the machine from its battery for all operations apart from tying.
Always keep your hands well away from the tying head when the machine is in
operation.
We strongly recommend that, for safety and practical reasons, you use the case
provided for carrying the machine and the battery in the workplace.
01 . ELASTIC BELT WITH VELCRO
02 . STORAGE POCKETS (reel, tools, etc.)
03 . TOOL CARY BAG
The tying head should be in the working position before switching on.
Connect the battery exit cable 01 to the machine supply cable 02.
The machine is switched on.
Short pressure on the switch 03 will control only the wire cutting function (zone 04).
Sustained pressure will launch the complete tying cycle (See chapter “Making a tie”).
01 02
03
04
CORRECT INCORRECT
SWITCHING ON
6 7
The wire needs to be prepared to make it easier to feed through
the machine.
Cut the end to obtain a wire with no
bends in it.
Clip the lever 01 upwards.
01 02
Smoothe the wire for at least 40 cm.
Clip the reel on to the machine
between cheeks 01 and 02.
8
LOADING THE REEL
01
Insert the wire into hole 01. Keep on feeding the wire through
until it emerges from the tying head 01.
If you come up against an obstacle
during insertion, move the wire gent-
ly backwards and forwards and/or
press once or twice the control switch
to pivot the tying head and to keep
the wire moving through the ma-
chine.
IF THE WIRE STILL DOESN’T COME
OUT: we recommend that you dis-
connect the tying head (See chapter
“Operating problems” P16), check
that the wire isn’t stuck and try to in-
sert it with the head removed
Unclip the brake system lever 01.
At the start of each reel, check
that the wire is properly rolled and
doesn’t stick between cheeks 02 and
03.
Switch the machine on and press
briefly on the control switch to cut
the excess wire.
You can now start tying operations.
8 9
01
01
01
02
03
REEL WITH REMAINING WIRE
EMPTY REEL
10

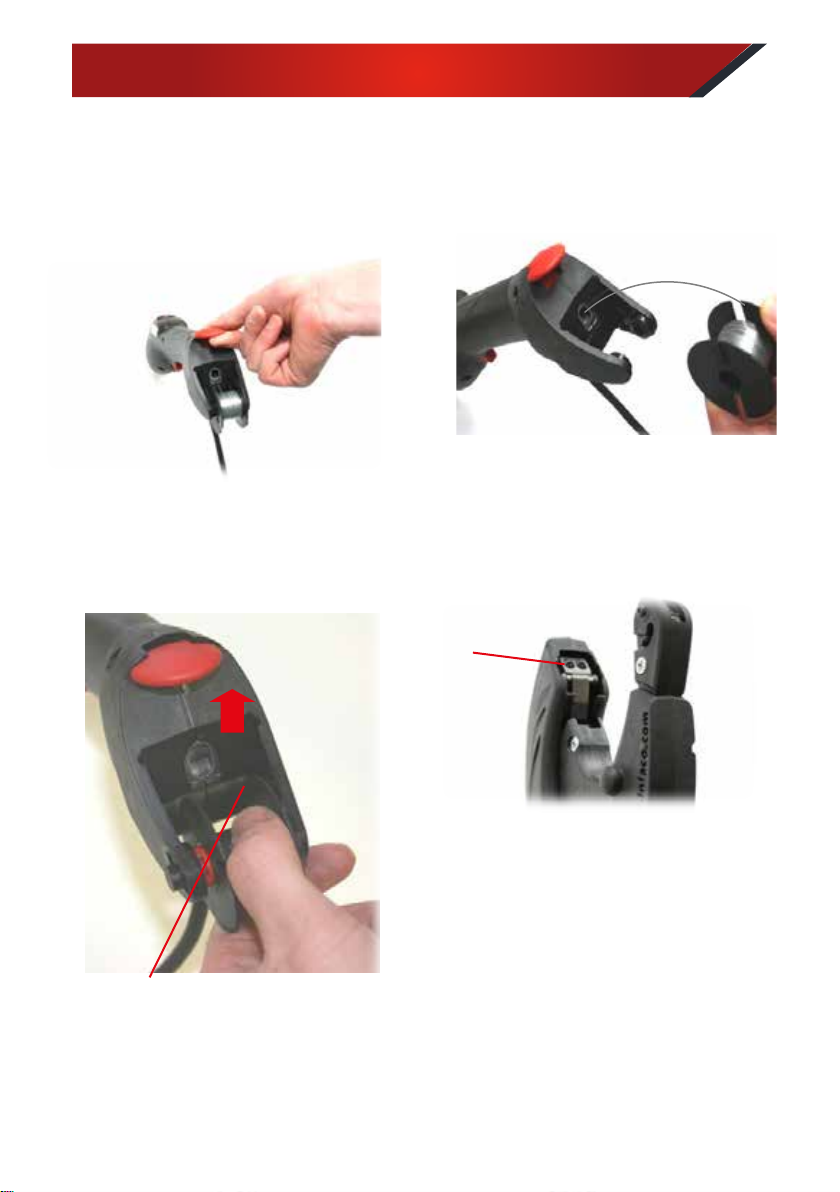

REMOVING THE REEL
Clip lever 01 upwards to allow the
wire free movement through the
passage
Pull directly on the reel to unclip it from
the machine.
Pull the reel to unclip it from the
machine
Carry out a visual check on wire exit
01 to ensure that there is no wire
remaining in the machine.
After the last tying operation it is
possible that some wire may remain
stuck in the tying head:
• If it does not prevent you from loa-
ding another reel, carry on working.
It will come out during tying, usually
without a problem.
• If it does prevent you from feeding
a new wire through, disconnect the
head and remove the remaining
wire by hand (See chapter “Solving
operating problems”).
01
