INDUSVISION IAQUA Series Manuel d'exploitation

Productusermanual

Underwater CCTV Camera

IAQUA Series

NoticeonCopyright andTrademarkUsage

Productsandcompanynamesmentionedinthismanualaretrademarksor

registeredtrademarksbelongingtothecompany.

WARRANTY

Iftheproductisnotnormallyinstalledduetoadefectundernormaluseconditions,

Themanufacturerwillrepairitfreeofchargethroughtheplaceofpurchase.

Thewarrantyperiodis1years,andthefollowingsituationsareexcludedfromthewarranty.

• Abnormalities caused by product changes over time or natural wear and tear during use

• Damage to fastening parts due to negligence when assembling the product

※Theappearanceandspecificationsoftheproductmaybechangedwithoutpriornotice

toimproveperformance.

ProductUserManual

• Component Information

• Product Division and Part Names

• Checklist before Product Installation

• Select Product Installation Location

• Product Installation and Precautions

• Maintenance after Product Installation

• Network Connection and Setup

• Installation Inspection Check Sheet

• Technical Drawing

* CPU: Intel Core 2 Duo 2.4 GHz or higher (when using 1920x1080 30fps)

Intel Core i7 2.8 GHz or higher (when using 1920x1080 60fps)

* Resolution: 1280x1024 or higher (32-bit color)

* Memory: 2GB or more

* Supported OS: Windows XP, VISTA, 7, 8, 10 / Mac OS 10.7 or later

* Supported web browsers: Microsoft Internet Explorer (Ver. 8~11),

Microsoft Edge (Ver. 94 ~118) Latest 118

Mozilla Firefox (Ver. 9~19) Latest 85

Google Chrome (Ver. 15~15) Latest 88

Apple Safari (Ver. 6.0.2) Latest 14

- Windows 8 is supported only in desktop mode.

- Beta version or developer version other than the version released on the

official site Not supported.

- For IPv6 access, Windows 7 or later is recommended.

- Safari Browser is supported only on Mac OS X.

* Video memory: 256MB or more

- The video memory card driver is not installed correctly, or the latest version is

not available. If not, the video may not play normally.

- When using two or more monitors, playback performance may

decrease depending on system specifications.

may fall.

Index PCSystemRecommendedSpecifications

Outline

Picture Qty Explanation Picture Qty Explanation

1 L-Wrench (M5) 1 Hex Bolt Set

(M8*15)

1Spare Bolt

Set 1 Knife block Set

1Product

instruction

Manual 1Underwater

Cable

ComponentInformation

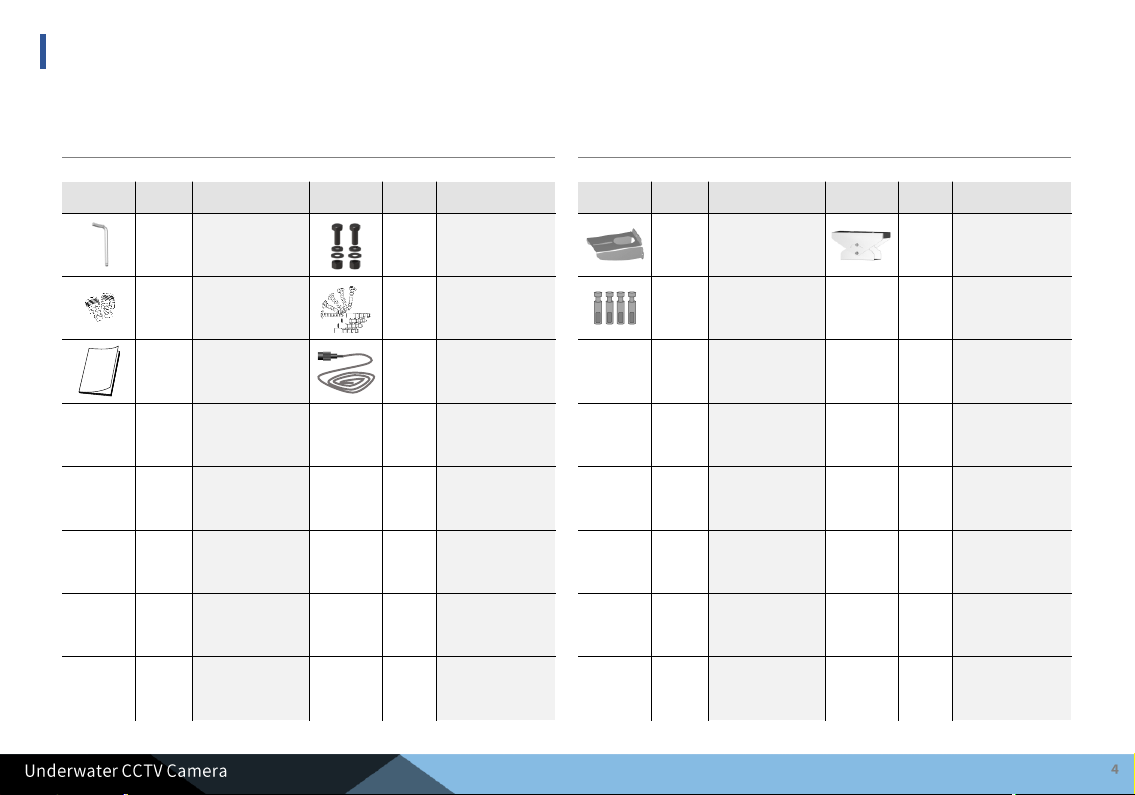

Beforestarting the installation, carefullycheck the following components enclosed inthe product box toensure that no partsaremissing during installation.

Picture Qty Explanation Picture Qty Explanation

1 Wall bracket 1 Sealing

Bracket

1 Anchor Bolt

BasicComponents Optionalcomponents(PurchasedSeparately)

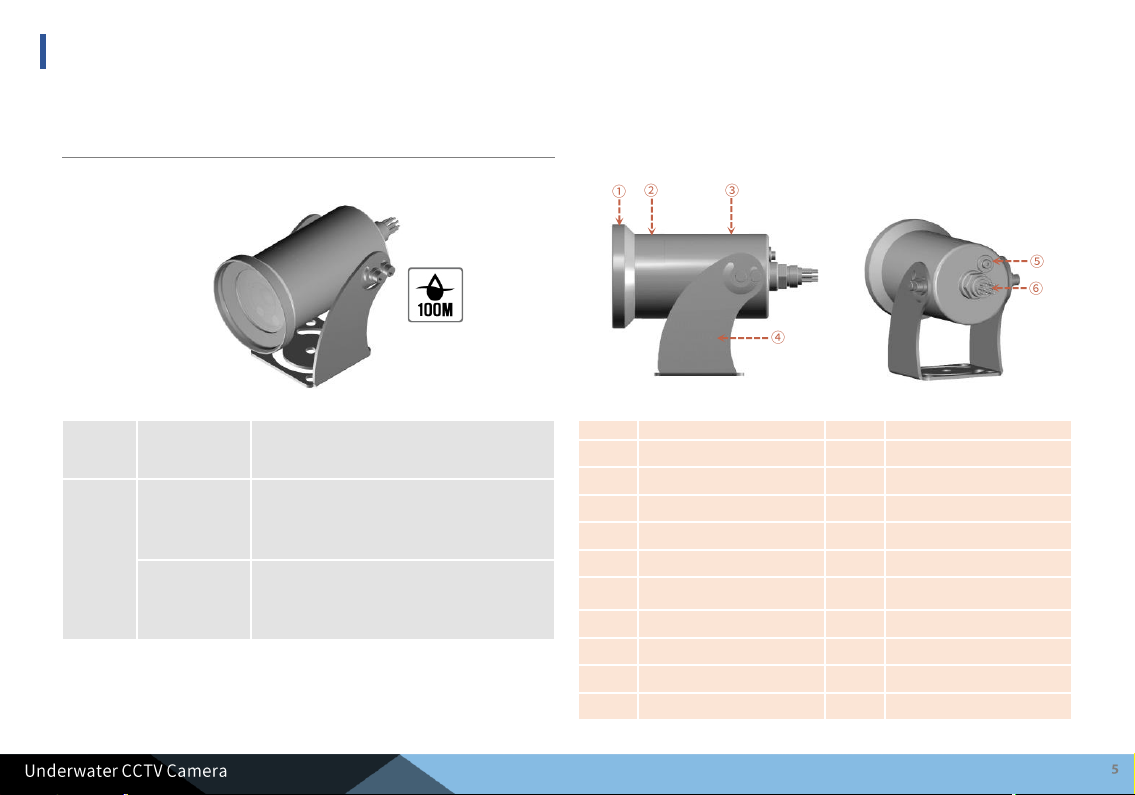

iAQUA-100 Series

Series

Name Model Name Details

iAQUA-

100

Series

IAQUA

-100A

Vari

-Focal(2.7-12mm)+ IP 2M _ WH_LED + iAQUA-Q410 Cable

IAQUA

-100AF

Fixed Lens (3.3mm)+ IP 2M _ WH_LED + iAQUA

-Q410Cable

No Detailed name No Detailed name

DECO

-Ring 11

Front Cover

Main Body

Mount Bracket

Temperature Senser

Submersible connector (Male)

717

818

919

10 20

Please familiarize yourself with the part names of each product asthey are important to provide fast and accurate service for problems in each part.

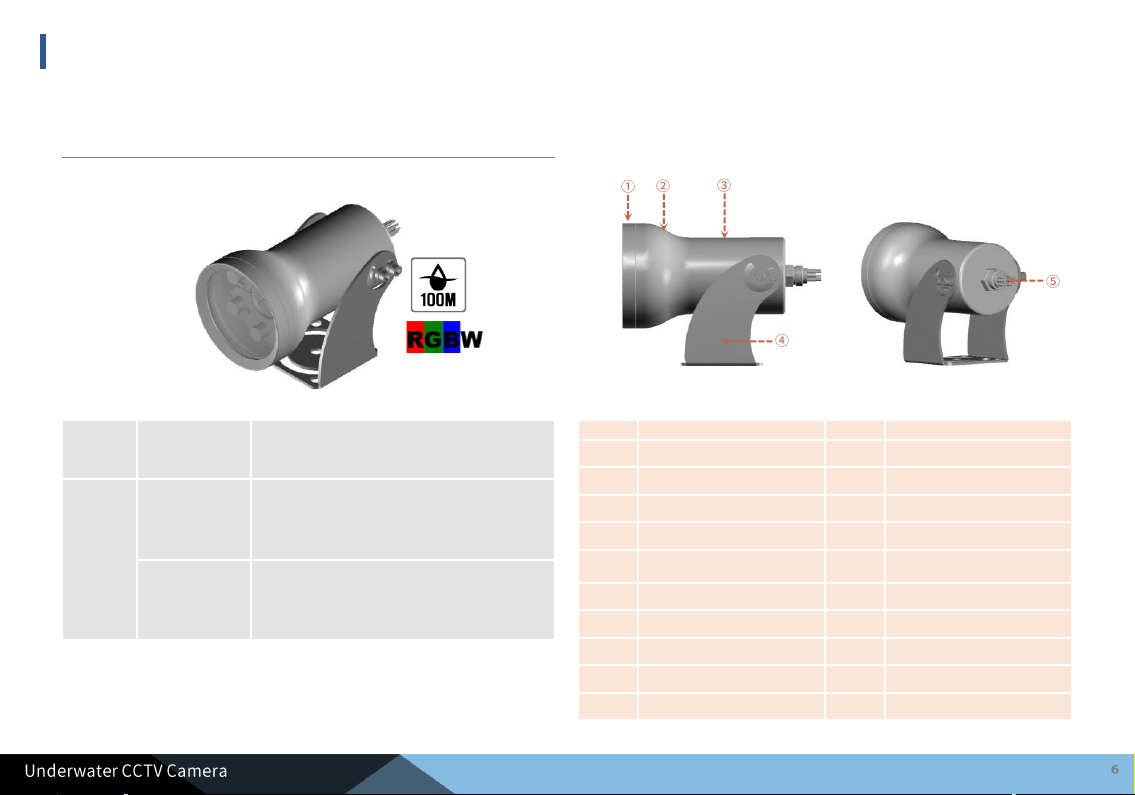

ProductDivisionandPartNames

White

LED

iAQUA-200 Series

Series

Name Model Name Details

iAQUA-

200

Series

IAQUA

-200Z

Vari

-Focal(2.7-12mm)+ IP 2M _ WH_LED + iAQUA-Q410 Cable

IAQUA

-200ZF

Fixed(3.3mm) + IP 5M _ WH_LED+ iAQUA

-Q410 Cable

No Detailed name No Detailed name

DECO

-Ring 11

Front Cover

Main Body

Mount Bracket

Submersible connector (Male)

616

717

818

919

10 20

LED

Please familiarize yourself with the part names of each product asthey are important to provide fast and accurate service for problems in each part.

ProductDivisionandPartNames

No L wrench specification No L wrench specification

M5 (

Mount bracket)11

212

313

414

515

616

717

818

919

10 20

[IAQUA-100]

[IAQUA-200]

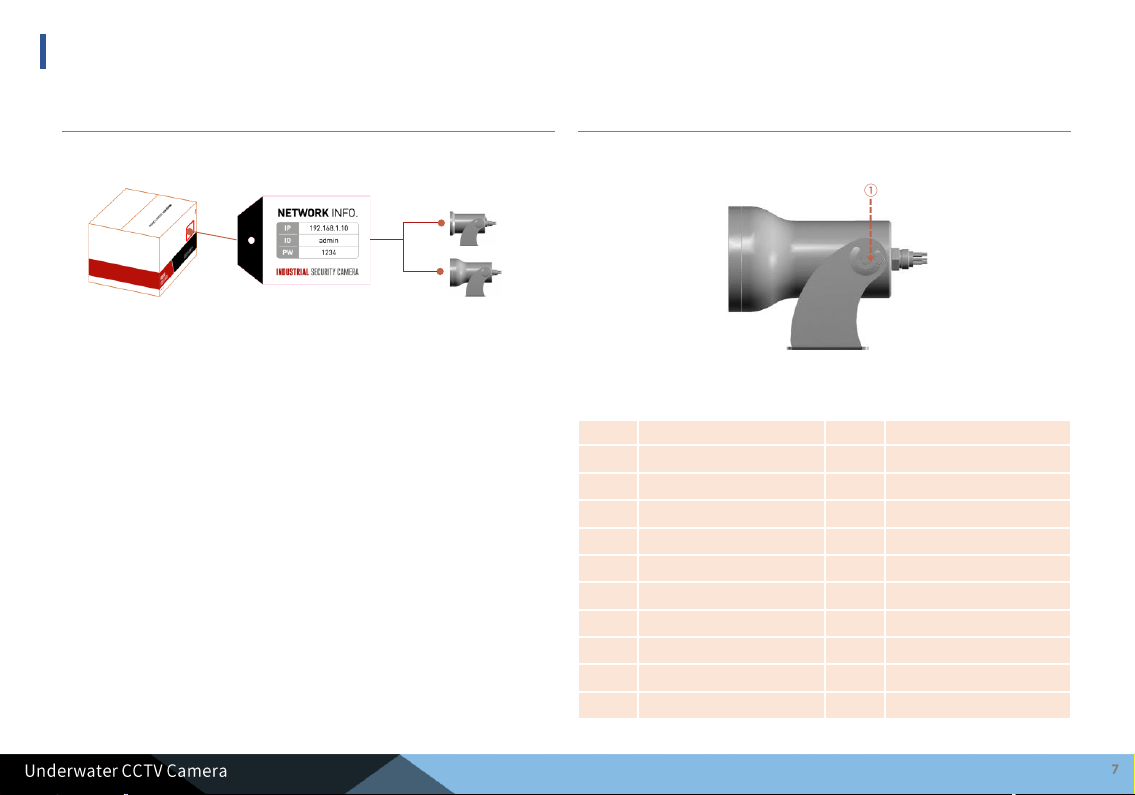

ChecklistbeforeProductInstallation

* On the product label on the product packaging box and on the

tag on the sunshield portion of the product

After checking the information necessary for initial operation

such as IP address, ID, password, etc. Keepit so you don't lose it.

[Box]

Check the packing box

- When delivering the product, check that the packaging is intact and has not

been dropped or torn.

- In the case of returning a broken product, we recommend that you reuse

the packaging box provided for transportation. Recommended.

- The box label attached to the product box contains the information shown in

the picture above.

- Before discarding the box, back up the information entered on the label to

prevent product operation problems. wish.

Safe Disposal of Packaging Materials

- Among packaging materials, PE foam, excluding paper, is subject to

separate discharge. Therefore, please separate and dispose according to

the separate collection method or regulations.

Check the specifications of the L wrenchCheckproductoperationinformationandappearancestatus

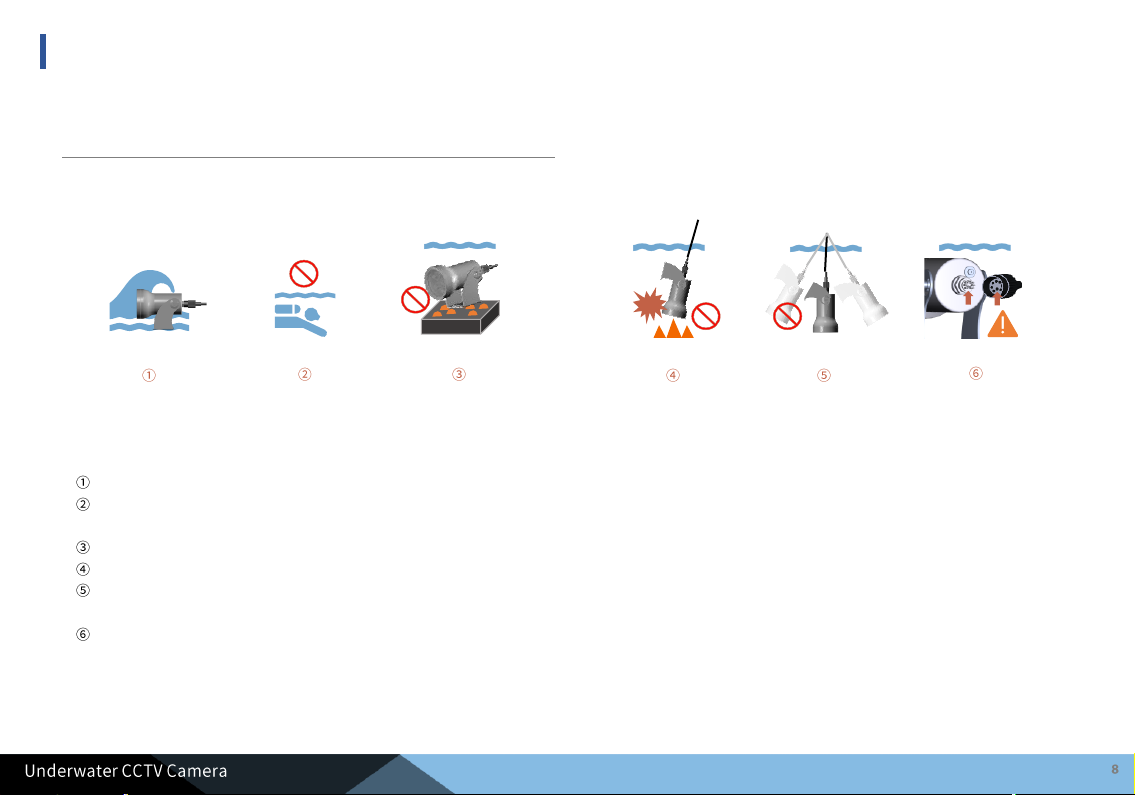

When selecting the initial location to install the product, consider the following.

It is not recommended to install the product in a place where the concentration of salt or chlorine is higher than the general marine environment.

The manufacturer does not guarantee the installation of the product in an installation environment with a depth of 100M or more underwater guaranteed by the

manufacturer.

It is not recommended to install the product on an uneven surface.

Product defects caused by putting the product into the sea without fixed installation are not guaranteed by the manufacturer.

The product supports the load only with the cable of the product without fixed installation, and if the product is damaged by movement, the manufacturer does not

guarantee it.

When installing the product, be sure to insert and dismantle according to the shape of the cable connector.

SelectProductInstallationLocation

When selecting a location to install the product, be sure to install it in a place that does not have any inconsistencies as in the case below.

Thingstoconsiderwheninstallingtheproduct

Salt 35% ↓ 100M ↑

- First, select the installation method from the picture above.

- Place the base bracket where it will be installed and mark the perforation

point.

- Insert the knife block provided with the product into the perforation.

- Insert the cross piece provided with the product into the knife block position

on the bracket.

- Loosen the bolts on the base bracket slightly to adjust the height and level

of the video and finish.

- Equipment for wall perforation is not provided.

The manufacturer is not responsible for any problems caused by installing a bracket other than the genuine bracket provided by the manufacturer.

ProductInstallationandPrecautions

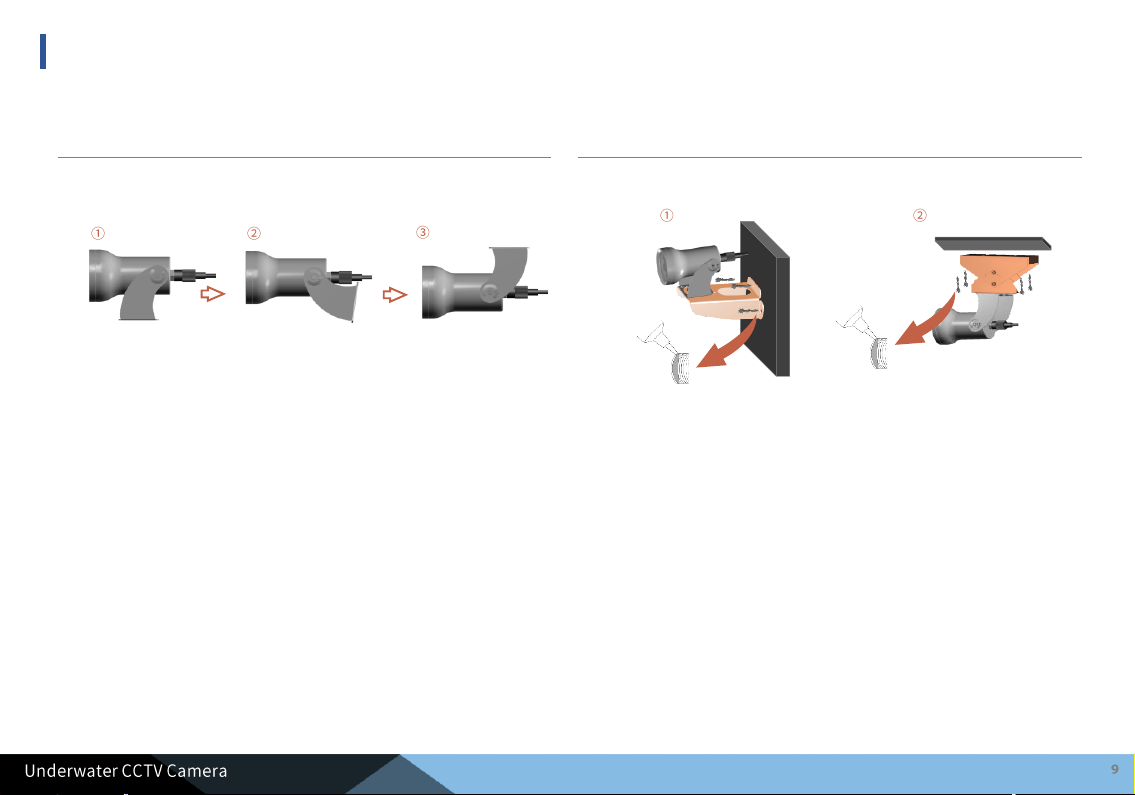

Installationusingtheproduct'smountbracket

- The wall mount bracket can be fixed on a vertical wall.

- The sealing bracket can be fixed to the ceiling surface.

Attach the bracket to the wall with the supplied set anchors capable of

withstanding at least four times the weight of the unit. Please fix.

- Then, fix the device to the bracket using the supplied hex bolt SET.

At this time, check that there are no foreign substances in the thread or

fastening hole of the product.

- After applying enough locking compound (Loctite 263) on 3~4 screws,

screw them in. lock.

- The thread compound should set for one hour, during which time the

installation should be completed.

- When tightening the bolts, tighten the torque to 35Nm.

[Loctite 263] [Loctite 263]

Installationusingwallmountbracketsandceilingbrackets

[Floor installation] [Wall mount] [Ceiling installation]

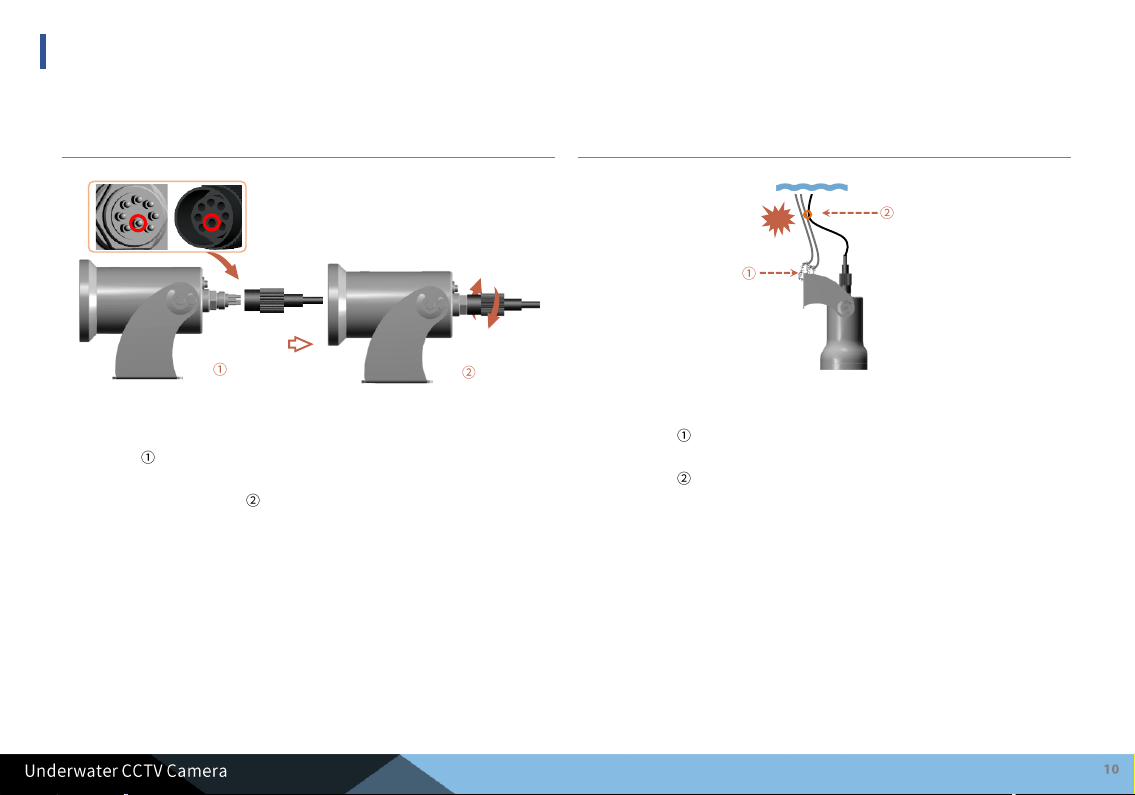

- Check the shape of the male/female pins of the underwater connector as

shown in , and fasten accordingly.

- Finish the fastening by turning the entry of the female part of the underwater

connector all the way as in .

The manufacturer is not responsible for water damage caused by not tightening the underwater connector.

Underwaterconnectorinstallation Howtousetheunderwaterinletform

- As shown in , connect the product's mount bracket and carabiner, and

use a steel wire to Freeze the product.

- As shown in , use a cable tie to fix the underwater cable to the connected

steel wire. At this time, the underwater cable should be connected as much

as possible so that the tension is not transmitted to the underwater cable.

Loosen it so that the tension is distributed to the steel wire.

ProductInstallationandPrecautions
