Industrial Scientific Ventis MX4 Manuel utilisateur

Multi-gas Monitor

Product Manual

Set-up

Operation

Service

Part Number: 17152357-1

Version 15

Ventis™ MX4 Product Manual

Contents

►Copyright Notice........................................................................................................................................4

►Warnings and Cautionary Statements.......................................................................................................4

General......................................................................................................................................................4

Personnel..................................................................................................................................................4

Hazardous Conditions, Poisons, and Contaminants ................................................................................4

General Usage..........................................................................................................................................5

Agency-issued Conditions of Use and Warnings......................................................................................5

Recommended Practices..........................................................................................................................6

►Ventis MX4 Resources..............................................................................................................................6

►Ventis MX4 Capabilities.............................................................................................................................7

►Unpacking the Monitor...............................................................................................................................7

Contents....................................................................................................................................................7

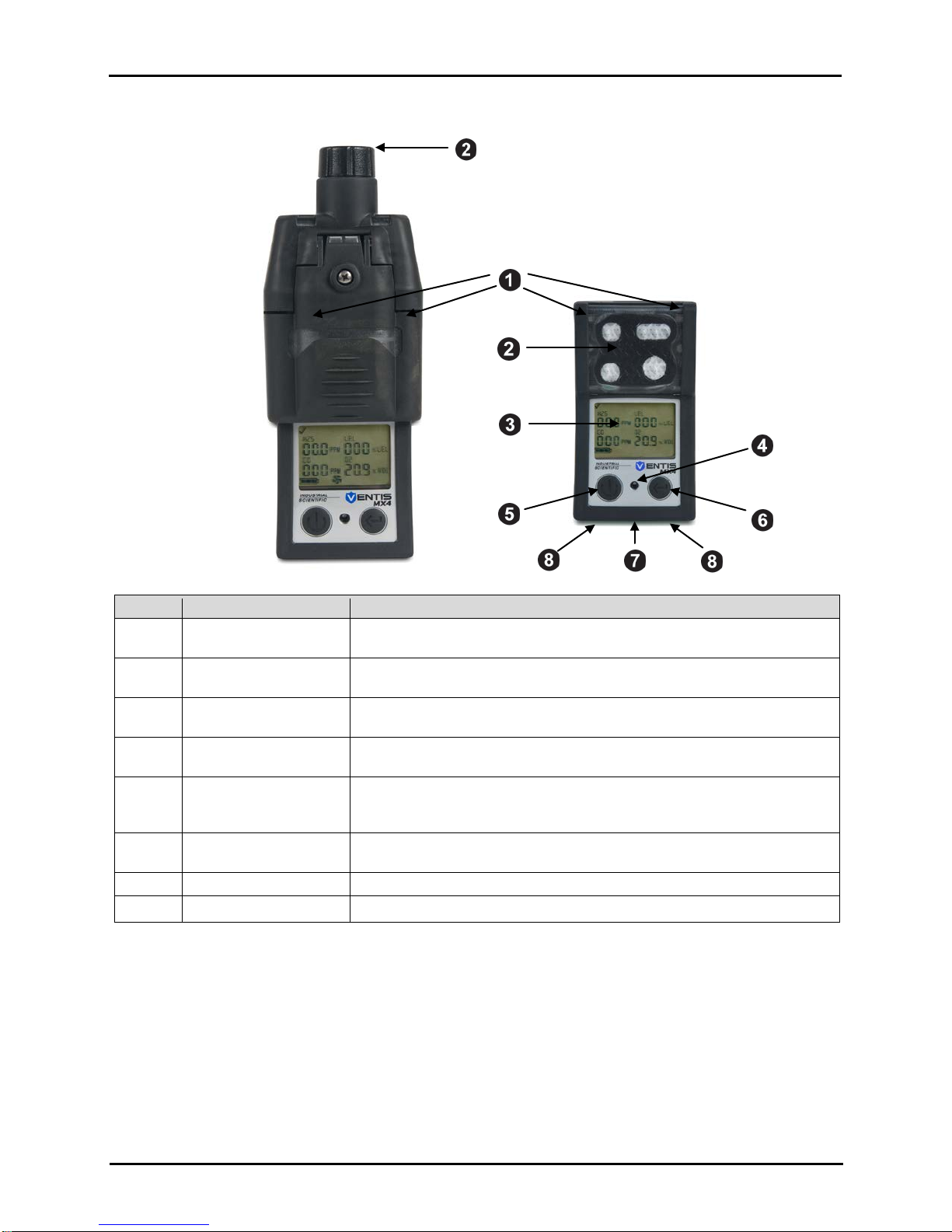

Hardware Features and Functions............................................................................................................8

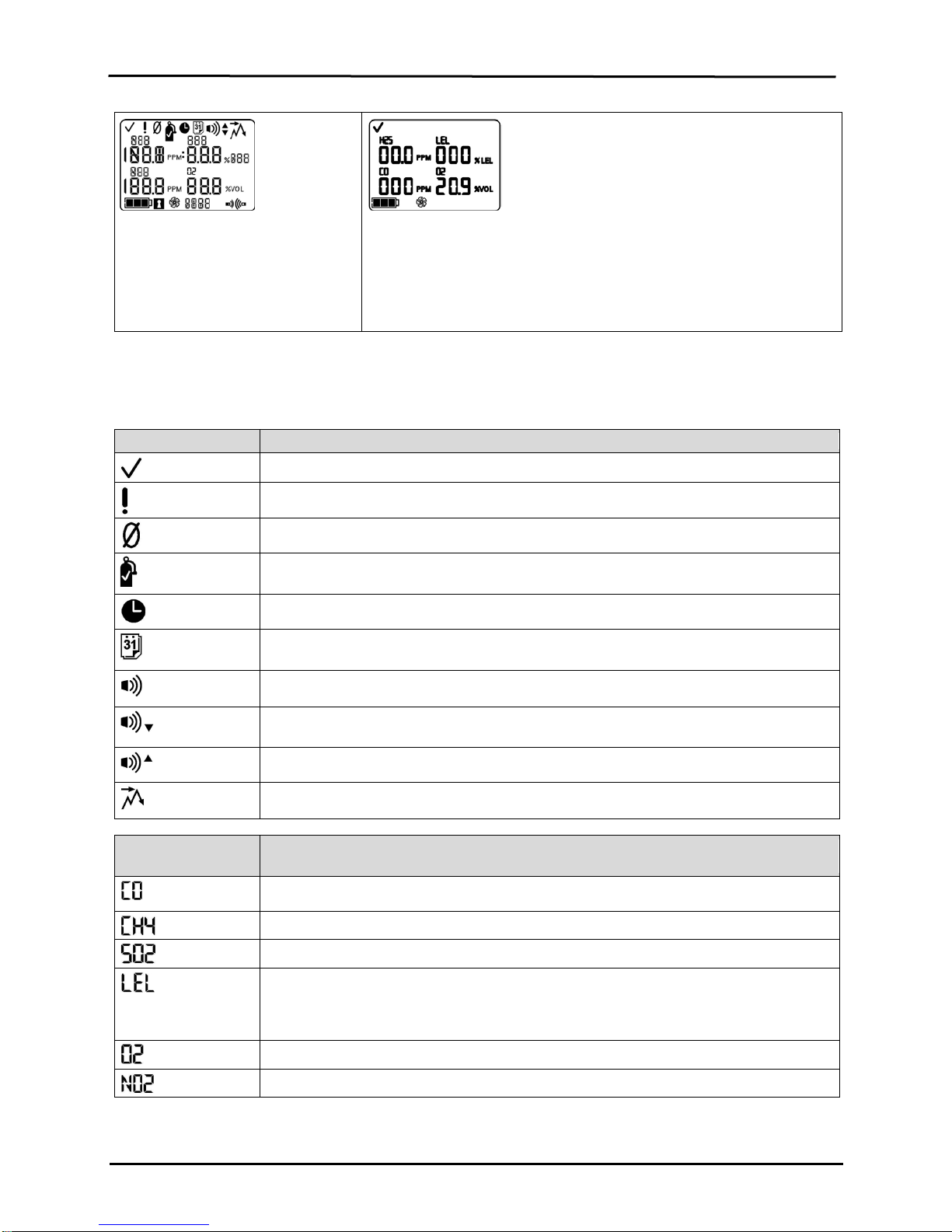

Display Screen..........................................................................................................................................9

Alarms.....................................................................................................................................................11

►Monitor Set-up.........................................................................................................................................14

Batteries..................................................................................................................................................15

Docking Stations, Chargers, and other Accessories ..............................................................................15

Battery Charging .....................................................................................................................................16

Power-on and -off....................................................................................................................................16

Configuration...........................................................................................................................................18

Instructions..............................................................................................................................................19

►Monitor Use and Service.........................................................................................................................27

Zero, Calibration, and, Bump testing ......................................................................................................27

Procedures..............................................................................................................................................27

Recommendations ..................................................................................................................................27

General information.................................................................................................................................28

Instructions..............................................................................................................................................28

Supplies...................................................................................................................................................29

Remote Sampling....................................................................................................................................35

Cleaning..................................................................................................................................................36

Service ....................................................................................................................................................36

Aspirated Monitor....................................................................................................................................37

Ventis™ MX4 Product Manual

Diffusion Monitor .....................................................................................................................................39

Sensor, Sensor Barrier, LCD, and vibrating motor replacement ............................................................40

Battery Configuration ..............................................................................................................................45

►Products, Specifications, and Certifications ............................................................................................47

Ventis MX4 Accessories and Parts.........................................................................................................47

Monitor Specifications.............................................................................................................................47

Battery Specifications..............................................................................................................................48

Operating Conditions ..............................................................................................................................48

Cold-weather Operation..........................................................................................................................48

Storage Conditions..................................................................................................................................48

Sensor Specifications..............................................................................................................................49

Toxic Gas Sensor Cross-sensitivity Table..............................................................................................49

LEL, and LEL Correlation Factors for Combustible Gases.....................................................................50

Certifications ...........................................................................................................................................51

►Warranty..................................................................................................................................................53

Limitation of Liability................................................................................................................................53

Contact Information.....................................................................................................................................54

Ventis™ MX4 Product Manual

►Copyright Notice

Ventis MX4™ and Ventis™ are trademarks of Industrial Scientific Corporation.

All trademarks and registered trademarks are the property of their respective owners.

These help materials or any part thereof may not, without the written consent of Industrial Scientific Corporation, be

copied, reprinted, or reproduced in any material form including but not limited to photocopying, transcribing,

transmitting, or storing it in any medium or translating it into any language, in any form or by any means, be it digitally,

electronic, mechanical, xerographic, optical, magnetic, or otherwise.

The information contained in this document is proprietary and confidential and all copyright, trademarks, trade names,

patents, and other intellectual property rights in the documentation are the exclusive property of Industrial Scientific

Corporation unless otherwise specified. The information (including but not limited to data, drawings, specification,

documentation, software listings, source or object code) shall not at any time be disclosed directly or indirectly to any

third party without prior written consent.

The information contained herein is believed to be accurate and reliable. Industrial Scientific Corporation accepts no

responsibility for its use by any means or in any way whatsoever. Industrial Scientific Corporation shall not be liable

for any expenses, costs by damage that may result from the use of the information contained within this document.

Although every effort is made to ensure accuracy, the specifications of this product and the content herein are subject

to change without notice.

►Warnings and Cautionary Statements

General

IMPORTANT

Failure to perform certain procedures or note certain conditions may impair the performance of this

product. For maximum safety and optimal performance, please read and understand the Ventis MX4

Product Manual available online at the Ventis MX4 Resource Center at

www.indsci.com/ VentisMX4resources.

Personnel

CAUTION: For safety reasons, this equipment must be operated and serviced by qualified personnel only.

Read and understand the product manual completely before operating or servicing.

Hazardous Conditions, Poisons, and Contaminants

WARNING: Servicing the unit, replacing or charging batteries, or using the communications port must only

be done in an area known to be nonhazardous. Not for use in oxygen-enriched atmospheres.

WARNING: Power-off the monitor before servicing the unit or replacing the battery.

WARNING: Substitution of components may impair intrinsic safety and may cause an unsafe condition.

CAUTION: High off-scale readings may indicate explosive gas concentration(s).

CAUTION: Any rapid up-scale reading followed by a declining or erratic reading may indicate gas

concentration(s) beyond the upper scale limit which may be hazardous.

Silicone compound vapors or other known contaminants may affect the combustible gas sensor and cause

readings of combustible gas to be lower than actual gas concentrations. If the monitor has been used in an

Ventis™ MX4 Product Manual

area where silicone vapors were present, always calibrate the monitor before next use to ensure accurate

measurements.

General Usage

Oxygen-deficient atmospheres may cause combustible gas readings to be lower than actual concentrations.

Oxygen-enriched atmospheres may cause combustible gas readings to be higher than actual

concentrations.

Sudden changes in atmospheric pressure may cause temporary fluctuations in the oxygen reading.

Verify the calibration of the combustible gas sensor after any incident where the combustible gas content has

caused the monitor to display an over-range condition.

Sensor openings, water barriers, and the pump inlet must be kept clean. Obstruction of the sensor openings

or pump inlet and/or contamination of the water barriers may cause readings to be lower than actual gas

concentrations.

To avoid the potential of liquid being pulled into the sample tubing and pump assembly, it is recommended

that Industrial Scientific filter (P/N 17027152) be used on the sample tubing when drawing samples using the

aspirated monitor.

WARNING: INSERT THE ALKALINE BATTERIES WITH THE CORRECT POSITIVE “+” AND NEGATIVE “-“

ORIENTATION. WARNING: The Ventis MX4 is only approved for use with AAA battery types Energizer

EN92 and Duracell MN2400. Do NOT mix battery types.

WARNING: The use of leather cases can produce inaccurate readings with diffusion (non-aspirated) gas

detection instruments for specific monitoring applications. Leather cases should be used ONLY as carrying

cases, and NOT for continuous monitoring, with diffusion instruments configured to measure gases other

than O2, CO, CO2, H2S, and combustible gases (LEL/CH4).

Agency-issued Conditions of Use and Warnings

Ensure all part-use restrictions (e.g., battery) meet any agency-mandated conditions of use.

Ensure all instrument-configurable settings (e.g., always-on setting) meet any agency-mandated conditions

of use. When using instrument-compatible Industrial Scientific docking stations, maintain mandated settings

through the software (e.g., iNet Control or Accessory Software) or by manually configuring the instrument

settings after docking.

The Ventis MX4 is CSA certified according to the Canadian Electrical Code for use in Class I, Division 1 and

Class I, Zone 1 Hazardous Locations within an ambient temperature range of Tamb: -20°C to +50°C. CSA

has assessed only the %LEL combustible gas detection portion of this instrument for performance according

to CSA Standard C22.2 No. 152. This is applicable only when the monitor is used in the diffusion mode and

has been calibrated to 50% LEL CH4, and when the monitor is used in the aspirated mode with an Extended

range lithium-ion battery and has been calibrated to 50% LEL CH4.

CAUTION: CSA C22.2 No. 152 requires before each day’s usage, sensitivity must be tested on a known

concentration of pentane or methane equivalent to 25% or 50% of full scale concentration. Accuracy must

be within -0% to +20% of actual concentration. Accuracy may be corrected by referring to the

zero/calibration section of the Product Manual.

The equipment complies with the standards IEC 60079-29-1 and EN 60079-29-1 for methane, propane, and

hexane with the following exception: as for the methane (mine) detector, the battery run time was verified to

be seven (7) hours rather than the eight (8) hours recommended by the standards, respectively.

MED-certified instruments may be used only when configured and maintained to disallow power-off when

the unit is in alarm.

The Mine Safety and Health Administration (MSHA) has approved the Ventis MX4 as a Permissible Multi-

Gas Monitor with the following warnings:

Ventis™ MX4 Product Manual

•MSHA approved for use with either the P/N 17134453-X2, 3.7 volt, Lithium-ion battery or P/N

17148313-2, 3.7 volt, lithium-ion Extended battery only. The battery pack is not user-replaceable. The

monitor battery and the lithium battery on the main PCB are technician replaceable only. Charge

rechargeable lithium-ion batteries with an ISC battery charger designed for use with this monitor in fresh

air locations only.

•The monitor is to be calibrated according to the procedures in the instruction manual only.

•The aspirated version of the Ventis MX4 is only approved for use with the Extended range battery only.

•The monitor must display methane in the percent-by-volume mode (0-5%) for compliance

determinations required by 30 CFR Part 75, subpart D.

SANS 1515-certified units may be used only as follows:

•Diffusion applications

•Configured and maintained to disallow power-off when the unit is in alarm

•The Methane alarms are set as follows: low alarm = 1%vol and high alarm =1.4%vol

•With approved Lithium-ion batteries (see Ventis MX4 Accessories and Parts in this manual).

Recommended Practices

Industrial Scientific Corporation recommends the monitor be fully charged (when equipped with a

rechargeable battery), configured, and calibrated before first time use. If the lithium-ion battery is deeply

discharged, it can take up to an hour for the instrument display to indicate that the battery is charging.

Monitors used infrequently should be fully charged every four months.

No part of the unit should be covered by any garment, part of a garment, or other item that would restrict the

flow of air to the sensors or impair the operator's access to the audible, visual, or vibration alarms.

Industrial Scientific Corporation recommends a full monitor calibration be performed monthly (at a minimum),

using a certified concentration(s) of Industrial Scientific calibration gas(es) to help ensure monitor accuracy.

Industrial Scientific Corporation recommends the monitor be zeroed and bump tested before each use with a

certified concentration(s) of Industrial Scientific calibration gas(es).

Battery contacts are exposed on batteries when they are removed from the monitor. Do not touch the battery

contacts and do not stack batteries on top of one another.

When reassembling the instrument or installing a battery pack, maintain ingress protection by tightening

each fastener to its stated torque value (see the “Ventis MX4 Monitor three-Dimensional Diagram” and its

key in this manual).

Contact your service representative immediately if you suspect that the Ventis MX4 is working abnormally.

►Ventis MX4 Resources

The Ventis MX4 Product Manual is the primary resource, within a full suite of learning tools, developed for the monitor

user. Its step-by-step “walk through” format covers everything from unpacking to set-up, operation, and service. All

Ventis MX4 users should read and understand the Product Manual prior to unpacking or using the monitor.

Ventis MX4 product-specific resources are part of the organization’s broader training line-up, featuring online training

modules and face-to-face classroom programs for technicians, operators, first responders, trainers, and distributors.

Courses combine theory with hands-on learning, and can be tailored to the customer’s unique requirements and gas

monitoring applications.

The organization’s customer and technical support call centers provide product and order information, how-to product

assistance, and guidance for in-depth technical applications. Its service centers offer comprehensive factory repair

and maintenance services.

Industrial Scientific Corporation provides a full suite of resources to aid customers in the competent and safe use of

its products and services. With 19 manufacturing, support, and service centers and hundreds of distributors

worldwide, Industrial Scientific serves the globe’s gas detection needs.

Ventis™ MX4 Product Manual

►Ventis MX4 Capabilities

The Ventis MX4 is a portable multi-gas monitor. Offered as a diffusion monitor, it detects and measures gas(es)

present in open space. To enable monitor use within confined space locations, the Ventis MX4 is also offered as an

aspirated monitor. A pump module and battery accessories enable the conversion of either monitor for dedicated use

in either confined or open spaces.

Based on the customer’s monitor order, up to four sensors are factory installed enabling the monitor to continuously

and simultaneously detect and measure the presence of up to four specific gases.

Sensor

Category

Number available per

monitor

Gases Monitored

Oxygen

O2(Oxygen) only

Combustible

Monitor can be configured for sensor to measure ONE of the following:

•LEL (Pentane)

•LEL (Methane)

•CH4(0%-5%)

Toxic

Each sensor detects and measures only ONE of the following:

•CO (Carbon Monoxide)

•CO/H2 Low (Carbon Monoxide with low H2interference)

•H2S (Hydrogen Sulfide)

•NO2(Nitrogen Dioxide)

•SO2(Sulfur Dioxide)

Equipped with a multi-mode (audible, visual, and vibration) and multi-level alarm system, the Ventis MX4 monitor is

capable of notifying its user of potentially hazardous gas concentrations.

The monitor performs continuous data logging at 10 second intervals. It can store approximately 90 days of data for a

four-sensor configuration. Its date- and time-stamped event log records and stores data for the following: 60 alarm

events, 30 error events, and 250 manually performed calibrations or bump tests. The memory, when full, overwrites

the oldest data as the newest readings and events are logged.

The Ventis MX4 monitor functions as an independent device to monitor the environment for hazardous gas

concentrations. It is compatible with products that charge, calibrate, bump test, read and record instrument data,

protect, and otherwise enable or enhance use of the monitor and its data. For a complete list of these products,

please refer to the manual section, Ventis MX4 Accessories and Parts.

►Unpacking the Monitor

Contents

The monitor box contains the following items including, when ordered, those marked optional. Each item ordered

should be accounted for in the unpacking process.

Quantity

Item

Notes

1 as ordered

Ventis MX4 Portable Multi-

gas Monitor

The monitor type is indicated on the box label.

Options:

•Ventis MX4 Diffusion

•Ventis MX4 Aspirated

•Ventis MX4 Aspirated with Conversion Kit

Ventis MX4 Quick start guide

Review for important safety information before using

the monitor.

1 installed as ordered

Battery

One of four battery types are factory installed as

indicated on the box label.

Ventis™ MX4 Product Manual

Quantity

Item

Notes

Options:

•Rechargeable Lithium-ion (Li-ion)

•Rechargeable Slim extended lithium-ion (Li-ion)

•Rechargeable Extended range lithium-ion (Li-ion)

•Replaceable Alkaline

1 as ordered

Ventis Charger

Universal power cord. AC charger products include

interchangeable plugs (US, UK, EU, and AUS).

0 or 1

Calibration Cup

Diffusion – 1 included

Aspirated – 0 included

Calibration and Bump Test

Tubing

Diffusion – two feet of clear tubing

0 or 1

In-field Sampling Tubing

Diffusion – 0 included

Aspirated – Ten feet of black tubing

Final Inspection & Test

Report

Contains the following factory set* information:

•Monitor Set-up Date

•Monitor Part Number (P/N)

•Monitor Serial Number (S/N)

•For Each Sensor*:

•P/N

•S/N

•Type

•Location

•Alarm level values

•Span gas values

•Span reserve values

*Some factory set sensor values subject to user changes.

Warranty Card

After unpacking, if any item is missing or appears to have been damaged, contact a local distributor of Industrial

Scientific products or Industrial Scientific Corporation (for contact information, please see the manual’s last page).

►Monitor Overview

Hardware Features and Functions

The monitor’s case top (front of monitor) has two main sections. As shown below, the upper section contains the

sensor ports. The lower section houses the user interface features, a LCD display screen and two buttons. Each

feature’s general functions are noted below. As shown, the diffusion and aspirated monitors differ with respect to the

location of the air intake mechanism and visual alarm indicators.

The instrument may be used in any orientation when clipped to the user or when used with a compatible carrying

case. Normal instrument orientation for measuring gas concentration is hand held with sensors and display facing the

operator.

Ventis™ MX4 Product Manual

Number

Feature

Functions

Visual alarm indicator

Signals an alarm or warning; frequency varies by alarm level. Also used as a

confidence indicator.

Pump inlet (aspirated)

Sensor ports (diffusion)

Air intake; calibration and bump test gas intake.

LCD display

User interface; backlight flashes when monitor is in system, high, or low

alarm states.

Audible alarm ports

On when monitor is in system, high, or low alarm states; frequency and tone

vary by alarm level. Also used for warnings and as confidence indicator.

On/Off/Mode button

Used to power-on and power-off. Also used to bypass a process/step or

advance to a next screen in both gas monitoring and configuration modes.

Sets values in configuration mode.

Enter button

Used to begin a process/step in a process. Edits values in configuration

mode.

IrDA interface

Indicates infrared light data exchange in-progress.

Charging contacts

Battery charging.

Display Screen

The Ventis MX4 Boot-up Screen, as shown below, serves to introduce all icons and the alpha-numeric items (e.g.,

8.8.8) that can appear on the display when the monitor is in use, docked, or charging. Each display item is stationary,

communicates unique information, and appears only when relevant to the task being performed.

A sample Gas Monitoring Screen is also shown below, next to the boot-up screen. This illustrates how the icons and

the alpha-numeric characters work together to communicate several points of information to the monitor user.

Ventis™ MX4 Product Manual

Boot-Up Screen

All possible screen images.

Gas Monitoring Screen

Sample screen in gas monitoring mode.

NOTE: Display screens featured throughout this manual include the “pump” icon.

Similar in appearance to a fan, it indicates an aspirated monitor is in use. For a

diffusion monitor, the pump icon does not appear on the display.

It is helpful to view the boot-up screen in sections. The top and bottom rows each contain icons. The main function of

the middle section, in gas monitoring mode, is to communicate gas concentration readings. Definitions for all icons,

gas name abbreviations, gas measurement units, and other indicators are provided below. Where applicable, display

variations are noted.

Top Row Icons

Definition

Status: indicates no monitor or sensor faults.

Warning: indicates monitor or sensor fault.

Zero: communicates zero status (e.g., zero results, zero in-progress, etc.).

Gas Cylinder: communicates calibration related information (calibration due, calibration

apply gas, etc.).

Clock: indicates a process is in-progress.

Calendar: communicates overdue warnings for service items (calibration, bump testing,

etc.).

Alarm: indicates an alarm causing condition.

Low level audio alarm is on.

High level audio alarm is on.

Peak: displayed when peak detection values are viewed.

Alpha-numeric

display values

Definition

Carbon Monoxide (CO)

Methane (CH

)

Sulfur Dioxide (SO

)

Lower Explosive Limit. Display variations:

“LEL” (English)

“LIE” (French)

“UEG” (German)

Oxygen (O

)

Nitrogen Dioxide (NO

)
