Industrial Scientific Tango TX1 Manuel utilisateur

Reference Guide

Part Number: 17154831

Edition: 3

10 November 2016

参考指南

部品号：17154831

版本：3

2016

年

月

日

Guide de référence

Numéro réf. : 17154831

Édition : 3

10 novembre 2016

Referenzhandbuch

Teilenummer: 17154831

Ausgabe: 3

10. November 2016

Guía de referencia

Número de referencia: 17154831

Edición:3

10 de noviembre de 2016

참조

가이드

부품 번호: 17154831

제3판

2016 년11 월10 일

Industrial Scientific Corporation.

Pittsburgh, PA USA

Shanghai, China

Arras, France

Revision 3

Contents 目录 Table des matières Inhalt Contenido 목차

Section Page

English

章节页码

中文

Section Page

français

Abschnitt Seite

Deutsch

Sección Página

Español

페이지

한국어

Introduction

Thank-you for choosing the Tango TX1 from Industrial Scientific Corporation

(ISC). Upon receipt, qualified members of the safety administration team

should:

Register the unit for warranty.

Read and understand the Product Manual (available online).

Prepare the unit for first use.

•Consult the unit's Final Test and Inspection Report for record of unit information at

the time of manufacture.

•Examine the unit's labels to determine for which uses it is certified.

•Configure and calibrate the unit (see the online Product Manual).

Train instrument operators.

•Ensure each instrument operator has read the Product Manual and is competent in

the use of the equipment.

•Take advantage of ISC online training videos, narrated step-by-step

demonstrations and instructional material.

Note: Language options may vary for some resources.

www.indsci.com/

products/tango

Warranty

registration.

Product Manual.

Training videos.

And more.

Operation Basics

Power on

Press for approximately three seconds to power on the unit. The instrument operator will see several start-up screens

(examples shown below) as the unit completes its start-up diagnostics. If the unit passes all diagnostic tests, the gas-monitoring

screen will be activated and the unit will be in operation mode. If any test fails, the unit will display an error code (see "Alarms”

and “Warnings" or refer to the Product Manual).

Hardware Overview

Visual alarm indicator

Visual alarm indicators

Garment clip (open)

IrDA (infrared data

exchange) window

Sensor port 1 and dust

filter

Sensor port 2 and dust filter

On-off-mode button

Enter button

LCD (liquid crystal

display)

Audible alarm indicator and

dust filter

Garment clip (closed)

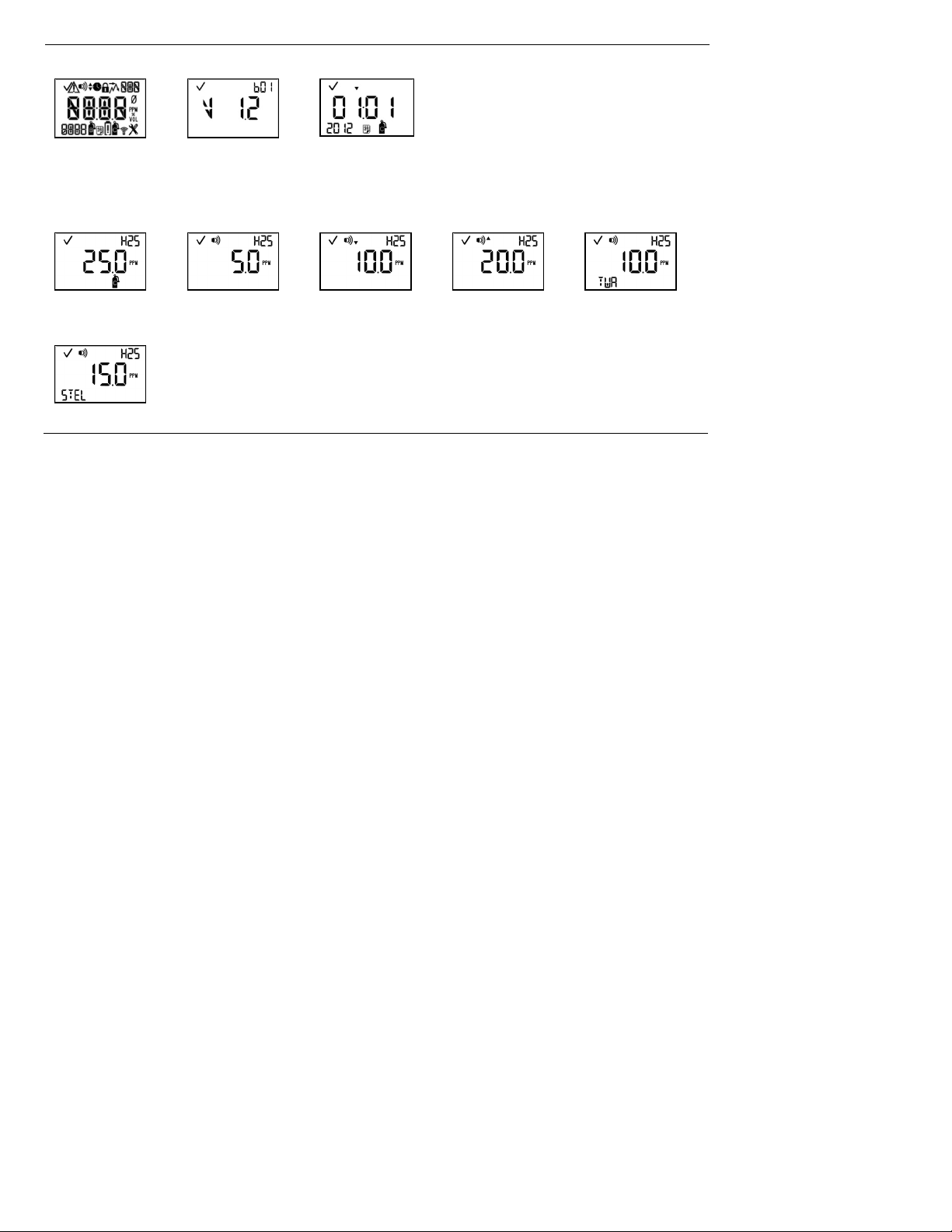

Start-up screens (H2S is shown below.)

Visual test screen Version Calibration date

Gas Information screens

Calibration gas

setpoint

Gas alert setpoint

(If enabled)

Low alarm setpoint High alarm setpoint TWA setpoint

STEL setpoint

Gas monitoring screen.

No-fault indicator

Gas concentration

Installed sensor type

Unit of measure

Power off

To power off the unit, press ; hold for the displayed five-second countdown. A unit that is configured for always-on operation

may require the entry of a security code to complete the shutdown process.

Operation mode

If enabled, these tasks can be completed – by qualified personnel – from operation mode:

The time-weighted average (TWA), the short-term exposure limit (STEL), and the peak readings can be viewed and

cleared. When any summary reading is cleared, its value is reset to zero and its time-related setting is also reset to zero.

The unit can be zeroed or zeroed then calibrated.

The unit can be bump tested.

The buttons are used as follows:

Press to scroll through the operation-mode loop (shown below).

Press to initiate a task or to clear a reading.

When a unit is in alarm, a long press on will reset a latched alarm; it does not disable an enabled latch.

When and are simultaneously pressed and held for three seconds, the unit will complete a self-test.

When no button is pressed for 30 seconds, the gas-monitoring screen is activated.

Operation-mode loop

Gas monitoring

Calibration date

Initiate zero*

Initiate bump test*

Peak reading

TWA reading*

STEL reading*

−

*Activated only when enabled for operation-mode access.

Alarms

Different events can produce the same alarm. Events are distinguished from one another through the use

of symbols that appear on the instrument display screen (see the Product Manual for a complete list of

symbols and screens).

Alarm Level : High

The high alarm features the red lights, with steady sound. It is fast-paced.

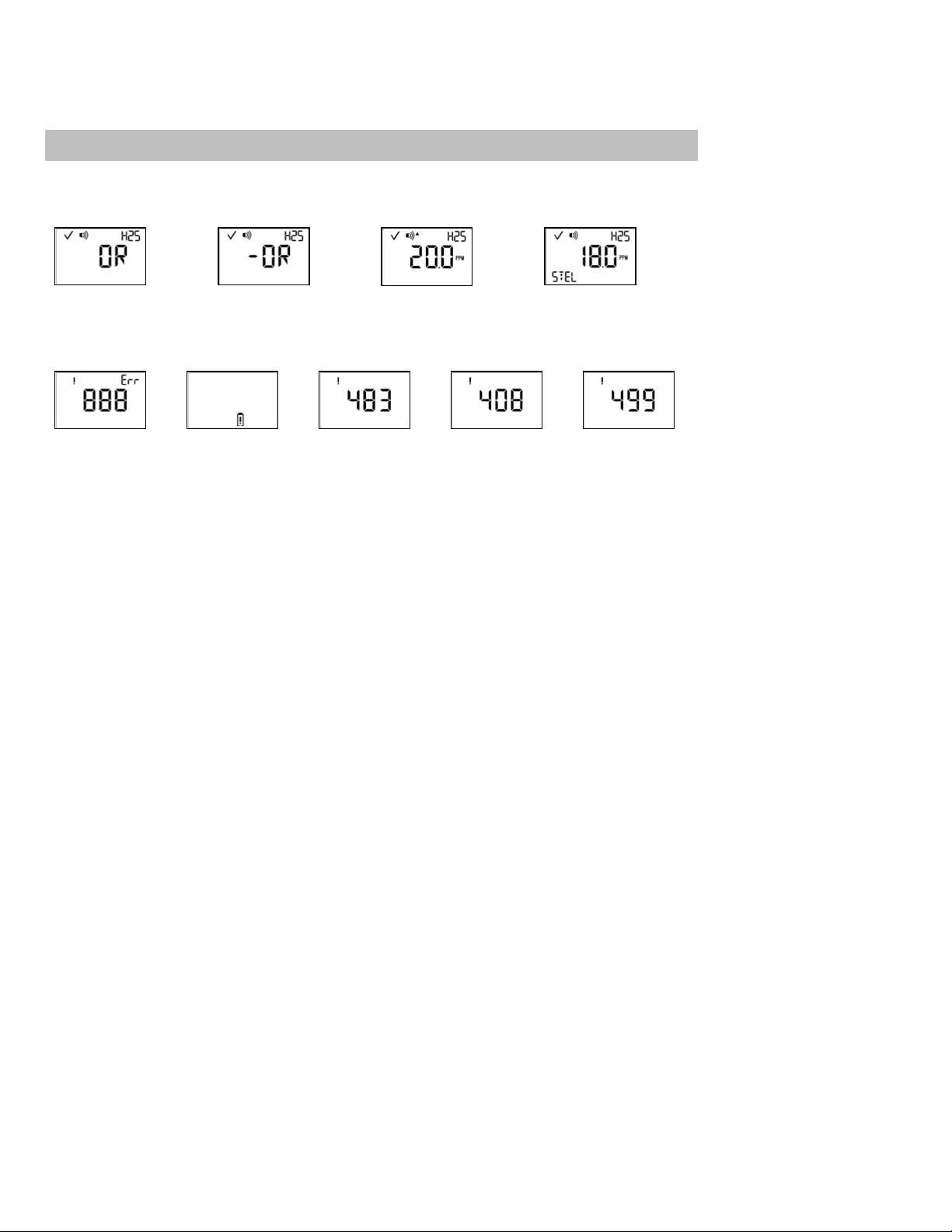

Gas Present (H

S is shown.)

Gas present,

over-range alarm

Gas present,

negative over-range alarm

Gas present, high alarm

STEL alarm

Nongas high alarms

System alarm Critical low battery

alarm (occurs after

ten minutes of low

battery warning)

Sensor error alarm

(both sensors)

No sensor installed Two sensors “types”

installed
