Indmar ECOBOOST 2.3L Manuel utilisateur

2.3L ECOBOOST

OPERATOR’S MANUAL

2021 Operator Manual Cvrs.indd 12021 Operator Manual Cvrs.indd 1 5/3/2021 1:16:09 PM5/3/2021 1:16:09 PM

FUEL SYSTEMS

Boats manufactured for use in California for model year 2018 and after

meet the California EVAP Emissions regulation for spark-ignition marine

watercraft. Boats meeting this requirement will have the following label

affixed near the helm.

The fuel system in boats marketed in states other than California complies

with U.S. EPA-mandated evaporative emission standards at time of

manufacture using certified components.

CALIFORNIA AIR RESOURCES BOARD (CARB)

Outboard, sterndrive and inboard powered boats sold in the state of

California are equipped with special components and certified to meet

stricter environmental standards and exhaust emissions. All boats sold in

California since 2009 are required to meet Super-Ultra-Low (four-star)

emissions.

EXHAUST EMISSIONS

Sterndrive and inboard marine engine powered boats

meeting CARB’s exhaust emission standards are

required to display the four-star label on the outside

of the hull above the waterline. Outboard and

personal watercraft marine engines may also comply

with these standards.

Operating, servicing and maintaining a recreational

marine vessel can expose you to chemicals including

engine exhaust, carbon monoxide, phthalates and lead,

which are known to the State of California to cause

cancer and birth defects or other reproductive harm. To

minimize exposure, avoid breathing exhaust, service your

vessel in a well-ventilated area and wear gloves or wash

your hands frequently when servicing this vessel. For

more information go to: www.P65warnings.ca.gov/marine

Carbon monoxide (CO) can cause brain damage or death. Engine and

generator exhaust contains odorless and colorless carbon monoxide

gas. Carbon monoxide will be around the back of the boat when

engines or generators are running. Signs of carbon monoxide

poisoning include nausea, headache, dizziness, drowsiness and lack

of consciousness. Get fresh air if anyone shows signs of carbon

monoxide poisoning. See engine manufacturer’s manual for

information regarding carbon monoxide poisoning.

Dear Indmar Marine Engine Owner:

Thank you for selecting a boat powered by an Indmar Marine

engine. Indmar is proud to provide the power to the best boat

companies in the business and we hope that pride shows in the

quality of our products. In the unlikely event that you have a defect-

related problem with your boat’s engine or drive train, you can

rest assured knowing it is backed by our industry-leading five-year

warranty coverage.

This is another exciting year for Indmar and for the marine industry.

Indmar has joined forces with Ford Motor Company to produce a

line of marine engines designed to exceed customer expectations.

The Ford based 2.3 Liter EcoBoost engines are fuel injected,

turbocharged and equipped with catalytic converter exhaust

systems to provide a cleaner and safer boating experience for you

and your family.

See the full warranty statement in Appendix C of this manual for

details and exclusions.

If you have any questions concerning your engine that are not

covered in this manual, please feel welcome to contact Indmar

Customer Service at (901) 353-9930 or visit our website,

www.indmar.com, and submit your question.

Thanks again for choosing an Indmar-powered boat. We wish you

safe, trouble-free boating.

Sincerely,

Team Indmar

Indmar Marine Engines has a pedigree going

back over 45 years in the inboard marine

industry and a proud tradition of pointing the way

forward. Today, this legendary brand delivers

an inimitable mix of unrivaled performance,

meticulous craftsmanship and groundbreaking

innovations – charting a course for others to

follow, yet leaving the competition behind.

To produce the world’s finest, most advanced

and most dependable gasoline inboard

marine engines at the best possible price,

while respecting the needs of our employees,

customers, vendors and the precious

environment we share.

iii

2021 Indmar Marine Engines

Introduction.....................................................................................v

Section 1 – Safety .......................................................................1-1

Carbon Monoxide Gas ........................................................... 1-2

Fuel ........................................................................................ 1-4

Battery.................................................................................... 1-5

Engine Oil............................................................................... 1-5

Cleaning Solvents .................................................................. 1-6

Entanglement......................................................................... 1-6

Environmental ........................................................................ 1-6

Section 2 – General Information................................................. 2-1

Using Oxygenated Fuels or Fuels with Alcohol ...................... 2-3

Biobutanol-Blended Gasoline.................................................2-4

Fuels in Other Countries ........................................................ 2-4

Indmar Fuel Recommendations .............................................2-5

Fuel System............................................................................ 2-5

Battery....................................................................................2-6

“Service Required” or “Check Engine” Indicator ..................... 2-9

Engine Cooling..................................................................... 2-11

Aquatic Invasive Species (AIS) Prevention........................... 2-12

Exhaust Hoses..................................................................... 2-14

Section 3 – Pre-Start Checks ..................................................... 3-1

Pre-Start Checks .................................................................... 3-1

Section 4 – First-Time Operation and Break-In .......................... 4-1

First-Time Operation .............................................................. 4-1

Break-In..................................................................................4-3

Section 5 – Engine Starting Procedures..................................... 5-1

How to Start Your Engine .......................................................5-1

If Engine Does Not Start ........................................................ 5-3

How to Clear the Engine ........................................................5-4

Engine Restart ....................................................................... 5-5

Section 6 – Normal Operation .................................................... 6-1

Sensible Operation.................................................................6-1

Daily Routine .......................................................................... 6-1

Operating the Controls ........................................................... 6-3

Unusual Vibration ................................................................... 6-4

Section 7 – Maintenance.............................................................7-1

General Service Notes........................................................... 7-1

Engine Oil............................................................................... 7-5

Engine Flame Arrestor ........................................................... 7-9

Engine Cooling......................................................................7-10

Fresh Water Cooling..............................................................7-13

Fuel System...........................................................................7-14

Electrical System...................................................................7-16

Wiring....................................................................................7-17

General Lubrication...............................................................7-19

Accessory Drive ....................................................................7-19

Section 8 – Storage and Winter Lay-Up...................................... 8-1

General Preparation ...............................................................8-2

Reactivating Engine After Extended Storage .........................8-6

Extended Storage................................................................... 8-7

Section 9 – Troubleshooting ....................................................... 9-1

Appendix A – Maintenance Components and Fluids..................A-1

Service Log ............................................................................A-2

Appendix B – Engine Specifications...........................................B-1

Appendix C – Indmar Limited Product Warranty.........................C-1

2021 Indmar Marine Engines

This manual will acquaint you with basic information needed to safely

operate and maintain your Indmar engine. We suggest you and all

other operators read the entire manual before using your boat.

We recommend you contact your Indmar dealer for all engine

service. Certified Indmar Technicians are trained to service your

Indmar engine and drive train. They have current specifications,

parts and the special equipment needed to service your Indmar

engine and drive train. To find your nearest Indmar dealer, please

visit our website at www.indmar.com or call (901) 353-9930.

In the unlikely event that you experience a major drive train or

engine failure, please be aware that the failure may not be covered

by the Indmar Limited Warranty (See the Indmar Limited Warranty

Statement in Appendix C of this manual).

Some failures may be covered under your boat owner’s insurance

policy. We strongly recommend you contact your insurance

company immediately and advise them of the situation until the

final determination for eligibility is made.

To ensure that the proper information is available, note the six-digit

engine serial number. The serial number is stamped on the engine

block. Refer to Figure 1.1 for locations. The serial number also

appears on the emissions label on the valve cover of the engine

and on several stick-on tags that are attached to major engine

components.

INDM-0118a

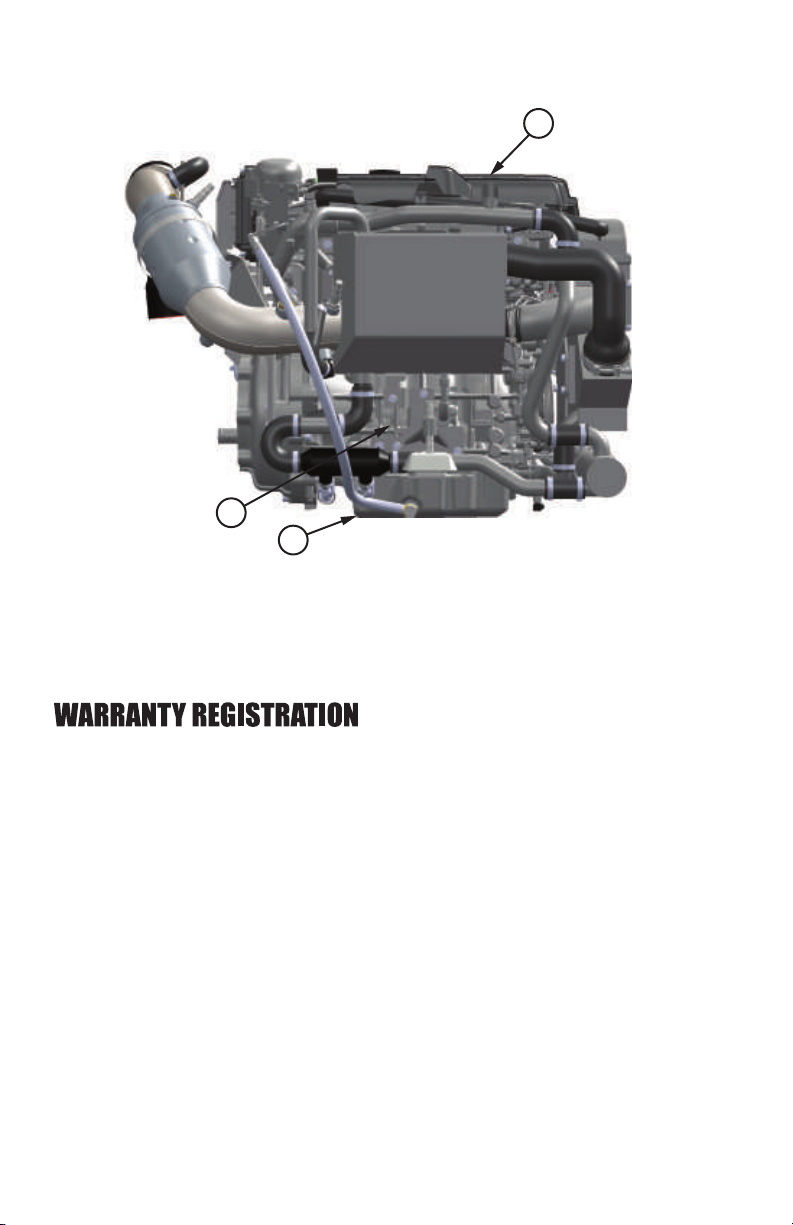

1 - Engine Block

2 - Valve Cover

3 - Oil Pan

Figure 1.1 – Serial Number Locations

The Federal Boat Safety Act of 1971 requires registrations of

marine products sold in the United States be maintained by the

manufacturer and dealers of those products.Your dealer should

have completed your warranty registration to comply with federal

regulations. This registration enables us to contact you, if it should

become necessary, to change or improve your product.The engine

serial number is stamped into the block. For additional serial number

locations, refer to Figure 1.1. Always retain a copy of the serial

number for your personal records.

Warranty registration must be received within 10 days after date of

purchase by the first owner. The engine package must be registered

with Indmar Customer Service before any warranty diagnosis or

repairs can be performed. If the engine has not been previously

registered the start of warranty will be either the date of sale or date

put in service, whichever is earlier.

vii

2021 Indmar Marine Engines

The remainder of the engine warranty is transferable to a second

or subsequent owner. Warranty transfers must be completed within

10 days of the transfer of ownership.

If the trade-in and resale is handled by an authorized Indmar

dealer, the dealer must fill out the warranty registration transfer

form and send it and other paperwork specified along with the

warranty transfer fee and the transfer will be processed on

approval by Indmar.

If the sale of the boat is from a private owner to another individual,

the engine package must be inspected by an authorized Indmar

dealer, at the seller or purchaser’s expense, and the Inspection

Form, Warranty Transfer Form, specified paperwork and transfer

fee and the transfer will be processed on approval by Indmar.

The new boat owner will be notified within 10 days of Indmar’s

receipt of the transfer form whether the transfer has been

accepted or not. If the transfer has been accepted, the warranty

expiration date will also be provided for the new owner.

To obtain enjoyment from your boat, follow recommendations

described in this manual. The knowledge you gain through careful

review will help you experience lasting satisfaction.

Further information regarding the care, operation, required

equipment or specifications for your boat can be obtained from

your local US Coast Guard Auxiliary, US Power Squadron, state

boating authorities, or the American Red Cross. Know the law and

your responsibilities as a boat owner.

Any alteration, change, improper maintenance or abnormal

use by you which renders the engine or any of its components

unreasonably dangerous will void all warranties and Indmar will

not be liable for the resulting damages or injuries.

viii

The inboard engine in your boat includes

the Indmar emission control system

identified as DI. It is also equipped

with heated oxygen sensors (HO2s),

1 catalytic converter (1 TWC) and an

on-board diagnostic system (OBD). The

fuel and ignition systems on your engine

meet the stringent requirements set forth

by the U.S. Environmental Protection

Agency (EPA) and the California Air

Resources Board (CARB). Indmar also

uses propylene glycol anti-freeze in the

closed cooling system of your engine to

reduce the environmental impact in the

event that anti-freeze is expelled from the

engine.

Your Indmar manufactured engine has

a special environmental label required

by the California Air Resources Board

(CARB). The label has 1, 2, 3 or 4 stars.

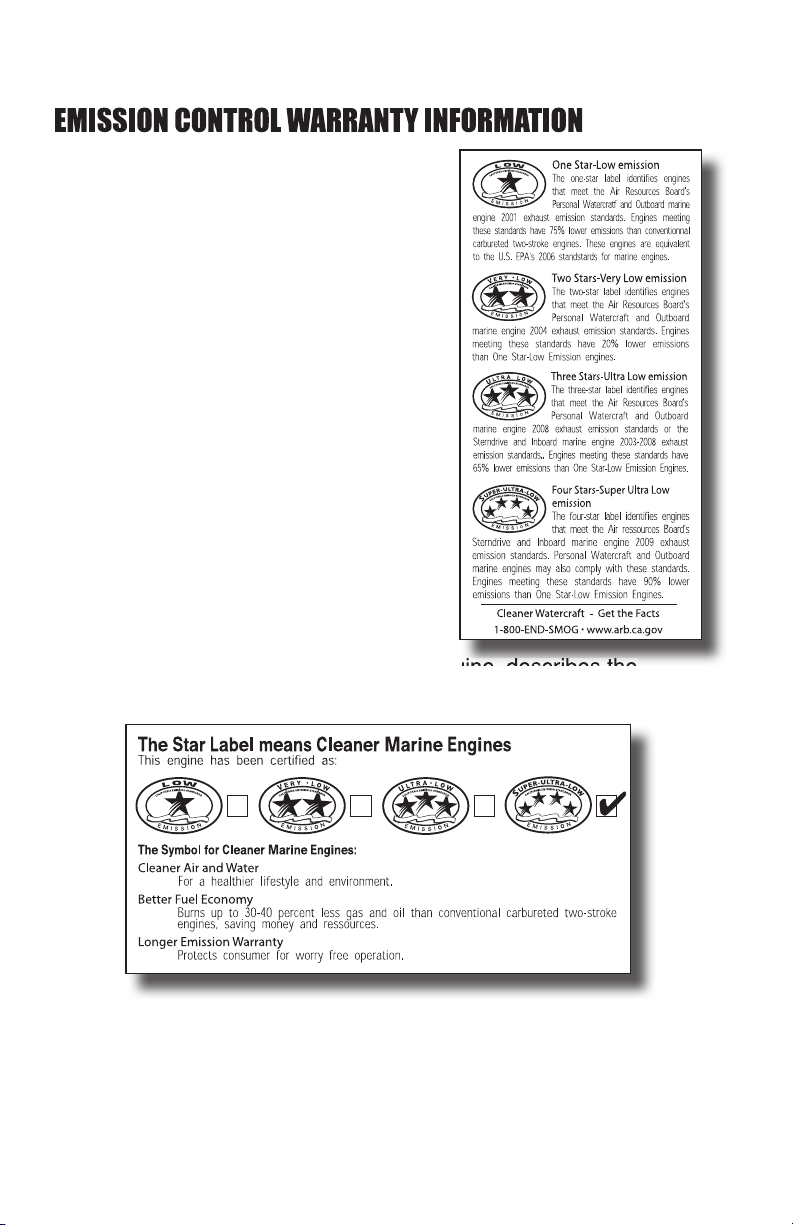

A hangtag, provided with your inboard engine, describes the

meaning of the star system.

Manuels Éclairage marin populaires d'autres marques

Francis Searchlights

Francis Searchlights FX560 Manuel utilisateur

Attwood

Attwood 5095 Manuel utilisateur

Glamox

Glamox aqua signal TX20 Series Manuel utilisateur

Attwood

Attwood 3100 Manuel utilisateur

Imtra

Imtra BCM California 60 Manuel utilisateur

Sealite

Sealite SL60 Supplément

Hella marine

Hella marine NAVILED PRO 2NM Manuel utilisateur

ACR Electronics

ACR Electronics 3940 Instructions d'installation

ETI Solid State Lighting

ETI Solid State Lighting 504081020 Manuel utilisateur

Sea gull lighting

Sea gull lighting Traverse Lyte Retrofit Kit Manuel utilisateur

Attwood

Attwood 3830 Manuel utilisateur

Sealite

Sealite SL-15 Supplément

Attwood

Attwood 911339 Manuel utilisateur

Daniamant

Daniamant W3-1 Manuel utilisateur

Sabik Marine

Sabik Marine carmanah 800 Series Manuel utilisateur

Attwood

Attwood 91041 Manuel utilisateur

Tranberg

Tranberg TEF 2438N Manuel utilisateur

Weems & Plath

Weems & Plath 700 Manuel utilisateur
