INDIWORK IW04VW Manuel utilisateur
Instruction Manual
High-Definition Link for Volkswagen Golf(MK7)
IW04VW
Model Name IW04VW-N
Latest Firmware Date 2015 -11 -11
Manual Version Rev. 2.9
Language English
Release Date: 2016 - 06 -25
Contents
•Cautions
•Dimension & Exterior
•Components & Optional parts
•Full Installation Diagram
•HDMI Connection Diagram
•Navigation Connection Diagram
•Compatibility Chart for Navigation(GPS) box models
•LVDS Connection Diagram
•Body Connector specifications
•Car Compatibility Chart
•Activation by original buttons
•DIP Switch Settings
•Settings
1. Enter into the setting menu
2. HDMI mode settings
3. NAVI mode settings
4. Rear view camera settings
5. AV1(Front view camera) settings
6. Automatic activation function(AV1)
7. AV2 settings
8. System settings
9. System information
____________________________________________________________ 3
_________________________________________________ 4
_________________________________________ 5
______________________________________________ 7
____________________________________________ 9
_________________________ 10
___________________ 12
___________________________________________ 13
_______________________________________ 14
______________________________________________ 15
________________________________________ 16
_________________________________________________ 17
____________________________________ 18
___________________________________________ 19
____________________________________________ 19
_____________________________________ 20
________________________________ 20
_____________________________ 21
___________________________________________________ 21
_______________________________________________ 22
____________________________________________ 22
3
IW04VW-related
•You should check the names and colors of each wires exactly, before you connect the wires.
ex) CAN HIGH: White wires / CAN LOW: Blue wires
• The ‘POWER / CAN Cable’ should always be connected last and be disconnected first.
•The 'Mode Switch' is an optional part to change modes forcibly without CAN-BUS.
Generally, the CAN-BUS wires are connected for changing modes by original buttons.
•When the reverse gear is not detected by CAN-BUS,
the 'REVERSE 12V IN wire’ should be spliced with 12V power of reverse light.
HDMI device-related
•HDMI mode accepts general-screen resolution of HDMI devices(1080P / 1920*1080).
If screen size of HDMI does not fit on the monitor, should adjust screen size & position in 'settings mode'.
•Generally, '5V 1A Power output(5V USB POWER)' is a standard voltage for charging smartphone.
If you need higher voltage than 5V, you should add a separate power supply.
Navigation(GPS) box-related
•When you connect the power wires(B+, ACC) to the navigation(GPS) box,
the ‘NAVI 12V OUT' wire supported by IW04VW should be spliced with an ACC wire of navigation box.
•After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection
menu' of setting mode.
•The navigation box should be powered off before unplugging the HDMI cable.
Cautions
4
ⓐ ⓑ ⓒ ⓓ ⓔ
ⓕ ⓖ ⓗ ⓘ ⓙ
ⓐ

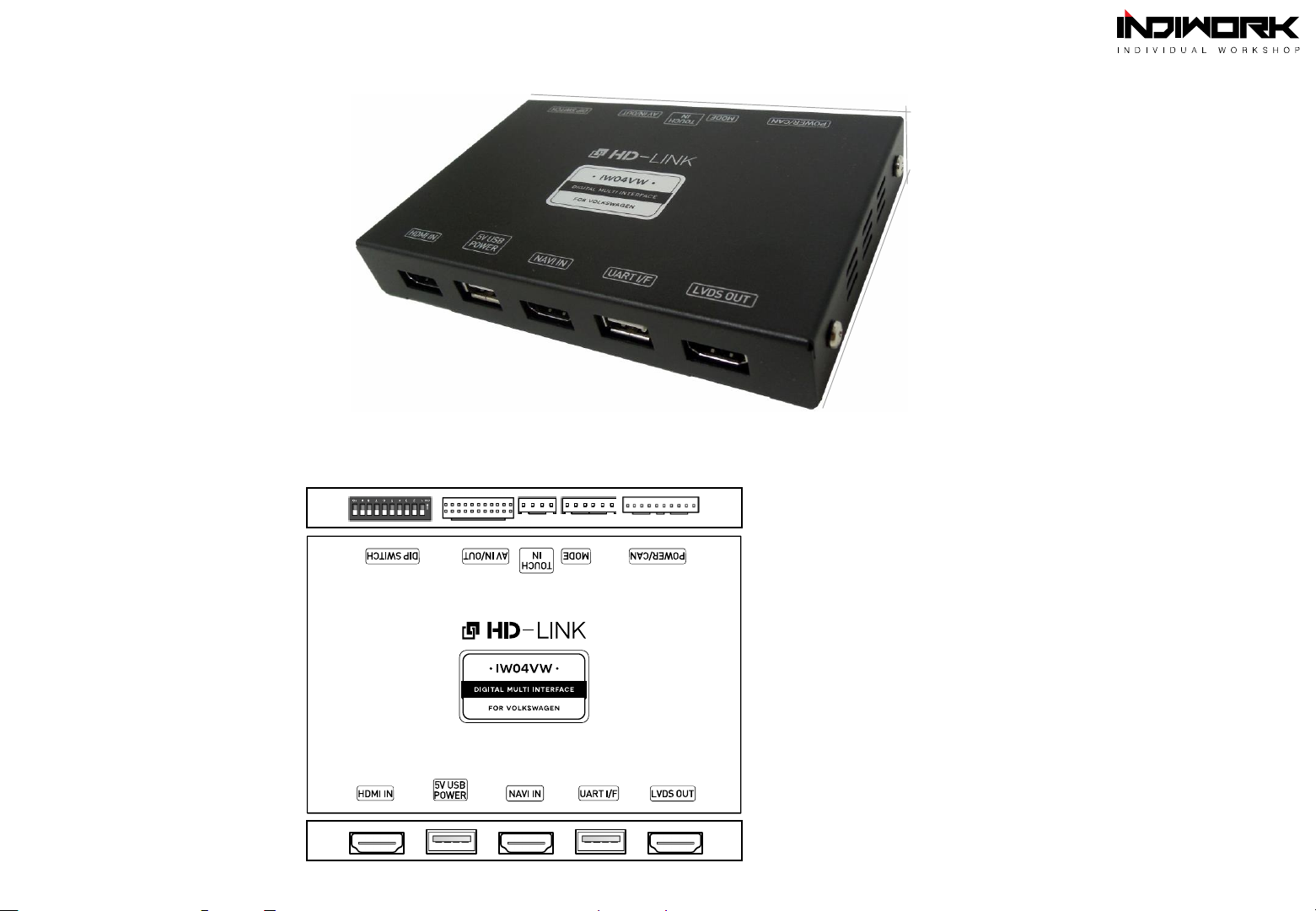

DIP SWITCH
ⓑ
AV IN / OUT
ⓒ
TOUCH IN
(Connect To Set top Device)
ⓓ
MODE
ⓔ
POWER / CAN
ⓕ
HDMI IN
ⓖ
5V USB POWER
ⓗ
NAVI IN
ⓘ
UART I/F
ⓙ
LVDS OUT
Width: 142 mm
Length: 91 mm
Height: 22 mm
Exterior
Dimension
5
Power / CAN Cable LVDS Cable LVDS PCB HDMI Cable
(For LVDS) AV IN / OUT Cable 5-pin Micro USB Cable
Components
Optional Parts(sold separately at the indiwork)
Mode SwitchHDMI Extender
(For stick type HDMI device)
HDMI Cable
(Male to Male)
External Rear View
Camera
Audio(AUX) Output of
Navigation Box
Auxiliary(AUX)
Input of the car
External Front View
Camera
AV device
(ex: DTV Box, Divx)
HDMI
HDMI
HDMI
HDMI
HDMI USB
7
LVDS IN / OUT Connection
OEM Head Unit
LVDS
IN / OUT
PCB
HDMI
Main Connector of Head Unit(In the Glovebox)
1
4
5
8
9
12
13
14
15 16
1 6
7 12
Pin # 15 = GND(Brown)
Pin # 16 = B+ POWER(Red)
Pin # 6 = ECU CAN HIGH(Orange / Purple)
Pin # 12 = ECU CAN LOW(Orange/Brown)
*Yellow dotted lines
*The wires color might be different depends on models.
you have to splice the CAN wires with twisted wires
each pins exactly.
ECU CAN H(Purple)
ECU CAN L(Brown)
(OEM LVDS Cable)
(Provided LVDS Cable)
OEM Monitor
Full Installation Diagram
※Optional External Devices
RV-CAM Video Input
DIP S/W Setting
12V Power Output & GND Output(RV-CAM Power)
Reverse Signal Detection(optional)
NAVI Audio Input
HDMI Device
FV-CAM Video Input
(AV1)
Audio Output
AV-Input(AV2)
Mode
Switch
(optional)
Navigation Box
OEM Monitor
Main Connector of
Head Unit
Navigation Box Touch Cable
for Navigation
HDMI
HDMI
(Female)
USB
‘Stick Type’ HDMI Devices
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
HDMI Device
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
HDMI Device
USB
HDMI
HDMI
(Male)
‘Dongle & Adapter’ Type HDMI Devices

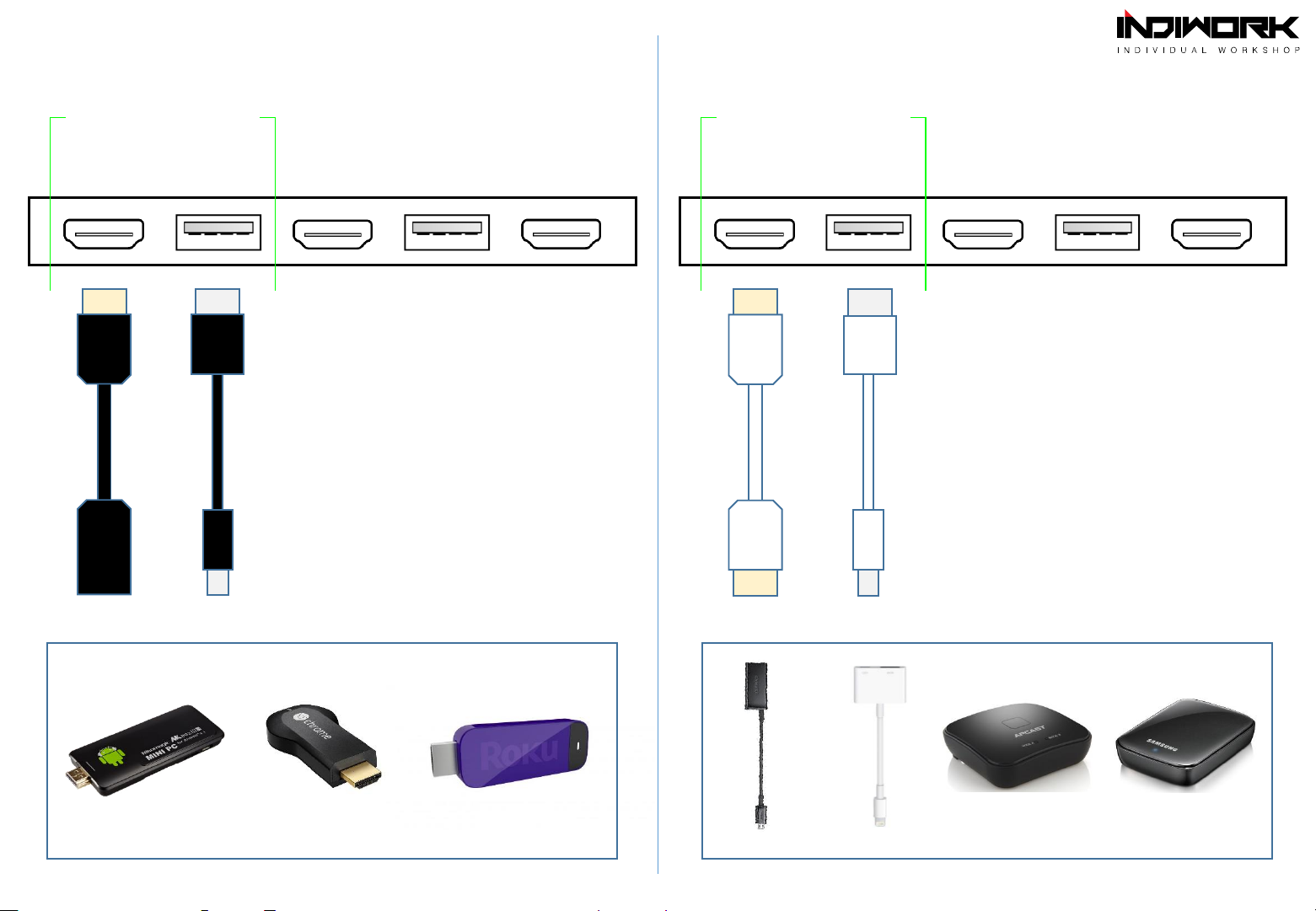

HDMI Connection Diagram
(5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device)
(HDMI Extender) (HDMI Cable)
9
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
Navigation Connection Diagram Navigation Connection Diagram
Navigation(GPS) Box Navigation(GPS) Box
10
Microcity - N-Link
HDMI
HDMI
USB
USB
(USB cable connecting is for ‘N-Link’ only.)
HDMI
I-NAVI X1 CUBE
HDMI
TOUCH
TOUCH
Model Country Dip S/W
(Navigation) Required Parts
MICROCITY
N-Link South Korea -
HDMI Cable
(HDMI to HDMI) USB A-A Cable
(USB to USB) Hazard Module
(Refer to Page.11)
iNAVI
X1 CUBE South Korea
OFF(↑): 1, 2, 3, 4 HDMI Cable
(HDMI to HDMI)
MYVI
MS1400 Digital South Korea
OFF(↓): 1, 2, 3
ON(↑) : 4 HDMI Cable
(HDMI to HDMI)
Compatibility Chart for Navigation(GPS) box models
•The 'IW04VW (HD-Link)' supports navigation(GPS) box models equipped with 'Digital video output'.
•It does not support the 'RGB video signals'. 12
1 2 3 4
ON
↑
1 2 3 4
OFF
↓
ON

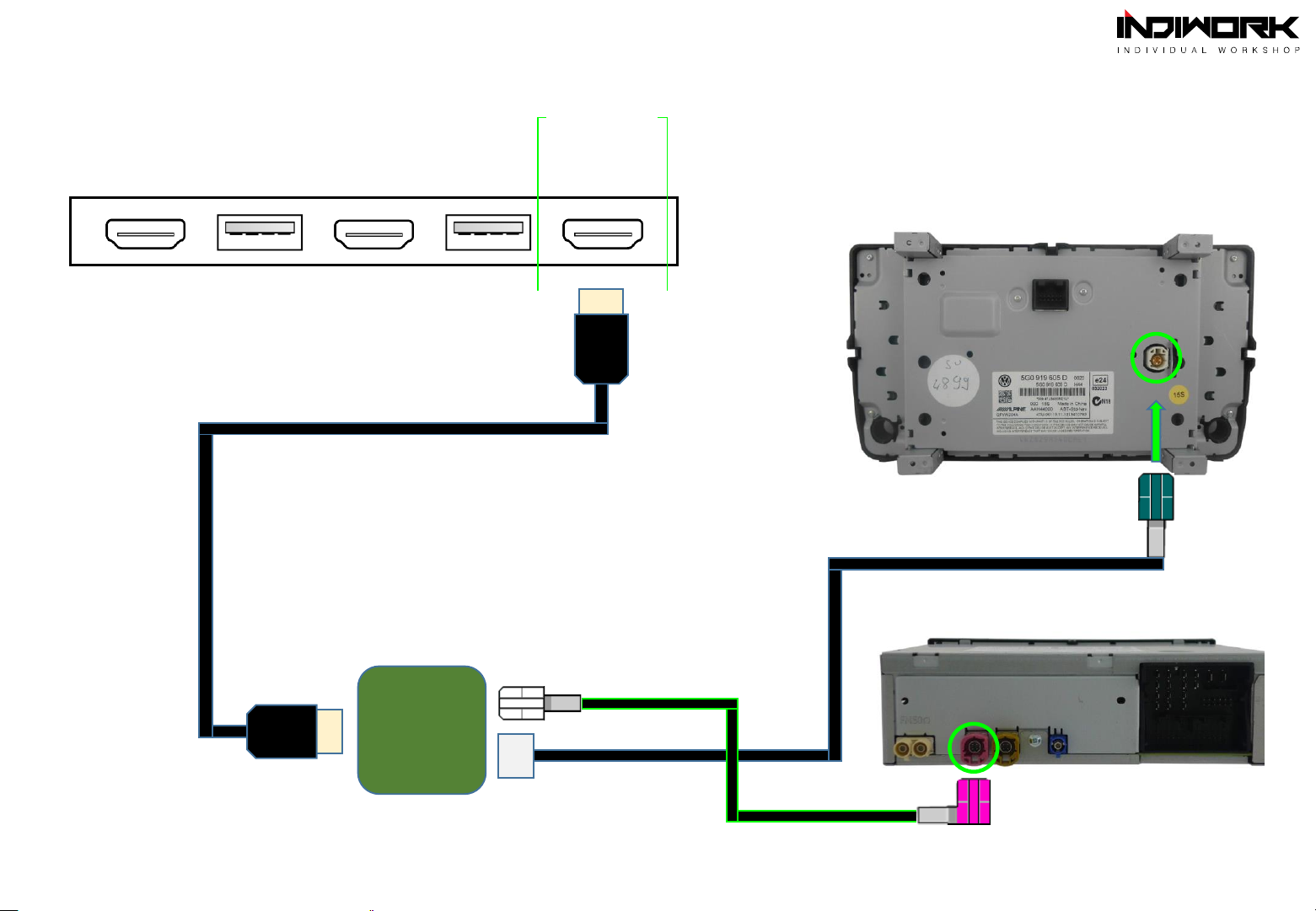

LVDS Connection Diagram
HDMI
HDMI
Multimedia System - OEM Head Unit
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
LVDS Connection
LVDS
IN / OUT
PCB
LCD
Cable (OEM LVDS Cable)
(Provided LVDS Cable)
13
OEM Monitor
(Connector Color: Pink or Gray)
•'Genuine(OEM) LVDS Connector' should be connected
to ‘LVDS IN / OUT PCB'.
• ‘Provided LVDS Connector' should be connected to the
OEM monitor instead to the genuine connector.
