INDIWORK IW03LX Manuel utilisateur

Instruction Manual

High-Definition Link for Lexus

IW03LX

Model Name IW03LX

Latest Firmware Date 2016 -09 -06

Manual Version Rev. 3.9

Language English

Release Date: 2016 - 12 -30

•Cautions

•Dimension & Exterior

•Components & Optional Parts

•Full Installation Diagram

•HDMI ConnectionDiagram

•Navigation Connection Diagram(Type B)

•Compatibility Chart for Navigation(GPS) Box Models

•GVIF IN / OUT Connection Diagram

•Body ConnectorSpecifications

•Car Compatibility Chart

•Activation by Original buttons

•DIP Switch Settings

______________________________________________________________ 3

__________________________________________________ 4

__________________________________________ 5

_______________________________________________ 6

_____________________________________________ 7

________________________________ 8

____________________ 9

____________________________________ 10

________________________________________ 11

_______________________________________________ 12

_________________________________________ 13

___________________________________________________ 14

Contents

IW03LX-related

•You should check the names and colors of each wires exactly, before you connect the wires.

ex) CAN HIGH: White wires / CAN LOW: Blue wires

• The ‘POWER / CAN Cable’ should always be connected last and be disconnected first.

•The 'Mode Switch' is an optional part to change modes forcibly without CAN-BUS.

Generally, the CAN-BUSwires are connected for changing modes by original buttons.

•When the reverse gear is not detected by CAN-BUS,

the 'REVERSE12V IN wire’ should be spliced with 12V power of reverse light.

HDMI device-related

•HDMI mode accepts general-screen resolution of HDMI devices(1080P / 1920*1080).

•Generally, '5V 1A Power output(5V USB POWER)' is a standard voltage for charging smartphone.

If you need higher voltage than 5V, you should add a separate power supply.

Navigation(GPS) box-related

•When you connect the power wires(B+, ACC) to the navigation(GPS) box,

the ‘NAVI (12V) OUT' wire supported by IW03LX should be spliced with an ACC wire of navigation box.

•The navigation box should be powered off before unplugging the HDMI cable.

Cautions

ⓐ ⓑ ⓒ ⓓ ⓔ

ⓕ ⓖ ⓗ ⓘ ⓙ

Width:142 mm

Length: 91 mm

Height: 22 mm

Exterior

Dimension

ⓐ

DIP SWITCH

ⓑ

AV IN / OUT

ⓒ

TOUCH IN

(Not Used)

ⓓ

MODE

ⓔ

POWER/ CAN

ⓕ

HDMI IN

ⓖ

5V USB POWER

ⓗ

NAVI IN

ⓘ

UART I/F

ⓙ

LVDS OUT

POWER / CAN Cable GVIF-IN Cable GVIF PCB HDMI Cable

(For GVIF) AV IN / OUT Cable 5-Pin Micro USB Cable

Mode SwitchHDMI Extender

(For stick type HDMI device)

HDMI Cable

(Male to Male)

GVIF-OUT Cable

Components

Optional Parts(sold separately at the indiwork)

External Rear View

Camera

Audio(AUX) Output of

Navigation Box

Auxiliary(AUX)

Input of the car

External Front View

Camera

AV device

(ex: DTV Box, Divx)

NAVI 12V Power Output(NAVI 12V OUT)

AUDIO-KEYCAN Hi(White)

*OEM Monitor –24-Pin Connector

Pin # 2 = ‘Blue’ Wire *Cut!!

Pin # 1 = Battery Power(B+ / Red)

Pin # 13 = ACC Power(Yellow)

Pin # 24 = Ground(GND / White/Black)

Ground Input(GROUND)

Battery Power Input(BAT +)

HDMI

HDMI USB

GVIF IN / OUT Connection

Monitor(OEM)

AUDIO-KEYCAN Lo(Blue)

GVIF

IN / OUT

PCB

HDMI

1 5 6 14

15 28

1 2 12

13 24

(OEM GVIF Cable)

HDMI

*Head Unit(OEM) –24-Pin Connector

Pin # 5 = CAN LOW (White)

Pin # 6 = CAN HIGH (Light Brown)

※Cut the genuine No.2 wire(Blue)!

*24-Pin Connector

Pin # 2 = Blue Wire

Full Installation Diagram

※Optional External Devices

Navigation Box

HDMI Device

AV-Input(AV2)

FV-CAM Video Input

(AV1)

NAVI Audio Input

Audio Output

RV-CAM Video Input

DIP S/W Setting

12V Power Output & GNDOutput(RV-CAM Power)

ReverseSignal Detection(optional)

Mode

Switch

(optional)

USB

HDMI

(Female)

USB

‘Stick Type’ HDMI Devices

HDMI IN 5V USB

POWER NAVI IN UART I/F LVDS OUT

HDMIDevice

HDMI IN 5V USB

POWER NAVI IN UART I/F LVDS OUT

HDMIDevice

USB

HDMI

(Male)

‘Dongle & Adapter’ Type HDMI Devices

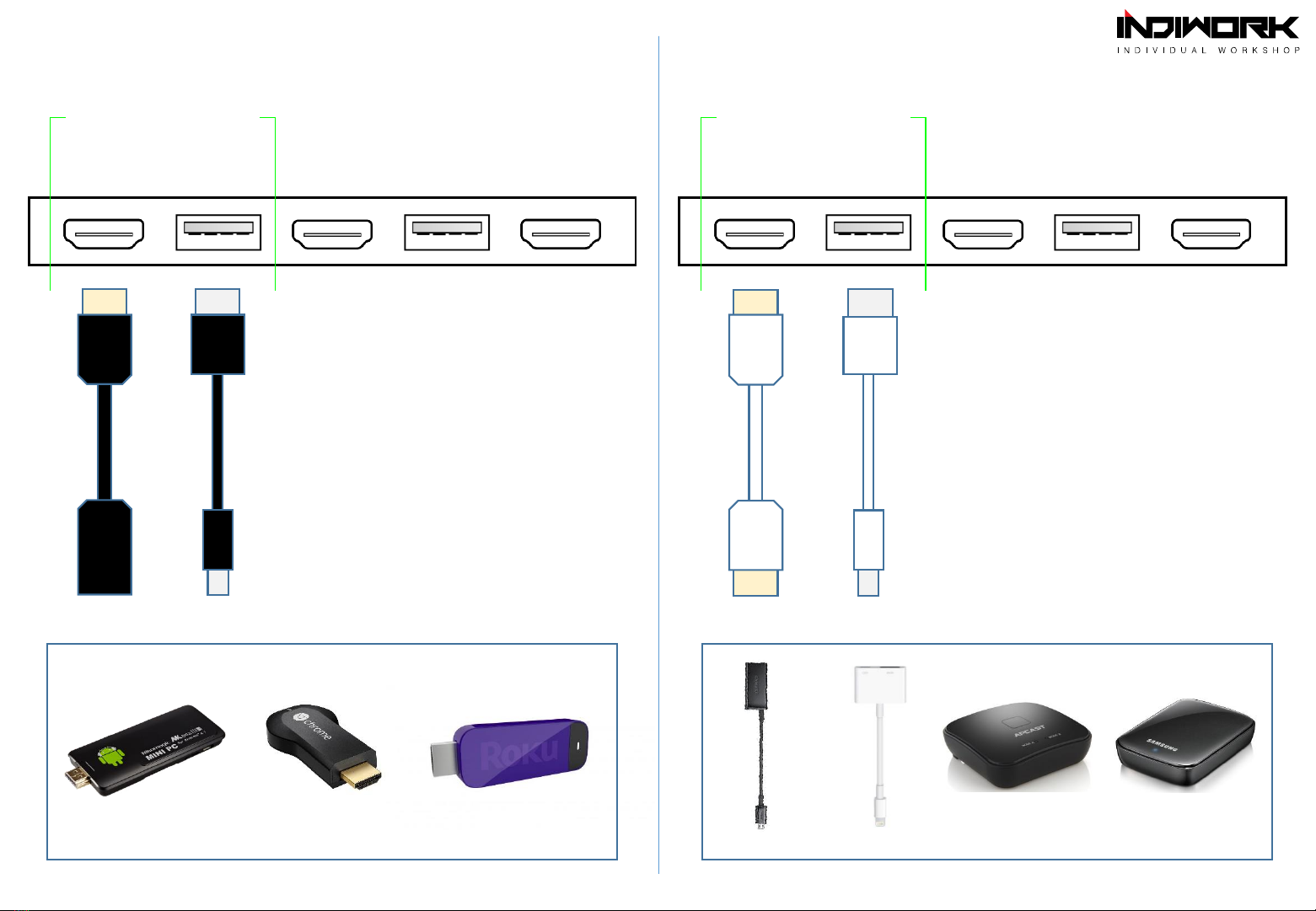

HDMI Connection Diagram

(5V-1A Power output for HDMI Device) (5V-1APower output for HDMIDevice)

(HDMIExtender) (HDMICable)

HDMI IN 5V USB

POWER NAVI IN UART I/F LVDS OUT HDMI IN 5V USB

POWER NAVI IN UART I/F LVDS OUT

HDMI Touch Screen Panel

HDMI

Navigation Connection Diagram(Type B)

Navigation(GPS) Box Navigation(GPS) Box

HDMI

Touch screen panel

USB

(USB Cable is connected with the ‘N-Link’, only)

MICROCITY - N-LinkI-NAVI X1 CUBE

Model Country Dip S/W

(Navigation) Required Parts

MICROCITY

N-Link South Korea -

HDMI Cable

(HDMI to HDMI) USB A-A Cable

(USB to USB)

MYVI

MS1400 Digital South Korea

OFF(↓): 1, 2, 3

ON(↑) : 4 HDMI Cable

(HDMI to HDMI)

iNAVI

X1 CUBE South Korea

OFF(↑): 1, 2, 3, 4 HDMI Cable

(HDMI to HDMI)

1 2 3 4

↑

Compatibility Chart for Navigation(GPS) box models

•The 'IW03LX(HD-Link)' supports navigation(GPS) box models equipped with 'Digital video output'.

•It does not support the 'RGB video signals'.

1 2 3 4

OFF

↓

(Provided GVIF OUT Cable)

HDMI

‘Display Audio’ Head Unit(OEM)

HDMI IN 5V USB

POWER NAVI IN UART I/F LVDS OUT

GVIF

IN / OUT

PCB

LCD

Cable

(OEM GVIF Cable)

(Provided GVIF IN Cable)

Monitor(OEM)

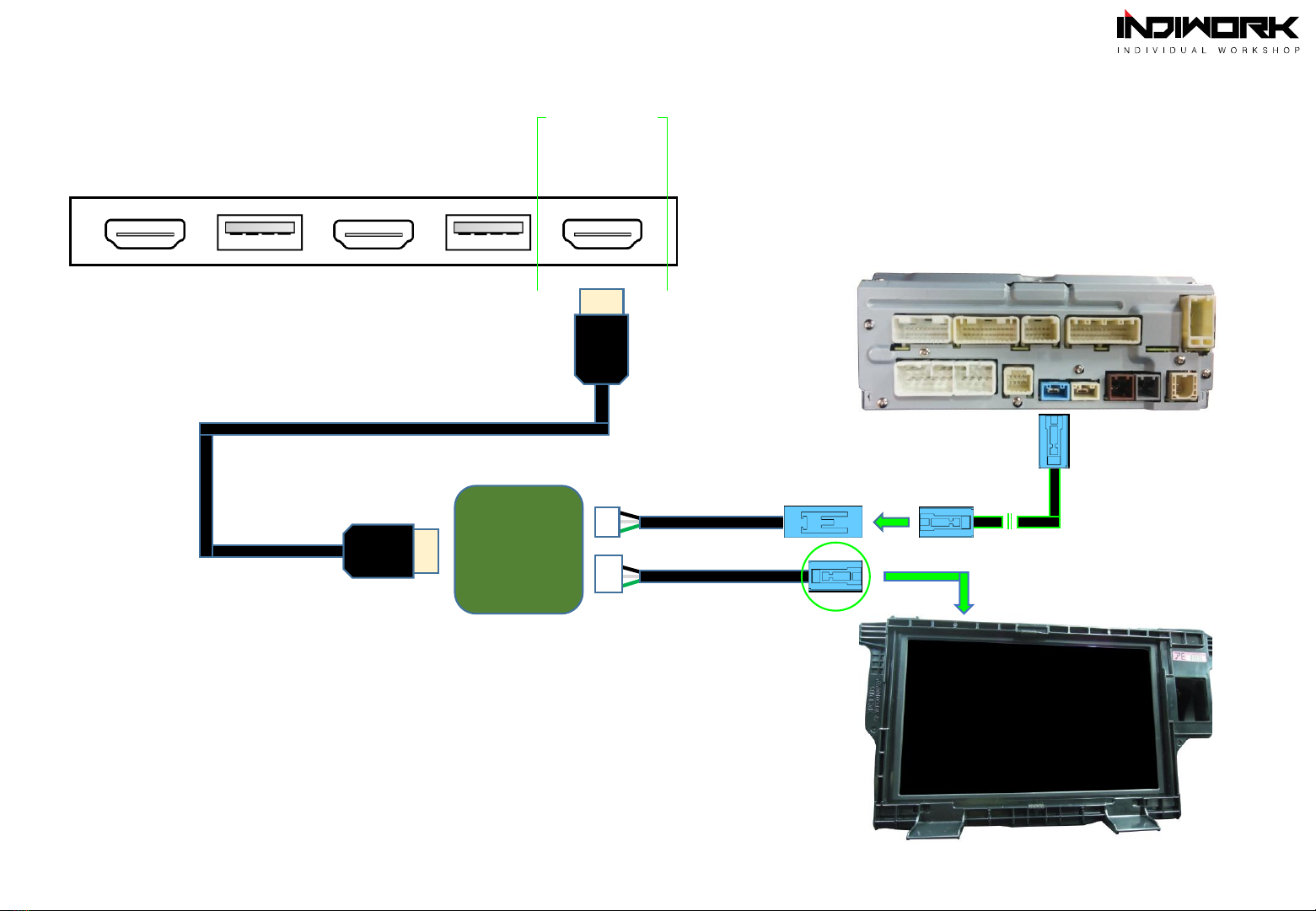

GVIF Connection Diagram

GVIF Connection

•'Genuine(OEM) GVIF Connector' should be connected

to ‘GVIF IN Connector'.

• ‘Provided GVIF OUT Connector' should be connected to

the OEM monitor instead to the genuine connector.
