IMT TH20K167 Manuel utilisateur

Manual # 99905542

TH20K167 Manual

Revised 20141008

IOWA MOLD TOOLING CO., INC.

PO Box 189

Garner, IA 50438

Tel: 641-923-3711 FAX: 641-923-2424

Website: http://www.imt.com

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any

form or by any means, electronic, mechanical, photocopying, recording or otherwise without the

prior written permission of Iowa Mold Tooling Co., Inc.

Iowa Mold Tooling Co., Inc. is an Oshkosh Corporation Company.

Courtesy of Crane.Market

Contents

Revisions ....................................................................................................................................................iii

Tirehand Introduction 5

TH20K167 Specifications 7

General Specifications..................................................................................................................................8

Dimensional Drawing, Forklift Mounting ....................................................................................................9

Dimensional Drawing, Loader Mounting...................................................................................................10

Capacity Chart............................................................................................................................................11

Installation 13

Tirehand Installation Introduction ..............................................................................................................14

Typical Tirehand Hydraulic Installation.....................................................................................................15

Loader Installation......................................................................................................................................16

Lift Truck Installation.................................................................................................................................17

Bulkhead Installation..................................................................................................................................18

Valvebank Installation................................................................................................................................19

Operation 21

Operator Training .......................................................................................................................................21

Tirehand Intended Use and Identification...................................................................................................22

TH20K167 Component Identification........................................................................................................22

Tirehand Equipment Inspection..................................................................................................................23

Work Station Positioning............................................................................................................................23

Tirehand Controls.......................................................................................................................................24

Tirehand Fallback Arms .............................................................................................................................25

Tirehand Task Performance........................................................................................................................26

Tirehand Operating Restrictions.................................................................................................................28

Tirehand Electrical Safety ..........................................................................................................................29

Tirehand Warnings .....................................................................................................................................30

Maintenance 33

Tirehand Maintenance Introduction............................................................................................................33

Tirehand Lubrication Points .......................................................................................................................34

Purging Tirehand Trapped Air....................................................................................................................34

Hydraulic System........................................................................................................................................34

Tirehand Preventative Maintenance ...........................................................................................................35

Tirehand Inspection Chart ..........................................................................................................................37

Tirehand Repair 39

Tirehand Troubleshooting...........................................................................................................................40

Tirehand Cylinders .....................................................................................................................................41

Courtesy of Crane.Market

ii Contents

Replacement Parts ......................................................................................................................................42

Tirehand Hydraulic Motors ........................................................................................................................43

Tirehand Relief Valve Adjustment .............................................................................................................43

Tirehand Bearings.......................................................................................................................................44

Turntable Bearing Thread Tightening Sequence ........................................................................................46

Turntable Bearing Inspection......................................................................................................................47

Thread Torque Chart (English)...................................................................................................................48

Thread Torque Chart (Metric) ....................................................................................................................49

Tirehand Parts 51

Tirehand Parts Ordering Information..........................................................................................................52

Hand Assembly (40724866).......................................................................................................................53

Sub Base Assembly (40724867).................................................................................................................55

Body Assembly (40724868).......................................................................................................................56

Clamp Assembly (40724869).....................................................................................................................57

Sub Base Assembly - Short (40724903).....................................................................................................58

Sub Base Assembly w/o Side Shift (40724910).........................................................................................59

Cylinder (51724564)...................................................................................................................................60

Cylinder (51724567)...................................................................................................................................61

Cylinder (3B282930)..................................................................................................................................62

Cylinder (3B287930)..................................................................................................................................63

Camera Kit – Dual (40724922) ..................................................................................................................64

Hydraulic Kit w/Valve Bank (91724907)...................................................................................................65

Valvebank (73734735) ...............................................................................................................................66

Valvebank Schematic (73734735)..............................................................................................................67

Hydraulic Kit w/o Valve Bank (91724923)................................................................................................68

Harness – Tirehand Radio Remote (77441524)..........................................................................................69

Harness – Tirehand Chassis Interface(77441525)......................................................................................71

Harness – Tirehand Radio Remote (77441525)..........................................................................................72

Decal Kit (95724918) .................................................................................................................................73

Recommended Spare Parts .........................................................................................................................74

Radio Remote 75

Camera Option 77

Camera Kit – Dual (40724922) ..................................................................................................................78

MONITOR-DUAL VISION

(77734784)

.................................................................................................79

Camera-For Dual Vision Monitor

(77734785)

.......................................................................................103

Cable-Coax 65’ for Dual Vision Monitor (77734786) .............................................................................107

Courtesy of Crane.Market

iii

Revisions

DATE

LOCATION

DESCRIPTION

20130603

Pages 51-64

Added parts information.

20130711

Chapter 8

Added camera option information per engineering.

20131003

73734735

Added per engineering mark-up

20131010

Chapter 8/9

Added Radio Remote Chapter 8. Chapter 9 was 8.

20141008

Chapter 7

Added cylinders.

40724866

ECN 12249 – Added 53000700, 72053638, 72060738 & 7Q072112

40724868 ECN 12249 – Added 53000713, 72053301, 72053508, 72531130 & 77045927

40724867

ECN 12250 – 51724677 was 51724564

Courtesy of Crane.Market

This manual includes operation, safety, and maintenance instructions and replacement parts for

your IMT Tirehand.

In addition to reading the manual, it is your responsibility to become familiar with government

regulations, hazards, and the specific operation of your equipment. Use caution and common

sense while operating and maintaining the equipment and follow all safety procedures and

regulations. Treat this equipment with respect and service it regularly.

MODIFICATIONS

Modifications to your equipment must be performed with IMT approved accessories, parts and

optional equipment. If in doubt, contact IMT prior to making any modifications. DO NOT alter or

modify any safety device! All safety devices must be inspected, tested and maintained in proper

working condition.

Decals regarding safety and operation are considered safety equipment, and must be kept clean

and legible.

The equipment owner and/or designated employee is responsible for informing all operators,

maintenance personnel, and others involved in equipment operation about the safe operation and

maintenance of the equipment. If questions arise concerning safe operation, contact IMT or your

IMT distributor for clarification.

WARRANTY

Warranty of this unit will be void on any part of the unit subjected to misuse due to overloading,

abuse, lack of maintenance and unauthorized modifications. No warranty - verbal, written or

implied - other than the official, published IMT new machinery and equipment warranty will be

valid with this unit.

NOTICE TO THE OWNER / USER

If your equipment is involved in a property damage accident, contact your IMT distributor

immediately and provide them with the details of the accident and the serial number of the

equipment. If an accident involves personal injury, immediately notify your distributor and IMT

Technical Support at:

IOWA MOLD TOOLING CO., INC.

500 HWY 18 WEST

GARNER, IA 50438

641 - 923 - 3711

Tirehand Introduction

CHAPTER 1

Courtesy of Crane.Market

6 TH20K167 Manual #99905542

RESPONSIBILITY

It is the user’s responsibility to maintain and operate this unit in a manner that will result in the

safest working conditions possible. In addition, it is the user’s responsibility to be aware of

existing Federal, State, and Local codes and regulations governing the safe use and maintenance

of this equipment.

MANUAL STRUCTURE

Throughout this manual, four means are used to draw the attention of personnel. They are NOTEs,

CAUTIONs and WARNINGs and DANGERs and are defined as follows:

NOTE

ANOTE is used to either convey

additional information or to provide

further emphasis for a previous point.

CAUTION

ACAUTION is used when there is the

very strong possibility of damage to the

equipment or premature equipment

failure.

WARNING

A WARNING is used when there is the

potential for personal injury or death.

DANGER

Danger indicates an imminently hazardous

situation which, if not avoided, will result

in death or serious injury. Danger is used

in the most extreme situations.

Courtesy of Crane.Market

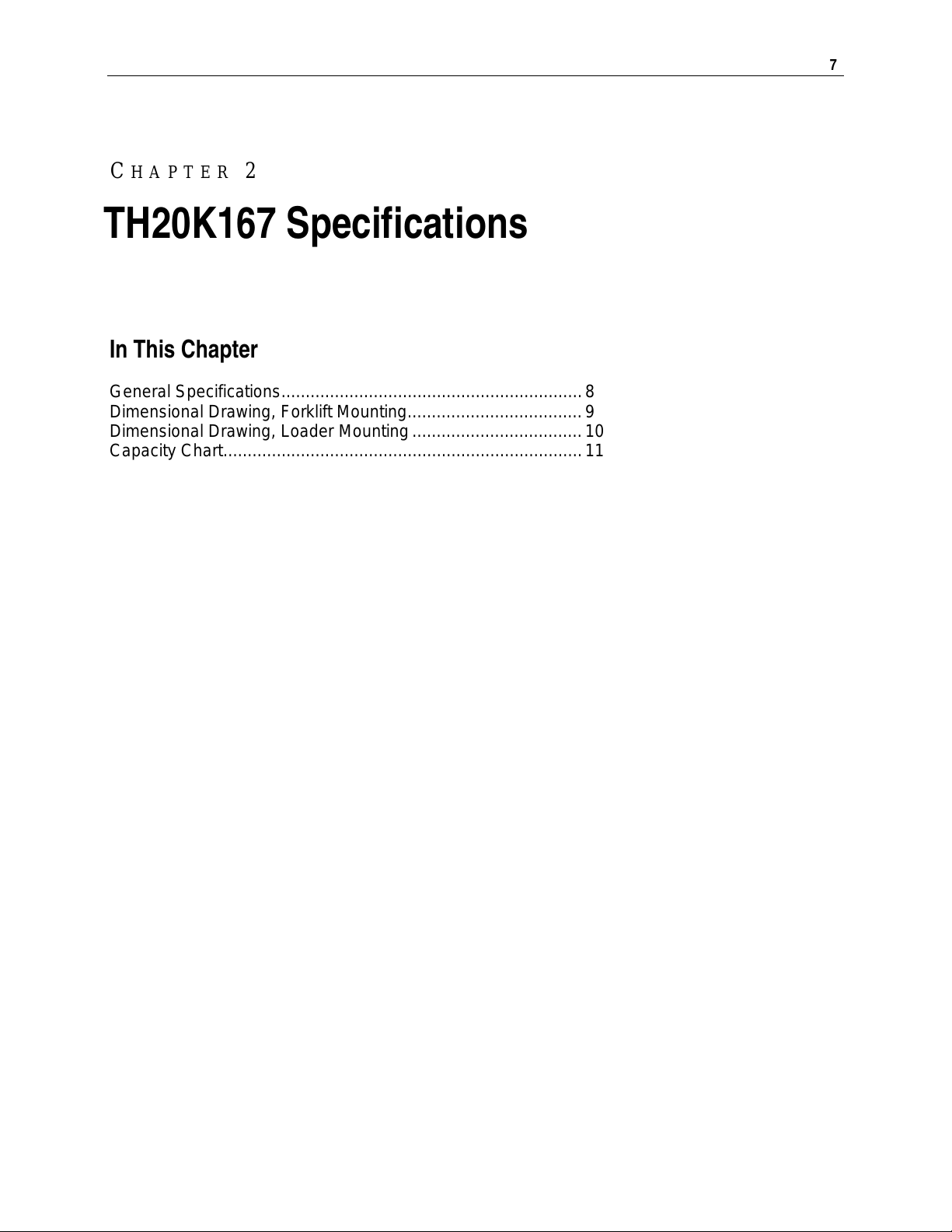

In This Chapter

General Specifications..............................................................8

Dimensional Drawing, Forklift Mounting....................................9

Dimensional Drawing, Loader Mounting...................................10

Capacity Chart..........................................................................11

CHAPTER 2

20K167 Specifications

Courtesy of Crane.Market

8 TH20K167 Manual #99905542

General Specifications

GENERAL SPECIFICATIONS

TIREHAND MAXIMUM CAPACITY 20,000 lb (9072 kg)

BODY ROTATION

100° Cylinder Rotation

PAD ROTATION SYSTEM

360° Rotating Pads

TIREHAND WEIGHT (FORKLIFT MOUNTED)

10,500 lb (4763 kg)

TIREHAND WEIGHT (LOADER MOUNTED)

11,650 lb (5284 kg)

CLAMPING SPAN

50" to 167" (127 – 424 cm)

HORIZONTAL CENTER OF GRAVITY FROM

VEHICLE ATTACHMENT POINT

Forklift-mounted tirehand with 20,000 lb (9072 kg) tire &

rim assembly at 158" (401.3 cm) clamp opening

87.5" (222 cm)

Loader-mounted tirehand with 20,000 lb (9072 kg) tire

& rim assembly at 158" (401.3 cm) clamp opening

90.5" (230 cm)

METHOD OF CLAMPING

Parallelogram

CLAMPING LOAD HOLDING VALVES

Counterbalance valve

HYDRAULIC CONTROL VALVE

Located on body assembly

HYDRAULIC CONTROLS

5-function remote control (radio or cab-mounted)

OPTIMUM PUMP CAPACITY (supplied from carrier

vehicle)

12 U.S. GPM (45.4 liters/min) @ 2500 - 3000 PSI

(172.4 – 207 bar)

COUNTERWEIGHT NEEDED

As required for stabilization

STANDARD FEATURES

Hydraulic fallback protection

Rim flange hardware on pads

Forklift or loader mounting

OPTIONAL FEATURES

Electric controls

Lateral shifting capabilities

VEHICLE COMPATIBILITY

The Tirehand TH20K167 will permanently adapt to either a forklift truck or a front-end loader. When mounting to a

forklift truck, it is recommended that the truck be equipped with a sideshifter. If adapted to a front-end loader, quick

couplers are available which enable the disconnection of the Tirehand so that the original bucket can be quickly

coupled to the machine for normal operations.

IMT reserves the right to change specifications and design without notice. Where applicable, specifications are in

accordance with SAE standards and ISO/DIS 3691-1, the international standard for Industrial Trucks - Safety

Requirements and Verification.

IOWA MOLD TOOLING CO., INC.

BOX 189, GARNER, IA 50438-0189

TEL: 641-923-3711 FAX: 641-923-2424

Courtesy of Crane.Market

Table des matières

Manuels Matériel de construction populaires d'autres marques

SASFORKS

SASFORKS EXTREME Manuel utilisateur

Hailo

Hailo H-50 Manuel utilisateur

Graco

Graco LineLazer ES 1000 Manuel d'utilisation et d'entretien

Greenlee

Greenlee 555RSC Manuel utilisateur

Manitowoc

Manitowoc Grove CD3340B Manuel utilisateur

Lux Tools

Lux Tools A-FMR-20 Set Manuel utilisateur

SIP

SIP 03683 Manuel utilisateur

Volvo

Volvo L30G Manuel utilisateur

Grizzly

Grizzly G8712 Manuel utilisateur

Modulift

Modulift CMOD 12 Manuel utilisateur

Case

Case DV201 Manuel utilisateur

Sealey

Sealey SC10.V2 Manuel utilisateur

Wacker Neuson

Wacker Neuson DT05 Manuel utilisateur

HYVA

HYVA AMCO VEBA 81 Series Manuel utilisateur

Atlas Copco

Atlas Copco Dynapac V5100TV Manuel utilisateur

Toro

Toro 323 Manuel utilisateur

Manitowoc

Manitowoc National Crane 1400A Manuel utilisateur

SGS

SGS EC1500 Manuel utilisateur
