Impex MCB-5700 Manuel utilisateur

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

MCB-5700

Retain This

Manual for

Reference

07-12-06

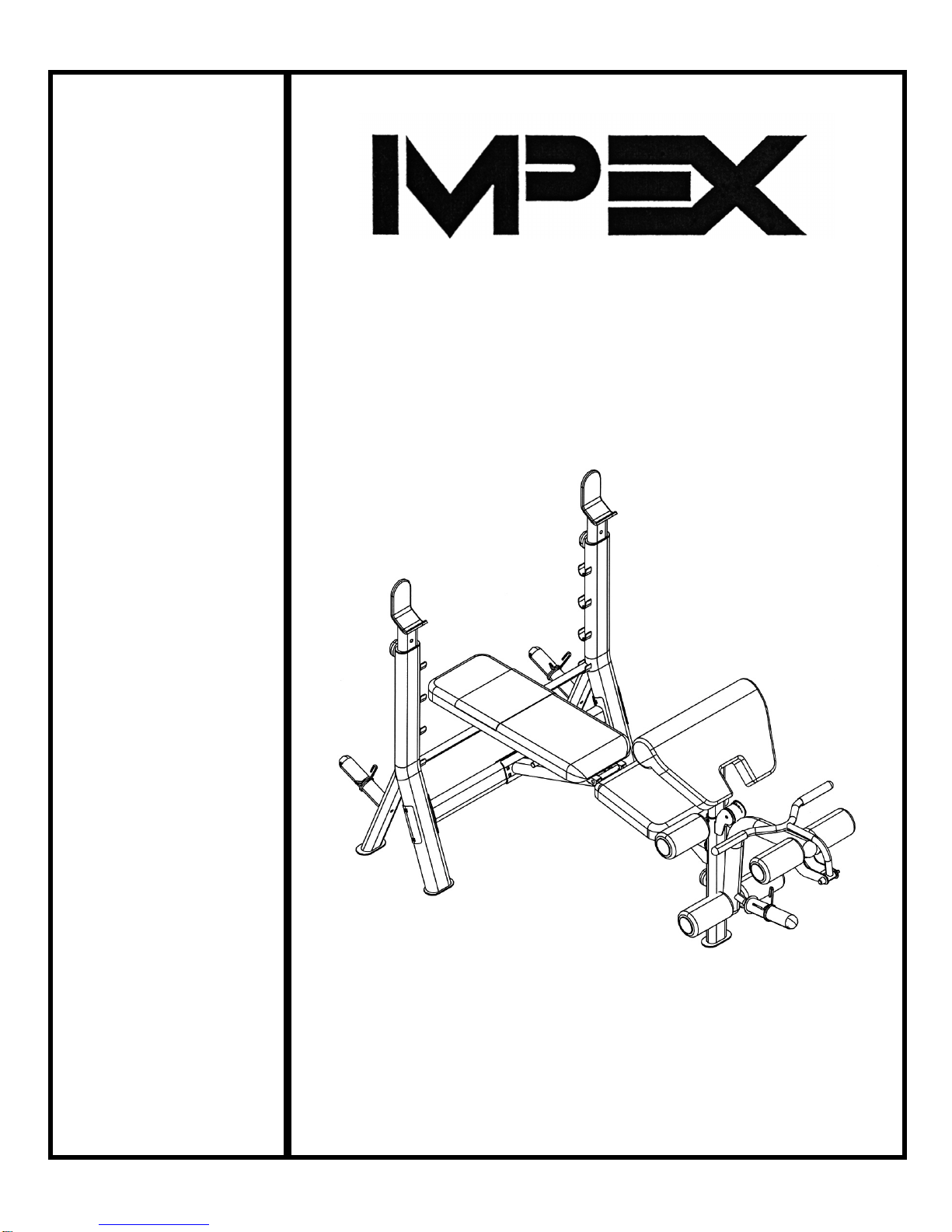

OWNER'S

MANUAL

MARCY CLASSIC

Deluxe Mid-Size Bench

MCB-5700

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICE....................................................................... 2

HARDWARE PACK……….....…....................................................................... 4

ASSEMBLY INSTRUCTIONS........................................................................... 5

EXPLODED DIAGRAM.........................................................................………. 9

PARTS LIST…………………………………………………………………………. 10

WARRANTY.................................................................................................… 11

ORDERING PARTS......................................................................................... 11

BEFORE YOU BEGIN

Thank you for selecting the Marcy Classic Deluxe Mid-Size Bench MCB-5700

by IMPEX®Inc. For your safety and benefit, read this manual carefully before

using the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are

missing or damaged parts, we guarantee you complete satisfaction through

direct assistance from our factory. To avoid unnecessary delays, please call

our TOLL-FREE customer service number. Our Customer Service Agents will

provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN

IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Inspect and tighten all parts before using the machine.

2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

3. Maximum weight capacity 600 lbs. including the user’s weight.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE

SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

WARNING LABEL PLACEMENT

The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please

call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches. NOTE: It is strongly recommended two or more people assembling this

machine to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Connect the Left & Right Upright Beams (#1 & #2) by a Cross Brace (#4) in the mid-

span. Align the holes and secure each end with two M10 x 4 ¾” Carriage Bolts (#33),

one 5 ½” x 1 ¾” Bent Bracket (#13), two ∅¾” Washers (#42), and two M10 Aircraft

Nuts (#45).

B.) Insert two Crutches (#6) into the top openings on the Upright Beams. Secure them with

two Lock Knobs (#26) through selected holes to obtain desired height of the Supports.

C.) Place the Backrest Adjustment Bar (#5) onto the selected slot on Upright Beams.

D.) Attach the Weight Post (#11) to each Upright Beam. Secure it with one M10 x 1” Allen

Bolt (#36) and ∅¾” Washer (#42). Attach one Olympic Sleeve (#25) to each Post.

Attach a Spring Clip (#22) to each Sleeve.

STEP 2 (See Diagram 2)

A.) Attach the Main Seat Support (#3) to the Leg Developer Holder (#9). Secure it with two

M10 x 2 3/8” Carriage Bolts (#35), one 2 ¾” x 3” Bent Bracket (#15), two Ø ¾” Washers

(#42), and two M10 Aircraft Nuts (#45) vertically. Secure it with one M10 x 4” Carriage

Bolt (#34), ∅¾” Washer (#42), and M10 Aircraft Nut (#45) horizontally.

B.) Attach the Main Seat Support (#3) to the Cross Brace (#4). Secure it with four M10 x 2

3/8” Carriage Bolts (#35), one 5 ½” x 3” Bracket (#14), four ∅¾” Washers (#42), and

four M10 Aircraft Nuts (#45). DIAGRAM 2

STEP 3 (See Diagram 3)

A.) Attach the Backrest Incline Support (#10) in between the two side-holes on the

Backrest Supports (#12). Attach the Backrest Supports to the pivot on the Main Seat

Support (#3). Secure it with one M12 x 6 ¾” Hex Bolt (#40), two ∅1” Washers (#41),

and one M12 Aircraft Nut (#44).

B.) Place the other end of Backrest Supports rest against the Backrest Adjustment Bar.

C.) Place the Backrest Board (#17) onto the Backrest Supports (#12). Secure it with four

M8 x 1 5/8” Allen Bolts (#38) and Ø 5/8” Washers (#43).

D.) Place the Seat (#18) onto the Main Seat Support. Secure it with four M8 x 1 5/8” Allen

Bolts (#38) and ∅5/8” Washers (#43). DIAGRAM 3

STEP 4 (See Diagram 4)

A.) Attach the Leg Developer (#8) to the Leg Developer Holder (#9). Secure it with an

Axle (#23), two M10 x 5/8” Allen Bolts (#37), and two Ø ¾” Washers (#42).

B.) Insert one Foam Tube (#16) halfway through the hole on the Leg Developer Holder.

Insert two Foam Tubes halfway through the holes on the Leg Developer.

C.)Push six Vinyl Foam Rolls (#24) onto the Tubes from both ends. Plug six Foam Roll

End Caps (#27) into the ends.

D.)Attach an Olympic Sleeve (#25) onto the weight post on the Leg Developer. Attach a

Spring Clip (#22) to the Sleeve.

E.) Attach the Arm Curl Pad (#19) to the Arm Curl Stand (#7). Secure it with two M8 x

5/8” Allen Bolts (#39) and two Ø 5/8” Washers (#43).

F.) Insert the Arm Curl Stand into the opening on the Leg Developer Holder. Secure it

with a Lock Knob (#26).

G.)Attach the Arm Curl Handle (#46) to the bracket on the Leg Developer. Secure it with

a Lock Pin (#48). Pull off the Pin and remove Arm Curl Handle and Arm Curl Stand

when doing Leg Developer exercises. DIAGRAM 4
