PS16-Mini-R / T
PowerSync Mini
Digital Radio Slave
INSTRUCTIONS
2.4 GHz 80-Channel
Transceiver
2.4GHz
2
Thank you for choosing Impact.
Impact’s PowerSync Mini is a sixteen-channel radio slave system
that’s a reliable, professional-grade solution to remotely trigger
portable on-camera ashes and studio monolights.
Add additional receivers, and the PowerSync Mini system will
control multi-light setups and allow you to trigger as many ash
units as your setup requires.
The PowerSync Mini system features 16 user-selectable
channels that allow you to work in the most demanding
conditions, without fear of interference from other photographers
or radio slave systems in the area. The 2.4 GHz radio signal
lets you control your ashes without line-of-sight, and it offers
an exceptional operating range of 328 ft. (100 m) as well as a
maximum sync speed of 1/200 sec.
The receiver is equipped with a multi-use hot shoe that’s
compatible with most on-camera ash units. Connecting the
receiver to a camera with a compatible release cable (not
included) makes it possible to trigger a single- or multi-camera
setup by using the transmitter as a handheld remote.
Introduction
3
Precautions
• Please read and follow these instructions, and keep this manual in a
safe place.
• Keep this unit away from water and any ammable gases or liquids.
• Do not attempt to disassemble or repair the equipment—doing so will
void the warranty, and Impact will not be responsible for any damage.
• The Impact PowerSync is an accessory device for ash photography.
Do not use this product in a manner not specied within this
documentation.
• Use only the batteries recommended by this manual.
• Install fresh batteries into the PowerSync System. Make sure to
align batteries with proper polarity. Weak batteries will shorten the
distance of transmission and reception.
• Turn your equipment off before changing batteries.
• Remove all power sources from the unit before long-term storage to
prevent the product from igniting or leaking corrosive liquids.
• All images are for illustrative purposes only.
4
Overview
13.5 mm ash sync
output
2Channel selector
3Hot shoe
4Power switch
5LED indicator
6USB port
7Lanyard hole
8Battery compartment
9Battery compartment
lock
10 1/4-20 socket
PS16-Mini-R Receiver
17
5
6
9
8
10
4
3
2
5
Overview
11 Locking wheel
12 Channel selector
13 LED indicator
14 Test button
15 Mounting foot
16 Battery door release
17 Power switch
PS16-Mini-T Transmitter
14
13
12
17
11
15
16
6
18 1/4 in. adapter
19 3.5 mm ash sync connector
20 Cradle with adhesive strips
21 Flash sync cable
22 Lanyard with pin tool
PS16-Mini Accessories
Overview
20
1918
22
21
7
Installing the Batteries
Receiver
1. Remove the receiver from its cradle.
2. Press the battery compartment lock and
open the battery compartment door.
3. Place two AA batteries into the battery
compartment, with the orientation shown
in the diagrams inside the compartment.
4. Close the battery compartment door until
it locks shut.
Overview
Transmitter
1. Use the tip of a pen or the included
lanyard pin tool to press the battery
door release, and open the battery
compartment door.
2. Place a CR2450 battery into the battery
compartment with the orientation shown
in the diagram inside the compartment.
3. Close the battery compartment door until
it locks.
8
Synchronizing Channels
For the PowerSync system to work properly, the transmitter and
receiver must be set to the same channel.
The lanyard features a pin tool for changing the DIP switches.
To set the channel, follow these steps:
1. Make sure both units are turned off.
2. Use the diagram below to set the
DIP switches on the transmitter and
receiver to the same conguration.
3. Turn on the transmitter and receiver.
4. To test the setup, press the test button
on the transmitter. The receiver’s LED
indicator will ash to indicate correct
synchronization.
The PowerSync Mini is backward compatible with the PowerSync 16 and
PowerSync 16-80 systems (see Backward Compatibility below.)
Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8
Channel 9 Channel 10 Channel 11 Channel 12 Channel 13 Channel 14 Channel 15 Channel 16
Channel
9
Synchronizing Channels

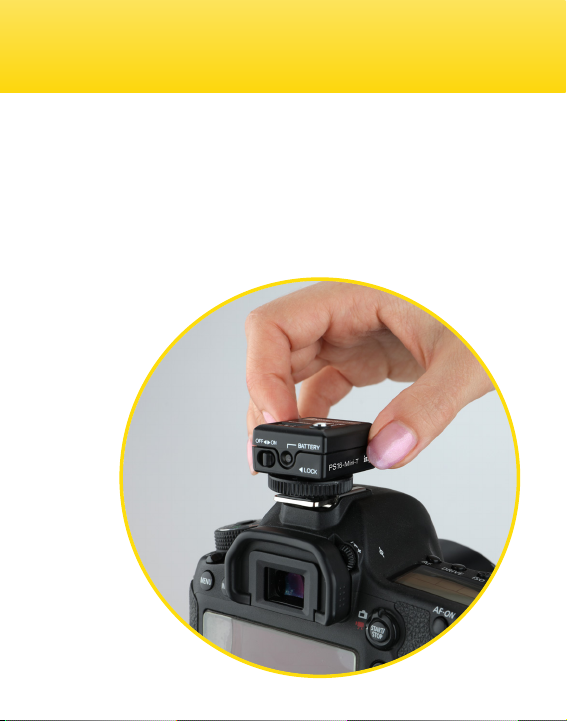

1. Slide the transmitter into your camera’s hot shoe.
2. The test button should be at the back, on the same side as the
viewnder.
3. Then tighten the locking wheel until secure.
Setting Up the Transmitter
10
Setting Up the Receiver
Slide the ash directly onto the
receiver’s hot shoe.
Remove the cradle to expose
the 1/4-20 socket. You can now
mount your ash directly onto a
tripod, light stand, or mounting
arm with a 1/4-20 screw.
Use the ash sync cord to
connect the receiver directly to
the monolight’s sync socket.
If the monolight has a 1/4 in.
sync socket, use the included
1/4 in. adapter on one end of the
sync cable.
With a Portable Flash Unit
With a Monolight
